XD-621 Induction Touch Switch

Regular price
Rs. 1,116
Sale price
Rs. 1,116
Regular price
Rs. 1,455
You save Rs. 339
23% off
You save Rs. 339
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • On-chip active low noise PGA with selectable gain of 3264 and 128
  • On-chip power supply regulator for load-cell and ADC analog power supply
  • On-chip oscillator requiring no external component with optional external crystal
  • High safety performance, long lifespan, attractiveness, and generosity are the first thing that we consider when creating high-end products.
  • This touch switch can ensure customer safety by effectively preventing inside and outside world interference.

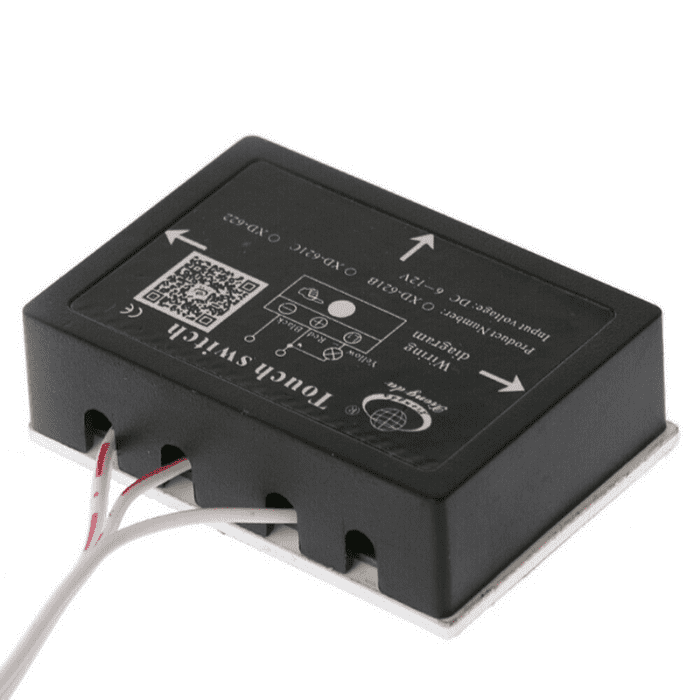

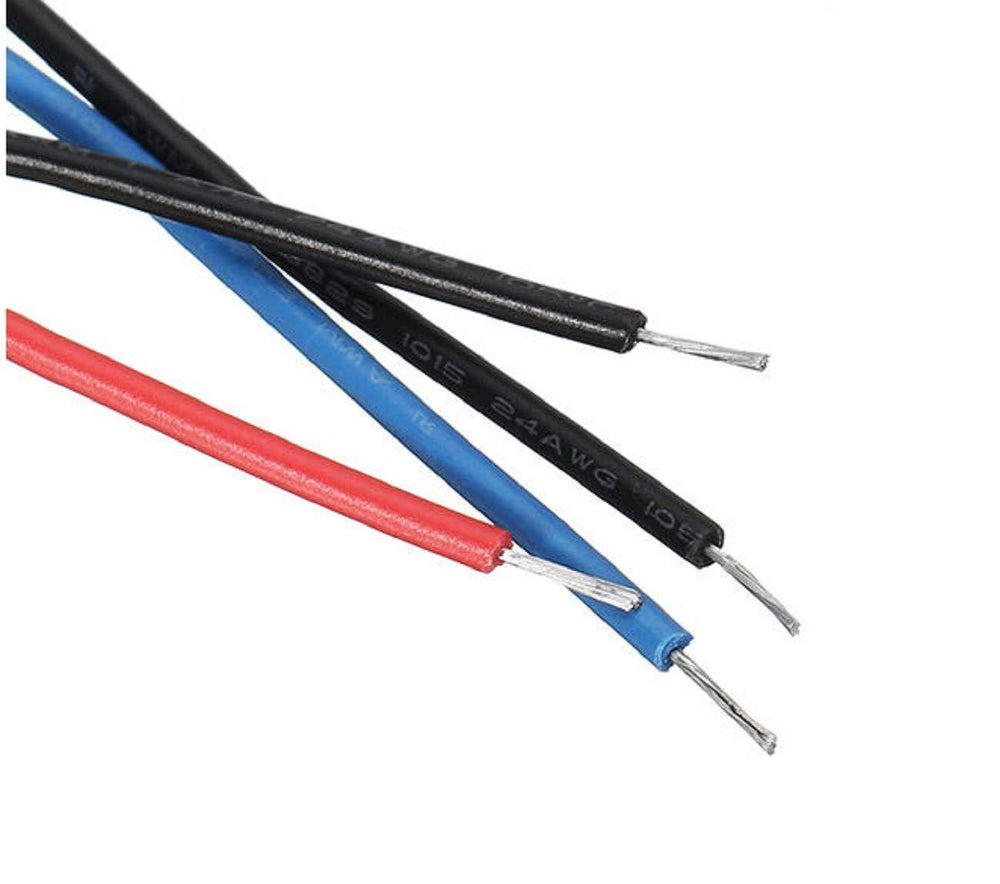

  • Connect the red and black wires to the AC 220V input. The AC 220V output lamp was connected to the other black and blue line. On the back of the mirror is a black touch head.

XD-621 Induction Touch Switch

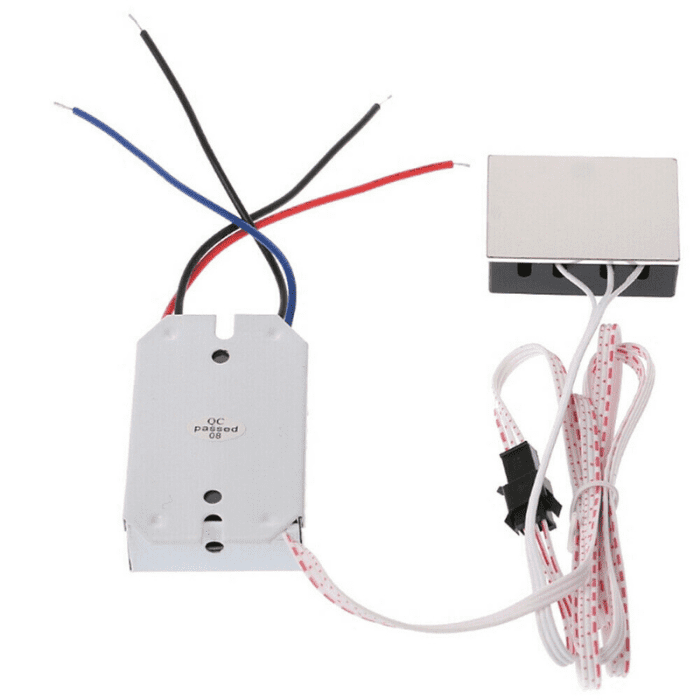

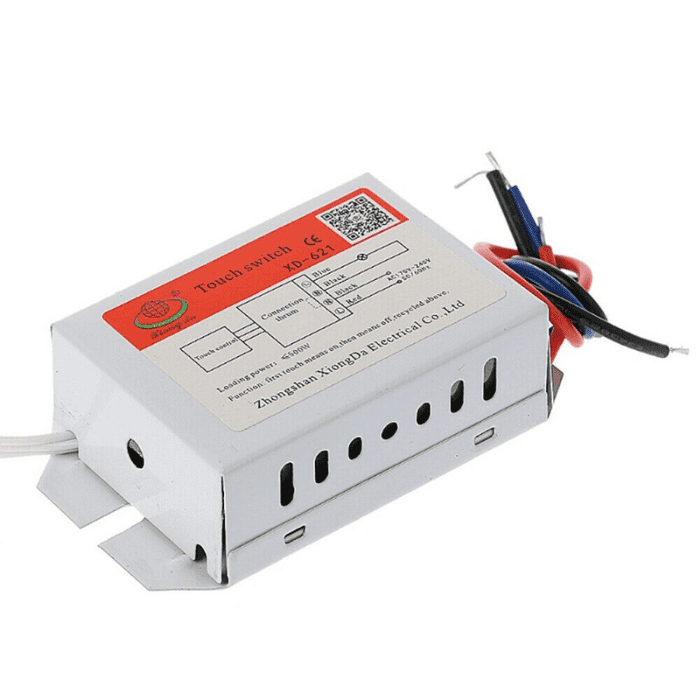

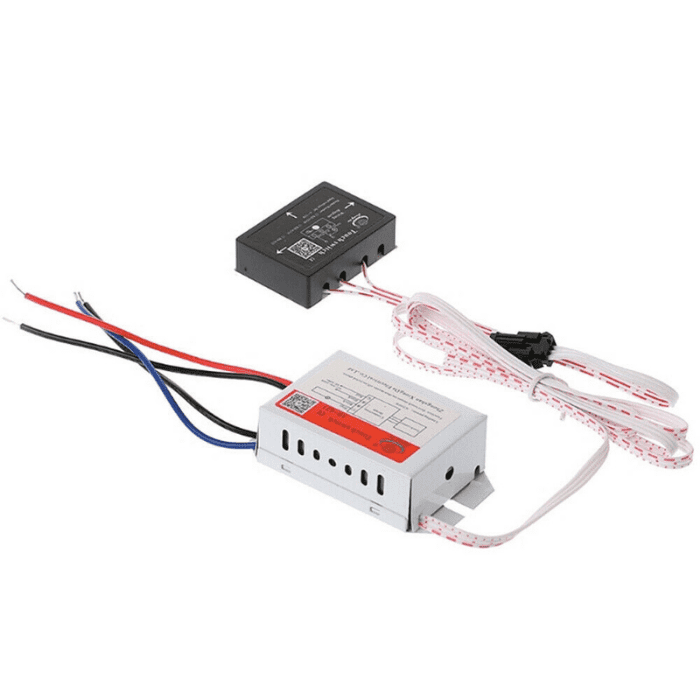

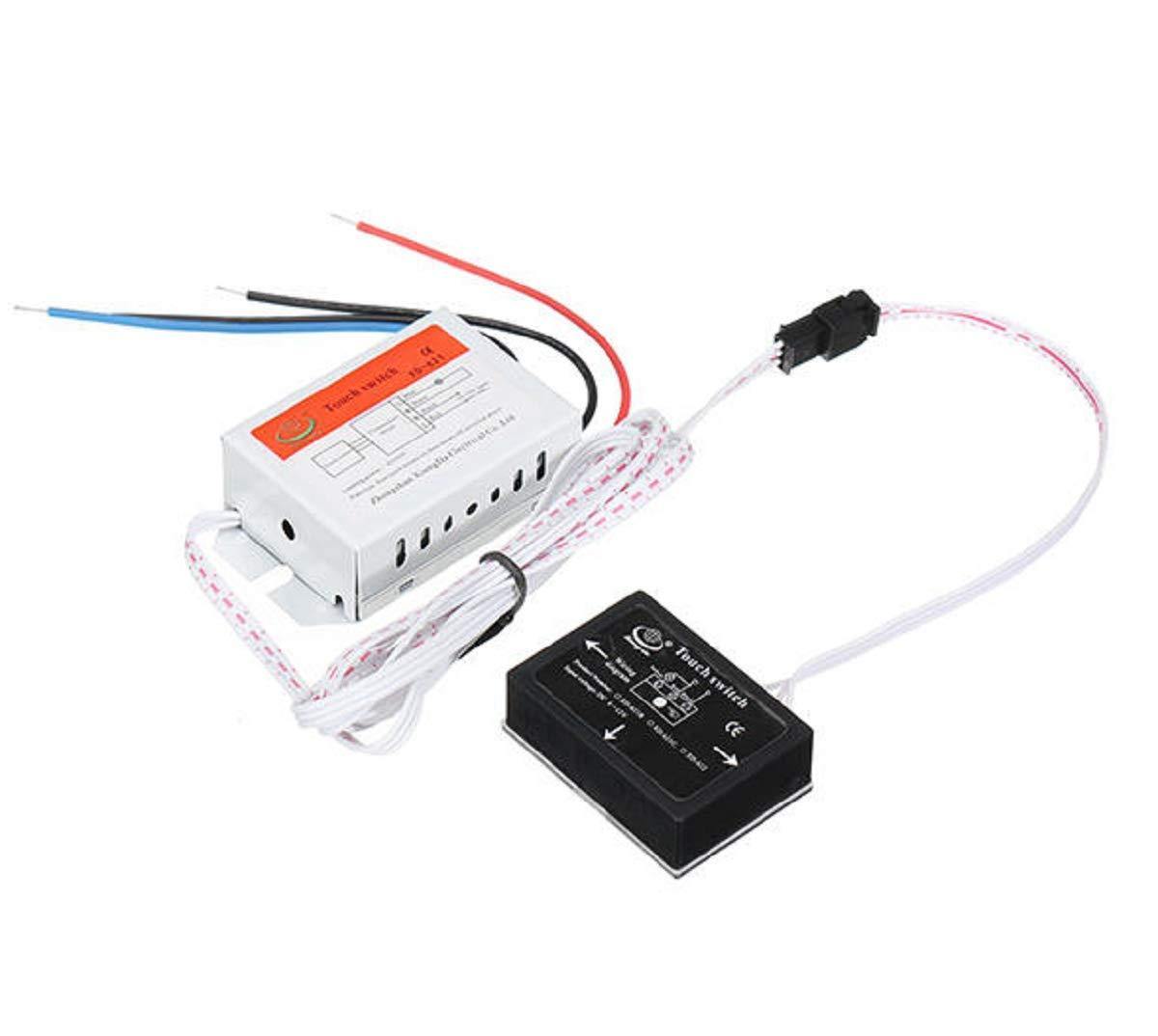

The Induction touch switch is an isolated touch sensor switch, applicable to all types of lamps on the medium (such as glass, acrylic, plastic, ceramic, etc.), such as energy-saving lamps, H tubes, LED lamps, and various household appliances. It has an on-chip active low noise PGA with selectable gain of 3264 and 128. The on-chip power supply regulator for load-cell and ADC analog power supply.

On-chip active low noise PGA with selectable gain of 3264 and 128. On-chip power supply regulator for load-cell and ADC analog power supply.

Installation process:

Note: Before installation, please turn off the main power.

Set a touchpoint in the mirror, the diameter of the contact point should be 9-10mm, first of all, must remove the mercury from the mirror around the point of contact, the size for the removable mercury should be 1.5-2mm;

Make a grid in the middle of the touchpoint, there are three lines of the arrow on the cover of the switch, when installed, the three lines of the arrow should align with any of the three lines of the lattice and can touch to control whether after aligning the direction, now remove the paster from the touch plate, and then can install the touch switch on the mirror, after that, you can correct it using other things to avoid falling.

Applications:

  • Household appliances
  • Energy-saving lamp
  • LED lamps

Package Includes:

  • 1 x Induction Touch Switch Kit

Specifications:

Model

XD-621

Color

White + black

Material

PVC + iron

Power Range

AC 170~240V (White) / 6~12V (black)

Max. Voltage

240 V

Max Current

7A A

Operating Temperature

10~40 ̊ C

Dimensions

11 x 5 x 3cms

Weight

100 grams
