iMax B6AC 80W Smart Battery Charger & Discharger

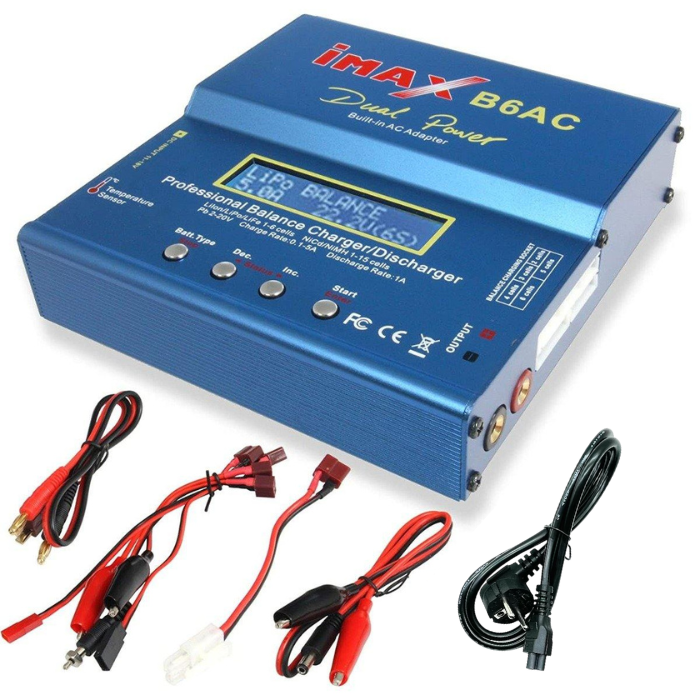

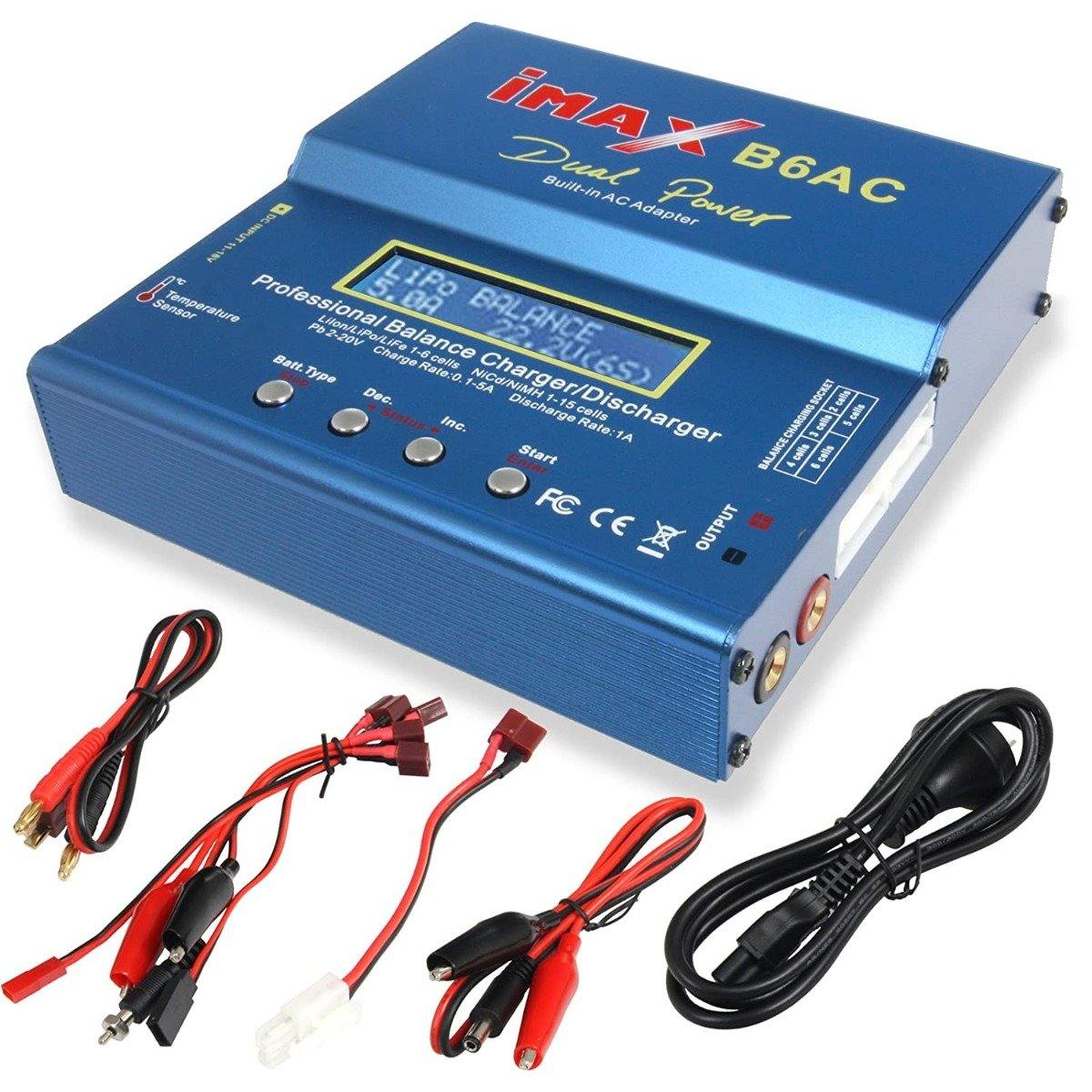

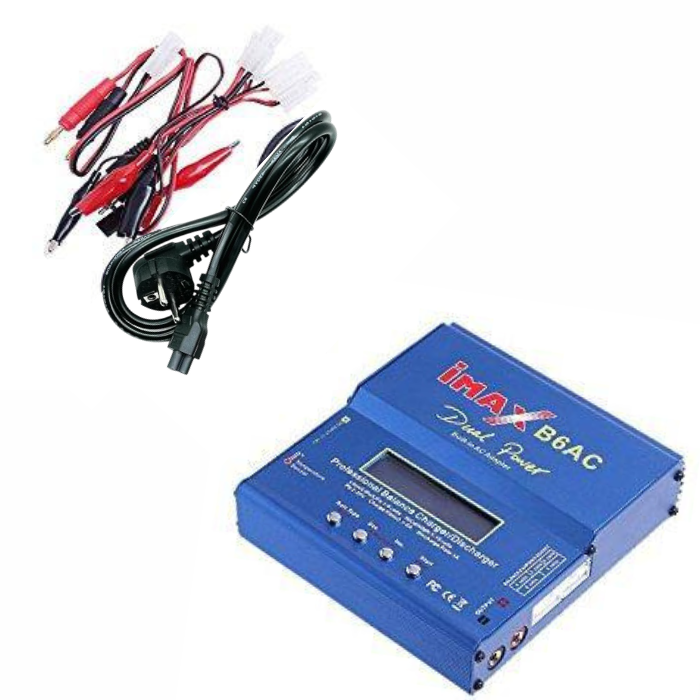

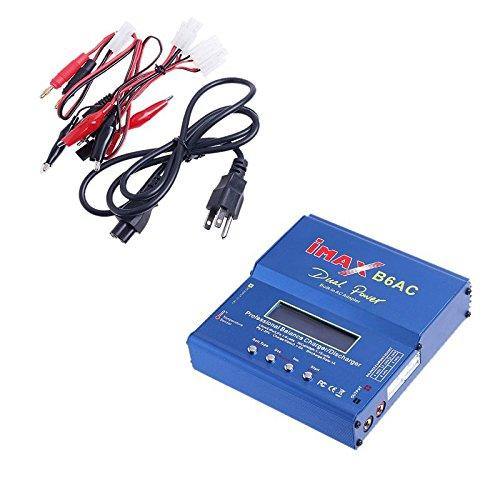

Package Includes

• 1 x iMax B6AC Smart Balance Charger
• 1 x AC input power adapter cable with three-prong
• 1 x DC input power cable – barrel jack to alligator clips
• 1 x 4 mm banana plugs to a male
• 1 x Printed Instruction Manual

Specifications

Specifications:

Brand

Specifications:

iMax

Specifications:

Model

Specifications:

B6AC Smart Balance charger

Specifications:

Adapter

Specifications:

Built-in AC Adapter

Specifications:

Charges

Specifications:

NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries

Specifications:

Charge current range

Specifications:

0.1–5.0 A (50 W max)

Specifications:

Discharge current range from

Specifications:

0.1–1.0 A (5 W max)

Specifications:

AC Input

Specifications:

100-240 V 50/60 Hz

Specifications:

DC Input

Specifications:

11–18 V

Specifications:

Dimensions (Approx)

Specifications:

11cms x 5 cms x 3 cms

Specifications:

Weight (approx)

Specifications:

100 grams

1. How to use the iMax B6AC charger for LiPo batteries?

Connect your LiPo battery's main leads to the banana plugs and the balance connector to the JST-XH port, ensuring correct polarity with the black wire aligned to the negative marking. Select LiPo Balance mode on the iMax B6AC, set your cell count (2S-6S), and charging current (typically 1C rate). Press and hold START/ENTER for 3 seconds to begin charging. The built-in balancer ensures each cell charges evenly, preventing dangerous overcharging while maximizing battery lifespan and performance.

2. How to calibrate the iMax B6AC 80W charger?

Access calibration mode by holding specific button combinations while powering on the charger, then navigate to the calibration menu using the INC/DEC buttons. Connect a precision multimeter to verify voltage readings and adjust the internal calibration values accordingly. The iMax B6AC 80W stores these calibration settings permanently, ensuring accurate voltage and current measurements for all future charging sessions. Regular calibration every 6 months maintains optimal charging precision and extends both charger and battery lifespan.

3. How to charge different battery types using the iMax B6AC?

Navigate through the battery selection menu using INC/DEC buttons to choose from LiPo, LiIon, LiFe, NiMH, NiCD, or Pb (lead-acid) chemistries. Each battery type has specific voltage and current parameters automatically configured for safe charging. Set the appropriate cell count and charging current based on your battery specifications. This versatility makes the charger suitable for RC vehicles, drones, and various electronics, which explains why many users leave positive iMax B6AC review ratings online.

4. How to use the iMax B6AC as a discharger?

Select the discharge mode from the main menu and connect your battery normally with both main leads and balance connector. Set the desired discharge current and cutoff voltage to prevent over-discharge damage. The iMax B6 balance charger monitors individual cell voltages during discharge, automatically stopping when any cell reaches the minimum safe voltage. This feature is essential for battery conditioning, capacity testing, and preparing LiPo batteries for long-term storage at optimal voltage levels.

5. How to power the iMax B6AC at home?

The charger features a built-in switching power supply that accepts 100-240V AC power directly from your wall outlet without external adapters. Simply plug the included AC cord into the charger and your household socket for immediate operation. Alternatively, you can power it using 11-18V DC from a car battery or external power supply connected to the DC input port. This dual power capability makes the iMax B6AC charger convenient for both indoor and outdoor use without additional equipment.

• How to charge your LiPo battery using the IMAX B6 charger
• Blog on charging LiPo batteries

1. What does balance do on a LiPo charger?

• Through a connector on the pack, the balance charger monitors the voltages of individual cells in the pack. It then adjusts the charge rate accordingly. This procedure is known as balance charging. It is important to note that if LiPo batteries are not handled properly, they can explode or catch fire.

2. How do you use the b6ac 80w charger?

• To know how to charge your battery using a iMax B6AC charger Click here.

1. What is the difference between iMAX B6 and B6AC chargers?

The key difference between the iMAX B6 and B6AC chargers is the power input. The iMAX B6 requires an external DC power supply, while the B6AC has a built-in AC adapter, allowing direct connection to a wall socket. Both chargers support charging various battery types, but the B6AC offers more convenience for users needing an all-in-one charging solution.

2. Is the iMAX B6AC suitable for LiPo battery charging and balancing?

Yes, the iMAX B6AC is fully suitable for charging and balancing LiPo batteries. This charger supports multiple cell LiPo battery packs and includes a built-in balance function to ensure safe and efficient charging. With its accurate charging and balancing features, the iMAX B6AC is a reliable choice for anyone working with LiPo batteries in electronics or RC applications.

3. What safety features are included in the iMAX B6AC charger?

The iMAX B6AC charger offers several important safety features. These include overcharge protection, short circuit protection, reverse polarity protection, and temperature monitoring. These features help safeguard your batteries and charger against common risks, ensuring safe and reliable charging for LiPo, NiMH, and other battery types. This makes the B6AC a trusted option for battery care.
