- Fast throttle response for smooth flight.
- Supports 40A continuous and 60A burst current.
- Compact, lightweight, and durable design.
- Works with 2-6S lithium batteries.
- Reduces interference with twisted signal wire.
- Customizable increment angles.
- Includes 3.5mm banana plug.

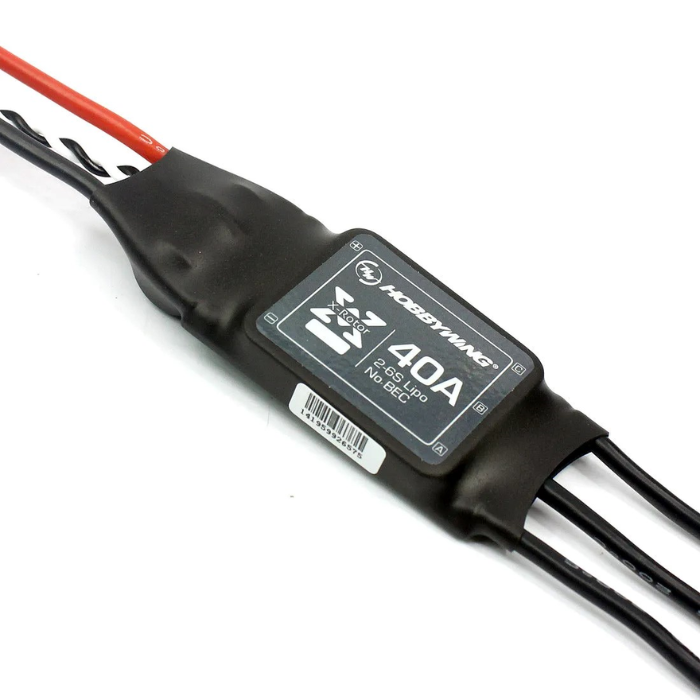

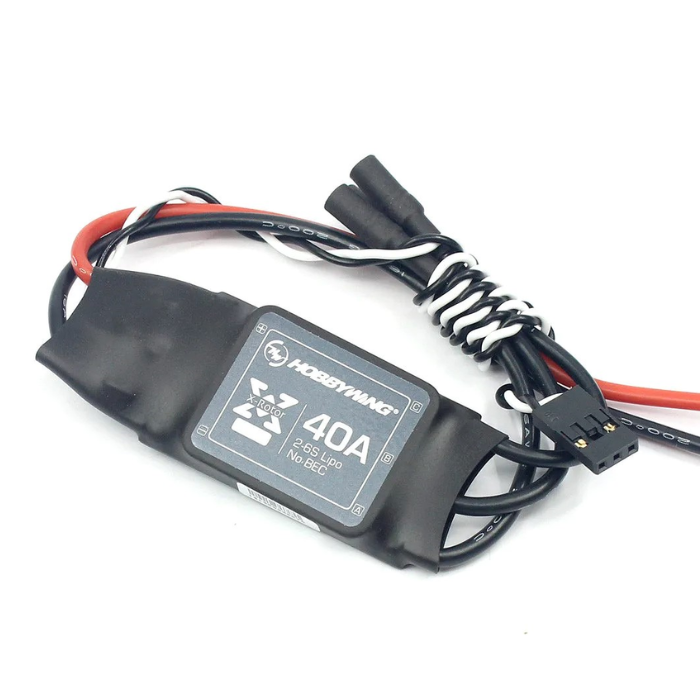

Hobbywing Xrotor 40A Brushless ESC for DIY Multicopter Drone
The Hobbywing Xrotor 40A Brushless ESC is made for DIY multicopter drones, giving you great performance and stability. It has a special program that ensures quick throttle response and works better than many open-source software options. The firmware is optimized for disc motors, offering excellent compatibility. The ESC has a smart design that adapts easily and is simple to use. The twisted throttle signal wire helps reduce interference for smoother flight. It supports fast refresh rates up to 621Hz and works well with most flight controllers. With its low-resistance MOSFET and strong power handling, it ensures stable and reliable performance.
Key Features
- Optimized for Multicopters: Fast throttle response and better performance.
- Disc Motor Compatible: Optimized firmware for smooth operation.
- Stable Flight: Twisted throttle signal wire reduces interference.
- High Refresh Rate: Supports up to 621Hz throttle signal.
- Reliable Power Handling: Ultra-low resistance MOSFET for stability.
- Enhanced Performance: Specialized MOSFET driver for superior stability.
Shop the SimonK 30a BLDC ESC!
Package Includes
1 x Hobbywing Xrotor 40A Brushless ESC
Specifications
| Specification | Details |
|---|---|
| Model | XRotor 40A |
| Input | 2-6S lithium power |
| Continuous Current | 40A |
| Instantaneous Current | 60A (10 seconds) |
| Size | 68*25*8.7mm |
| Weight | 26g |
| BEC Output | None |
| Plug | 3.5mm Banana Plug |
| Programmable Projects | Increment Angle: High/Middle |
| Dimension (LxWxH) | 3x2x1 CM |
| Weight | 50gm |
