- This is Hi-Link HLK-2M05 5V 0.4A Switch Power Supply Module
- Plastic enclosed PCB mounted isolated switching step-down power supply module
- Supplies 5V DC from 120V AC – 230V AC with a power rating of 2W
- Replaces traditional power supply components such as diodes, voltage regulator, and transformers
- Low-temperature rise, low power, high efficiency, high reliability, and high-security isolation
- Designed to be mounted on the PCB and ideal for small projects that need a 5V supply from mains
- The product is designed to meet the requirements of EMC and Safety Test

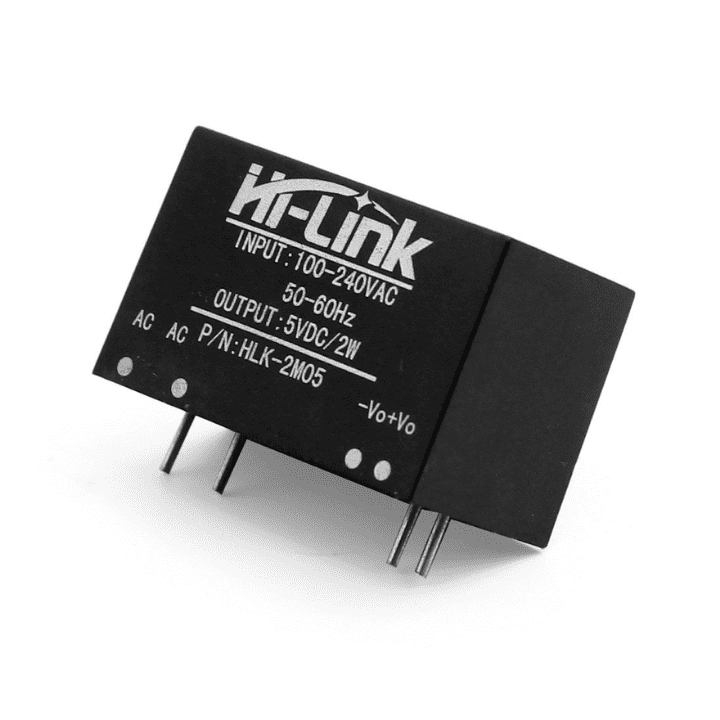

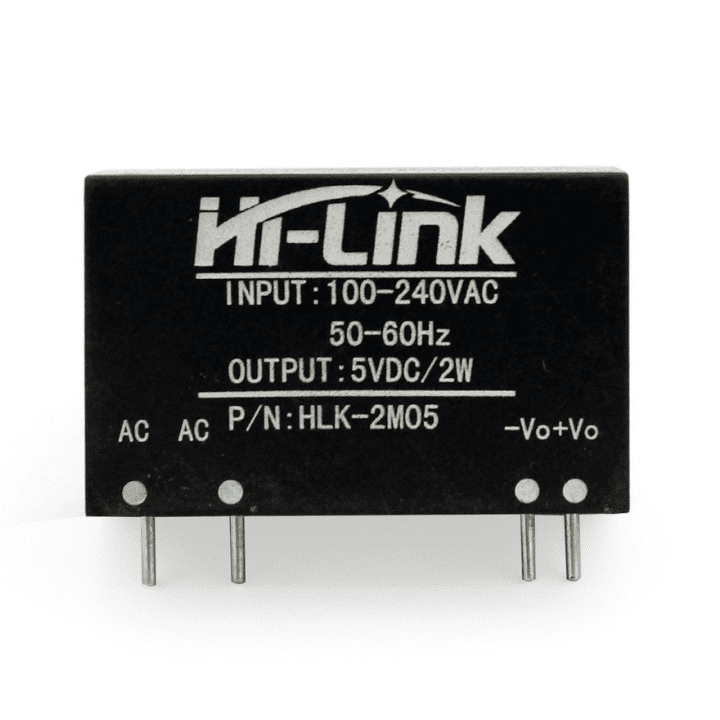

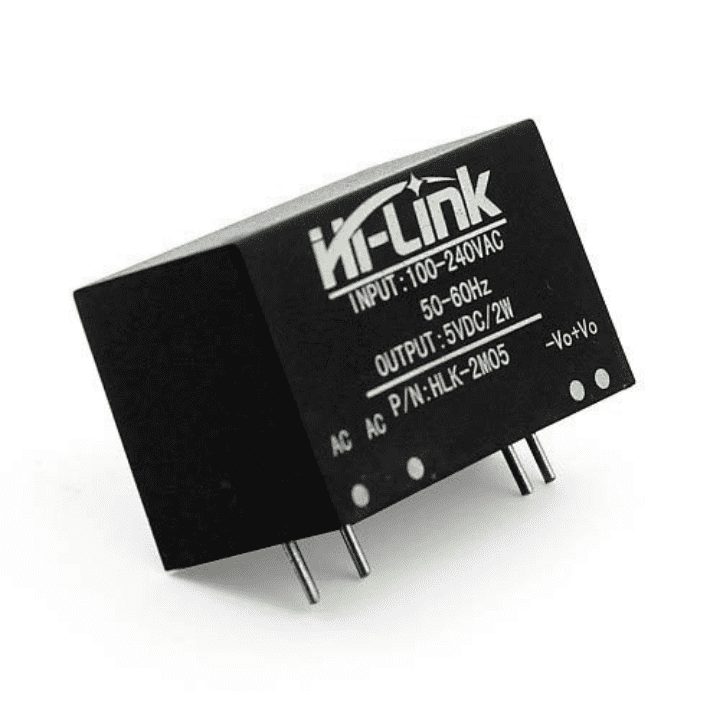

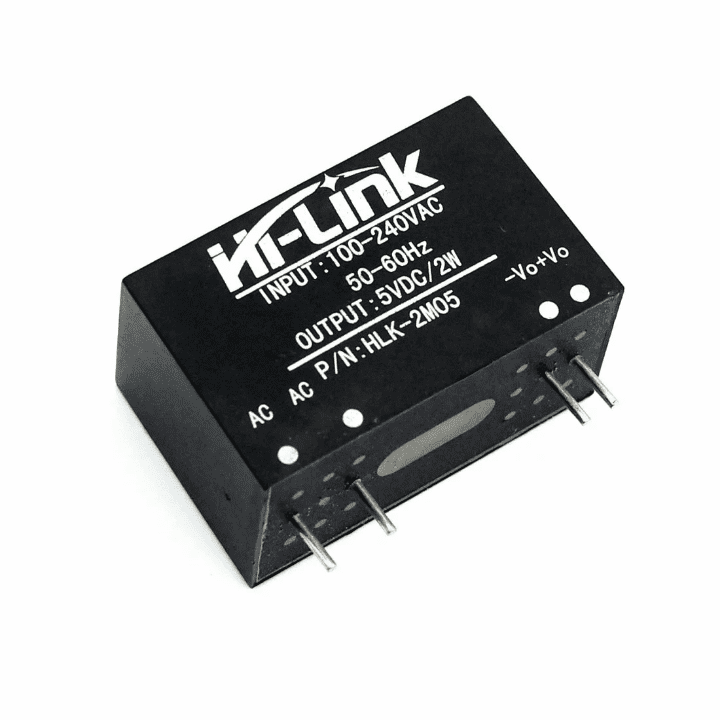

Hi-Link HLK-2M05 5V 0.4A Switch Power Supply Module
HLK-2M05 Hi-link 5V 2W AC to DC Power Supply Module is plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 5V DC from 120V AC – 230V AC and has a power rating of 2 Watt. This makes it perfect for small projects that need a 5 volt supply from mains. This power supply module replaces lots of parts from the traditional power supply like diodes, voltage regulator and transformers. Therefore there are many advantages for these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation etc.
This AC-DC Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation and other industries.
Also check the KBPC3510W rectifier bridge. It is a bridge rectifier that converts AC to DC. It has an input voltage of 1000V and an output voltage of 1000V. It also has a maximum current rating of 35A.
Package Includes:
- 1 x Hi-Link HLK-2M05 5V 0.4A Switch Power Supply Module
Specifications:
| Rated Input voltage (VAc) | 90 ~ 245 |
| Maximum input current (A) | ≤0.2 |
| Input current surge (A) | ≤10 |
| maximum input voltage(VAc) | 270 |
| Input Low Voltage Efficiency (%) | Vin=110VAc，Output full-load≥69 |
| Input High Voltage Efficiency (%) | Vin=220VAc, output full-load≥70 |
| Load rated output voltage (VDC) | 5 |
| Short-term maximum output current (mA) | ≥500 |
| Voltage Regulation | ±0.2% |
| Dimensions (mm) | 30 x 17 x 19 |
| Weight (gm) | 17 |
