HGLRC M100 MINI GPS
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The HGLRC M100 MINI GPS is a compact and high-performance positioning module designed to deliver fast and precise location tracking for FPV drones. Powered by the latest 10th-generation UBLOX chip, it ensures quick satellite acquisition and accurate positioning, enhancing overall flight reliability. Its ultra-compact 15×15mm size makes it ideal for a wide range of drone builds, especially 2–7 inch quadcopters where space and weight are critical factors.

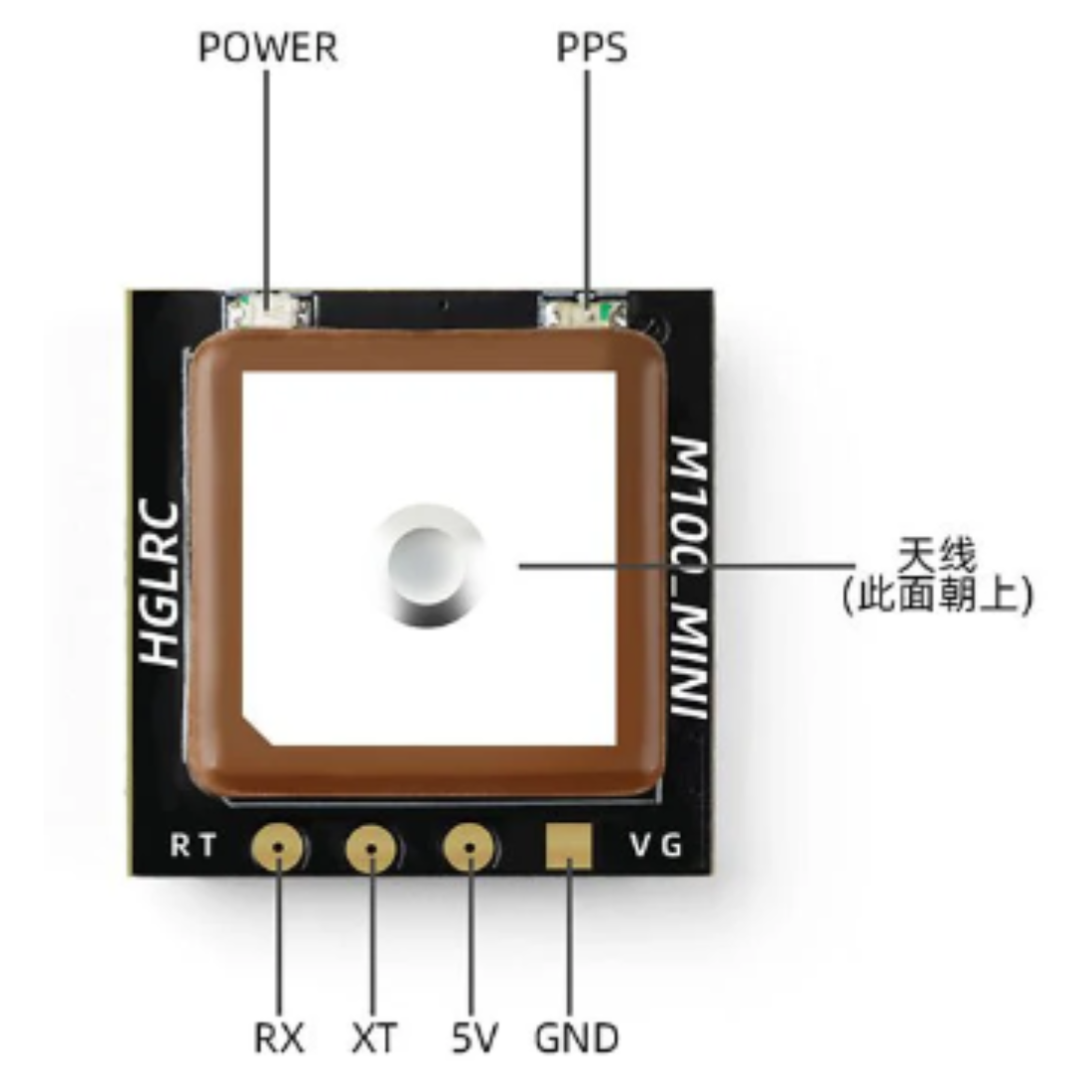

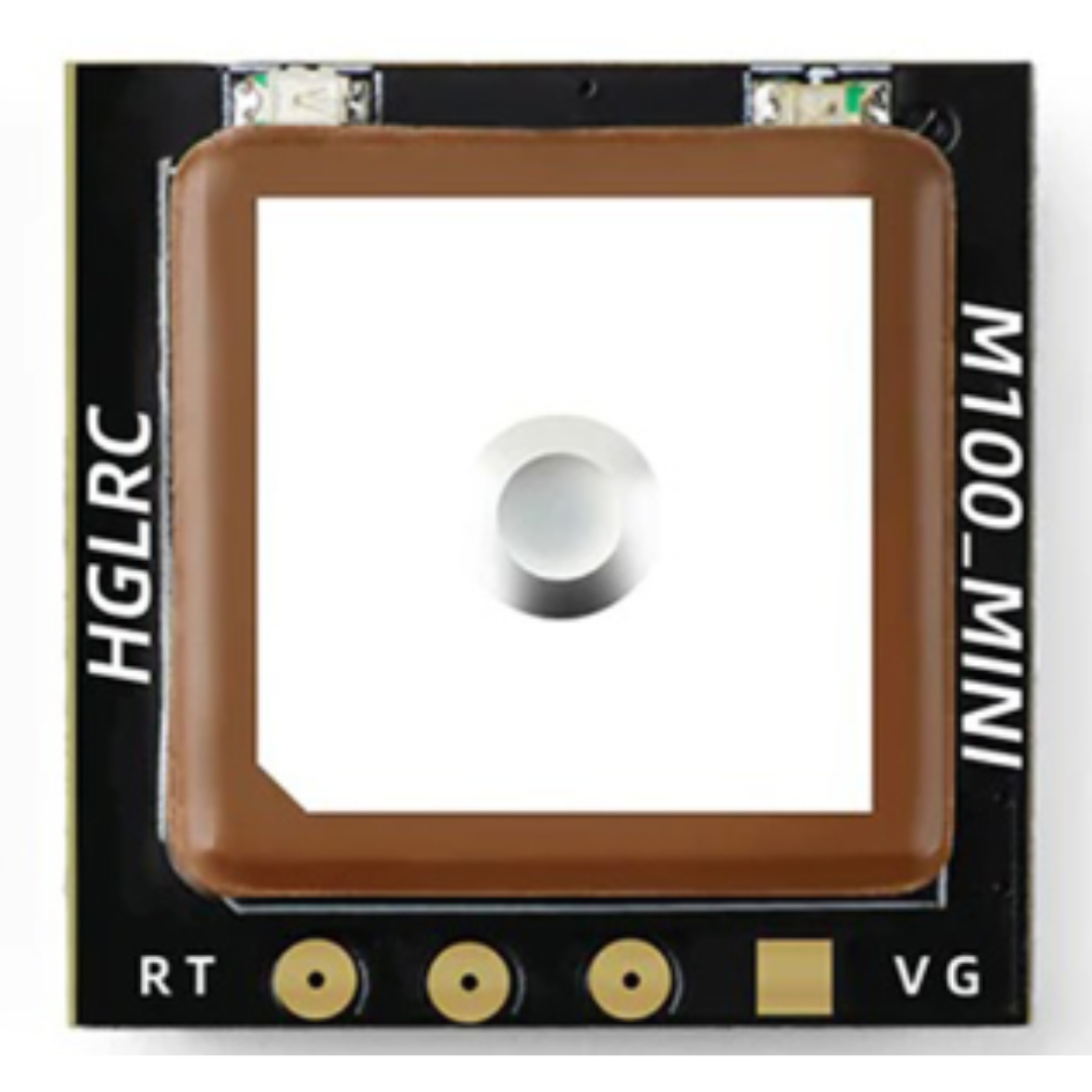

Equipped with a high-quality ceramic antenna and an externally optimized PCB design, the M100 MINI GPS offers improved signal reception, allowing it to lock onto satellites efficiently even in challenging environments. It supports multiple global navigation systems including GPS, Galileo, and BDS, ensuring faster and more reliable positioning across different regions. Additionally, the onboard LED indicators, including power and PPS (positioning) indicators, provide clear real-time status updates, making it easy for users to monitor the GPS performance during operation.
| Chip | M10 (10th Generation Chip) |
| Antenna | Ceramic Antenna |
| Frequency | GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
| Receive Channel | 72ch |
| Baud Rate | 115200 bps |
| Output Frequency | 10 Hz |
| Input | 3.3V–5V |
| Size | 15 × 15 × 5.2 mm |
| Weight | 2.6 g |
| Speed Accuracy | 0.05 m/s |
| Horizontal Positioning Accuracy | 2D ACC 2.0 m (Outdoor) |
| Receiver Sensitivity | Tracking: -166 dBm, Capture: -160 dBm |
| Characteristics | Height: 50000 m, Speed: 500 m/s, Acceleration: 4G |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +105°C |
