DF Robot

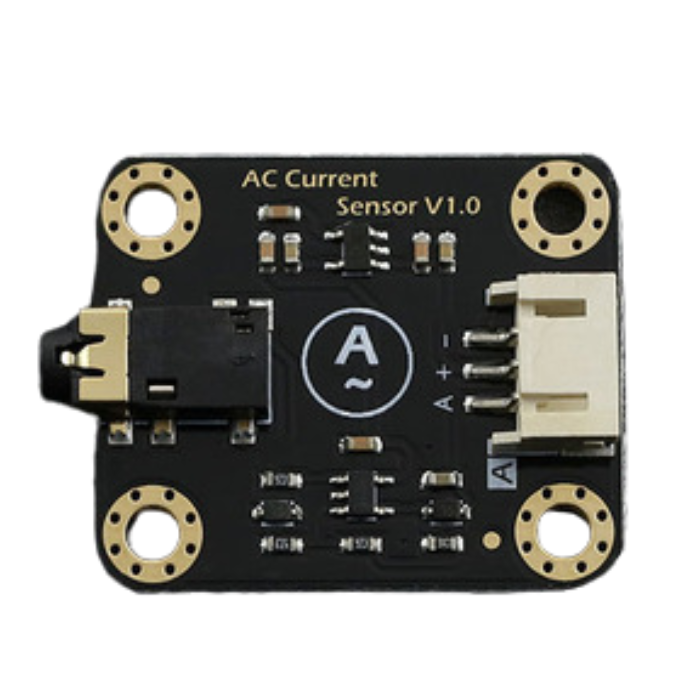

Gravity: Analog AC Current Sensor (20A)

Gravity: Analog AC Current Sensor (20A)

Low stock: 3 left

Regular price Rs. 1,999
Regular price Rs. 2,999 Sale price Rs. 1,999
Sale Sold out 33% off Best Price Guaranteed
You save Rs. 1,000 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 3 hours and 26 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Non-contact Measurement: Gravity AC Current Sensor eliminates the need for cutting wires or reconnecting circuits.
  • Multiple Ranges: Choose from 5A, 10A, or 20A for versatile measurement scenarios, suitable for various applications.
  • Compatible with 3V3/5V Micro-Controller: Analog output designed for seamless integration with micro-controllers.
  • AC Motor Monitoring: Ideal for automatic monitoring of AC motors, lighting, and electrical equipment.
  • High Safety: Non-contact measurement ensures user safety, providing accurate readings without direct contact.

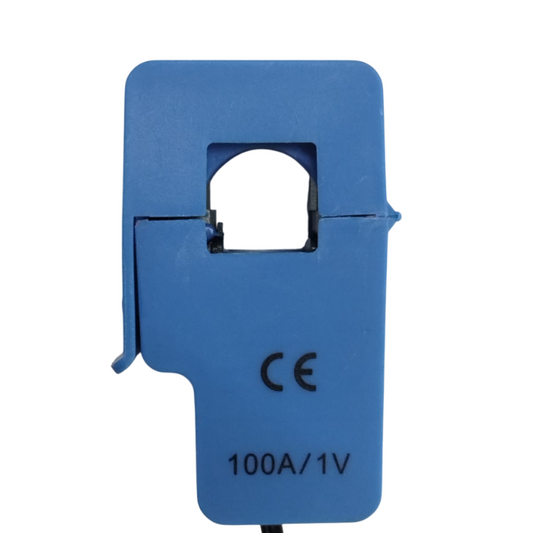

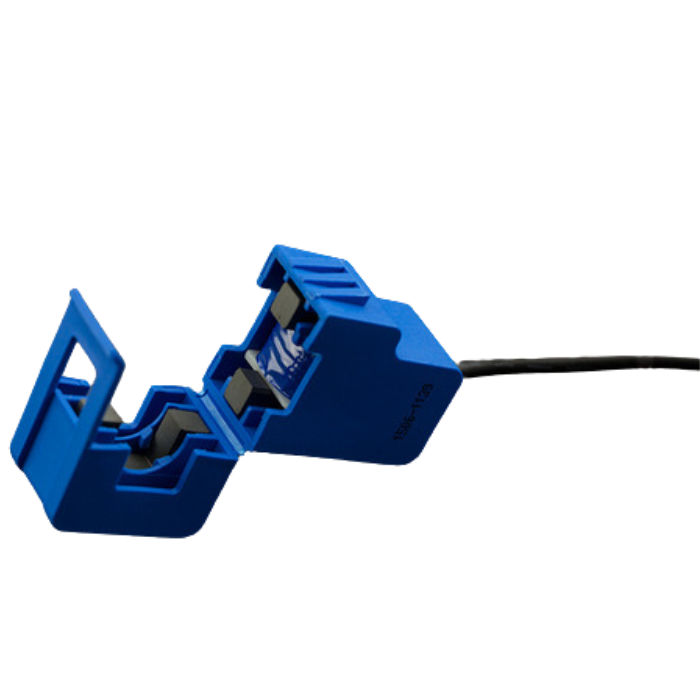

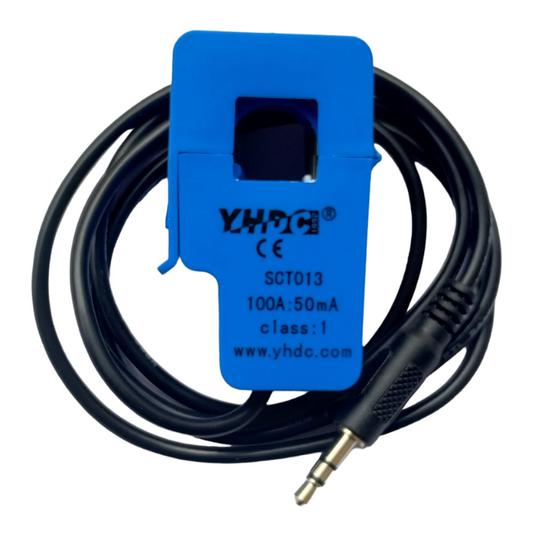

  • Easy Installation: Simply clamp the AC transformer probe on the line and connect the 3.5mm jack for quick and hassle-free measurements.
  • Wide Temperature Range: Suitable for use in temperatures ranging from -25 ℃ to +70 ℃.
Trust Badge 1 Trust Badge 2 Trust Badge 3

Gravity: Analog AC Current Sensor (20A)

Gravity: Analog AC Current Sensor (20A) is the perfect solution for hassle-free AC current measurement. No more cutting wires or complicated circuits. Designed for non-contact measurement, this sensor offers multiple ranges, making it versatile for various scenarios.

Whether monitoring AC motors, lighting, or electrical equipment, this sensor ensures high safety and easy installation. Compatible with 3V3/5V micro-controllers, it provides accurate readings without direct contact. The wide temperature range makes it suitable for diverse conditions. Enhance your projects with the reliability of Gravity: Analog AC Current Sensor.

Features:

  • Non-contact measurement, high safety
  • Multiple ranges for various measurement scenarios
  • Compatible with 3V3/5V micro-controller

Applications:

  • AC motor automatic monitoring
  • Lighting and electrical equipment measurement

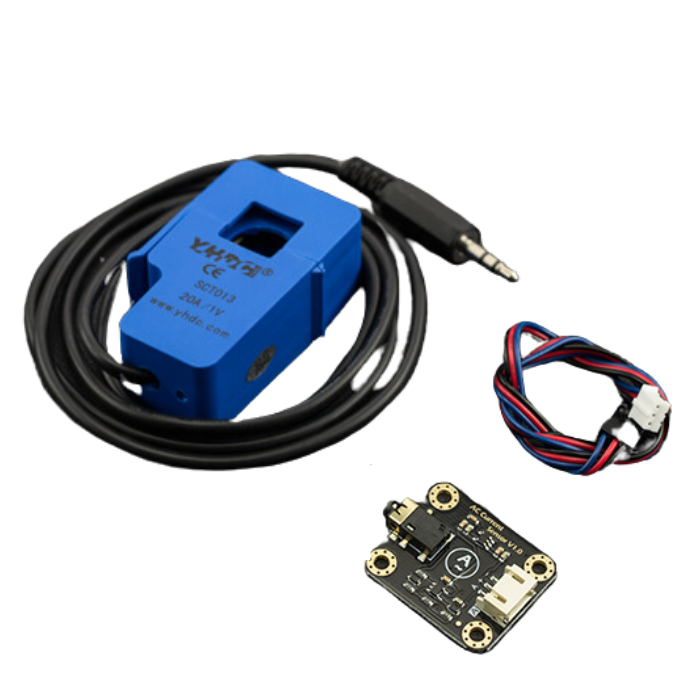

Package Includes:

  • 1 x Gravity: Analog AC Current Sensor (20A)

Specifications:

AC Current Range 0-20A
Signal Output 0-1V AC voltage, linear corresponding range 0-20A
Accuracy ±1%
Non-linearity ≤±0.2%
Frequency Range 50Hz~1kHz
Cable Length 1m
Working Temperature -25 ℃~+70 ℃
Opening Size 13×13 mm / 0.51×0.51 in
Weight 50g

    Shipping & Returns

    • All orders confirmed before 3 pm IST are shipped on the
      same day, barring rare pickup delays on holidays or disturbances
    • Delivery time in Metro cities is 1-3 days, Others it is
      3-7 days. It varies based on location, reliant on courier services
    • Return window: 7 days from receipt unless stated
      otherwise. No refunds/replacements after
    • Returns only for non-working/damaged products are accepted
    • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
    • Refunds are processed within 3-4 working days post inspection and approval.

    For more details, please check our Shipping and Return Policy

    View full details
    Trust Badge 1 Trust Badge 2 Trust Badge 3

    People Also Buy

    Found a better price?

    Let us know!
    We'll try to match the price for you

    • ⚡ Dispatched within 24 hours

    • 💰 Earn RC Coins on every purchase

    • 🚚 Free shipping on orders above Rs 500/-

    • 🛠️ Dedicated Technical Support Team

    1 of 4

    ADDITIONAL RESOURCES

    1. What is the purpose of the Gravity: Analog AC Current Sensor (20A)?

    The Gravity AC Current Sensor is designed for hassle-free measurement of AC current without the need to cut wires or deal with complex circuits. It is ideal for monitoring AC motors, lighting, and various electrical equipment.

    2. How does the non-contact measurement feature enhance user safety?

    The non-contact measurement feature eliminates the need for direct contact with the current, ensuring user safety. This sensor provides accurate readings without the risks associated with traditional contact-based measurements.

    3. What is gravity analog 20A current sensor AC DC?

    The Gravity Analog 20A Current Sensor utilizes Hall current sensing to measure AC and DC current non-intrusively. With a broad voltage range, it's ideal for AC motors, lighting equipment, and applications needing current monitoring. Easy integration is ensured through its 3-pin interface.

    4. What ranges of AC current can this sensor measure?

    This sensor provides multiple ranges for versatile measurement scenarios. You can choose from 5A, 10A, or 20A, making it suitable for various applications.

    5. What is the frequency range within which the sensor operates?

    The sensor operates within a frequency range of 50Hz to 1kHz, accommodating a broad spectrum of AC current frequencies.
