Ethernet LAN Module ENC28J60
Ethernet LAN Module ENC28J60
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- ENC28J60 Ethernet module for microcontrollers
- SPI interface for communication
- Easy mounting with 1x10 connector
- Built-in RJ45 connectors (HR911105A)
- Power LED for status
- Operates on +3.3 V
- 25 MHz crystal included
- PCB size: 48 x 18 mm

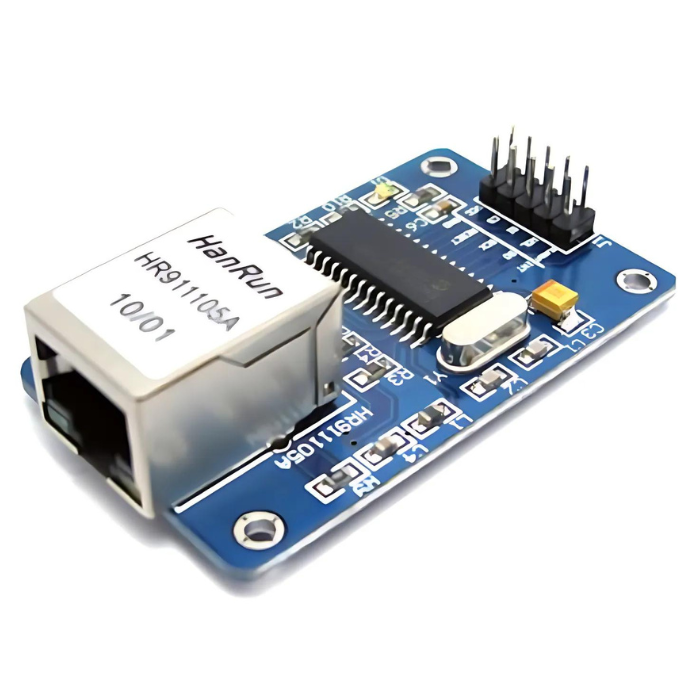

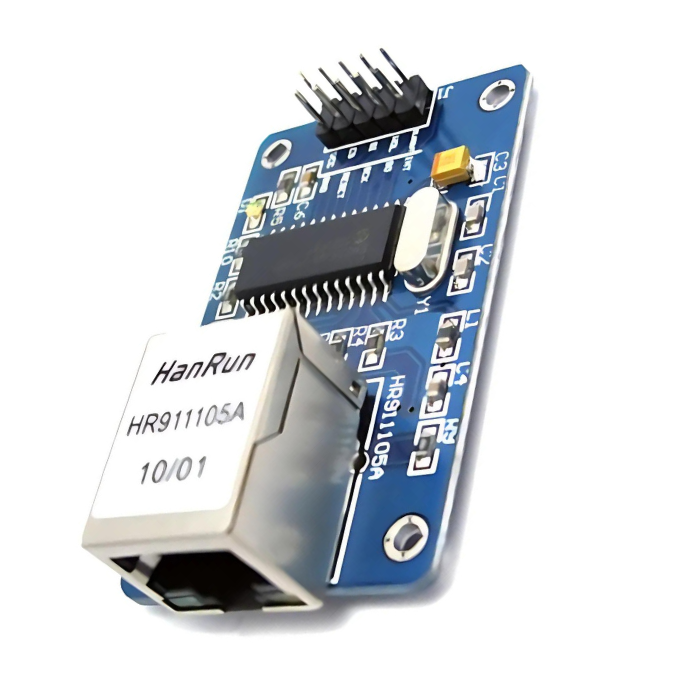

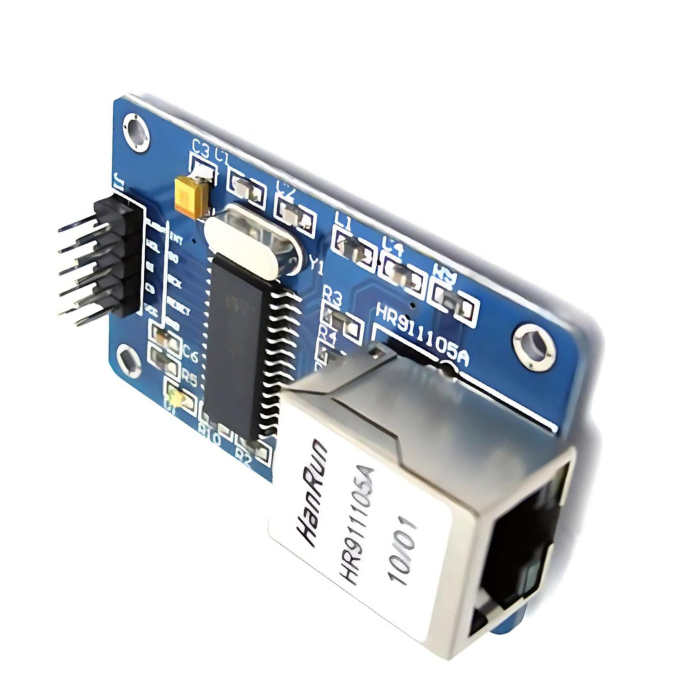

ENC28J60 Ethernet LAN Module
Want to connect your project to the internet? The ENC28J60 Ethernet LAN Module makes it simple! This small module uses the Microchip ENC28J60 Ethernet Controller and connects to your microcontroller through SPI. It’s easy to set up and gives you fast, reliable internet speeds.
If you've used the Arduino Ethernet Shield V1.0 before, you'll find this module works similarly and can connect 10 wires, and you're good to go. It's a compact, handy solution for getting your projects online quickly!
This ENC28J60 Ethernet LAN Module is best for Raspberry, Arduino, IoT, & other microcontroller projects.
7 major functional blocks of ENC28J60:
- An SPI interface for communication with the host controller.
- Control registers are used to manage and monitor the module.
- A dual-port RAM buffer for received and transmitted data packets.
- An arbiter to manage access to the RAM buffer from various blocks.
- A bus interface that interprets data and commands via SPI.
- The MAC (Medium Access Control) module for IEEE 802.3 compliant logic.
- The PHY (Physical Layer) module for encoding and decoding analog signals on the twisted-pair interface.
Package Includes:
1 x ENC28J60 Ethernet LAN Module
Specifications:
| Specification | Details |
|---|---|
| Chip Type | ENC28J60 Ethernet chips, SOP28 package |
| Interface | SPI Interface |
| Connector | 1x10 connector, can be easily mounted with the MCU |
| RJ45 Connector | Built-in isolation transformer RJ45 connectors HR911105A |
| Power LED | Yes |
| Supply Voltage | Single Supply: +3.3 V |
| Crysatal Frequency | 25 MHz |
| PCB Size | 48 x 18 mm |
