ESP32-S3 EC200U 4G LTE Modem with GNSS - Robocraze

ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem - 7Semi

Rs 3,449/-
- 12%
Rs 3,449/-
Rs 3,934/-
Save Rs 485/-
🪙
RC REWARDS Earn 34 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 7 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCC0230
  • Combines 4G LTE, Wi-Fi, Bluetooth, and GNSS for versatile IoT integration.
  • Supports multiple LTE and GSM bands for worldwide operation.
  • Multi-GNSS support ensures precise and reliable navigation.
  • ESP32-S3's dual-core processor handles AI and signal processing tasks efficiently.
  • Optimized for low power consumption, perfect for remote or battery-powered setups.
  • Works with Arduino, ESP-IDF, and other platforms, simplifying prototyping and deployment.
Robocraze Academy Limited Time Offer
7Semi ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem - Robocraze
ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem - 7Semi
Rs 3,934/- Rs 3,449/-

ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem - 7Semi

Rs 3,934/- Rs 3,449/-

ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem - 7Semi

The 7Semi ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem is a versatile and compact communication module designed for modern IoT applications.

Powered by the ESP32-S3 and integrated with the EC200U LTE Cat-1 module, it offers seamless connectivity across 4G LTE, WiFi, Bluetooth, and GNSS (GPS, GLONASS, BeiDou).

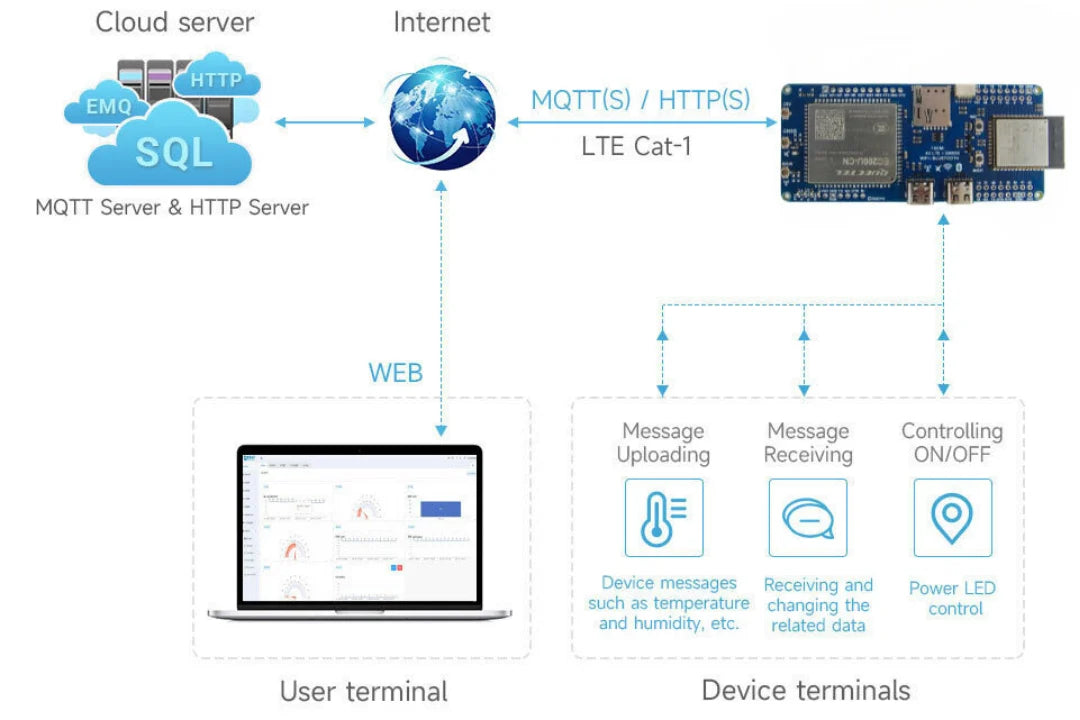

With strong processing power and multi-protocol support, this modem enables real-time data transfer and accurate location tracking—perfect for remote monitoring, smart metering, asset tracking, and connected automation systems.

Its all-in-one design ensures efficient integration, reduces hardware complexity, and supports both low-power and high-performance IoT deployments.

7Semi ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem

Package Includes

1 x 7Semi ESP32-S3 EC200U 4G LTE Cat-1 GNSS WiFi Bluetooth IoT Modem

Specifications

Specification Details
Network Connectivity LTE-FDD, LTE-TDD, GSM/GPRS, GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS)
GNSS Support GPS, GLONASS, BeiDou, Galileo, QZSS
Frequency Bands LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41, GSM 900/1800 MHz
Processor Dual-core Xtensa 32-bit LX7 microprocessor
USB Interface USB Type-C for easy connectivity
Wi-Fi 2.4 GHz Wi-Fi
Bluetooth Bluetooth 5.0 (LE)
Power Consumption Low-power modes for energy-efficient operation
Flash Memory Up to 32 MB
PSRAM 8 MB PSRAM
Operating Voltage 3.3V / 5V
Dimensions (LxWxH) 9.6 x 4 x 0.8 cm
Weight 29 gm
Power Supply USB Type-C or external power supply

Does this modem work without a SIM card (WiFi-only mode)?

Yes. The integrated ESP32-S3 chip features built-in 2.4GHz WiFi and Bluetooth 5.0, allowing the board to function perfectly in WiFi-only or Bluetooth mode without a SIM card. However, the 4G LTE cellular and GNSS (GPS) features will require an active SIM card to function.

What LTE bands does the EC200U support in India?

The EC200U module supports LTE-FDD bands B1/B3/B5/B8 and LTE-TDD bands B34/B38/B39/B40/B41, along with GSM 900/1800 MHz. These bands are fully compatible with major Indian telecom networks, including Jio, Airtel, and Vi.

Is an external antenna included in the box?

This module features IPEX connectors for 4G and GNSS antennas. Depending on the specific bundle, basic antennas may be included, but they are often sold as an add-on. Please check the "In the Box" section of this listing or contact our support team to confirm for your specific order.

What can I build with the ESP32-S3 EC200U modem?

Vehicle and asset trackers, remote sensor gateways, smart meters and any IoT device that needs 4G data and GPS where WiFi is unavailable.

Warranty Coverage:

This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.

Warranty Void If:

The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
