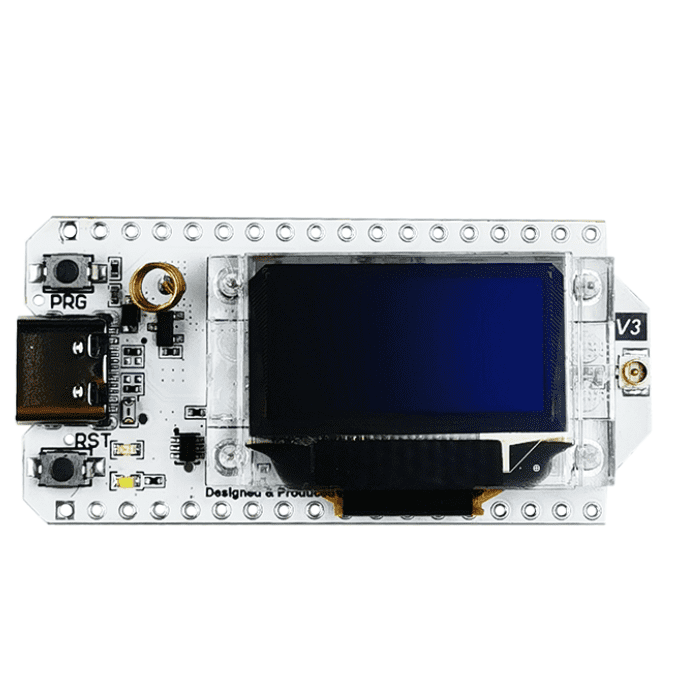

ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
Regular price
Rs. 1,843
Regular price
Rs. 2,448
Sale price
Rs. 1,843
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 2 hours and 47 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is ESP32 LoRa with Display - 433MHz-510MHz SX1278
- Supports Sniffer, Station, softAP and Wi-Fi Direct modes
- The module uses the Lexin ESP32 as the main controller and the SX1278 as the wireless communication module.
- It comes with a 0.96-inch blue OLED display for user interface.
- It supports Bluetooth and WiFi connectivity for easy integration with other devices.
- The ESP32 chip is based on the Tensilica Xtensa LX6 dual-core microprocessor with an operating frequency of up to 433MHz.
- It has a high sensitivity of about -148dBm and a power output of +20 dBm, making it suitable for long-range wireless communication.
- The module operates on the 433MHz-510MHz frequency range and is ideal for remote modem applications that require reliable wireless communication.
ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
The ESP32 LoRa SX1278 is the new development of the cost-effective networking program. The main chip uses Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack, and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
This ESP32 LoRa product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.
The features of SX1278 are mostly related to modern communication methods and it also has the solution to most of the problems a designer could ever face in RF communication. These features don’t require any special external module or hardware. Everything comes within a single SX1278 module.
Features:
- Uses Lexin ESP32 as main controller and SX1278 as wireless communication module.
- Comes with an OLED display.
- Supports Bluetooth and WiFi connectivity.
- ESP32 chip is based on Tensilica Xtensa LX6 dual-core microprocessor with operating frequency up to 433MHz.
- High sensitivity of about -148dBm.
- Power output of +20 dBm.
- Operates on 433MHz-510MHz frequency range.
- Suitable for remote modem applications that require long-range wireless communication.

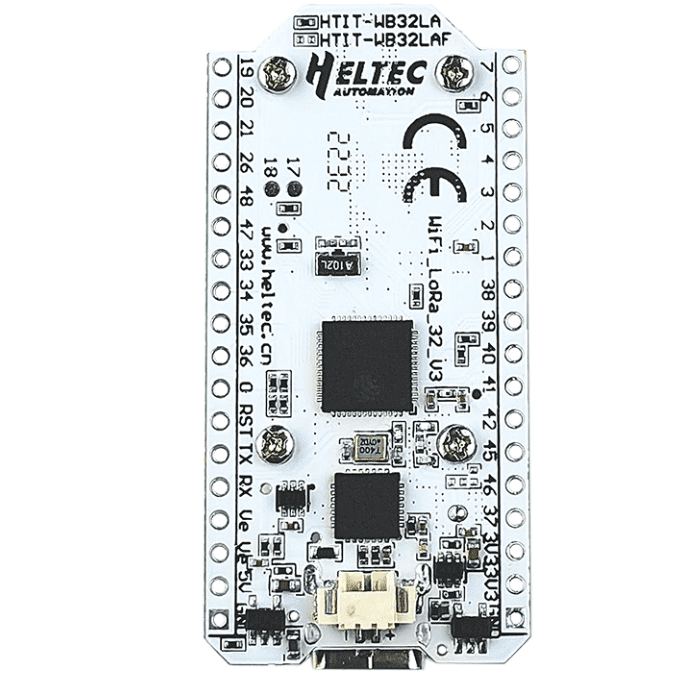

ESP32 LoRa Pinout:
Applications
- Smart industrial devices, including Programmable Logic Controllers (PLCs)
- Smart medical devices, including wearable health monitors.
- Smart energy devices, including HVAC and thermostats.
- Smart security devices, including surveillance cameras and smart locks.

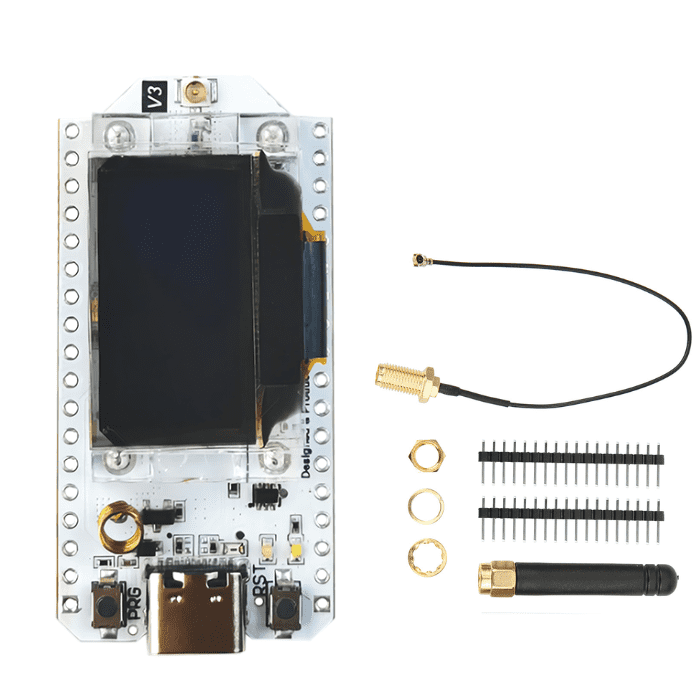

PACKAGE INCLUDES:
-
1 x ESP32 LoRa SX1278 0.96 Inch Blue OLED Display BT WiFi Module
-
1 x Antenna(16 cm)
-
2 x 1*18 Pins Burg connectors(Straight)
SPECIFICATIONS:
| Operating Voltage (VDC) |
3.3 to 7 |
| Operating Temperature (°C) |
-40 to 90 |
| Display Size (inch) |
0.96 |
| Dimension(LxWxH) |
52 x 25 x 8mm |
| Weight |
25gm |
