ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot

ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot

Low stock: 2 left

Regular price Rs. 299
Regular price Rs. 419 Sale price Rs. 299
Sale Sold out 29% off Best Price Guaranteed
You save Rs. 120 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 11 hours and 54 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • CH340 serial chip.
  • Boot and EN/RST buttons.
  • USB programmer with C Type connector.
  • Female connector for ESP32 boards.
  • RX and TX LEDs.
  • 5V input voltage.
  • -20°C to 85°C operating range.
  • 2.54mm pin pitch.
  • Plug and Play.
Trust Badge 1 Trust Badge 2 Trust Badge 3

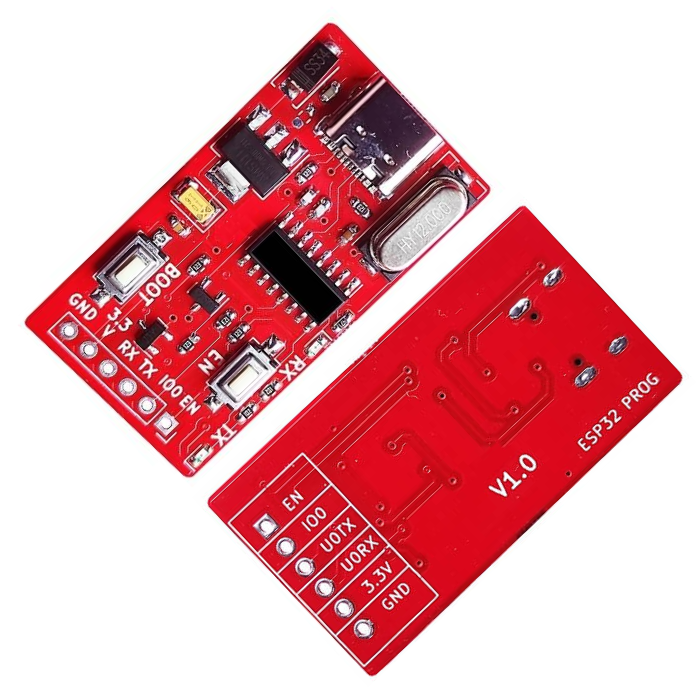

ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot

If you want to simplify your development and debugging tasks, the ESP32 & ESP8266 USB Programmer Rev1.0 with Auto Boot is here to help. This handy tool makes it easy to download firmware and handle serial communication on ESP32 platforms. All you need is a single USB cable to connect to your PC, and it automatically recognizes the board and its functions. It’s designed to make your setup smoother and more efficient, so you can focus on what you do best.

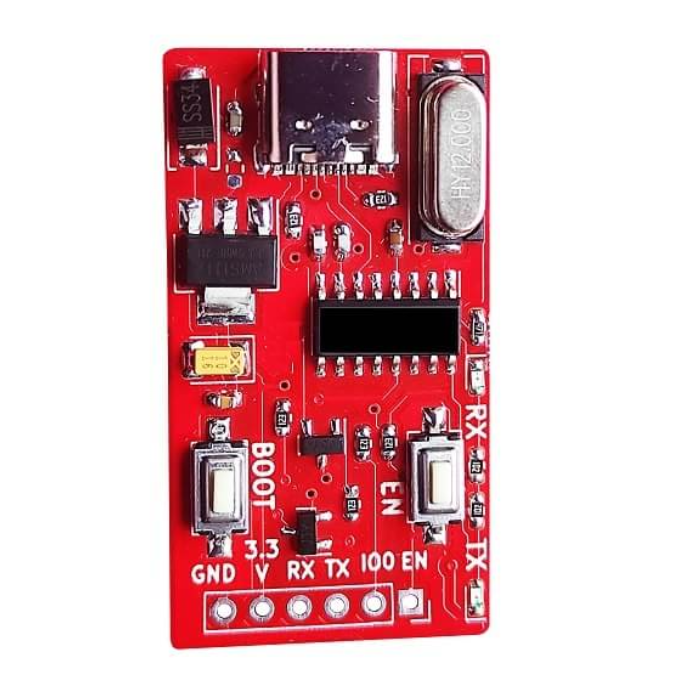

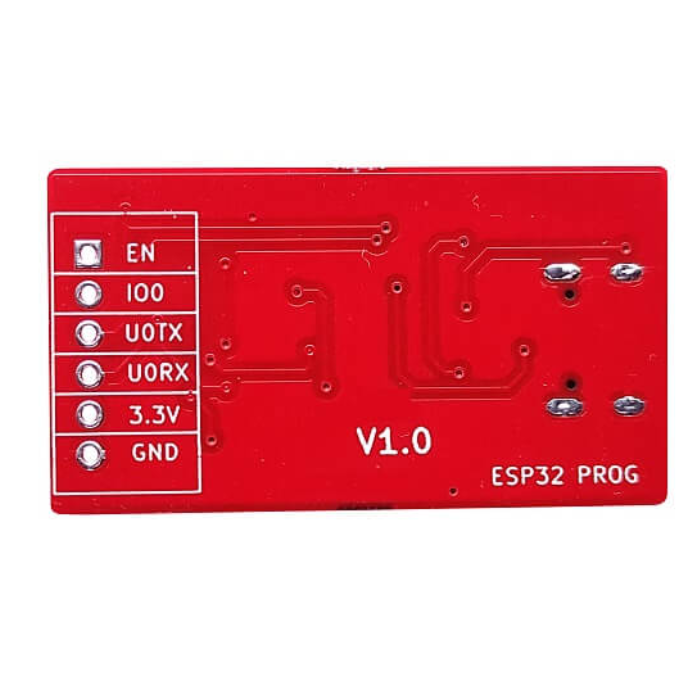

Pinout details:

ESP32 & ESP8266 USB Programmer Rev1.0 Pin Diagram
  • GND
  • 3.3V DC (100mA Max.)
  • RXD
  • TXD
  • Io0/Boot/DTR
  • EN/Reset/RTS

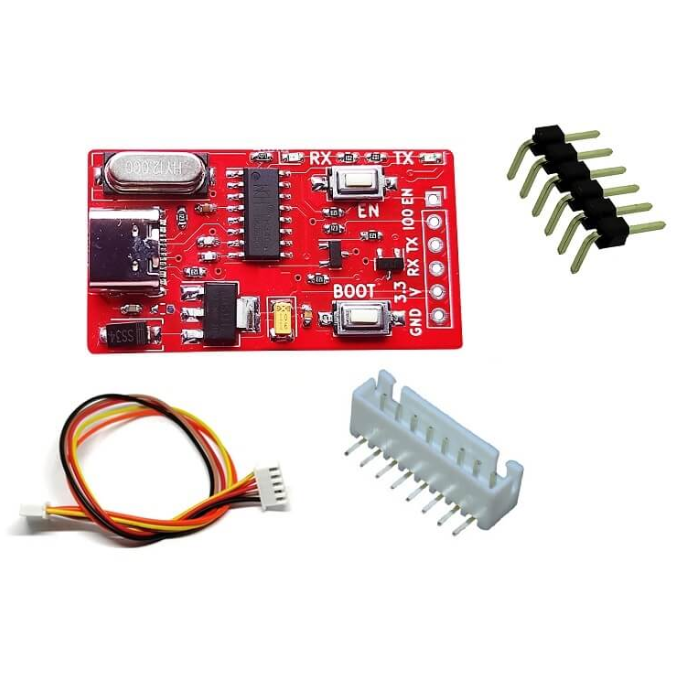

Package Includes:

  • 1 x ESP Prog – ESP32 & ESP8266 USB Programmer With Auto Boot-Rev1.0
  • 1 x 6 Pin Male Header
  • 1 x 6 Pin JST Male Connector
  • 1 x 6 Pin JST Female Connector with Wire

Specifications:

Specification Details
Serial Chip CH340
Buttons Boot, EN/RST
Interface USB Programmer
USB Connector C Type
Connector Type Female Connector for ESP32 series Board
LED Indicators On-Board RX and TX LEDs
Input Voltage 5V
Operating Temperature -20°C to 85°C
Output Pin Pitch 2.54mm
