Es-P06 IP44 PIR Infrared Motion Sensor Wall Mounted Outdoor Sensor Switch
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

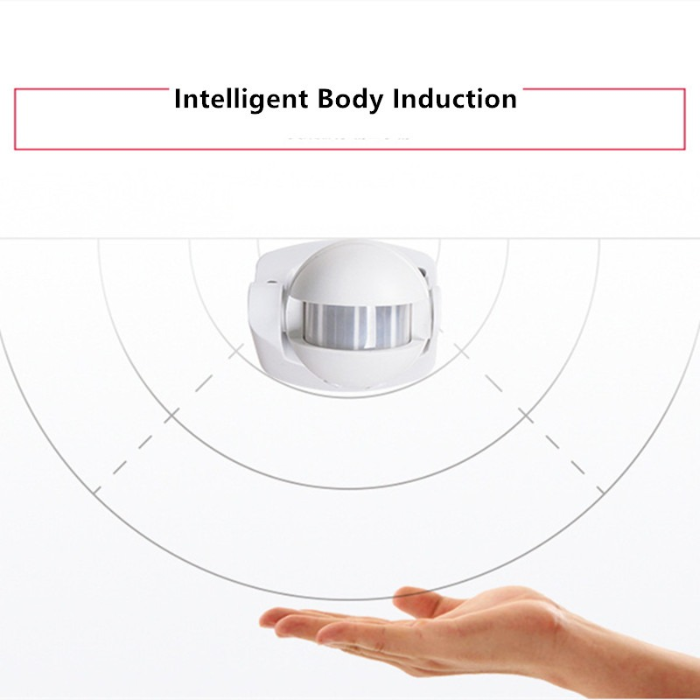

The ES-P06 IP44 PIR Infrared Motion Sensor Wall Mounted Outdoor Switch is an energy-saving switch that automatically turns on when it detects motion. It uses infrared technology to sense people entering its detection area, making it perfect for outdoor use. The sensor can tell whether it’s day or night and works without needing manual control. It’s easy to install, and it shows power and detection status. This practical and safe sensor is ideal for outdoor areas, helping save energy while providing reliable performance.
1 x Es-P06 IP44 PIR Infrared Motion Sensor Wall Mounted
| Specification | Details |
|---|---|
| Power Source | 220V/AC-240V/AC |
| Power Frequency | 50/60Hz |
| Time Delay | Min. 10±3 sec.; Max. 7±2 min |
| Detection Angle | 180° |
| Ambient Light | < 10LUX (daylight) |
| Working Temperature | -10ºC to +40ºC |
| Detection Distance | Max. Diameter 6m (at 24ºC) |
| Rated Load | 1200W (220-240V/AC); 800W (110V/AC) |
| Power Consumption | < 0.9W (static 0.1W) |
| Installation Height | 1.8m to 2.5m |
| Detection Motion Speed | 0.6m/s to 1.5m/s |
| Working Humidity | < 93% RH |
| Switch Function | Auto/Off |
| Waterproof Grade | IP44 |
| Color Available | White and Black |
| Dimensions | 86mm x 65mm x 83mm |
| Weight | 143g |
