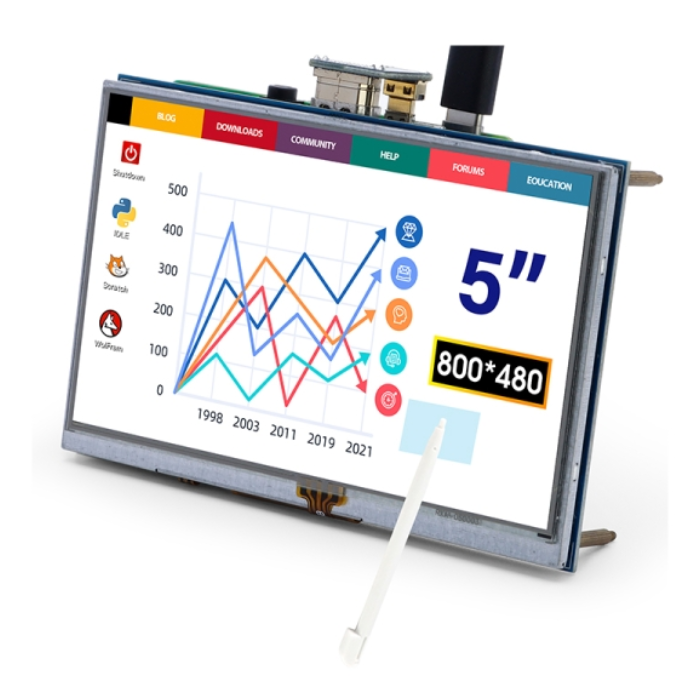

Elecrow RR050 5 Inch Resistive Touch Screen TFT Display 800x480
Elecrow RR050 5 Inch Resistive Touch Screen TFT Display 800x480
Out of stock
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 5" 800x480 touchscreen.
- Energy-efficient backlight.
- Raspberry Pi compatible.
- Compact: 121mm x 78mm.

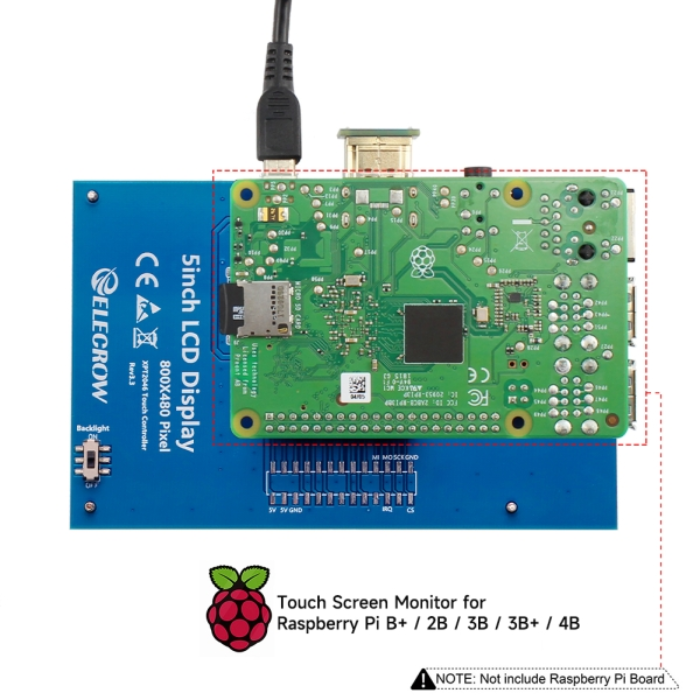

Elecrow RR050 5 Inch Resistive Touch Screen TFT Display 800x480 for Raspberry Pi B+/2B/3B/4B/5

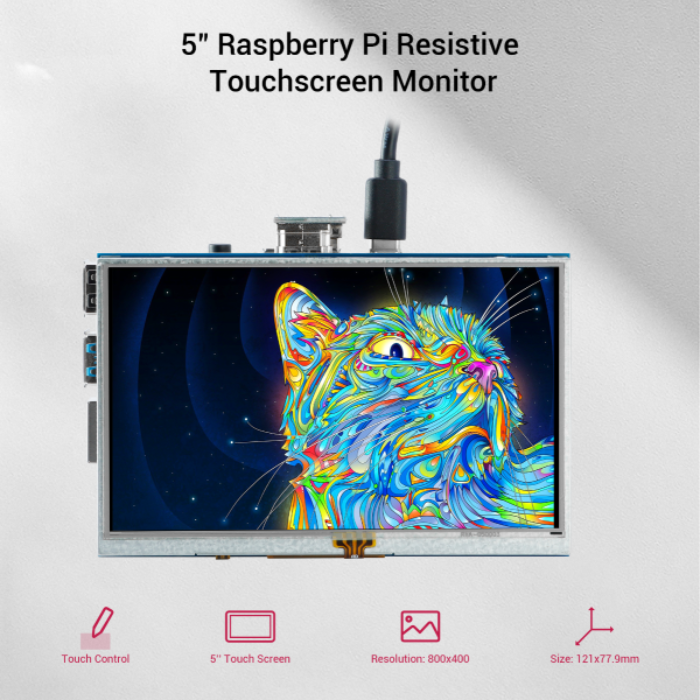

This 5-inch TFT display features a touch screen, offering a high-resolution output and a spacious viewing experience for your Raspberry Pi. It is compatible with all Raspberry Pi models, including B+, 2B, and 3B. The screen is energy-efficient, with low power consumption for its backlight. With a high resolution of 800 x 480, it delivers vibrant, full-color visuals, while the touch functionality ensures effortless interaction.
Although specifically designed for Raspberry Pi, this 800 x 480 compact display can also be used with other compatible devices.
Features
- 5-inch display monitor with a video interface, offering a high-resolution image and a wide viewing area.
- 800x480 resolution LCD with touch functionality, featuring backlight control for reduced power consumption.
- Wide viewing angle, quick response time, and vibrant full-color display.

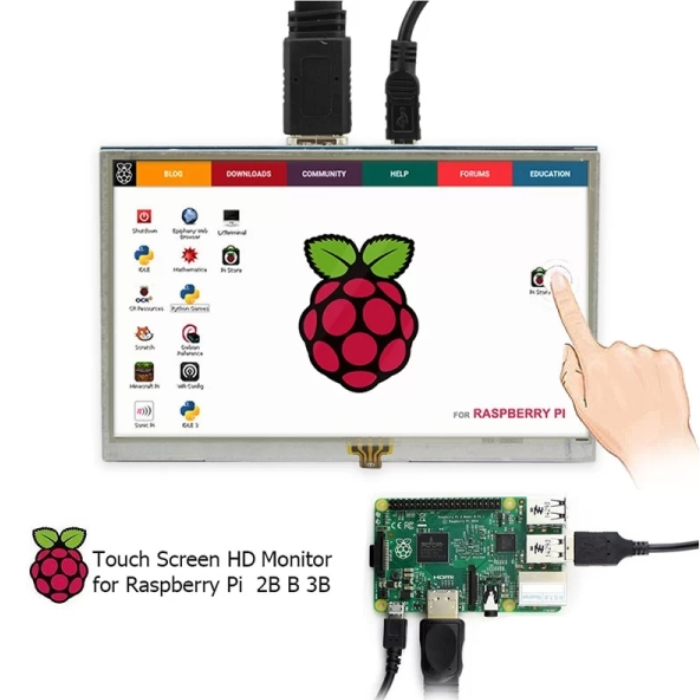

- Compatible with all Raspberry Pi models, including 2B, B+, 3B, and 4B.

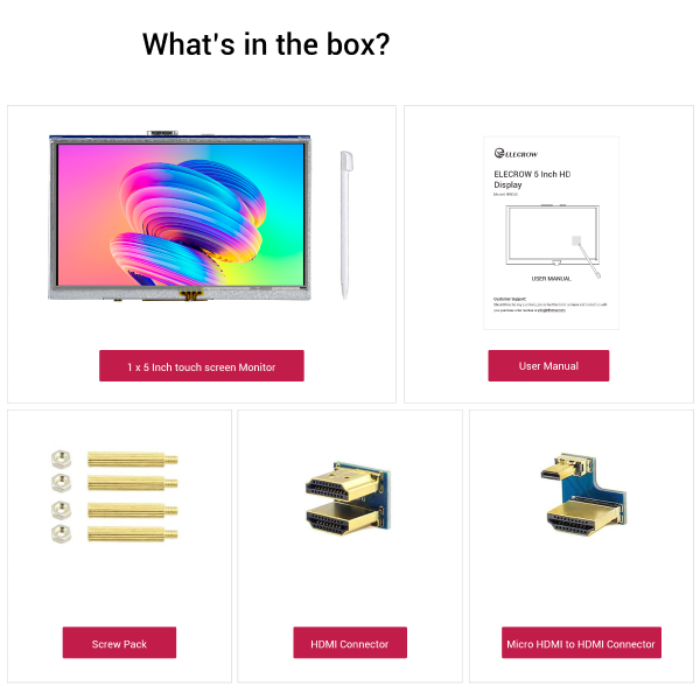

Package Includes
- 5 inch Touch LCD Display x1
- HD connector x2
- Touch pen x1
- DVD x1
- Screw Pack x1
Specifications
| Parameter | Details |
|---|---|
| Model | RR050 |
| Resolution | 800 x 480 |
| Power Supply | USB cable for 5V/1A |
| LCD Driver IC | ILI6122 + ILI5960 |
| Refresh Rate | 60 Hz |

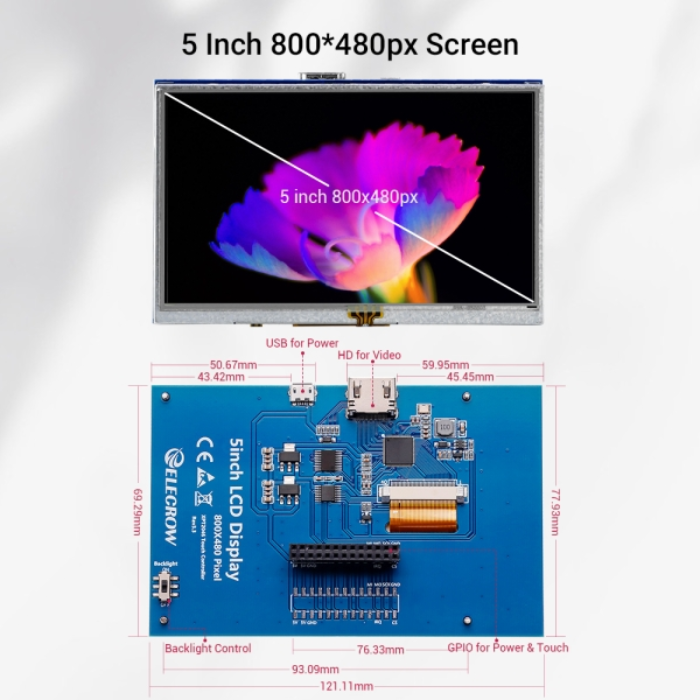

| Appearance Size | 121 mm x 78 mm |
| Screen Size | 119 mm x 66 mm |
| Dimensions (LXWXH) | 16 X 13.9 X 5 |
| Weight | 222 |
