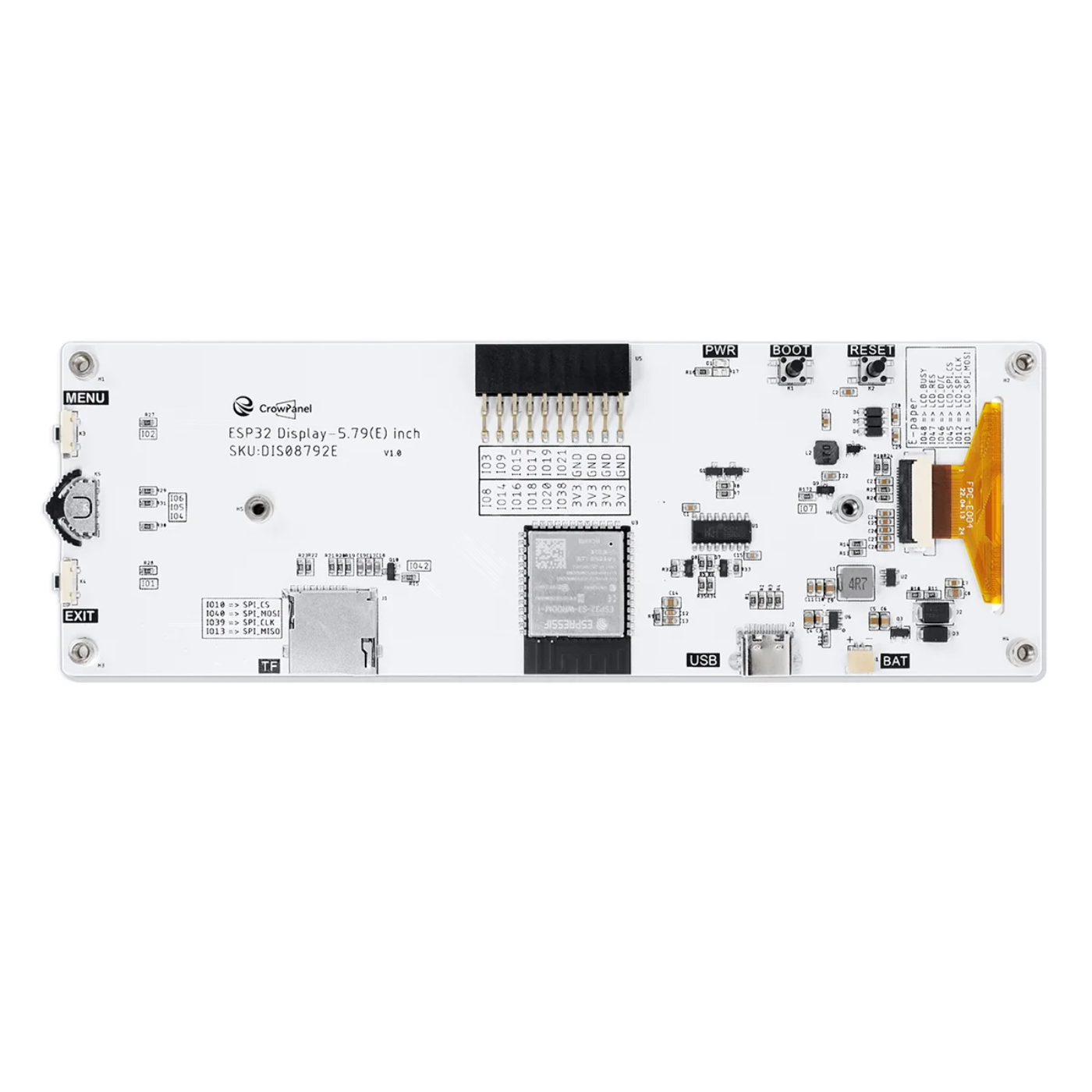

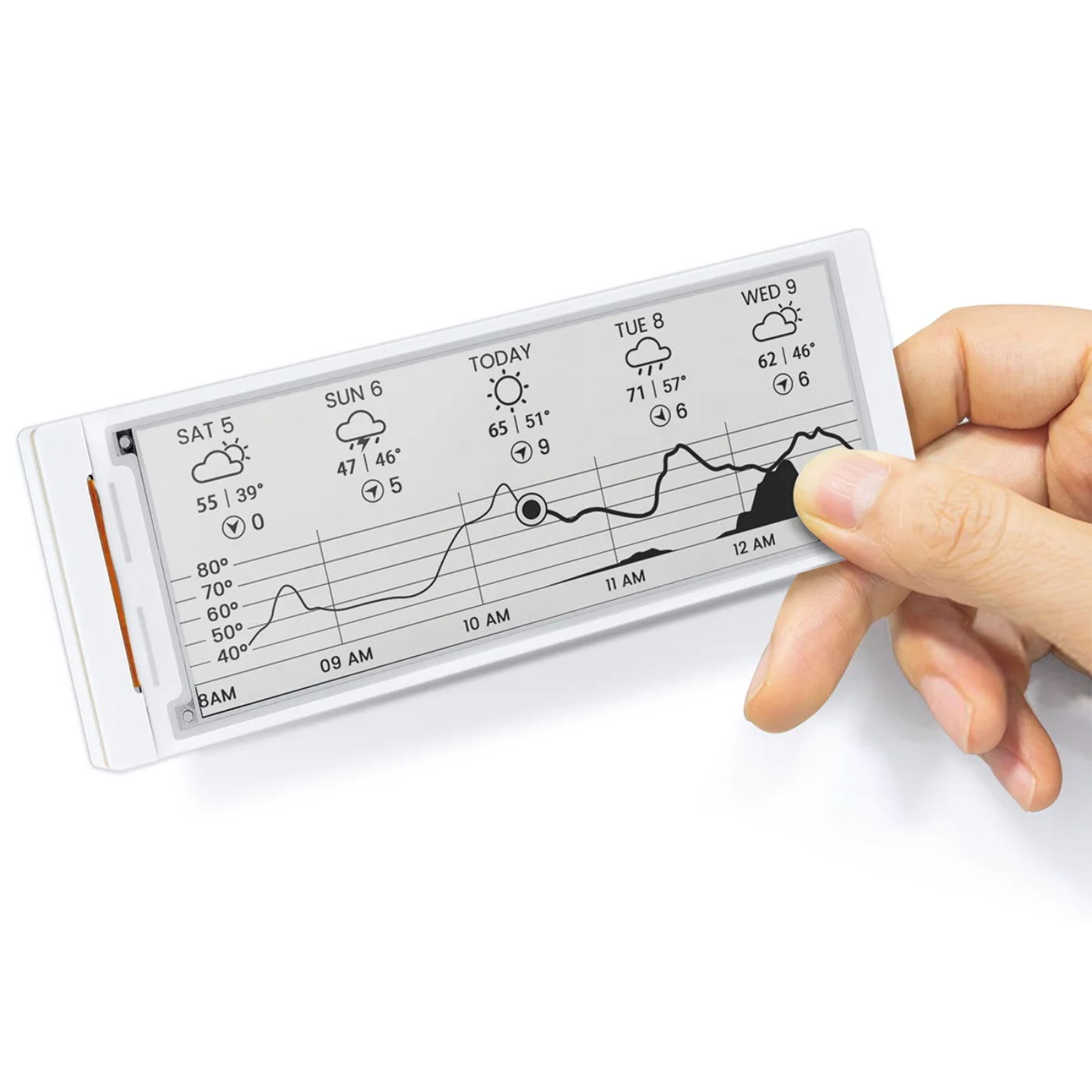

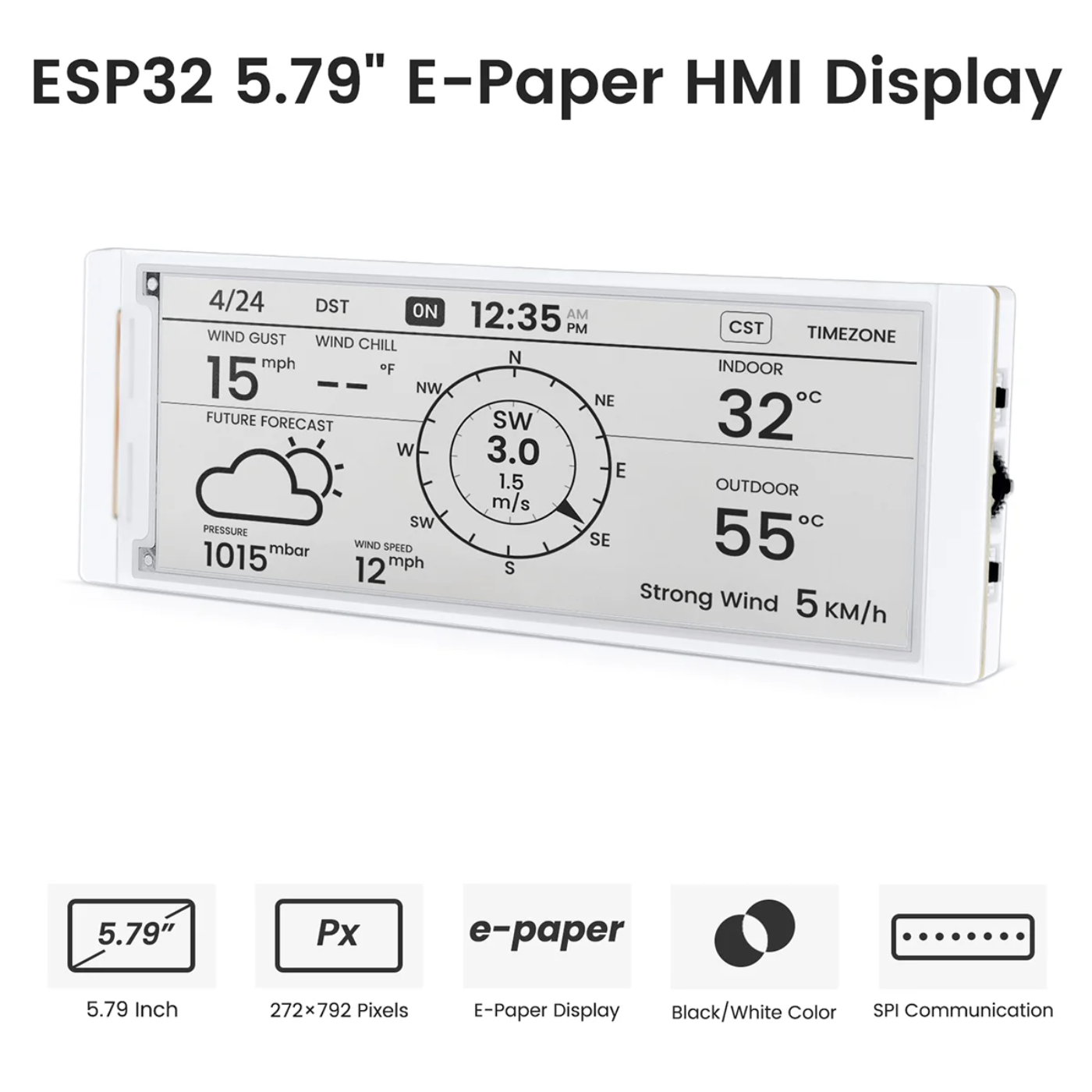

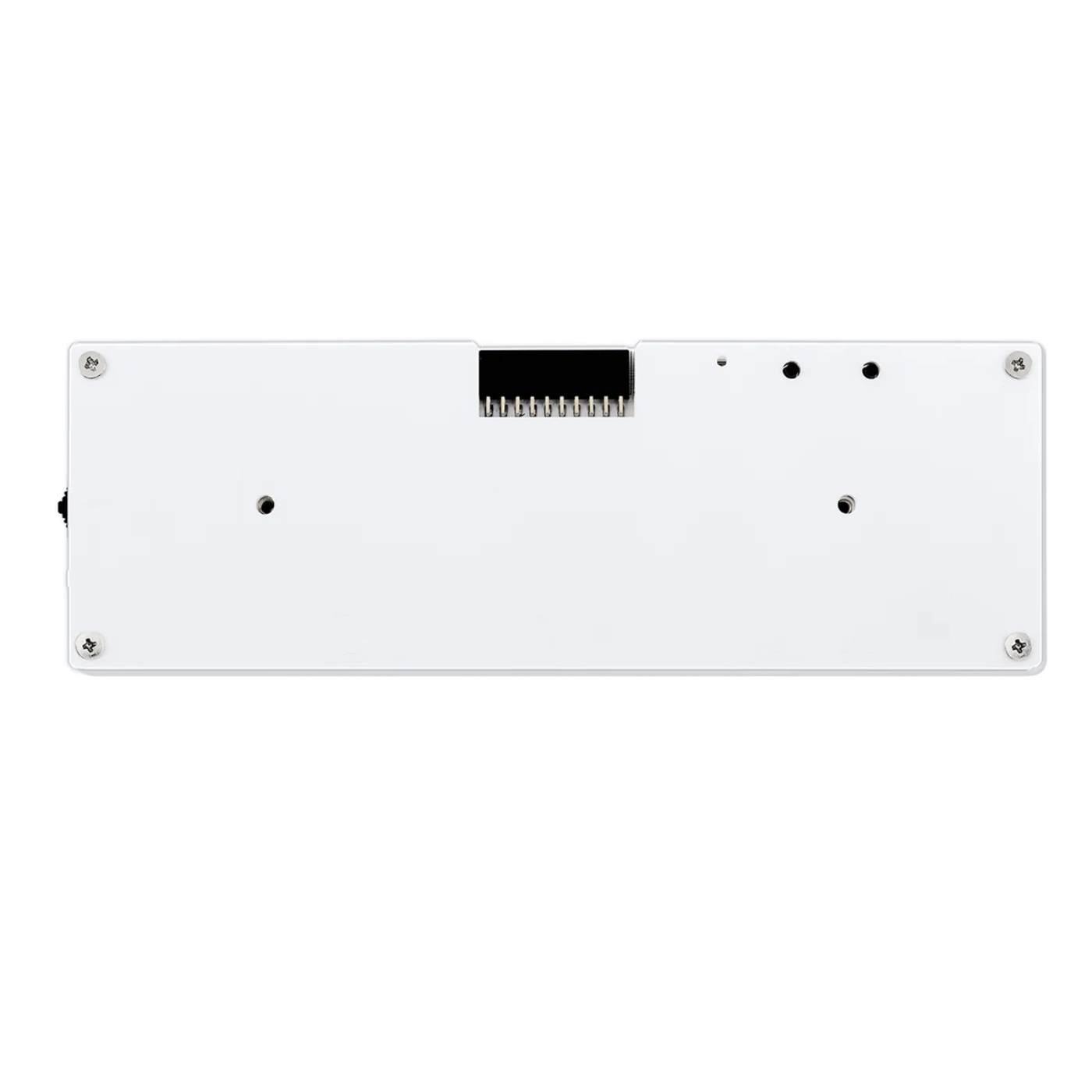

Elecrow CrowPanel ESP32 5.79 Inch E-Paper HMI Display Module
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The Elecrow CrowPanel ESP32 5.79 Inch E-Paper HMI Display combines a high-resolution electronic paper display with the ESP32-S3-WROOM-1-N8R8 microcontroller to provide an efficient platform for low-power embedded applications. Featuring a 5.79-inch Active Matrix Electrophoretic Display (AM EPD) with a resolution of 272 × 792 pixels, it delivers paper-like readability while consuming power only during screen refresh. The reflective display technology eliminates the need for a backlight, and the displayed content remains visible even after power is removed.
Designed for embedded development, the display communicates through a 3-/4-wire SPI interface and includes onboard UART0, BAT connector, GPIO interface, and a TF card slot for expansion. It supports the Arduino IDE development environment and includes onboard controls such as a dial switch, menu button, back button, reset button, and boot button. Its low-power operation, partial refresh capability, and wide viewing angle make it suitable for electronic shelf labels, e-book readers, electronic business cards, smart home devices, and other low-power embedded applications.
| Display Size | 5.79 Inch |
| MCU | ESP32-S3-WROOM-1-N8R8, Up to 240MHz |
| Flash | 8MB |
| PSRAM | 8MB |
| Wi-Fi | Supported |
| Display Type | Active Matrix Electrophoretic Display (AM EPD) |
| Driver Chip | SSD1683 ×2 |
| Resolution | 272 × 792 Pixels |
| Pixel Pitch | 0.1755 × 0.1755 |
| Viewing Angle | Full Viewing Angle |
| Communication Interface | 3-/4-wire SPI (Default: 4-wire SPI) |

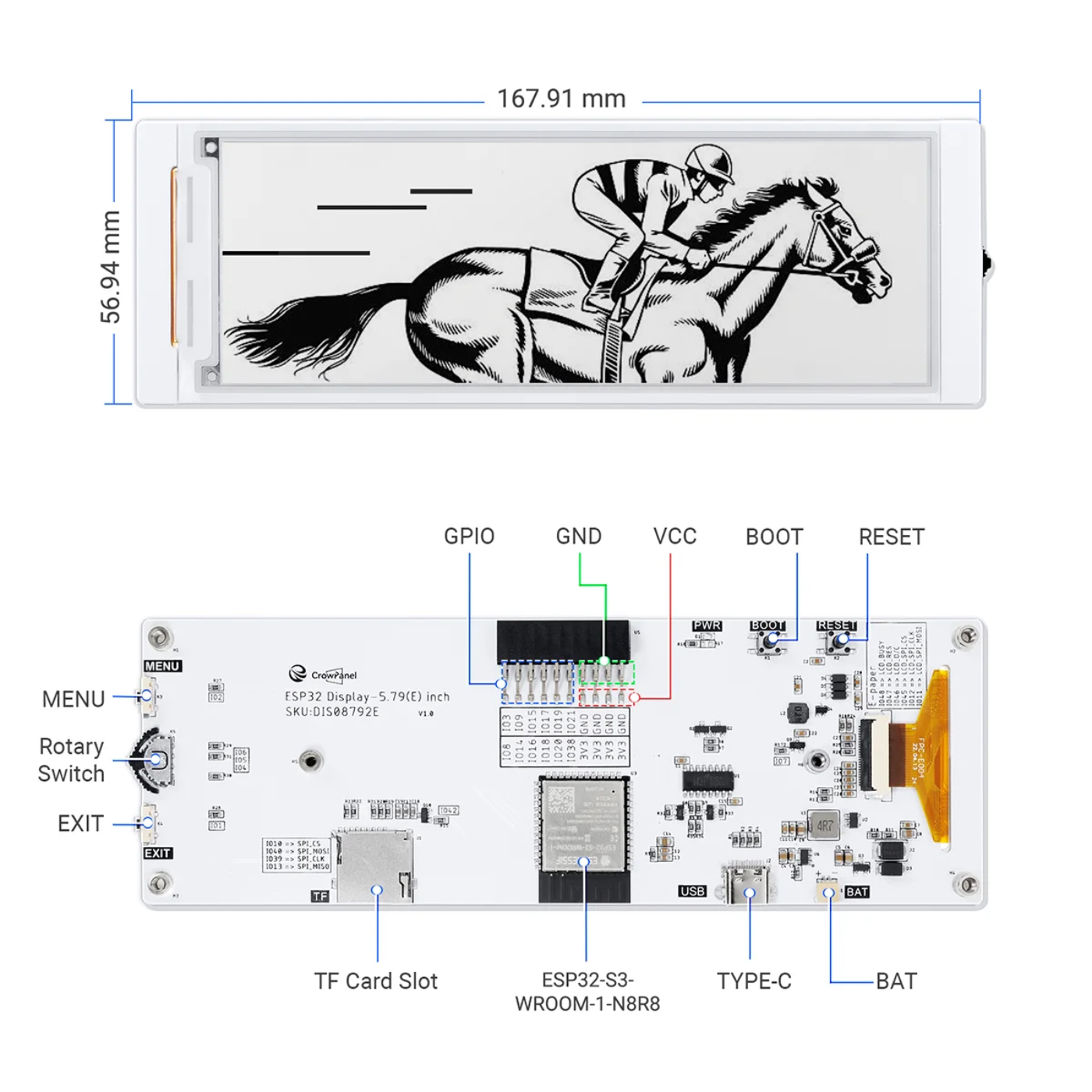

| Interfaces | UART0 ×1, BAT ×1 (SH1.0-2P), GPIO ×1, TF Card Slot ×1 |
| Buttons | Dial Switch ×1, Menu Button ×1, Back Button ×1, Reset Button ×1, Boot Button ×1 |
| Development Environment | Arduino IDE |
| Display Color | Black and White |
| Refresh Mode | Partial Refresh |
| Display Voltage | 2.2V–3.7V |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Active Area | 47.74 × 139.00mm |
