Elecrow CrowPanel Advanced 7-Inch ESP32-P4 AI Touch Display 1024×600 IPS HMI WiFi 6 Arduino/LVGL Compatible
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

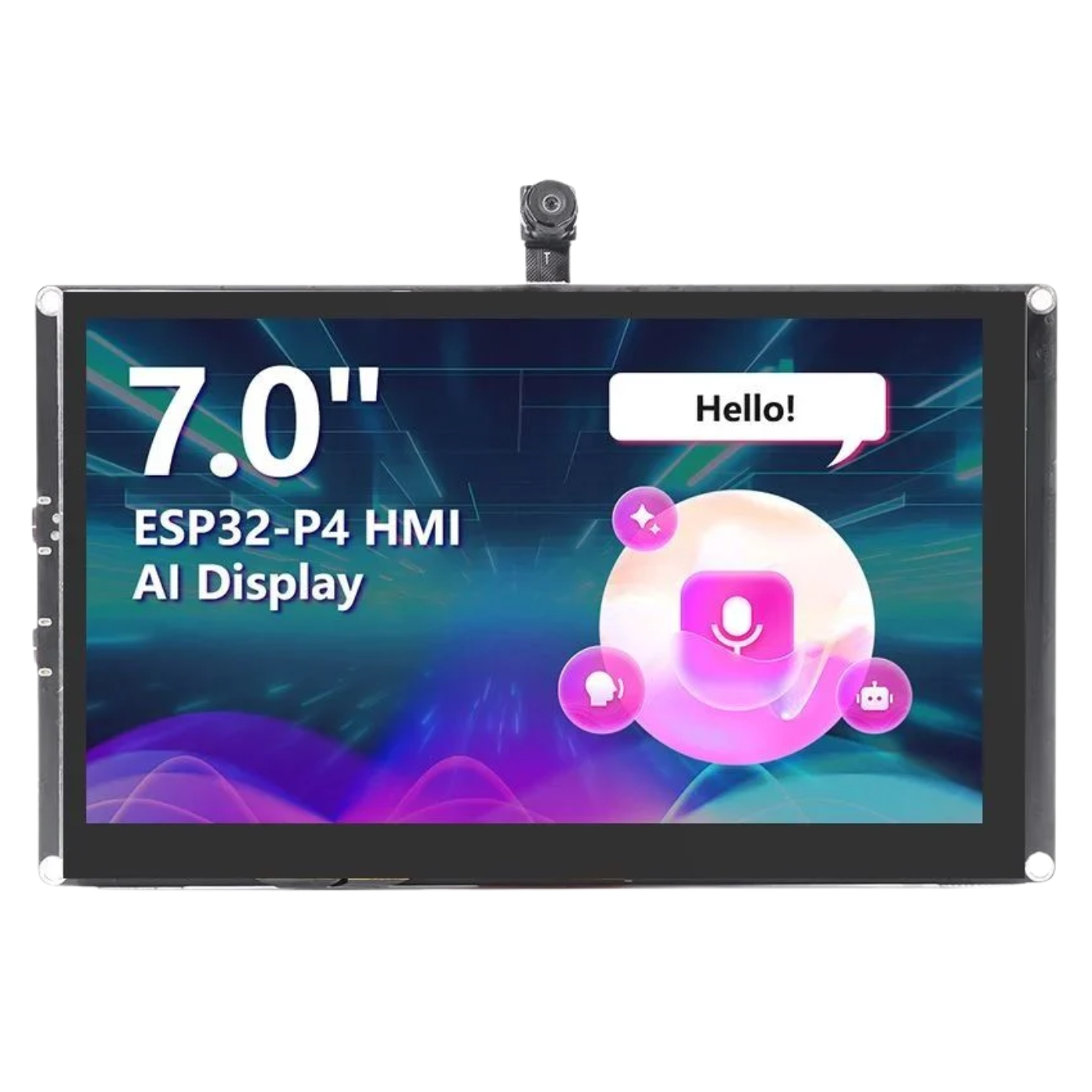

The Elecrow CrowPanel Advanced 7-Inch ESP32-P4 AI Touch Display is a powerful AI HMI display designed for advanced embedded, industrial, and IoT applications. It features a 7-inch IPS capacitive touchscreen with a 1024 × 600 resolution, delivering vibrant visuals and smooth touch interaction.
Powered by the ESP32-P4 RISC-V SoC with high-performance and low-power cores running at up to 400MHz, along with 16MB Flash and 32MB PSRAM, it easily handles complex graphical user interfaces and real-time AI processing. The integrated ESP32-C6-MINI-1 module provides 2.4GHz WiFi 6 and Bluetooth 5.3 for reliable, low-power wireless communication.
An optional 2MP MIPI-CSI camera enables edge AI applications such as facial recognition and object tracking, while the built-in NS4168 audio codec, single-microphone array, and dual speakers support voice interaction. With dual USB-C ports, 11-pin GPIO, multiple Crowtail I2C/UART interfaces, and support for expandable wireless modules including Thread and Zigbee, this ESP32 AI touch display offers exceptional flexibility.
Fully compatible with Arduino, LVGL, and ESP-IDF, the Elecrow CrowPanel Advanced 7-inch ESP32-P4 display is an excellent choice for smart home control panels, industrial automation systems, AIoT edge devices, and next-generation HMI projects.
Powerful dual-core architecture improves performance.
It is capable of handling complicated graphical interfaces and real-time AI calculations thanks to its RISC-V architecture ESP32-P4 dual-core CPU (400MHz high-performance core + low-power core), 16MB Flash, and 32MB PSRAM.
A standalone ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, ensuring reliable connectivity while consuming minimal power.
Improved AI acceleration and performance.
Significantly increased computing capacity compared to prior generations, making it appropriate for high-load jobs like real-time data analysis as well as high-performance applications like smart home appliances and industrial automation.
It has dual-channel speaker output, making it appropriate for applications such as voice assistants and smart home automation.

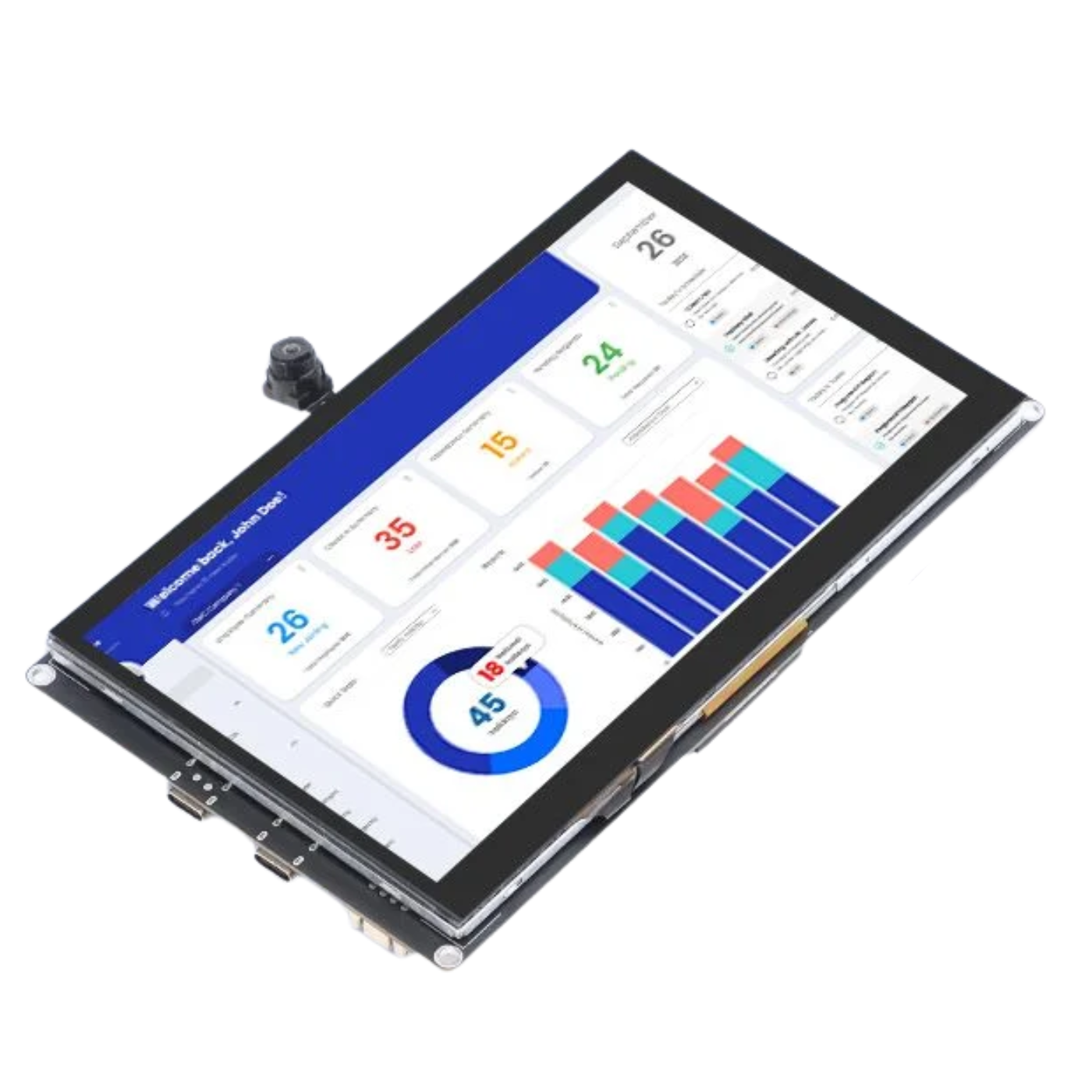

High-definition IPS touchscreen for seamless and natural interaction.
IPS TFT panels come in a variety of sizes, including 5.0/7.0/9.0/10.1 inches, and support capacitive touch, broad viewing angles, and smoother interactions.
Intelligent vision enables AI applications.

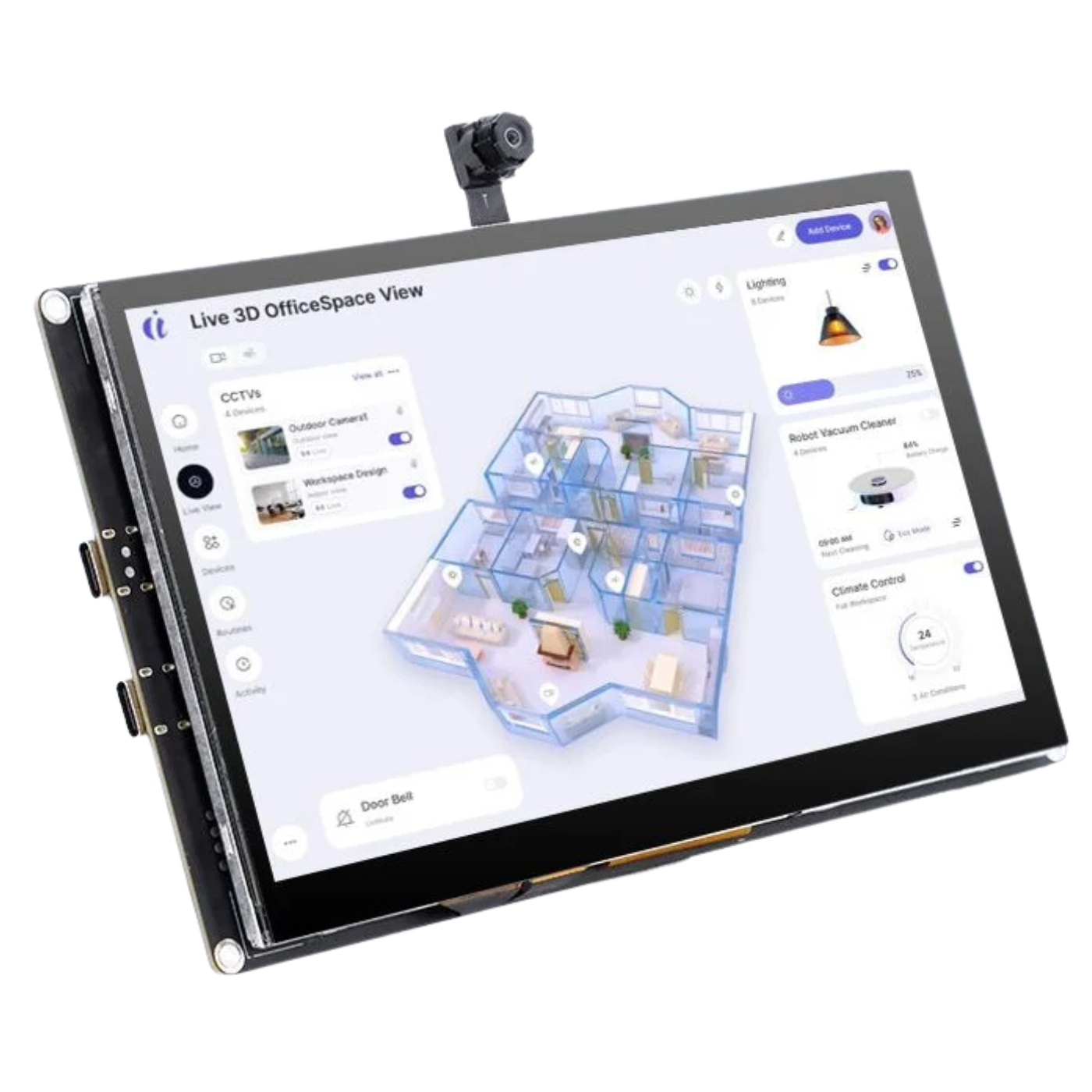

An embedded 2-megapixel MIPI-CSI camera efficiently executes AI vision algorithms such as facial recognition and object tracking.
Comprehensive interfaces provide flexible expansion.

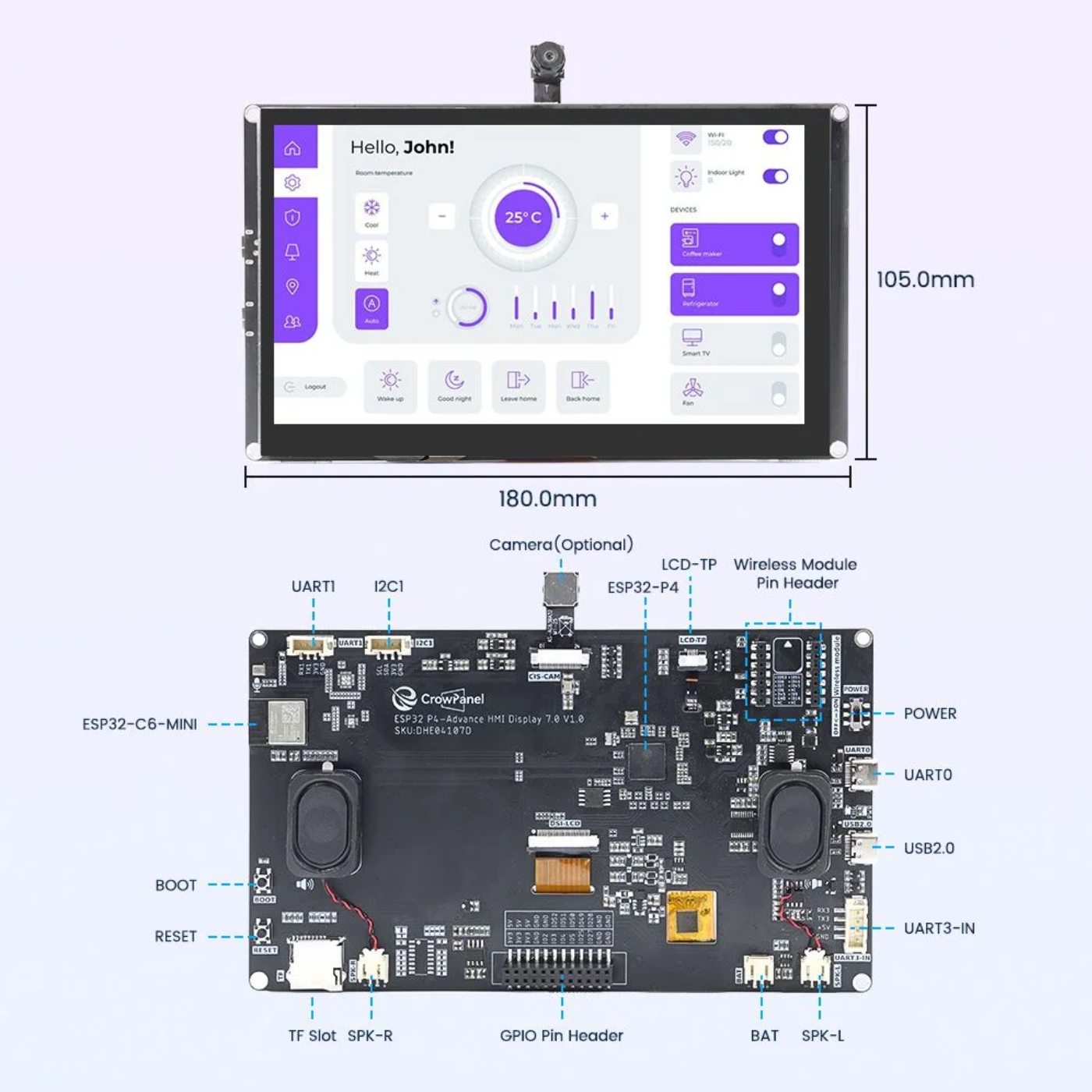

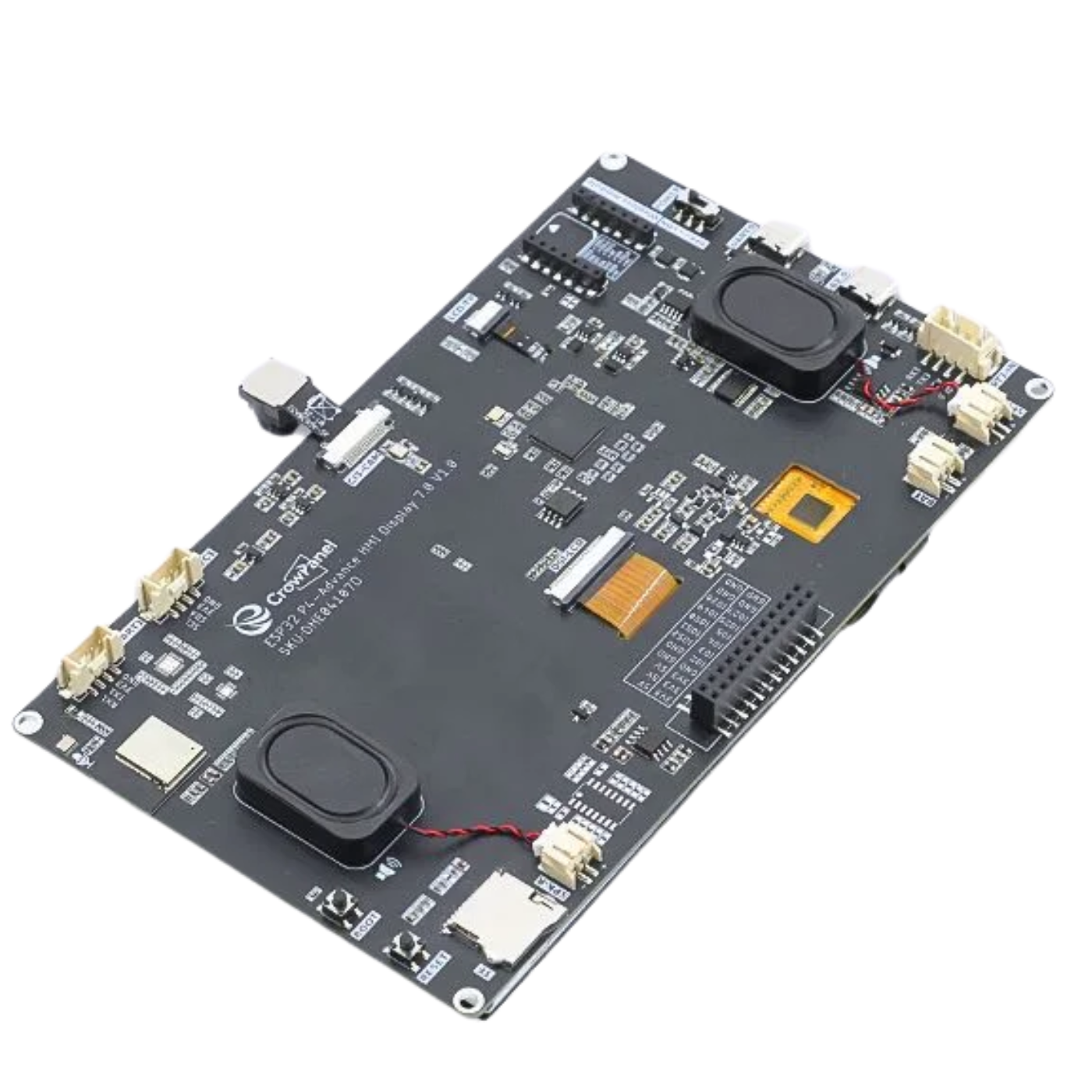

Dual USB-C (enabling UART debugging and USB 2.0 Device), 11pin GPIO, and Crowtail (I2C/UART) ports allow for easy connection to a variety of peripherals and sensors.

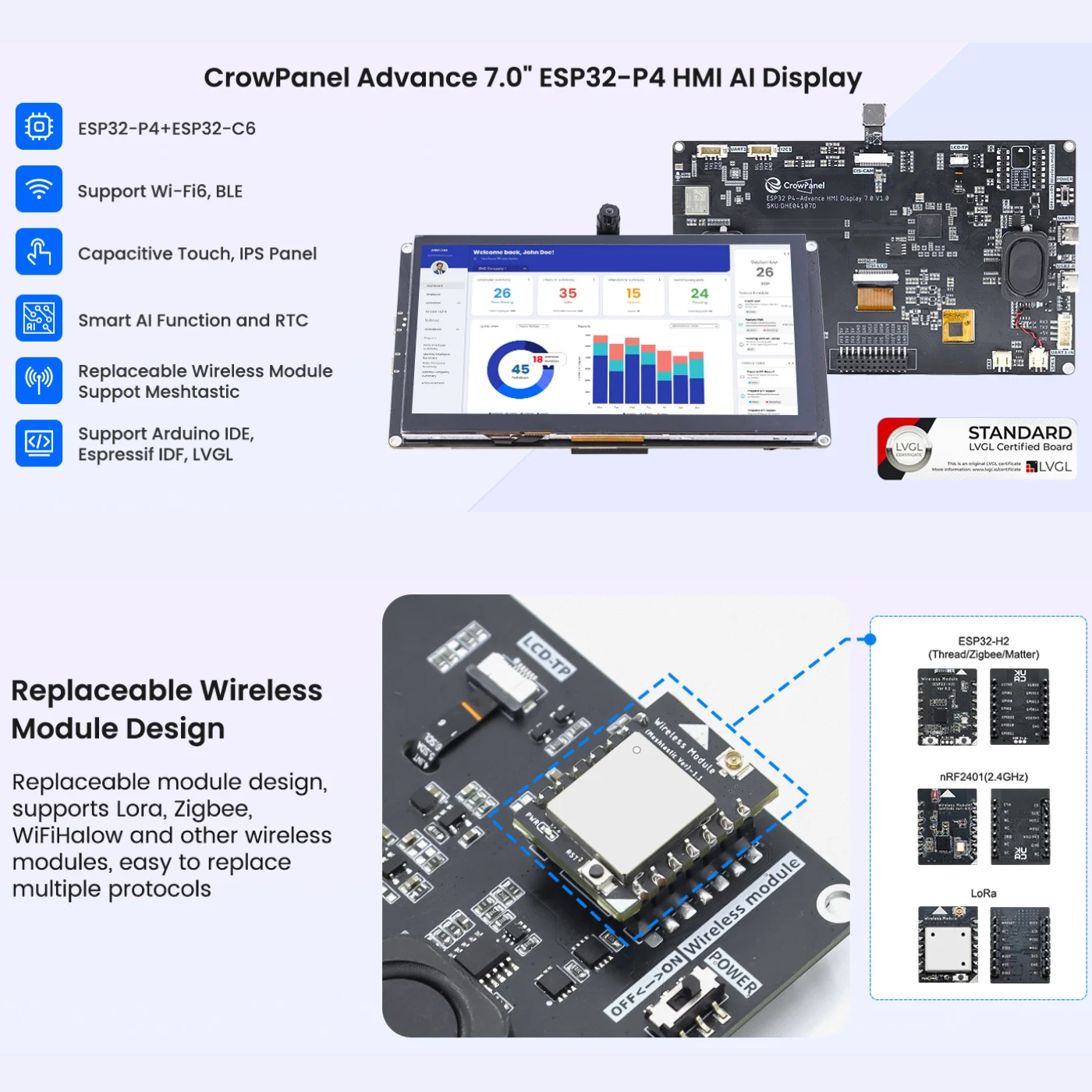

A replaceable wireless module slot supports numerous communication protocols, including Wi-Fi 6, Thread, and Zigbee, allowing a single board to handle a variety of IoT applications.
| Category | Specification |
|---|---|
| Main Chip | ESP32-P4NRW32 |
| Processor (SoC) | ESP32-P4 RISC-V 32-bit dual-core (High Performance) up to 400MHz + RISC-V 32-bit single-core (Low Power) up to 40MHz |
| System Memory | 768KB L2MEM (HP), 32KB SRAM (LP), 8KB TCM, 32MB PSRAM |
| Internal Memory | 128KB ROM (HP), 16KB ROM (LP), 16MB Flash |
| Development Environment | ESP-IDF, Arduino IDE |
| Display Size | 7.0-inch |
| Display Resolution | 1024 × 600 pixels |
| Display Type | IPS Panel |
| Touch Panel | Capacitive Touch (Single & 5-Point Multi-Touch) |
| Viewing Angle | 178° |
| Brightness | 400 cd/m² (Typical) |
| Color Depth | 16.7 Million Colors (8-bit) |
| WiFi | 2.4GHz WiFi 6 (802.11 a/b/g/n) |
| Bluetooth | Bluetooth 5.3 with BLE |
| Optional Wireless Support | Zigbee, LoRa, nRF24L01, Matter, Thread |
| Interfaces | USB 2.0, UART, I2C, GPIO Female Headers, SD Card Slot, Battery Connector, Speaker Connector, Camera Header, Module Female Headers |
| Onboard Functions | Audio Amplifier, Battery Charging Management, USB-to-UART, Microphones, Dual Speakers |
| Speaker Connector | BX-PH 2.0-2PWT |
| Speaker Pins | 1 × 2P |
| Pin Pitch | 2mm |
| Speaker Connector Dimensions | 8 × 8.5 × 5.6mm |
| Mounting Type | SMT Right Angle |
| Reset Button | Yes |
| Boot Button | Yes (Press and hold while powering on to flash firmware) |
| Power Button | On/Off Switch |
| Power LED (PWR) | Device Power Status Indicator |
| Charging LED (CHG) | Lithium Battery Charging & Low Battery Indicator |
| Mounting Options | M3 (3.2mm) Mounting Holes, Embedded Installation, Enclosure Mounting |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Power Input | 5V/2A via USB or UART Terminal |
| Active Display Area | 155 × 87mm |
| Overall Dimensions | 180 × 105mm |
