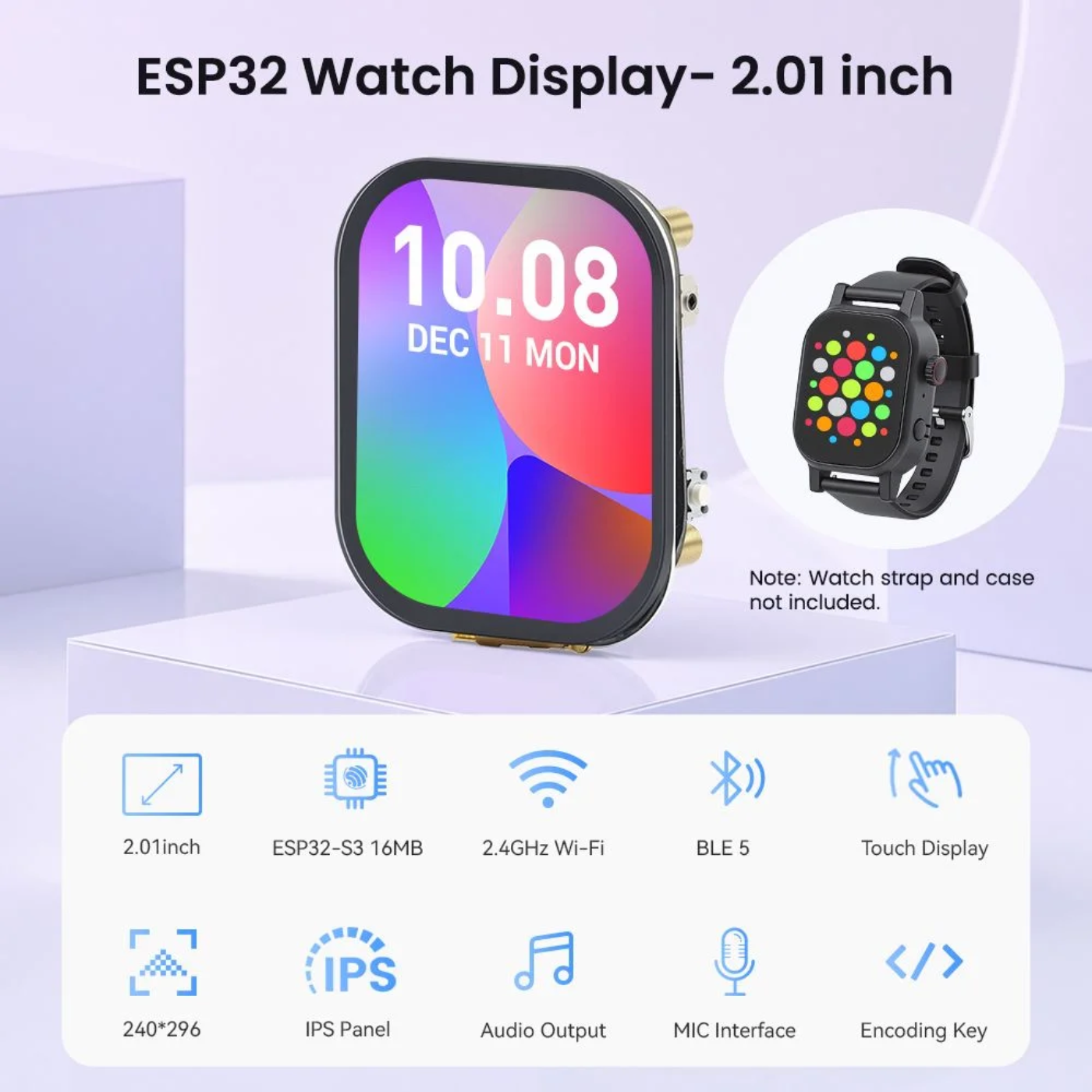

Elecrow CrowPanel 2.01-Inch ESP32 HMI Watch Display, 240×296 IPS Touchscreen & Microphone – No Case/Strap
The Elecrow CrowPanel 2.01-Inch ESP32 HMI Watch Display is a compact ESP32-S3 HMI display designed for wearable prototypes, IoT controllers, smart-home interfaces, and embedded development projects. It combines a 2.01-inch 240 × 296 IPS capacitive touchscreen with an ESP32-S3R8 controller, 512KB SRAM, 8MB PSRAM, and 16MB Flash, providing the processing and memory needed for responsive graphical interfaces.
The built-in microphone and speaker enable voice interaction, voice commands, and audio playback, while Wi-Fi and Bluetooth 5.0/BLE provide convenient wireless connectivity. Support for Arduino IDE, ESP-IDF, and LVGL makes the board suitable for developing customized user interfaces and interactive applications.
Its compact no-case/no-strap design allows the ESP32 watch display to be integrated into custom enclosures or other products, making it a practical wearable development board and voice interaction development board for makers, educators, and product developers.
Features:
- High-Performance ESP32-S3 Main Controller: Equipped with a dual-core Xtensa LX7 processor that runs at 240MHz and supports Bluetooth and Wi-Fi.

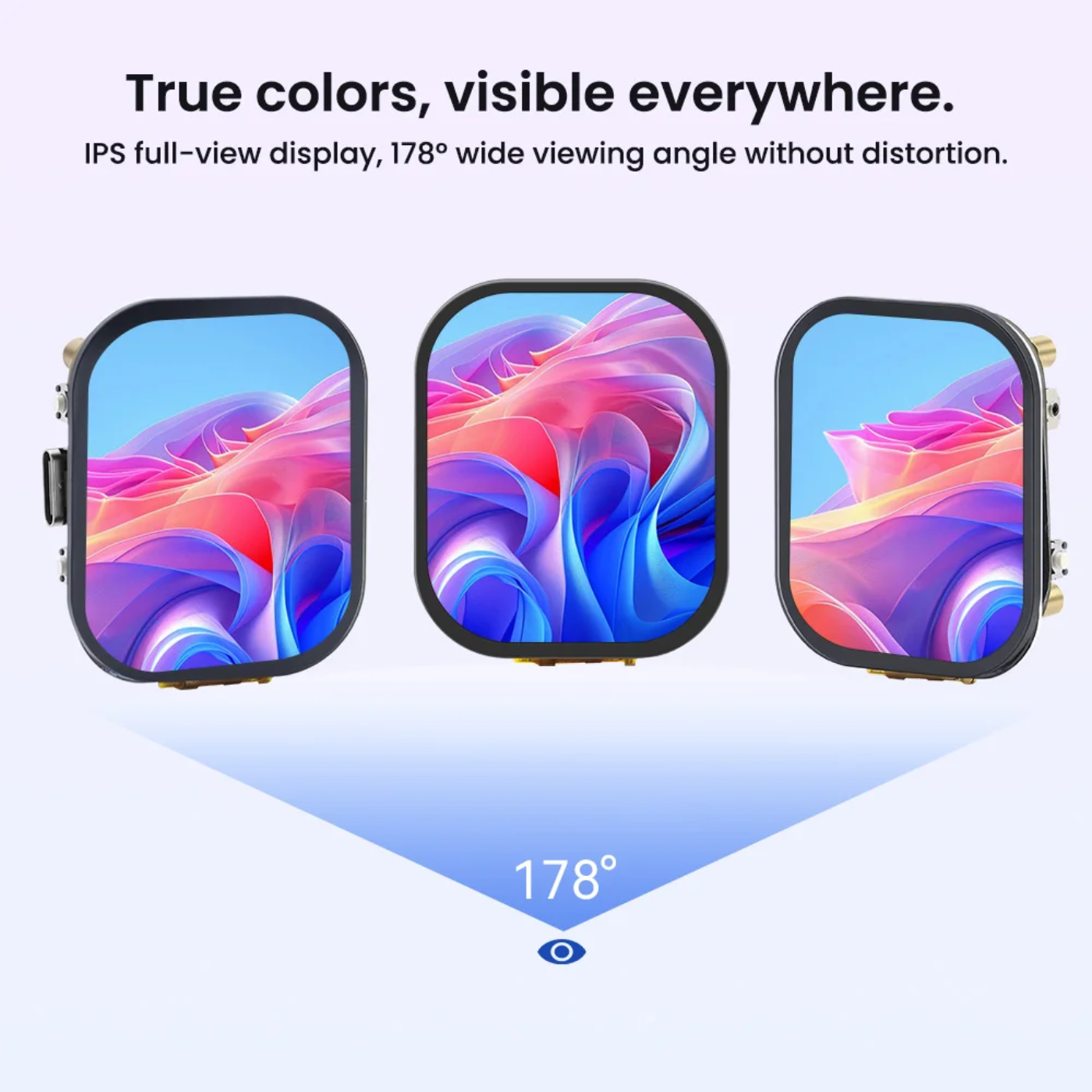

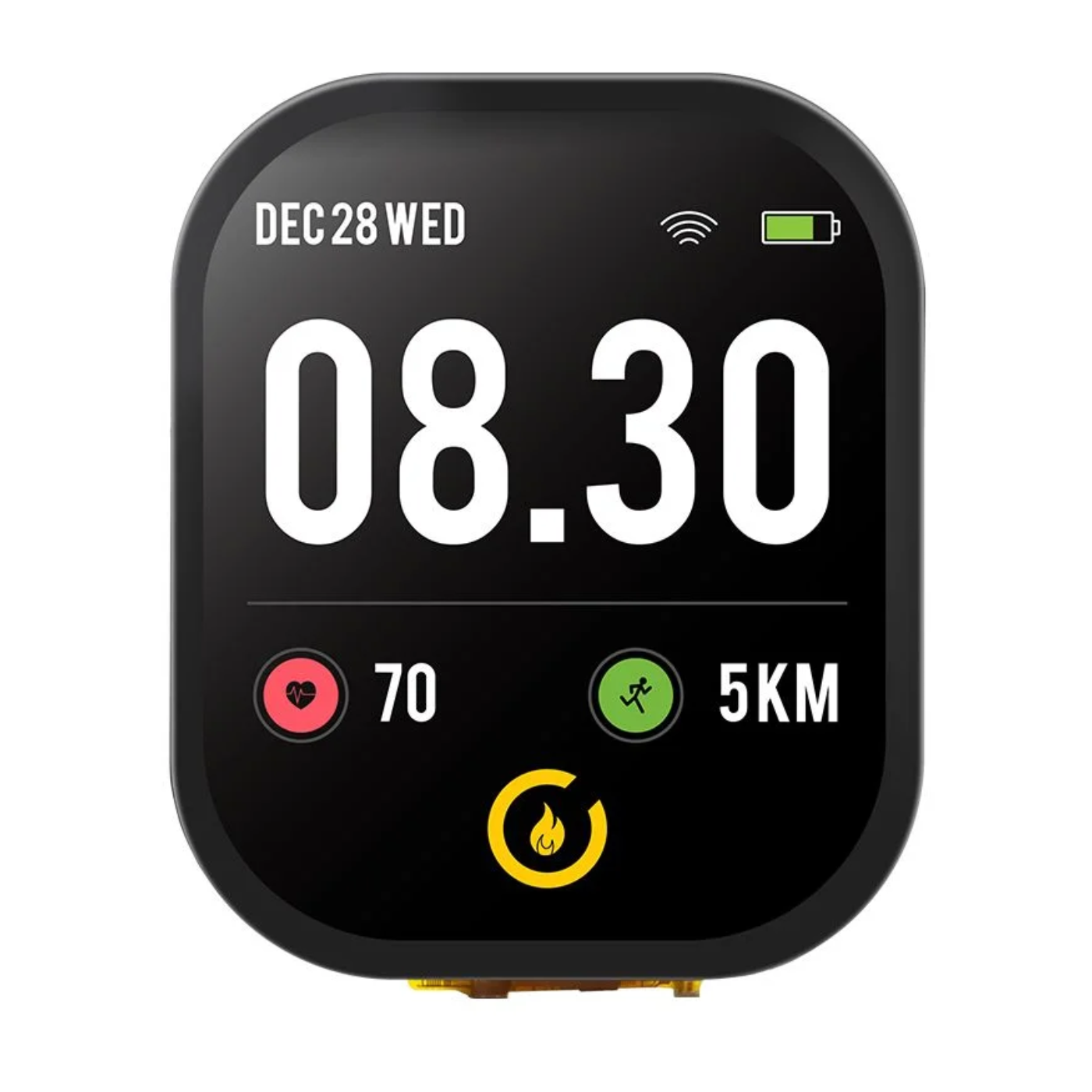

- 2.01-inch IPS Touchscreen: A capacitive touchscreen for responsive and smooth operation. When combined with graphics libraries (such as LVGL), it facilitates the creation of stunning watch interfaces.

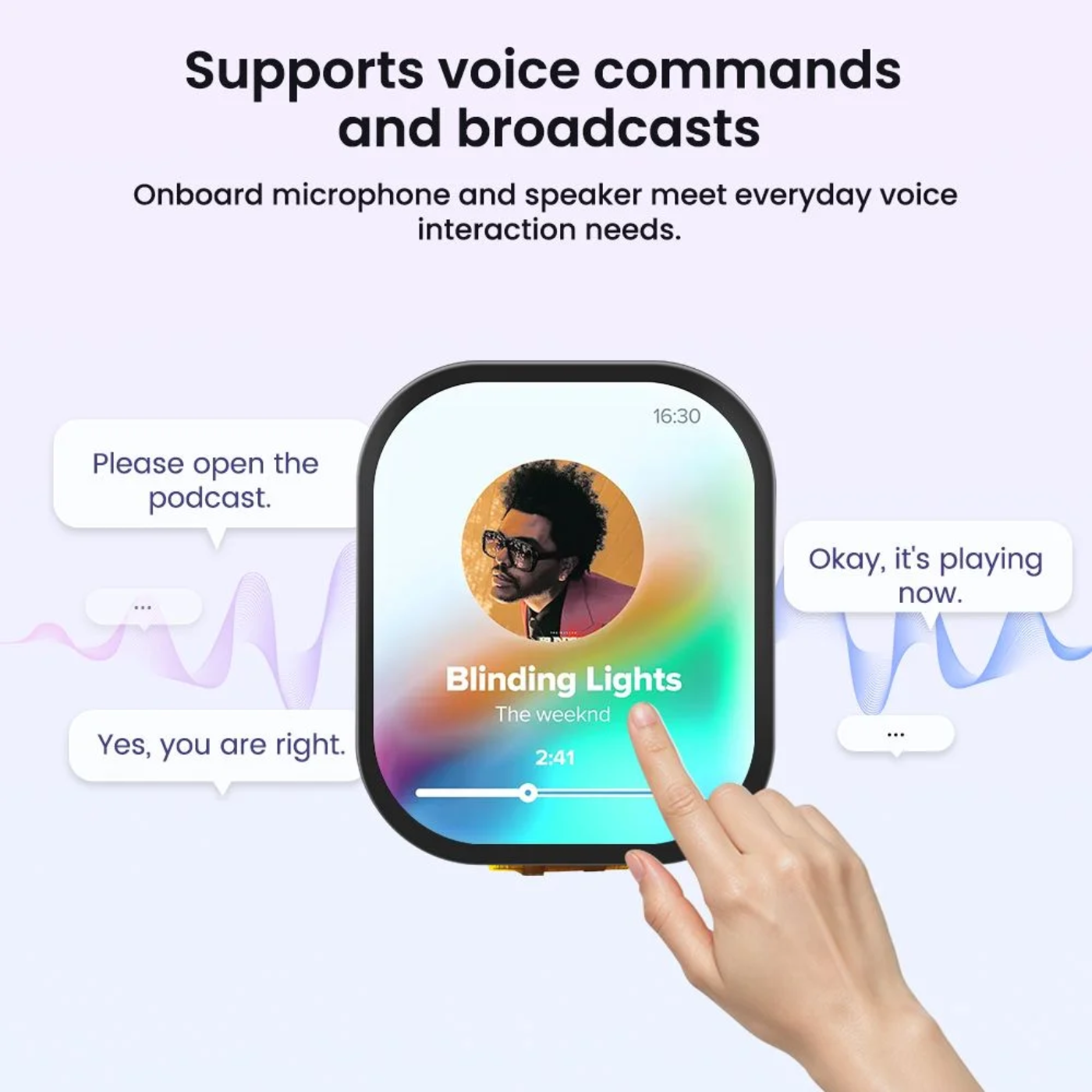

- Voice Interaction Functionality: The built-in high-sensitivity microphone and speaker enable voice command detection, broadcasting, and real-time two-way communication, broadening the scope of human-computer interaction.
- Modular Caseless Design: Caseless and strapless, allowing for immediate embedding into existing customer goods or integration into a variety of customized devices, while also providing a high degree of freedom for secondary development.
- Multi-Platform Development Support: Fully compatible with popular development frameworks such as the Arduino IDE and ESP-IDF. Numerous examples aid in speedy learning.
- Motion detection: The onboard triaxial accelerometer unit can detect motion, posture, and other parameters.

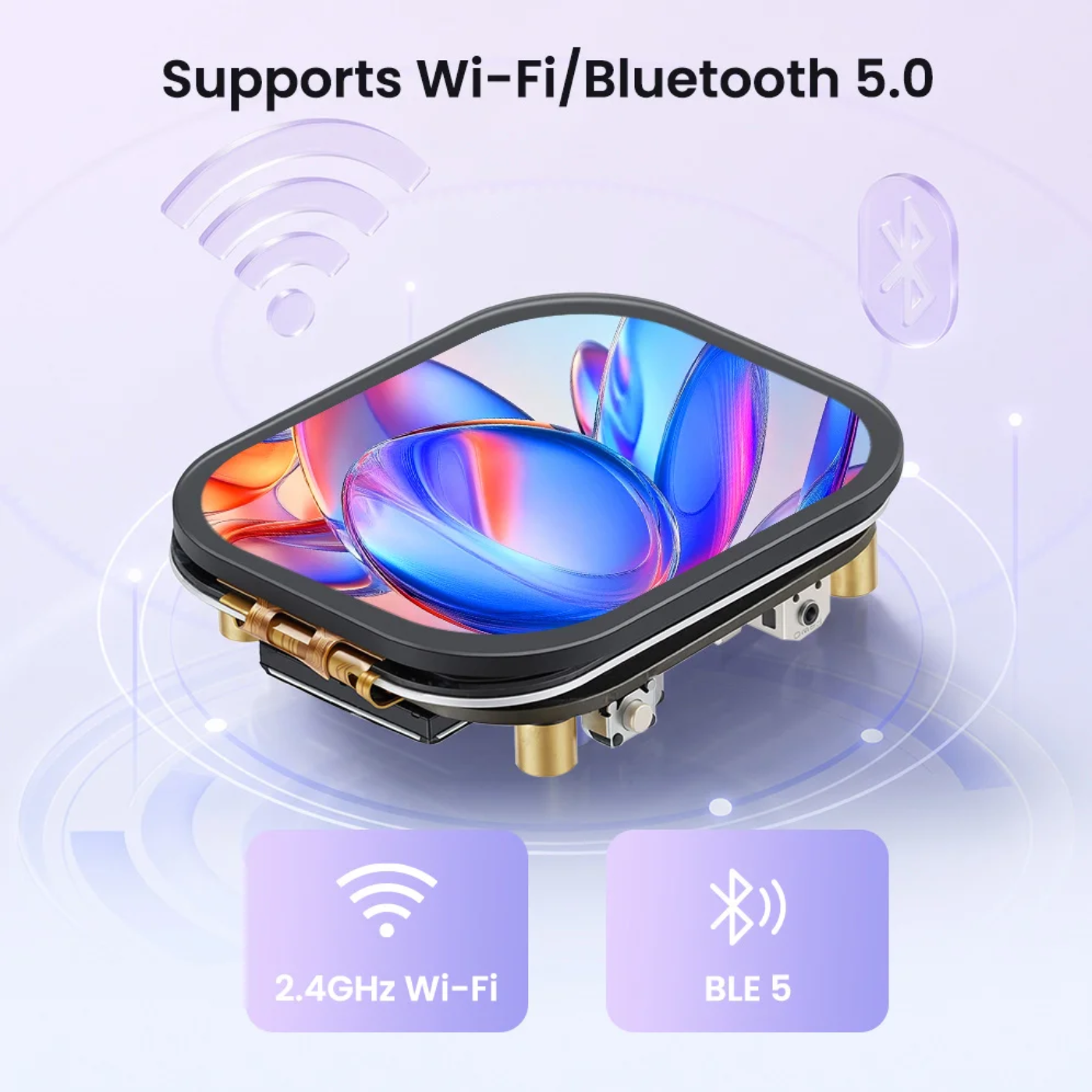

- Wireless Communication and Control: Integrated Bluetooth 5.0 and Wi-Fi allow for mobile communication, remote control of IoT devices, and cloud data synchronization.
- Rich Interactive Peripherals: An onboard coded knob (or one supplemented according to the actual object) simplifies menu selection, volume adjustment, and other activities, increasing interaction efficiency.
Hardware Overview:
