Elecrow CrowPanel 10.1-inch ESP32 P4 HMI AI Display 1024×600 IPS Capacitive Touch Screen
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

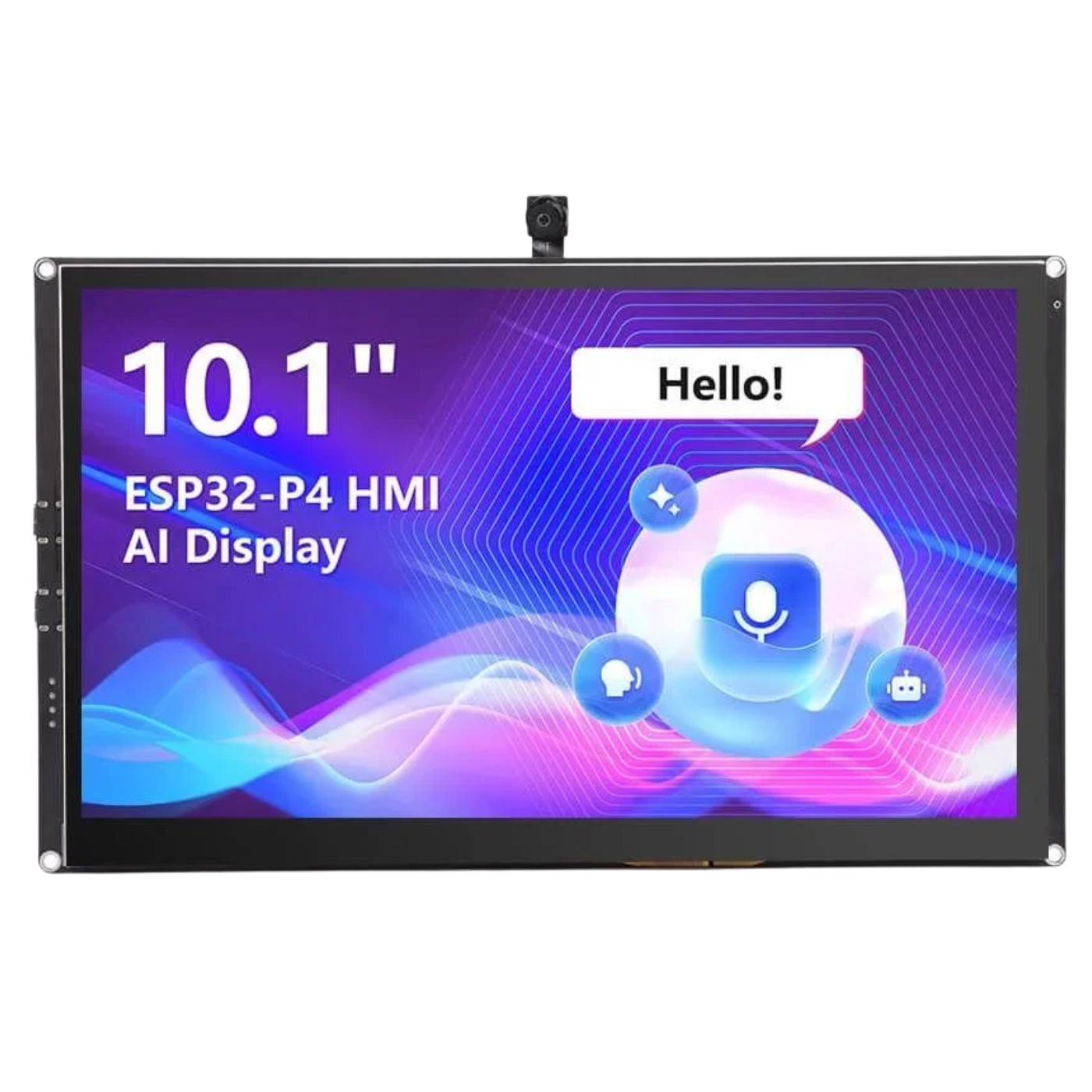

The Elecrow CrowPanel 10.1-inch ESP32 P4 HMI AI Display is a high-performance intelligent interactive terminal designed for advanced embedded and IoT applications. Featuring a 10.1-inch 1024×600 IPS touch screen, this ESP32 smart display delivers clear visuals, wide viewing angles, and a smooth touch experience for user-friendly operation.
Powered by the ESP32-P4 and built with an innovative dual-chip architecture, it combines strong computing performance, rich multimedia capabilities, and exceptional scalability in a compact platform.
This AI display module is engineered to handle demanding applications such as smart home control panels, industrial HMI systems, edge AI terminals, data monitoring dashboards, and interactive IoT devices. The combination of the 1024×600 IPS touch screen and advanced processing power enables seamless graphics rendering and intelligent user interactions.
Whether you're building a 10.1-inch touch screen display for automation systems or developing a next-generation ESP32 HMI display, the CrowPanel provides a reliable and feature-rich solution for professionals, educators, and makers.
Powerful Dual-Core Processing for Demanding Applications
Powered by the ESP32-P4 dual-core RISC-V processor, featuring a 400MHz high-performance core and a low-power core, the CrowPanel delivers exceptional processing performance for advanced embedded applications. With 16MB Flash and 32MB PSRAM, it efficiently handles complex graphical user interfaces, multitasking, and real-time AI workloads. An independent ESP32-C6-MINI-1 wireless module provides reliable Wi-Fi 6 and Bluetooth 5.3 connectivity while maintaining low power consumption.

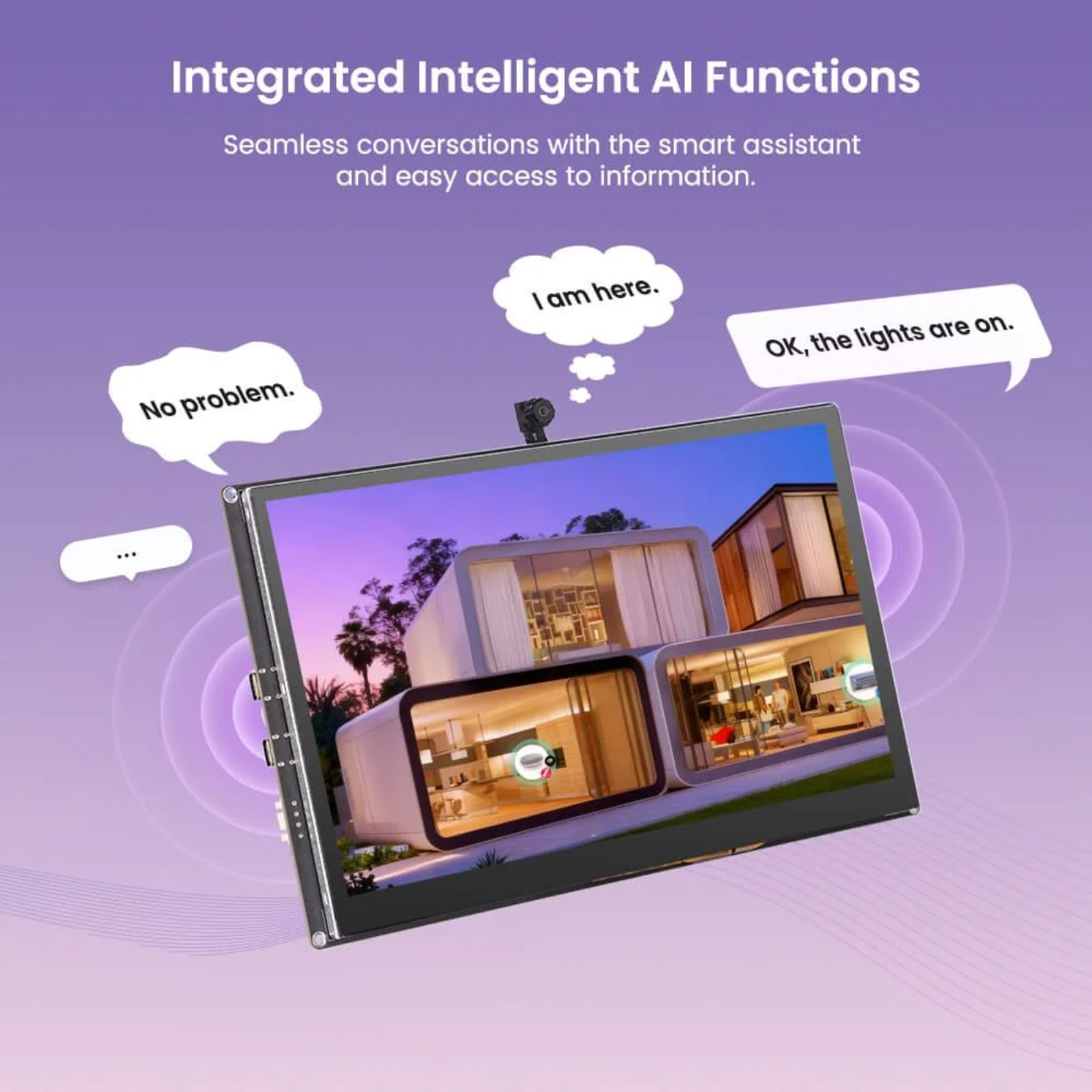

Enhanced AI Performance for Smart Applications
Designed for next-generation intelligent systems, the CrowPanel offers significantly improved computing power over previous generations. It is well-suited for AI-driven tasks such as real-time data processing, smart home automation, industrial control, and edge computing. Integrated dual-channel speakers further enable voice-enabled applications, including smart assistants and interactive control systems.

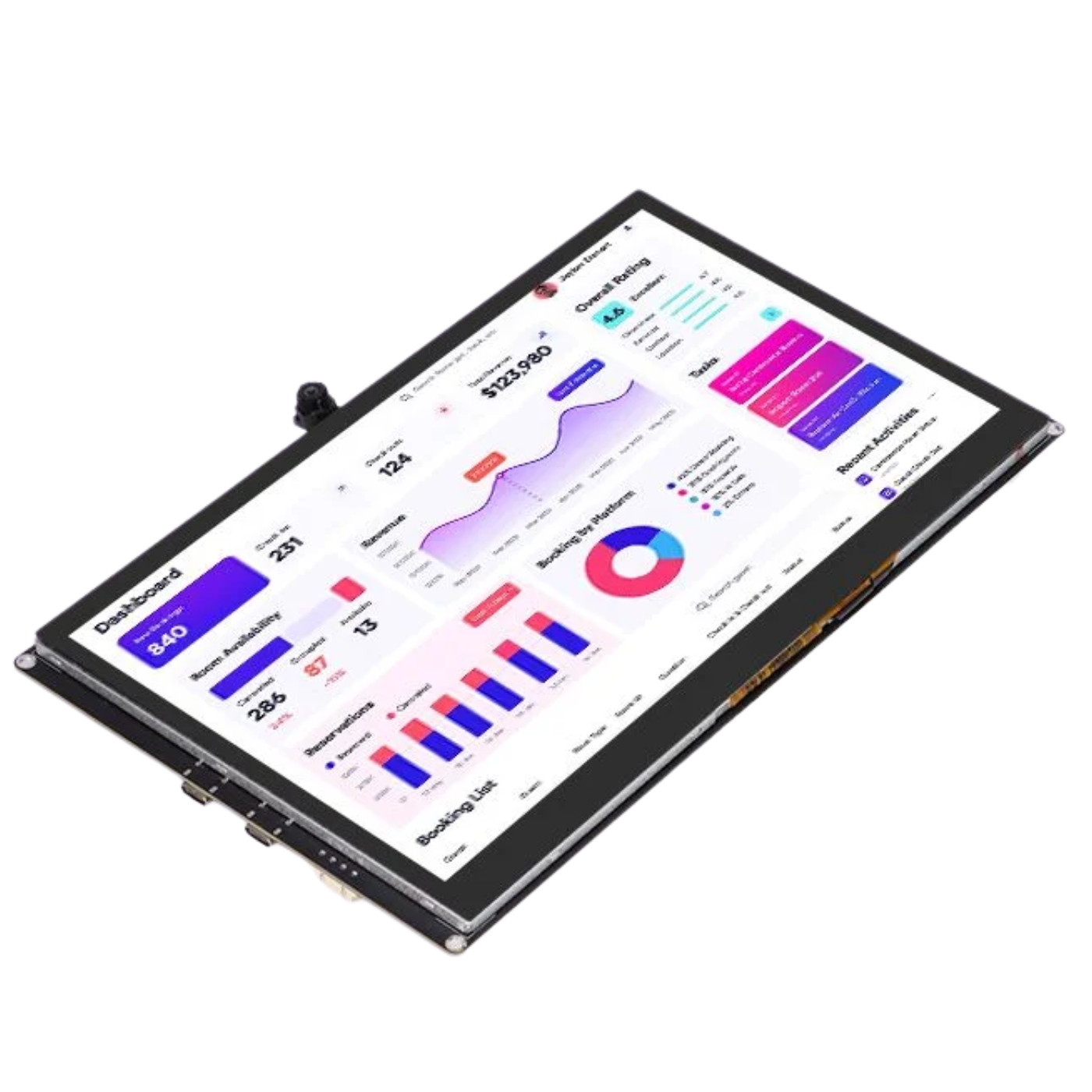

High-Resolution IPS Touchscreen for an Intuitive Experience
Available in 5.0-inch, 7.0-inch, 9.0-inch, and 10.1-inch display options, the CrowPanel features IPS TFT capacitive touchscreens that deliver vibrant visuals, wide viewing angles, and responsive touch performance for smooth and intuitive user interaction.
Built-in AI Vision Capabilities
The integrated 2MP MIPI-CSI camera allows the CrowPanel to support advanced AI vision applications such as facial recognition, object detection, and object tracking, making it ideal for intelligent automation and computer vision projects.
Extensive Connectivity and Expansion Options

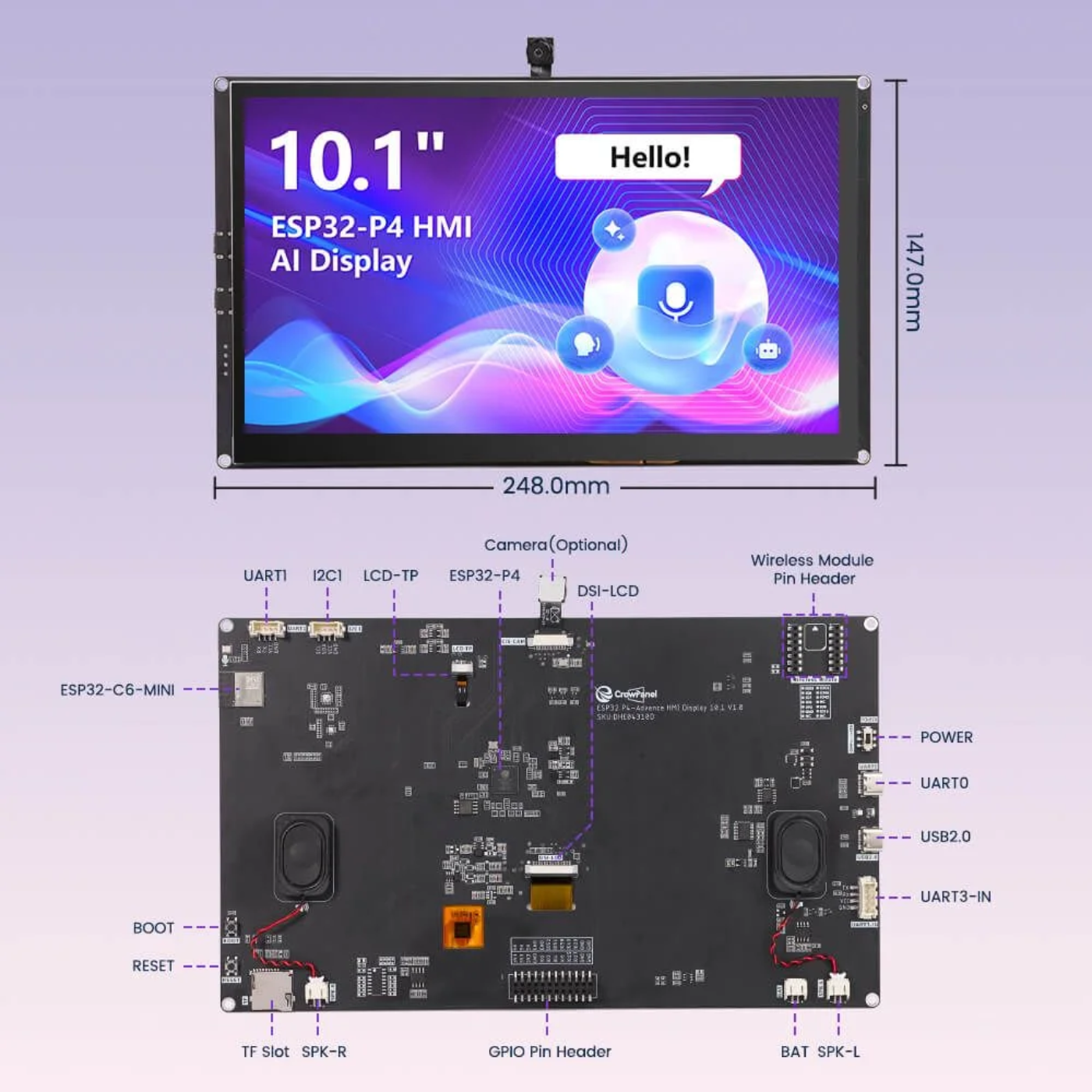

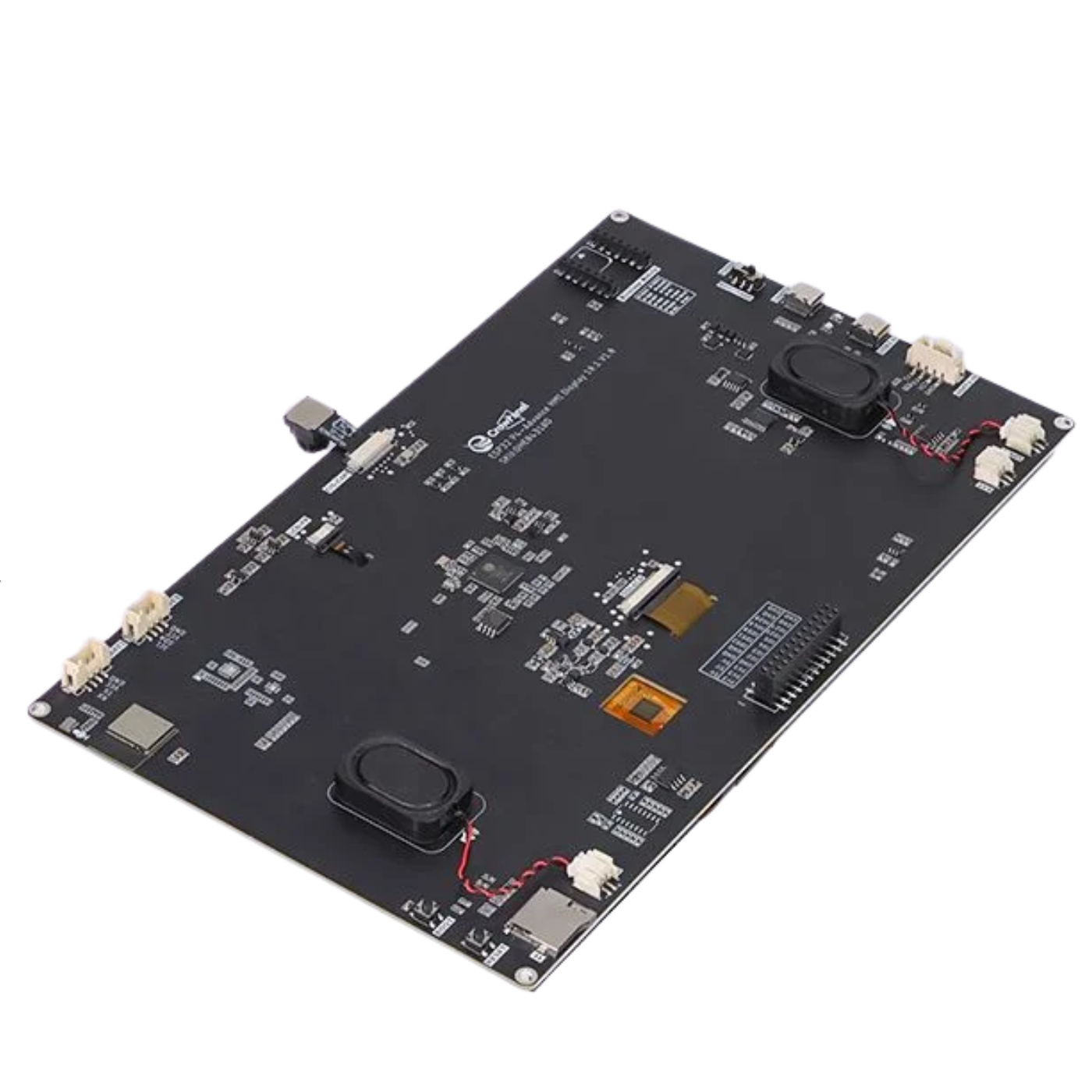

The CrowPanel is equipped with a wide range of interfaces for seamless hardware integration, including dual USB Type-C ports (supporting UART debugging and USB 2.0 Device), an 11-pin GPIO header, and Crowtail (I2C/UART) connectors for easy expansion with sensors and peripherals.

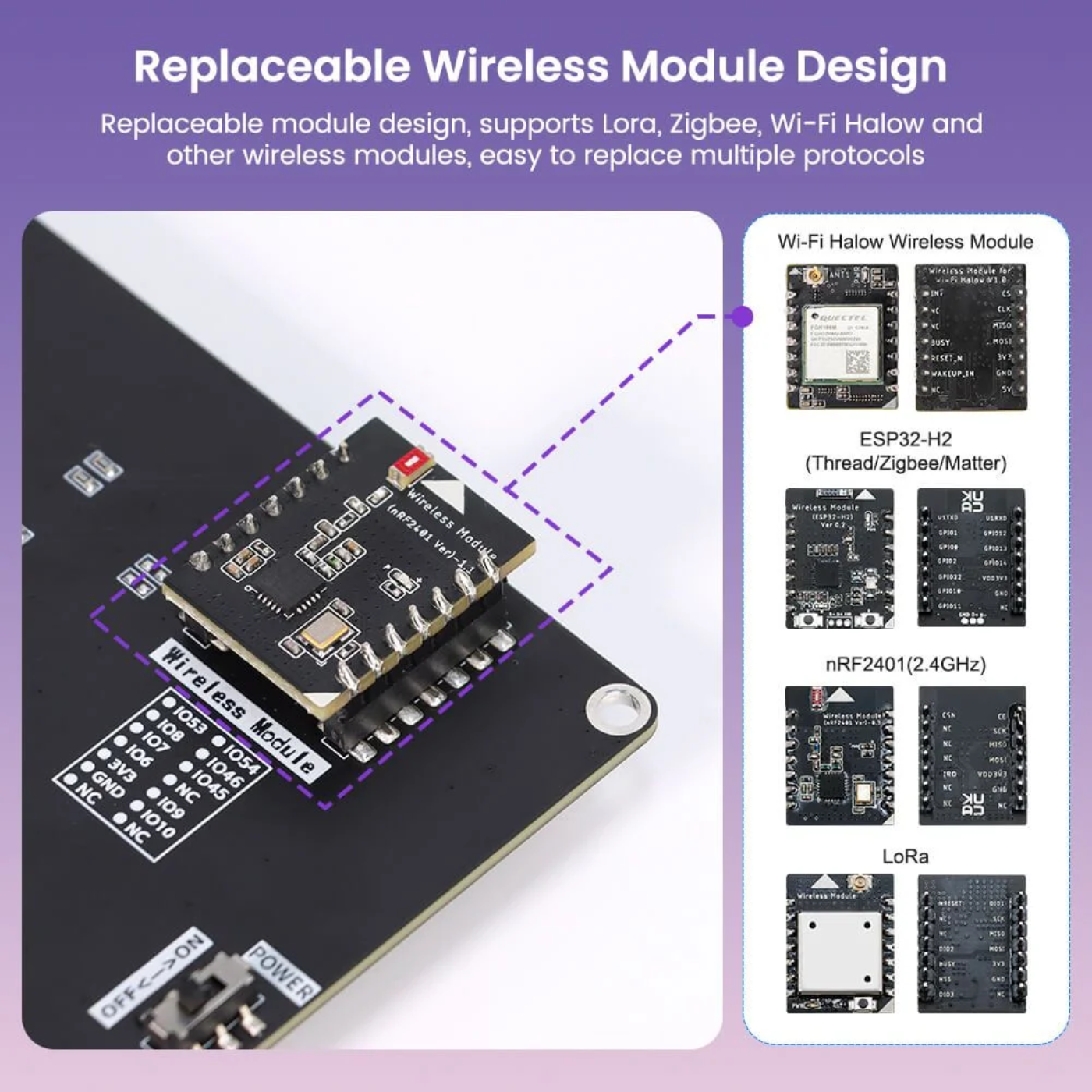

For multimedia applications, the onboard NS4168 audio codec and single-microphone array deliver high-quality audio playback and accurate far-field voice recognition. Additionally, the replaceable wireless module slot supports multiple communication technologies, including Wi-Fi 6, Thread, Zigbee, and Wi-Fi HaLow, providing the flexibility to adapt to a wide range of IoT and smart device applications.
Compared to earlier generations (Basic/Advanced ESP32-S3), the ESP32-P4 HMI series improves machine learning inference and real-time data processing capabilities with an updated processor and AI instruction set. Whether it's a smart home central control, an industrial control panel, a commercial display device, or an AIoT application for Industry 4.0, its extensive peripheral support can help you swiftly construct powerful and interactive smart goods.
| Specification | Details |
|---|---|
| Main Chip | ESP32-P4NRW32 |
| Processor (CPU/SoC) | ESP32-P4, RISC-V 32-bit dual-core processor (High-Performance) up to 400MHz, RISC-V 32-bit single-core processor (Low-Power) up to 40MHz |
| System Memory | 768KB L2MEM (HP), 32KB SRAM (LP), 8KB TCM, 32MB PSRAM |
| Memory | 128KB ROM (HP), 16KB ROM (LP), 16MB Flash |
| Development Environment | ESP-IDF, Arduino IDE |
| Display Size | 10.1-inch |
| Display Resolution | 1024 × 600 |
| Display Panel | IPS TFT Panel |
| Touch Panel | Capacitive Touch, Single Touch / 5-Point Multi-Touch |
| Viewing Angle | 178° |
| Brightness | 400 cd/m² (Typical) |
| Color Depth | 16.7 Million Colors (8-bit) |
| Wi-Fi | 2.4GHz Wi-Fi 6 (802.11 a/b/g/n) |
| Bluetooth | Bluetooth 5.3 with BLE |
| Optional Wireless Protocols | Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow |
| Interfaces | USB 2.0, UART, I2C, GPIO Female Headers, SD Card Slot, Battery Connector, Speaker Jack, Camera Header, Module Female Headers |
| Integrated Functions | Audio Amplifier, Battery Charge Management, USB-to-UART, Microphones, Dual Speakers |
| Speaker Connector | BX-PH 2.0-2PWT |
| Speaker Connector Pins | 1 × 2P |
| Pin Pitch | 2mm |
| Speaker Connector Dimensions | 8 × 8.5 × 5.6mm |
| Mounting Type | SMT Right Angle |
| Reset Button | Yes |
| Boot Button | Yes (Press and hold during power-on to enter programming mode) |
| Power Button | On/Off Switch |
| Power Indicator | PWR LED |
| Charging Indicator | CHG LED (Charging & Low Battery Status) |
| Installation Options | M3 (3.2mm) Mounting Holes, Embedded Installation, Enclosure Mounting |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Power Input | 5V/2A via USB or UART Terminal |
| Dimensions | 248 × 147mm |
