Elecrow CrowPanel 1.46-inch HMI ESP32-S3 Rotary Display 360×360 IPS Round Touch Screen - Buy Online in India

Elecrow CrowPanel 1.46-inch HMI ESP32-S3 Rotary Display 360×360 IPS Round Touch Screen

The Elecrow CrowPanel 1.46-inch HMI ESP32-S3 Rotary Display is an advanced human-machine interface (HMI) development platform designed for smart home systems, IoT devices, industrial control panels, and interactive embedded applications. Powered by the high-performance ESP32-S3 dual-core processor operating at up to 240MHz, the module combines processing power, wireless connectivity, touch interaction, and a rotary encoder into a compact all-in-one solution. With integrated 16MB Flash memory and 8MB PSRAM, the display provides sufficient resources for developing sophisticated graphical user interfaces, real-time monitoring systems, and connected smart devices.

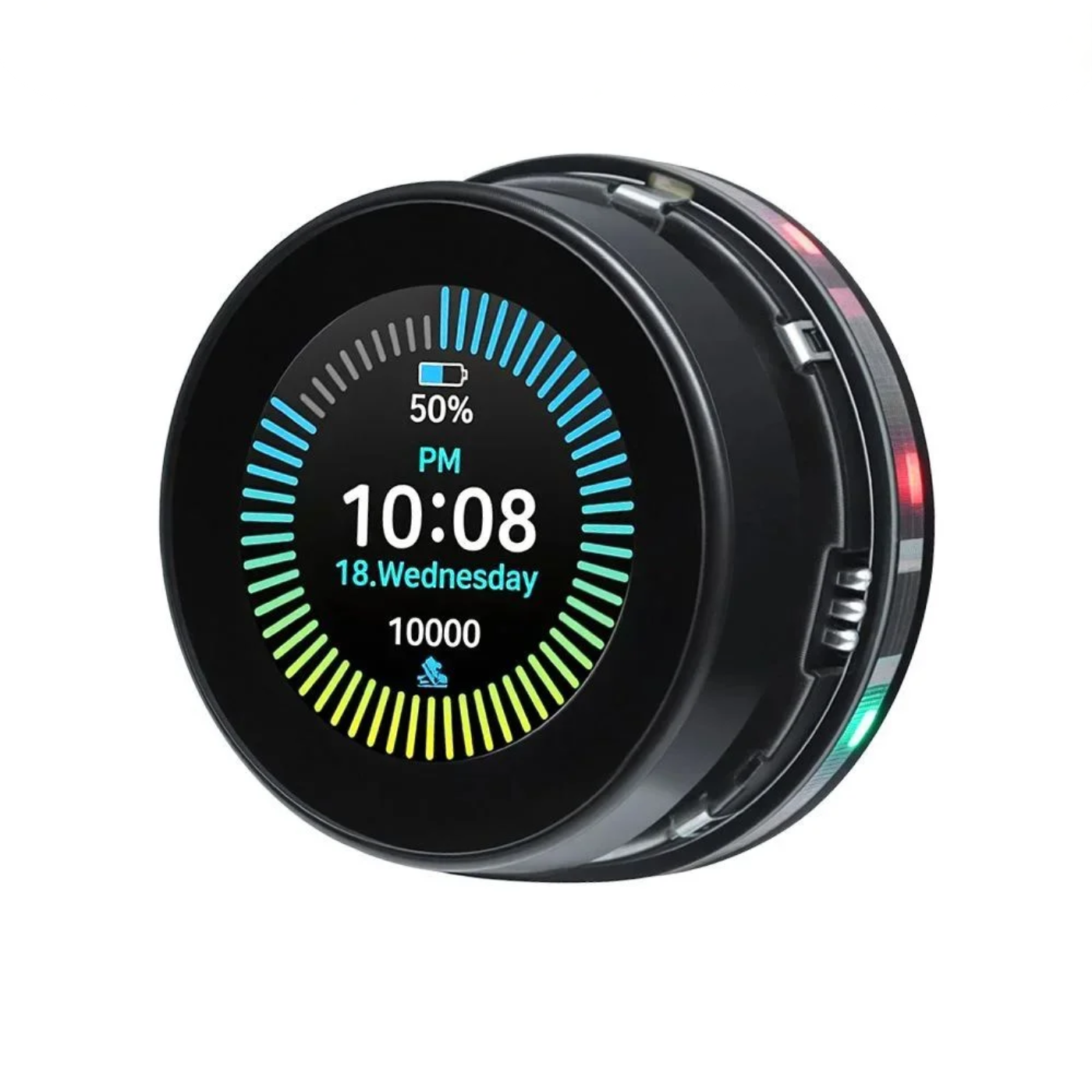

At the heart of the module is a vibrant 1.46-inch IPS round display with a sharp 360×360 resolution and capacitive touch support. In addition to touch functionality, the built-in rotary knob supports clockwise rotation, counterclockwise rotation, and push-button operation, providing an intuitive control method for menu navigation, parameter adjustment, and interactive user interfaces. This dual-input design makes the CrowPanel particularly suitable for smart thermostats, audio controllers, automation panels, appliance interfaces, and custom control systems where tactile interaction enhances the user experience.

The module supports 2.4GHz WiFi and Bluetooth 5.0 BLE connectivity, enabling seamless integration with cloud platforms, smart home ecosystems, wireless sensors, and IoT networks. Multiple expansion interfaces including UART, I2C, and FPC connectors provide flexibility for adding sensors, communication modules, and peripheral devices. Compatible with Arduino IDE, ESP-IDF, LVGL, and other popular development environments, the CrowPanel allows developers, engineers, students, and makers to rapidly create professional-looking graphical interfaces and connected products. Its integrated ambient lighting, low-power operation, and compact enclosure make it an excellent choice for modern embedded design projects.

Features

• Powered by the ESP32-S3 dual-core processor with clock speeds up to 240MHz for responsive GUI and IoT applications.
• Features a 1.46-inch IPS round display with a sharp 360×360 resolution for crisp graphics and user interfaces.
• Supports capacitive touch input for intuitive and interactive user control.

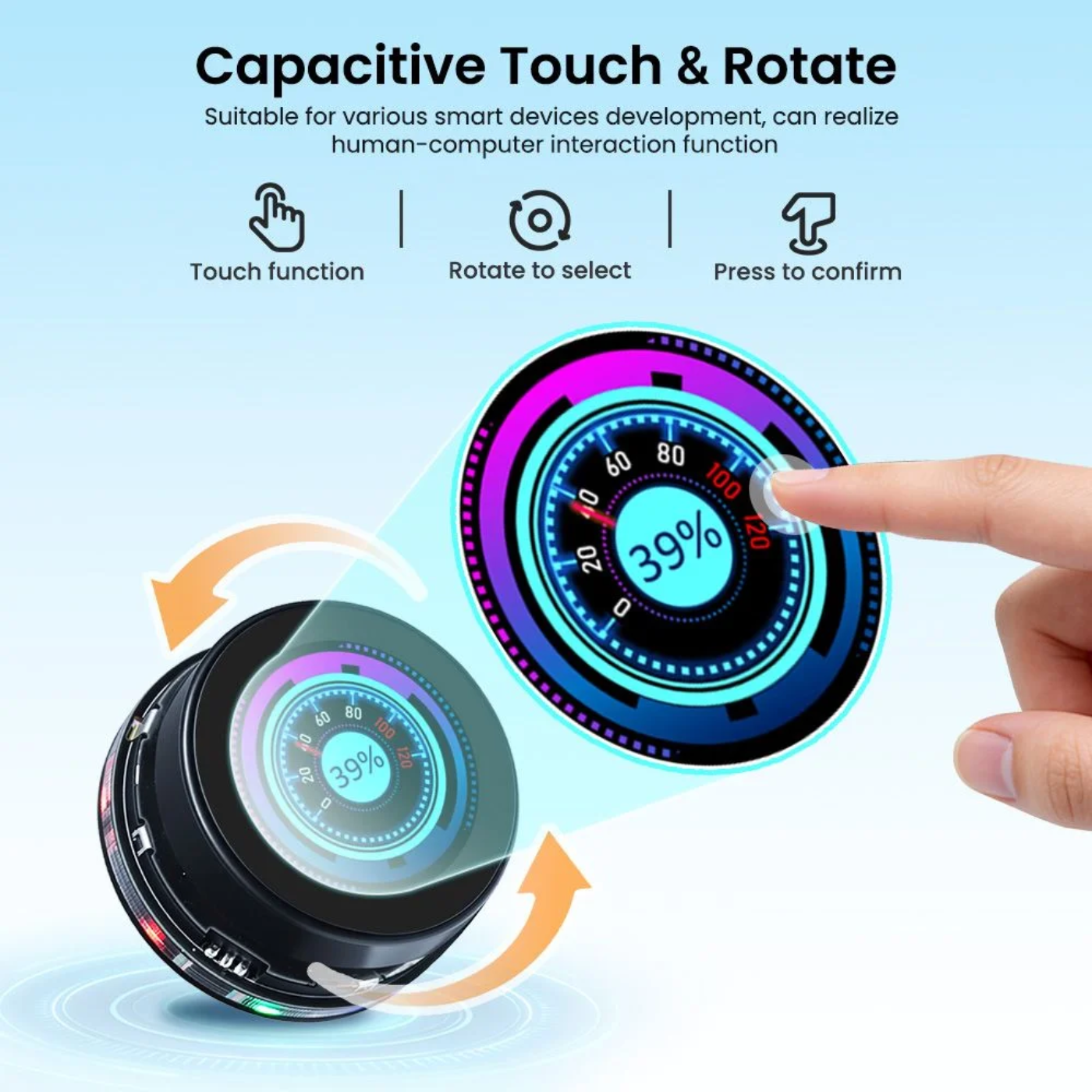

• Integrated rotary encoder knob supports clockwise rotation, counterclockwise rotation, and push-button functionality.
• Equipped with 16MB Flash memory and 8MB PSRAM for advanced graphical and embedded applications.
• Built-in 2.4GHz WiFi and Bluetooth 5.0 BLE enable wireless communication and IoT connectivity.

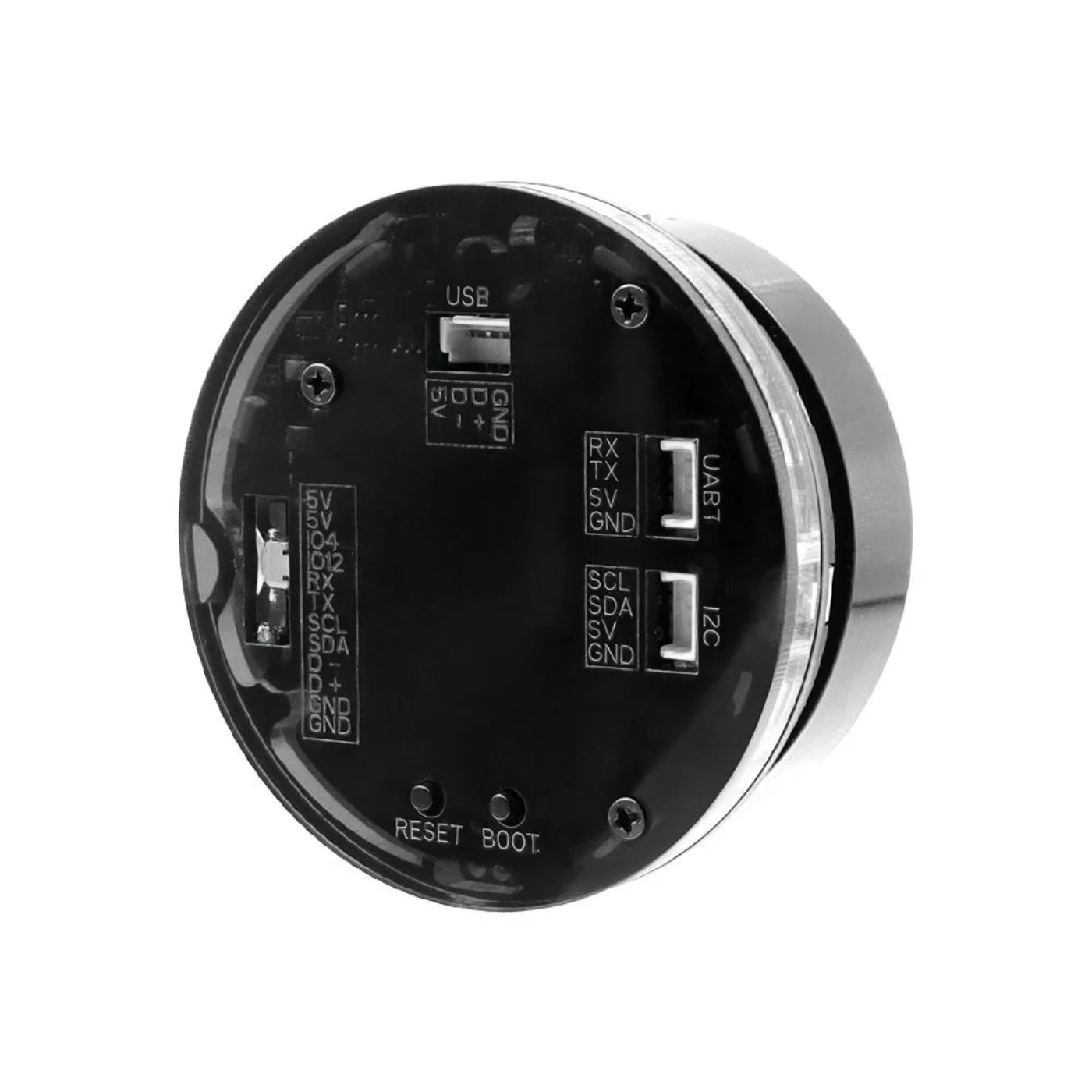

• Multiple expansion interfaces including UART, I2C, and FPC connectors support external modules and sensors.
• Ambient RGB lighting enhances visual feedback and overall user experience.
• Compatible with Arduino IDE, ESP-IDF, LVGL, and SquareLine Studio for simplified development workflows.
• Suitable for smart home controllers, industrial HMI panels, IoT dashboards, automation systems, and custom embedded interfaces.
