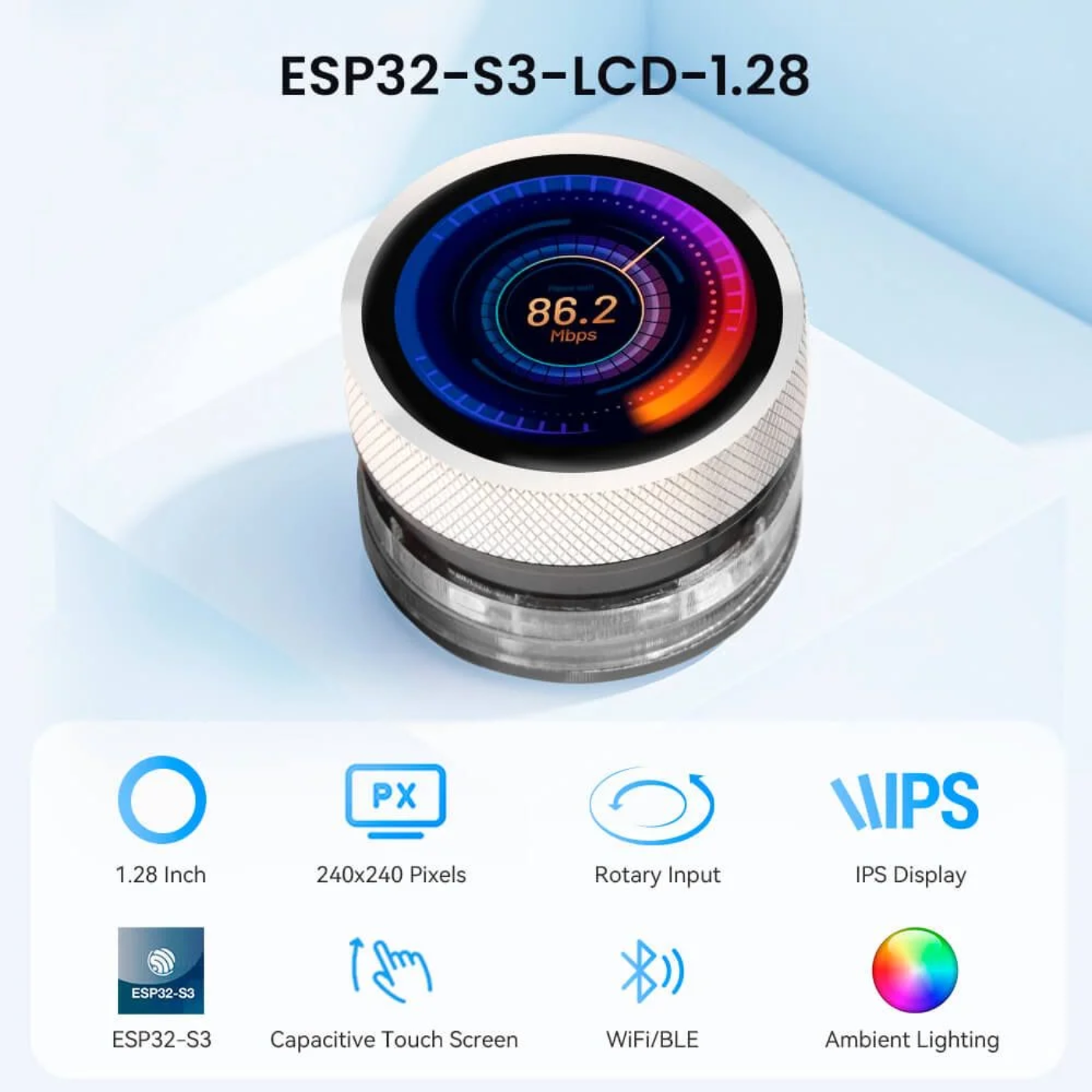

Elecrow CrowPanel 1.28 Inch ESP32 HMI Display with 240x240 IPS Round Touch Screen

Low stock: 2 left

Regular price Rs. 3,499
Regular price Rs. 3,999 Sale price Rs. 3499
Sale Sold out 13% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 10 Hours and 16 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC200 FLAT ₹ 200/- OFF

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Supports capacitive touch and rotary knob with clockwise, counterclockwise, and press functions
  • Equipped with 32-bit dual-core ESP32-S3 chip running up to 240MHz for high performance
  • Provides 2.4G WiFi and low-power Bluetooth (BLE) connectivity
  • Includes 5V charging port with UART, I2C, and FPC expansion interfaces
  • Features an ambient light design for a stylish and enhanced user experience
  • Low-power design helps extend battery life and reduce energy use
  • Compatible with Arduino IDE, Espressif IDF, Lua RTOS, ESPHome, PlatformIO, MicroPython, and LVGL library

Elecrow CrowPanel 1.28 Inch ESP32 HMI Display with 240x240 IPS Round Touch Screen

The ESP32 HMI Display 1.28-inch rotary screen is an intelligent interactive device featuring a circular display combined with a rotary knob for versatile control.

Powered by a high-performance 32-bit dual-core ESP32-S3 chip running up to 240MHz, it delivers smooth and efficient performance capable of handling complex tasks.

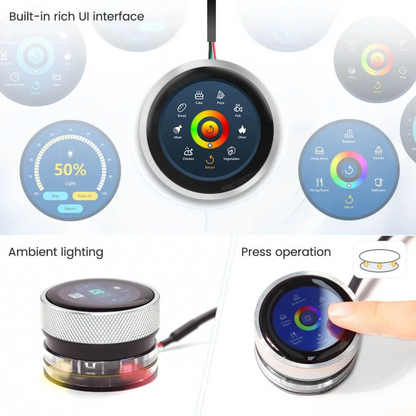

The module supports capacitive touch operation and knob input with clockwise, counterclockwise rotation, and full press functionality, making interactions intuitive and responsive.

With 2.4G WiFi and BLE low-power Bluetooth, it ensures reliable wireless connectivity for smart home devices, industrial control, portable gadgets, and other IoT applications.

Designed with practicality and customization in mind, this rotary screen includes a 5V charging interface and expansion options such as UART, I2C, and FPC, allowing developers to extend its functionality.

The ambient light design enhances user experience, while its low-power operation makes it ideal for long-term use. Compatible with Arduino IDE, Espressif IDF, Lua RTOS, PlatformIO, MicroPython, Home Assistant, and LVGL library, it provides a flexible platform for DIY projects like smart knobs or interactive interfaces.

Self-developed by Elecrow, this circular display module combines performance, versatility, and style, making it perfect for developers, smart home enthusiasts, and tech professionals.

Features:

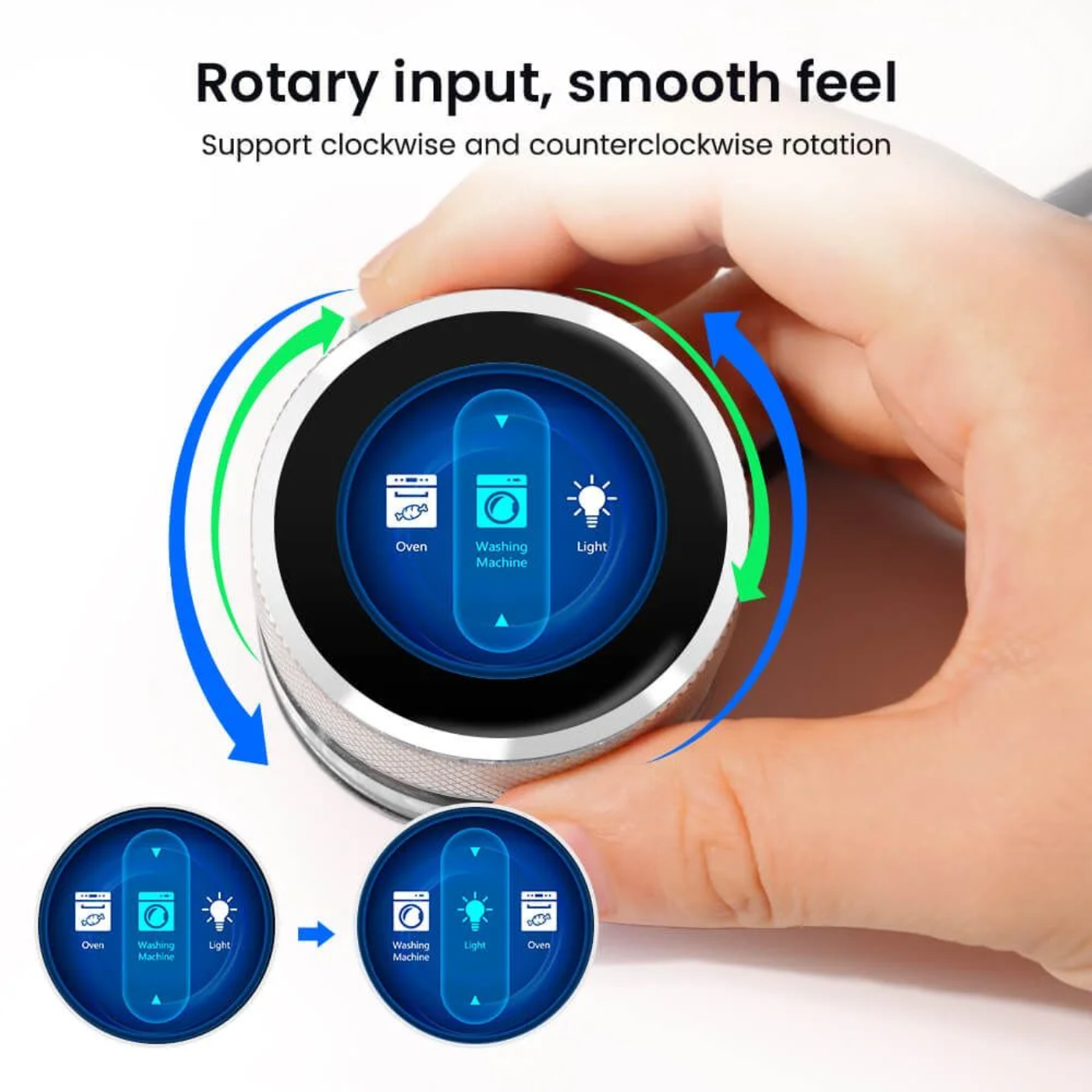

  • Interaction Mode: Supports knob input with clockwise, counterclockwise rotation, and full press operation, allowing control of volume, brightness, and other functions.

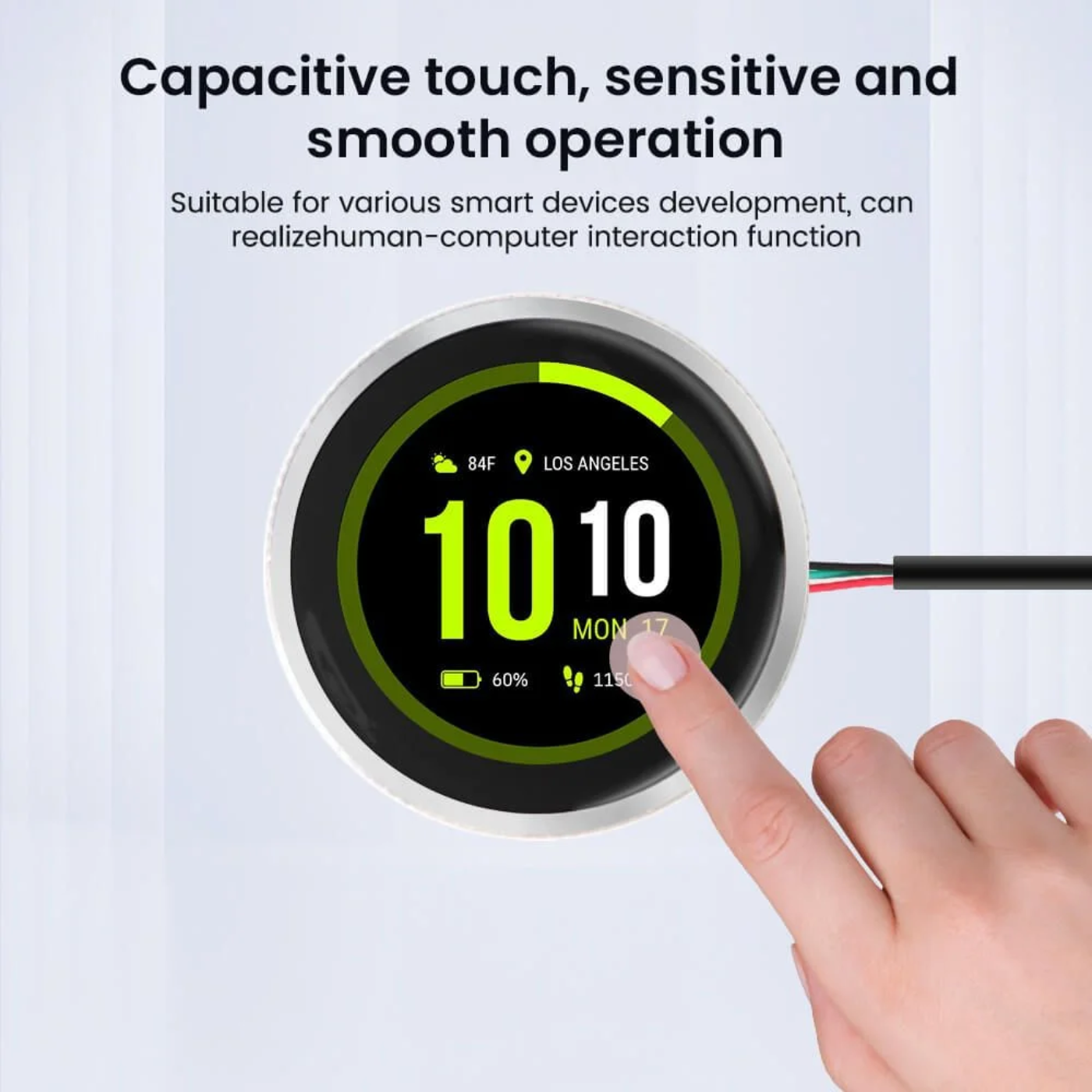

  • Touch Functionality: Features capacitive touch for smooth and sensitive operation, providing an intuitive user experience.
  • High-Performance Main Control: Equipped with a 32-bit dual-core ESP32-S3 chip, 8M PSRAM, and 16M flash memory, running at a maximum clock frequency of 240MHz for reliable performance.
  • Wireless Communication: Supports 2.4G WiFi and BLE low-power Bluetooth, enabling seamless data exchange and remote device control.

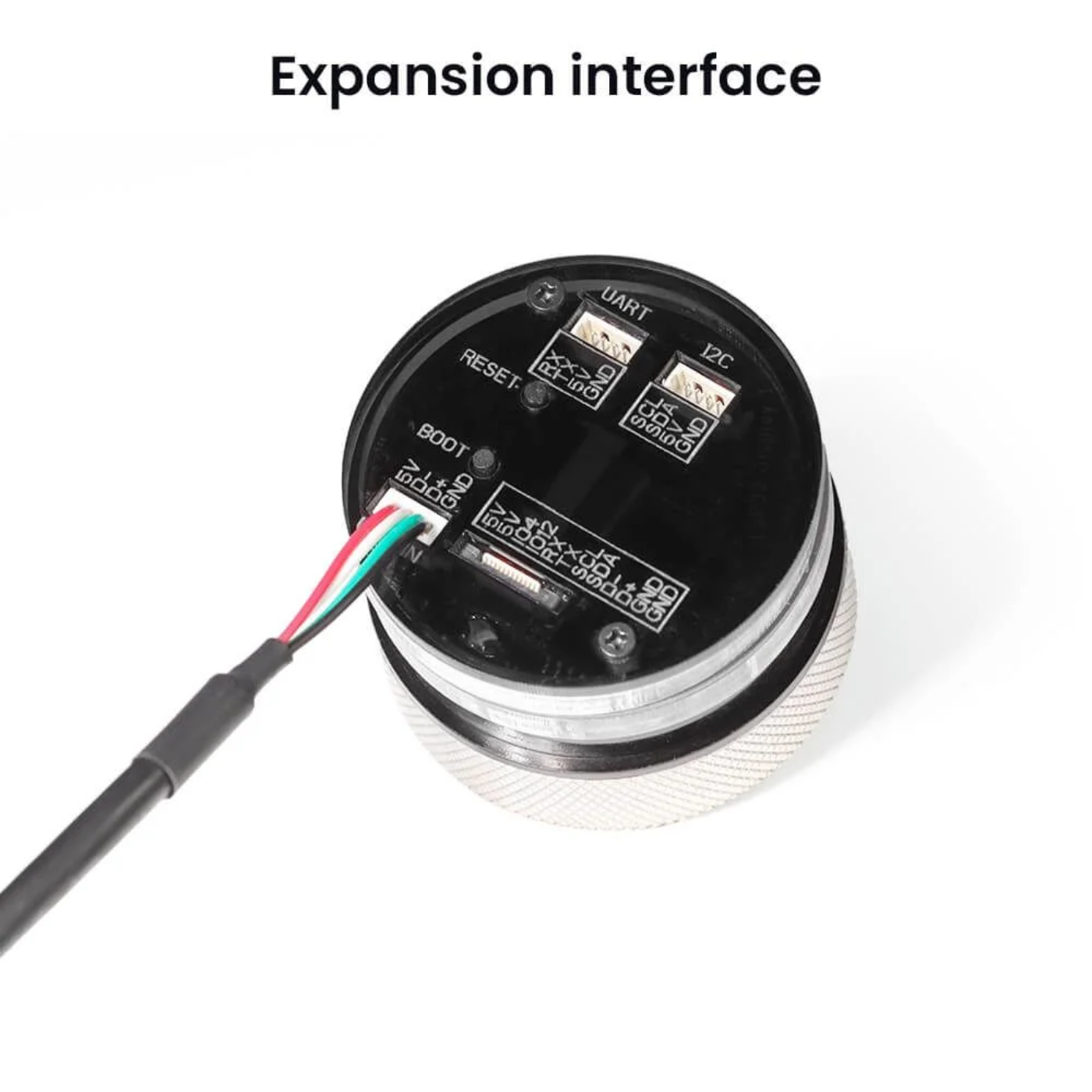

  • Expansion Interface: Includes a 5V charging port for power supply and program burning, along with UART, I2C, and FPC expansion interfaces.
  • Low-Power Design: Optimized for low power consumption, making it suitable for smart home appliances and portable devices.

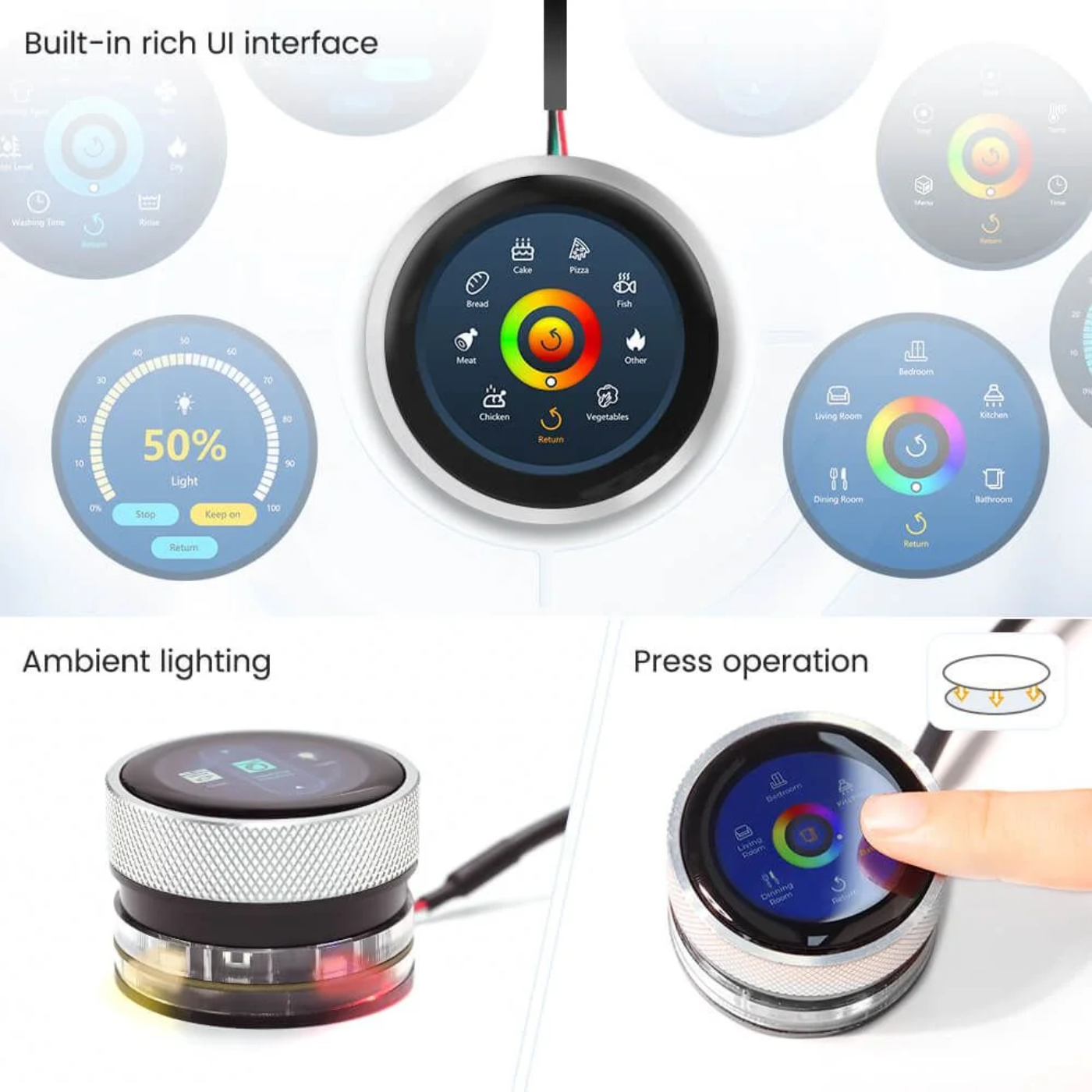

  • Ambient Light Design: Adds a stylish lighting effect, enhancing the overall user experience.
  • Multi-Language Development Support: Compatible with ESPHome, Home Assistant, PlatformIO, MicroPython, and LVGL library, allowing flexible project development.
  • Application Scenarios: Ideal for smart home systems, industrial control, IoT projects, access control, and portable devices.

CrowPanel 1.28 Inch ESP32 HMI Display Diagram:

CrowPanel 1.28 Inch ESP32 Display Diagram Front
CrowPanel 1.28 Inch ESP32 Display Diagram Back

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

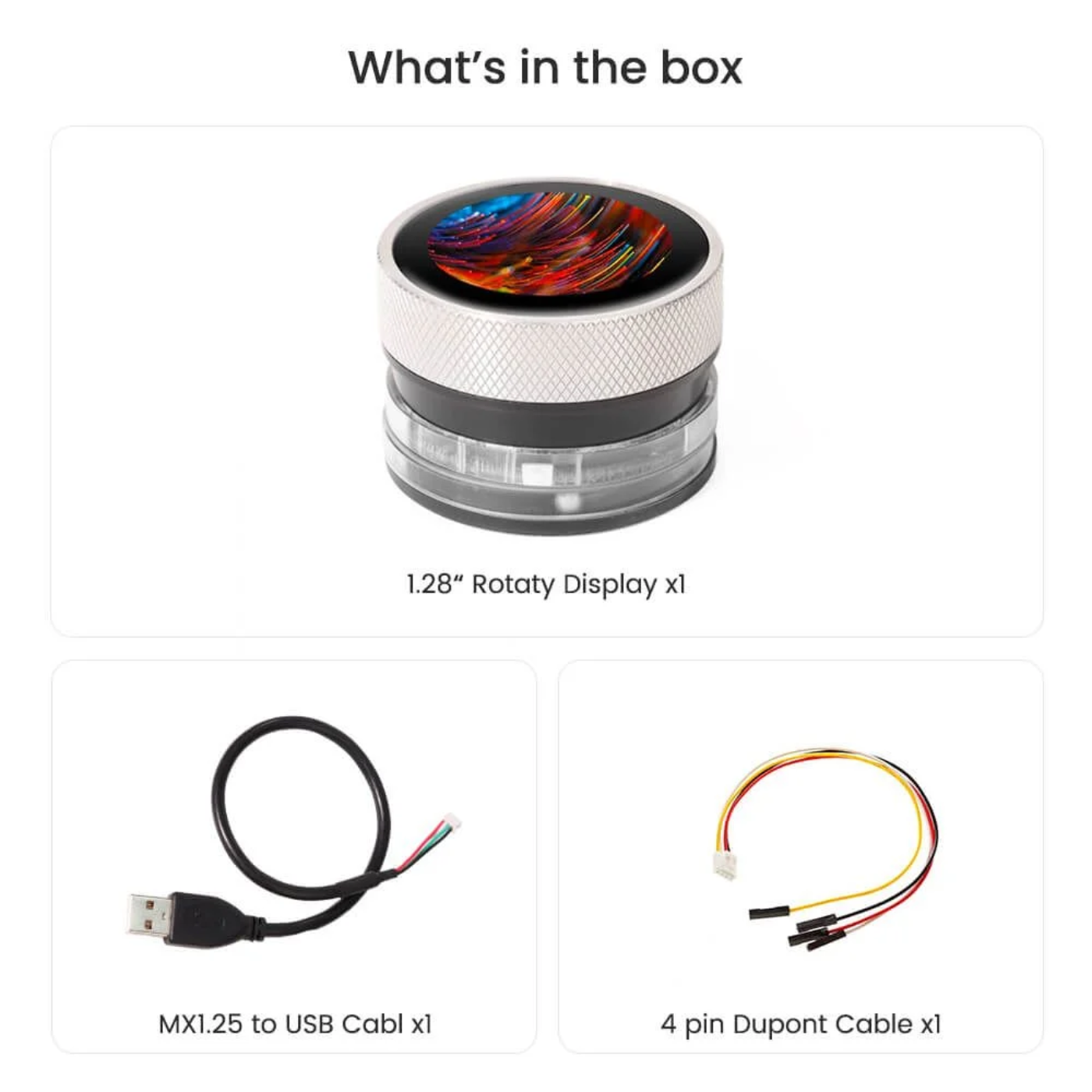

Package Includes:

  • 1x ESP32 Display-1.28-inch Rotary Display
  • 1x 4-pin Dupont Cable
  • 1x 50 cm MX1.25 to USB Cable

Specifications:

Component Specification
Main Chip ESP32-S3R8
Processor Xtensa 32-bit LX7 dual-core, up to 240MHz
System Memory 512KB SRAM, 8MB PSRAM
Storage 16MB Flash
Screen Size 1.28 inch
Screen Type IPS
Touch Type Capacitive Touch
Resolution 240 × 240
Wireless - Bluetooth Bluetooth Low Energy, Bluetooth 5.0
Wireless - WiFi Supports 802.11 a/b/g/n, 2.4GHz
UART Interface 2× UART, ZX-MX 1.25-4P
I2C Interface ZX-MX 1.25-4P
FPC Connector 12P, Power supply burning port
Buttons RESET button, BOOT button, confirmation button (knob press switch)
LEDs Power indicator, LED ambient light
Power Input 5V / 1A
Operation Power Module: DC 5V, Main Chip: 3.3V
Operating Temperature -20°C ~ 65°C
Storage Temperature -40°C ~ 80°C
Dimensions 48 × 48 × 33 mm
Shell Material Aluminum alloy + plastic + acrylic
Net Weight 50g
