EC200U 4G LTE GNSS IoT Smart Modem with In-Built STM32 MCU - 7Semi
Couldn't load pickup availability

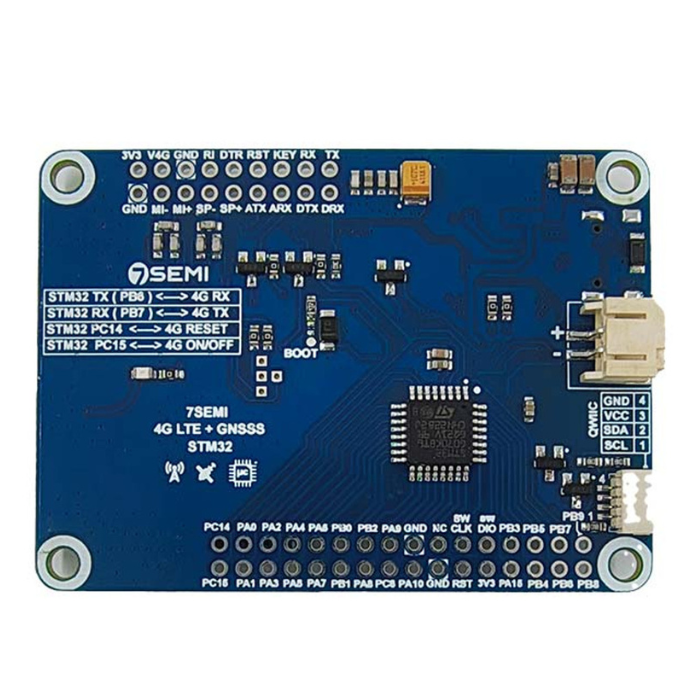

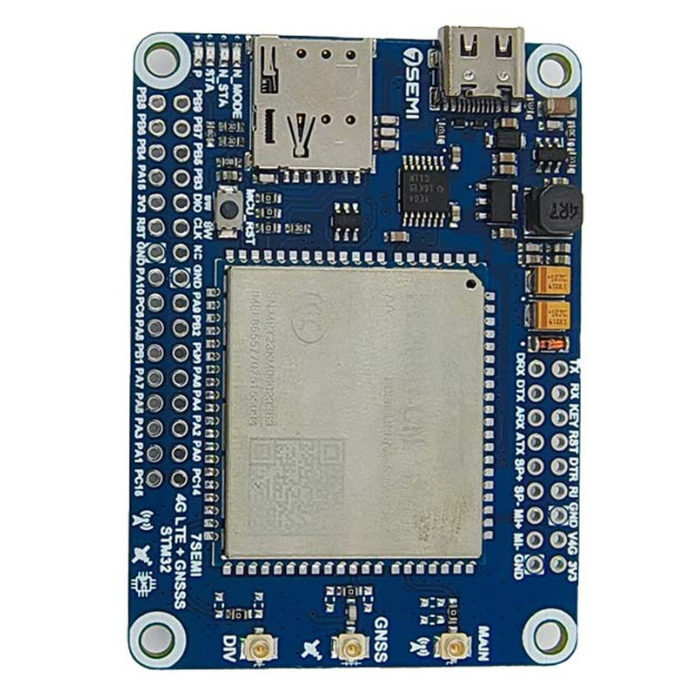

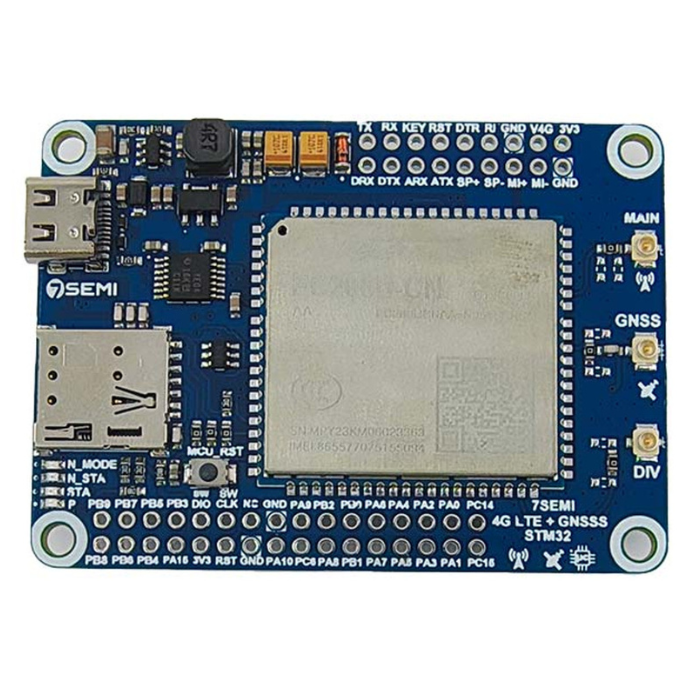

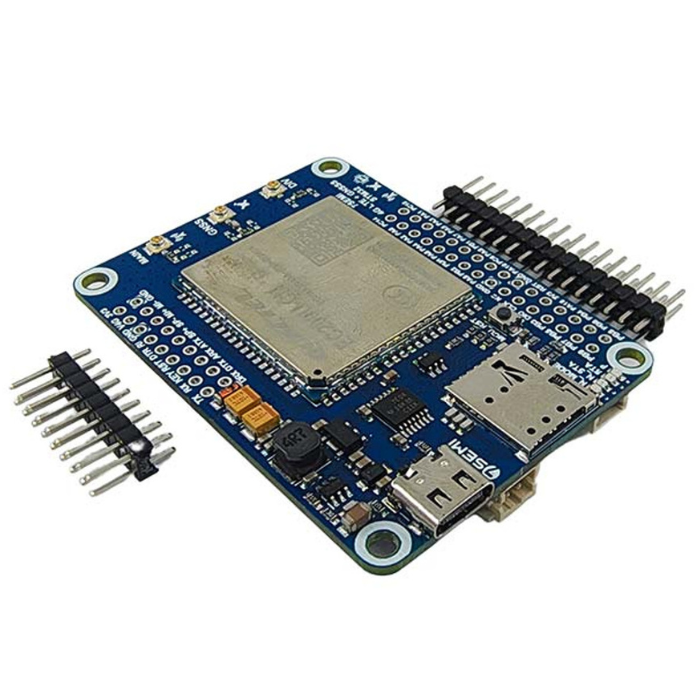

The EC200U 4G LTE GNSS IoT Smart Modem with In-built STM32 MCU combines powerful connectivity and precise positioning in one compact device. Integrating the STM32G070KBT6 microcontroller with 128KB of flash memory, this modem eliminates the need for an external MCU, streamlining your designs.
It supports global LTE CAT1 connectivity across 4G, 3G, and 2G networks with download speeds up to 150Mbps, making it ideal for high-speed data applications.
With comprehensive GNSS support for GPS, BeiDou, and Glonass, the EC200U delivers accurate positioning for navigation and tracking purposes.
It features a USB and UART interface for easy integration into your system and includes an onboard SIM slot compatible with 1.8v/3v SIM cards.
Dual LED indicators provide real-time status updates, while its low power consumption makes it an excellent choice for IoT, automation, tracking, and telecommunication applications.
1 x 7Semi EC200U 4G LTE GNSS IoT Smart Modem
| Specification | Details |
|---|---|
| Microcontroller | STM32G070KBT6 with 128KB Flash Memory |
| Connectivity | 4G/3G/2G LTE CAT1 |
| Downlink Speed | Up to 150Mbps |
| GNSS Support | GPS, BeiDou, Glonass, LBS Base Station Positioning |
| Interfaces | USB, UART |
| SIM Card Slot | Onboard SIM slot (supports 1.8V/3V SIM cards) |
| LED Indicators | Dual LED indicators for status monitoring |
| Power Consumption | Low power consumption, optimised for IoT applications |
| Dimensions (LxWxH) | 6.5 x 4.7 x 0.9 cm |
| Weight | 32 gm |
| Operating Temperature | -40°C to 85°C |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
