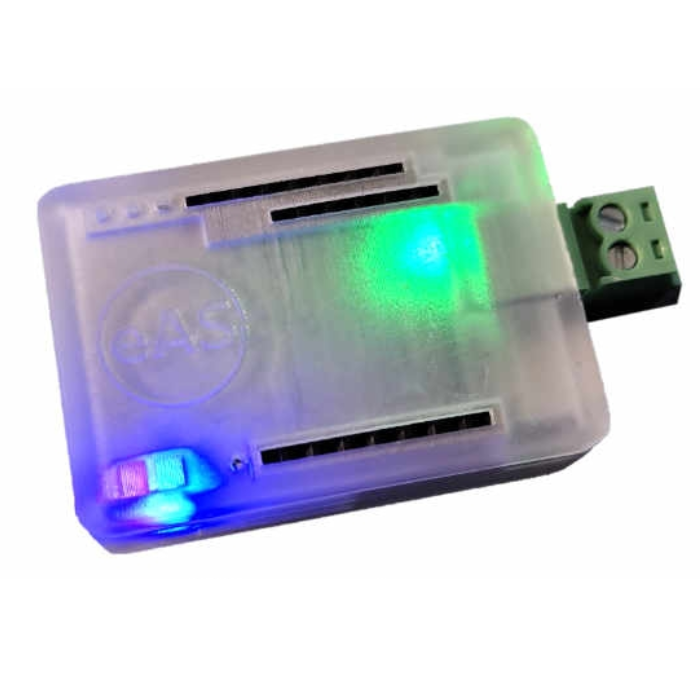

ELECROW eBus Adapter Shield C6 with Translucent Enclosure USR-ES1 Module without Ethernet
ELECROW eBus Adapter Shield C6 with Translucent Enclosure USR-ES1 Module without Ethernet
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Compact 37mm x 26mm design.
- Built-in WiFi with onboard antenna.
- USB-C host connection (optional cable).
- Pluggable 3.5mm eBUS connector.
- eFuse for overvoltage and overcurrent protection.
- Operates at 5V, <120mA with WiFi.
- Rigorous real-world testing.
- CE certified.
- Supports USB, WiFi, Ethernet, Raspberry Pi.
- Optimized for ebusd.
ELECROW eBus Adapter Shield C6 with Translucent Enclosure USR-ES1 Module without Ethernet

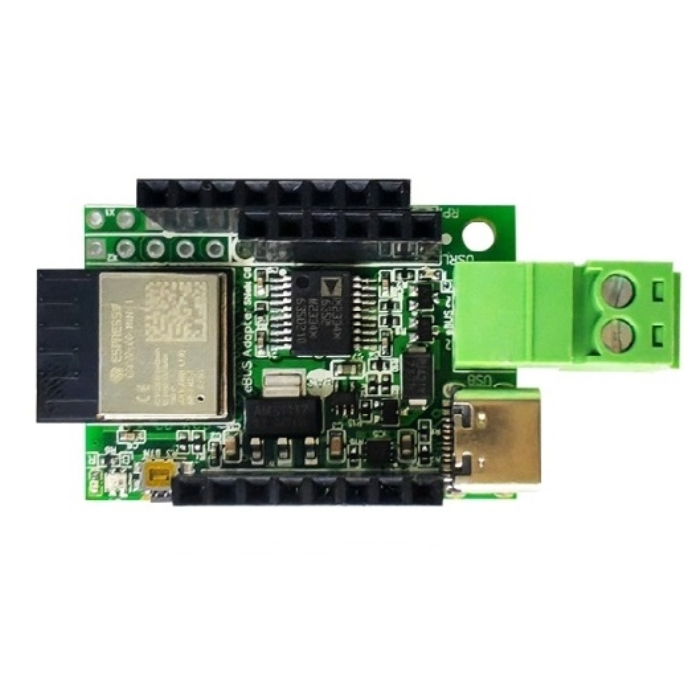

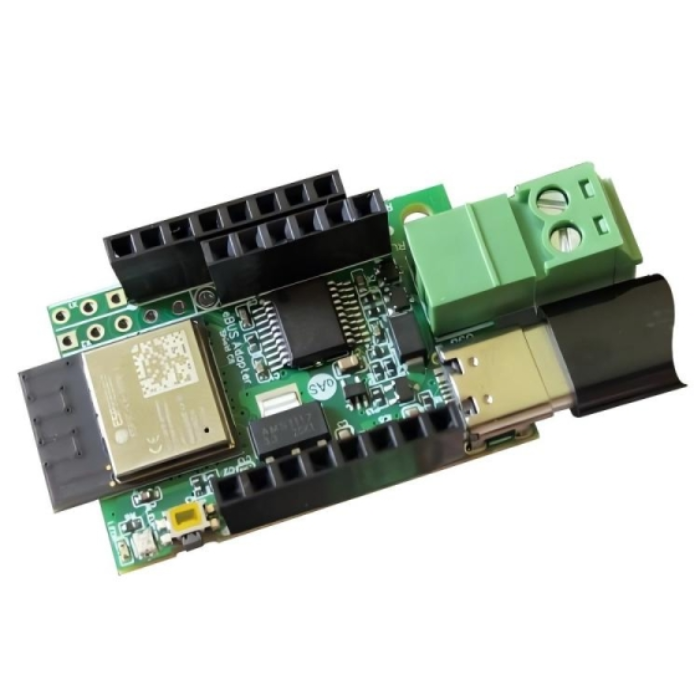

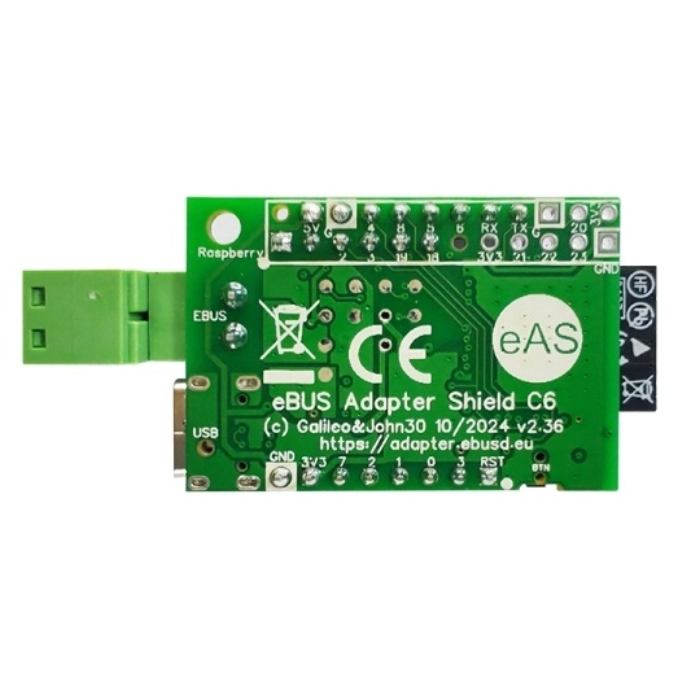

The eBUS Adapter Shield C6 offers an interface to a 2-wire eBUS with galvanic isolation, enabling reliable communication with eBUS-compatible heating, ventilation, or solar systems.
As an enhanced version of the previous adapter (v5), it continues the evolution of earlier designs with significant improvements. These include a more compact size (37x26mm), a pluggable eBUS connection, built-in WiFi using the ESP32-C6, compatibility with various Ethernet modules, and many additional features.
Introduced in early 2023 after extensive prototyping, the v5 version is already widely used by thousands. Since its release, several design upgrades have been made, including the integration of an eFuse for overvoltage and overcurrent protection, as well as a USB-C connection, both featured in the C6 version.
Features
- Complete galvanic isolation with no power consumption from the eBUS (classified as Class 0 per the eBUS specification).
- Versatile host connectivity options, including:
- Built-in USB
- Built-in WiFi with an onboard PCB antenna
- Direct plug-in compatibility with Raspberry Pi
- Ethernet (using the optional USR-ES1 addon module, see details below) - Full compatibility with the enhanced ebusd protocol.
- Web-based configuration and firmware updates, available at no cost.
- Optional sensor connectivity for expanded functionality.
- Specifically optimized and designed for seamless integration with ebusd.
Package Includes
1 x eBus Adapter Shield C6 Enclosure with Translucent Enclosure USR-ES1 Module without Ethernet
Specifications
| Specification | Details |
|---|---|
| PCB | 4-layer SMD + THT, HASL lead-free |
| Chip | ESP32-C6 with onboard antenna |
| Host/Power Connector | USB-C (optional cable available) |
| eBUS Connector | Pluggable 3.5 mm (plug included), polarization-independent |
| Dimensions | 37mm x 26mm (without antenna/connectors) 54mm x 26mm (with antenna and plugged-in eBUS connector) |
| Operating Voltage | 5V |
| Operating Current | <120mA with WiFi |
| Protection | eFuse for overvoltage and overcurrent protection |
| Testing/QA | Fully tested under real conditions with an eBUS power source and communications |
| Certification | Tested to meet all requirements for CE marking |
