- This is DX-BT18 Bluetooth Dual Mode Module For SPP2.0 + BLE4.0 Transparent Serial Port
- Dual-mode module following Bluetooth 4.2 standard protocol
- Supports SPP2.0 and BLE4.0 protocols for wireless data transmission
- Uses a BT4.2 Bluetooth chip and has a PCB-printed antenna design
- Uses serial protocol for communication and supports AT Commands
- Designed for smart wireless data transmission, suitable for wireless automation, remote control devices, IoT applications, and robotics.
DX-BT18 Bluetooth Dual Mode Module For SPP2.0 + BLE4.0 Transparent Serial Port
The DX-BT18 Bluetooth modules are a type of wireless communication module that can be added to a project through serial or SPI communication protocols. The advantage of using Bluetooth modules is that they are easy to set up and use. The DX-BT18 module uses a serial protocol for communication.
All Bluetooth modules that use serial communication protocol support AT Commands, which are listed in the datasheet of each product. DX-BT18 dual-mode Bluetooth module is a dual-mode Bluetooth module (Dual-Mode) that is specially designed for smart wireless data transmission by Shenzhen DX-SMART Technology Co., Ltd. and follows the Bluetooth 4.2 standard protocol. DX-BT18 module applies to wireless data transmission field, uses BT4.2 Bluetooth chip + PCB printed antenna design, SOC chip embedded BT4.2 Dual-Mode protocol stack, supports data transmission of Windows, Linux, Android, iOS and other systems and applications, with industrial design, transmission distance, data stability, simple operation, high-cost performance, and technology leading edge.
Pinout:
Features
- Dual-mode module following the Bluetooth 4.2 standard protocol
- Supports SPP2.0 and BLE4.0 protocols for wireless data transmission
- Uses a BT4.2 Bluetooth chip and has a PCB-printed antenna design
- Has 6 pins: VIN, GND, STATE, EN, RX, and TX
- Uses serial protocol for communication and supports AT Commands
- Designed for smart wireless data transmission
- Potential uses include wireless automation, remote control devices, IoT applications, and robotics.
Application:
- Bluetooth wireless data transmission
- Hand-held POS devices
- Can be used in medical equipment for wireless data transmission
- Smart home control
- Car detection OBD equipment
- Bluetooth printer
- Bluetooth Remote Control Toy
- Anti-lost device, LED light control
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
NRF51822 BLE4 2.4GHz Bluetooth 4.0 Module
HM10 BLE

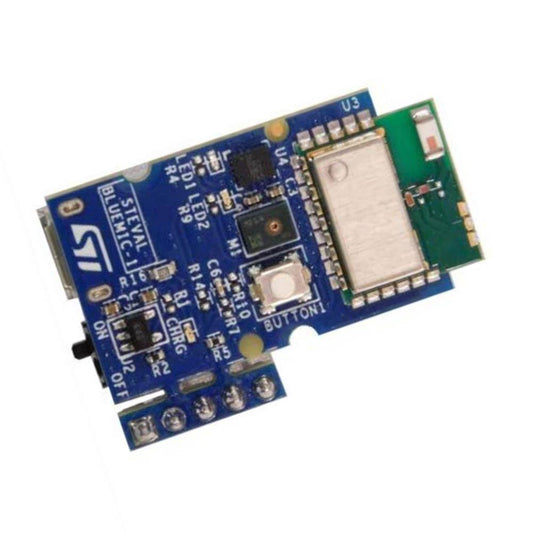

Steval Bluemic 1 Evaluation Board
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x DX-BT18 Bluetooth module
Specifications:
|
Bluetooth Protocol |
Bluetooth 4.2 BR/EDR+BLE |
|
Working Frequency |
2402-248MHz |
|
Communication Interface |
UART |
|
Power Supply |
3.3V |
|
Communication distance |
30-40M (Open and unobstructed environment) |
|
Physical Dimension |
27mm x 13mm x 2.35 mm |
|
Bluetooth Authentication |
ROHS REACH FCC |
|
Bluetooth Name |
DX-BT18 |
|
Pairing Code |
1234 (The SPP agreement is valid) |
|
Serial Port Parameters |
9600, 8 data bits, 1 stop bit, No check, No flow control |
|
Service UUID |
FFE0 |
|
Notify\Write UUID |
FFE1 |
|
Write UUID |
FFE2 |
|
Storage temperature |
MIN: -40? - MAX: +140? |
|
Work temperature |
MIN: -20? - MAX: +85? |
Specifications:
Bluetooth Protocol
Specifications:
Bluetooth 4.2 BR/EDR+BLE
Specifications:
Working Frequency
Specifications:
2402-248MHz
Specifications:
Communication Interface
Specifications:
UART
Specifications:
Power Supply
Specifications:
3.3V
Specifications:
Communication distance
Specifications:
30-40M (Open and unobstructed environment)
Specifications:
Physical Dimension
Specifications:
27mm x 13mm x 2.35 mm
Specifications:
Bluetooth Authentication
Specifications:
ROHS REACH FCC
Specifications:
Bluetooth Name
Specifications:
DX-BT18
Specifications:
Pairing Code
Specifications:
1234 (The SPP agreement is valid)
Specifications:
Serial Port Parameters
Specifications:
9600, 8 data bits, 1 stop bit, No check, No flow control
Specifications:
Service UUID
Specifications:
FFE0
Specifications:
Notify\Write UUID
Specifications:
FFE1
Specifications:
Write UUID
Specifications:
FFE2
Specifications:
Storage temperature
Specifications:
MIN: -40? - MAX: +140?
Specifications:
Work temperature
Specifications:
MIN: -20? - MAX: +85?
1. What are the features of the DX-BT18 Bluetooth Dual Mode Module?
The DX-BT18 Bluetooth Dual Mode Module has a number of features that make it a valuable tool for a variety of projects. These features include:
- Support for both SPP2.0 and BLE4.0 protocols
- Simple pinout
- User-friendly AT command set
- Low power consumption
- Wide working temperature range
2. What are the applications of the DX-BT18 Bluetooth Dual Mode Module?
The DX-BT18 Bluetooth Dual Mode Module is a versatile and powerful tool that can be used in a variety of projects. It is ideal for connecting two devices together wirelessly, and it is compatible with a wide range of devices. The module is also easy to use and has a low power consumption.
Here are some of the applications of the DX-BT18 Bluetooth Dual Mode Module:
- Home automation
- Industrial automation
- Medical devices
- Consumer electronics
- Automotive
- Telecommunications
- And more
3. How do I use the DX-BT18 Bluetooth Dual Mode Module?
The DX-BT18 Bluetooth Dual Mode Module is very easy to use. Simply connect the module to your device using the provided cable, and then follow the instructions in the user manual. The module comes with a user-friendly AT command set that makes it easy to configure and control.
4. What are the benefits of using the DX-BT18 Bluetooth Dual Mode Module?
There are many benefits to using the DX-BT18 Bluetooth Dual Mode Module. These benefits include:
- The ability to connect two devices together wirelessly
- Compatibility with a wide range of devices
- Easy to use
- Low power consumption
- Wide working temperature range
