74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC

74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC

Regular price Rs. 21
Regular price Rs. 29 Sale price Rs. 21
Sale Sold out 28% off
Incl. GST (No Hidden Charges)
Size
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 5 Hours and 37 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Two Independent Negative Edge Triggered JK Flip-Flops
  • Standard Pin Arrangement
  • 4-bit Bistable Latch in a 16-Pin DIP Package
  • Outputs Directly Interface to CMOS, NMOS and TTL
  • Operating Temperature up to 70°C
  • Standard TTL Switching Voltages and symmetrical output characteristics

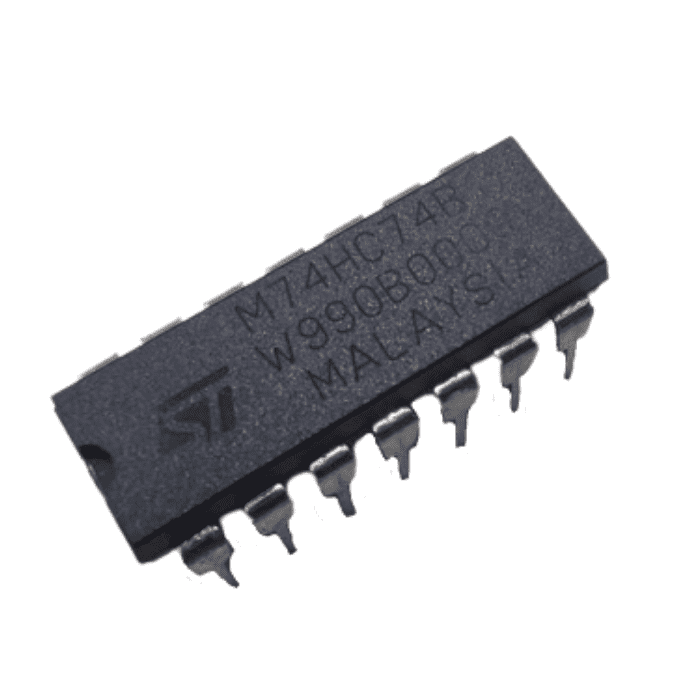

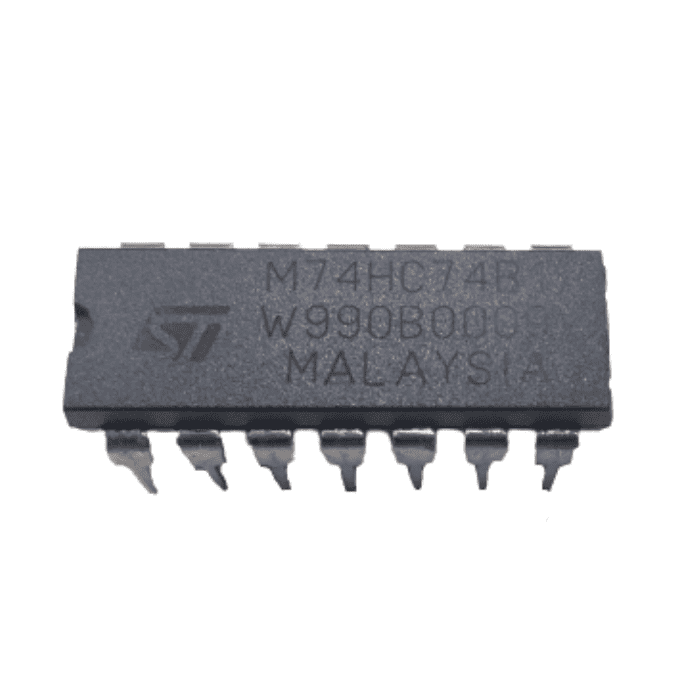

74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC

The 74HC Series 74HC74 device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive-going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition time of the rising edge of the clock.

The data on the D input may be changed while the clock is LOW or HIGH without affecting the outputs as long as the data setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.

Pinout:

Pinout Of 74HC74 IC
Input (1D, 2D) 2, 12
Inverting Output  (1Q', 2Q') 6, 8
Non-Inverting (1Q, 2Q) 5, 9
Clock (1CLK, 2CLK) 3, 11
Enable Pin (ENP, ENT) 4, 10
RESET (R') 1,13
Power Supply (VCC) 14
Ground (GND) 7

Application:

  • Ultrasound System
  • Fans
  • Lab Instrumentation
  • Vacuum Cleaners
  • Video Communications System
  • IP Phone: Wired

Package Includes:

Selected qty of IC - 74HC74

Specifications:

Supply Voltage (VCC) 7 V
Input Voltage (VI) 7 V
Operating free-air temperature range 0°C to +70°C
Storage temperature range –65°C to +150°C
