Wroks good
I find this works good, it draws more current, so if it does not work, just provide an external 5v supply to the module and not from Arduino. The ESP32 takes file count starting with zero, but arduno nano takes file 1 as 1.
Free Delivery on Orders Above Rs 500/- Pan-India
Safely Delivering Genuine Products PAN INDIA
Cash on Delivery Available for Orders above Rs.300/- and Upto Rs 3000/-
GST Invoices for Your Business
Dedicated Technical Support Team
Robocraze
Couldn't load pickup availability

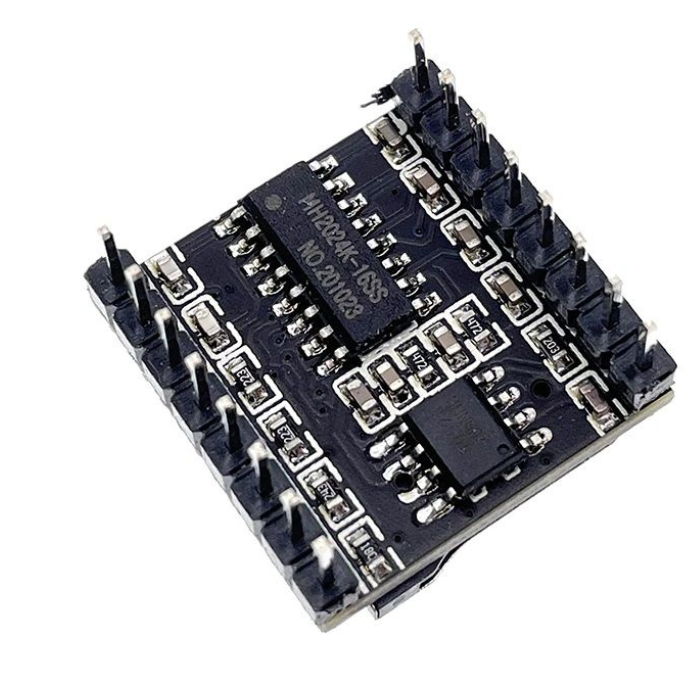

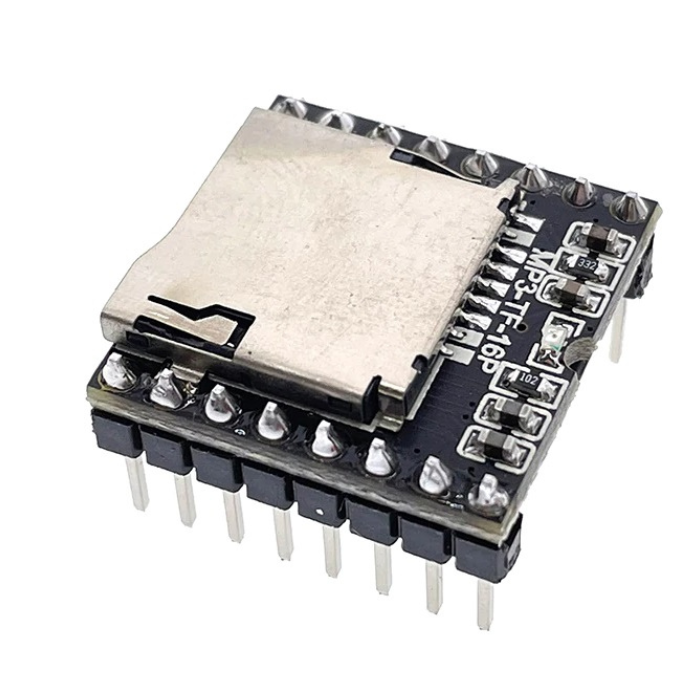

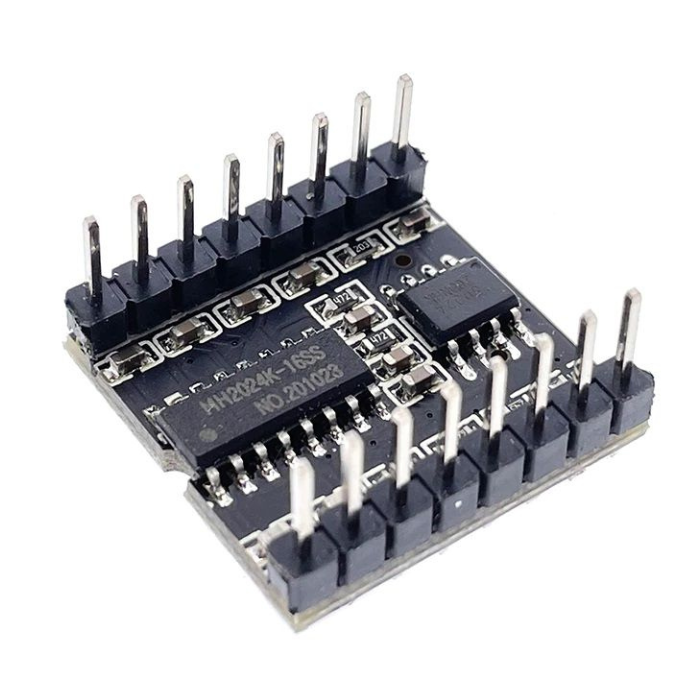

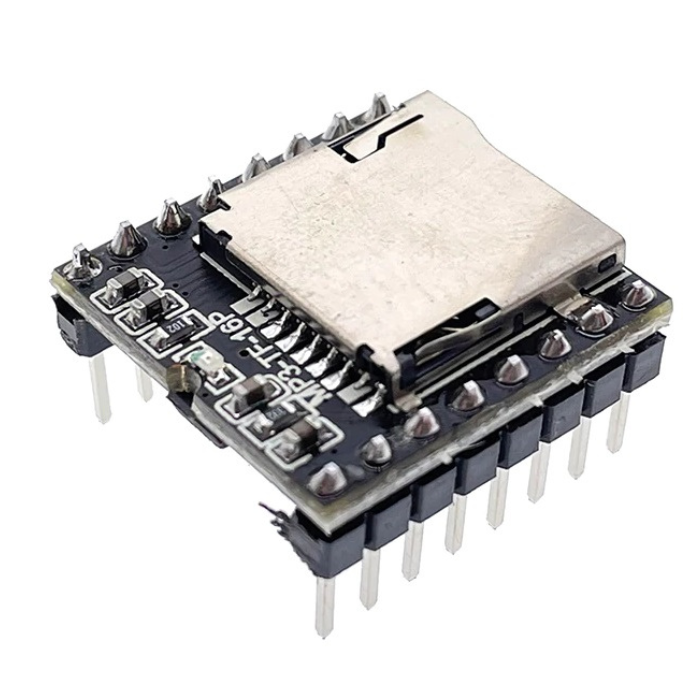

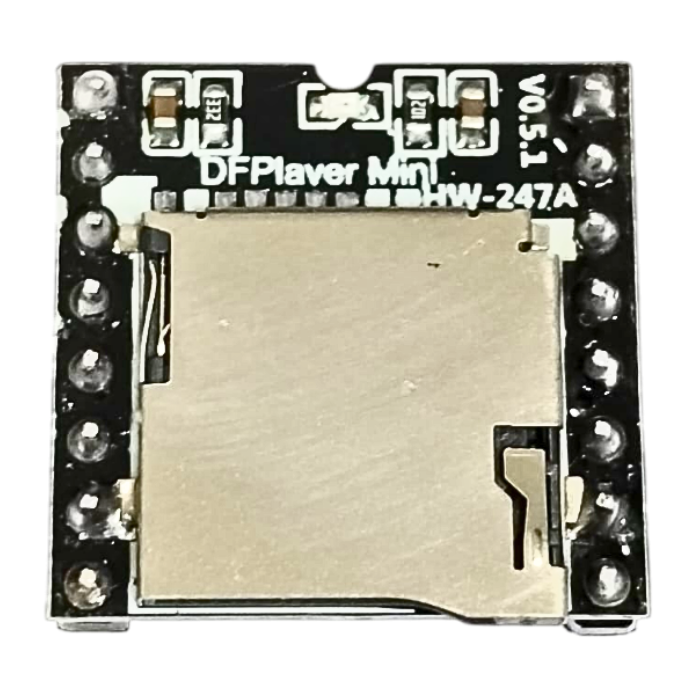

The compact mp3 module can connect to the speaker directly It integrates perfectly with hard-decision decoding of mp3, wav, wma it supports tf card driver, support fat16, fat32 file system.
Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB Fully supports FAT16, FAT32 file system Maximum support 32G TF card Support U disk to 32G, 64M bytes of NORFLASH A variety of control modes are available. IO control mode, serial mode, AD key control mode
Input Supply voltage (V) |
3.2 ~ 5 |
DAC output |
24-bit |
SNR |
85 dB |
Supports sampling rates (KHz) |
8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 |
Operating Temperature (°C) |
-40 ~ +70 |
Humidity Range |
5% ~ 95% |
Length (mm) |
21 |
Width (mm) |
21 |
Height (mm) |
10 |
Weight (gm) |
5 |
