DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F 5pcs

DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F 5pcs

Out of stock

Regular price Rs. 190
Regular price Rs. 299 Sale price Rs. 190
Sale Sold out 36% off Best Price Guaranteed
You save Rs. 109 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Internal integrated cold junction compensation circuit.
  • Temperature signal can be converted into 12-bit digital
  • Embedded thermocouple break detection circuitry.

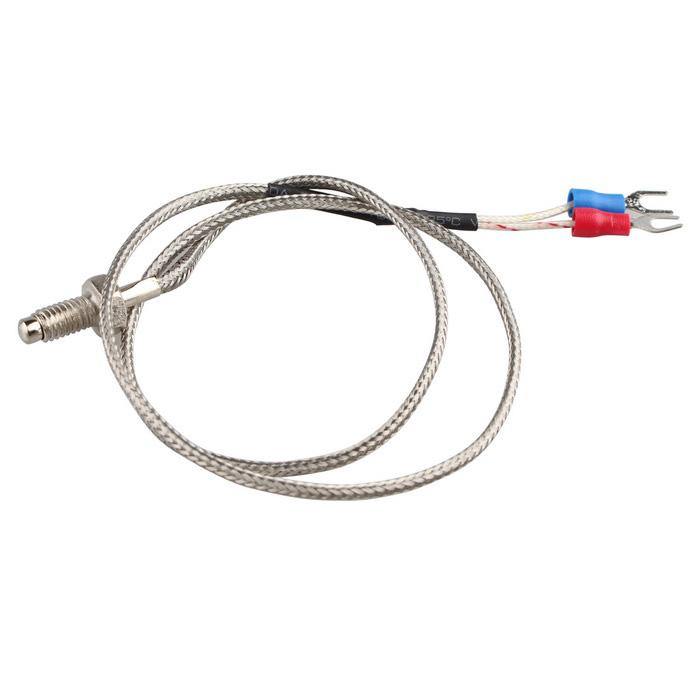

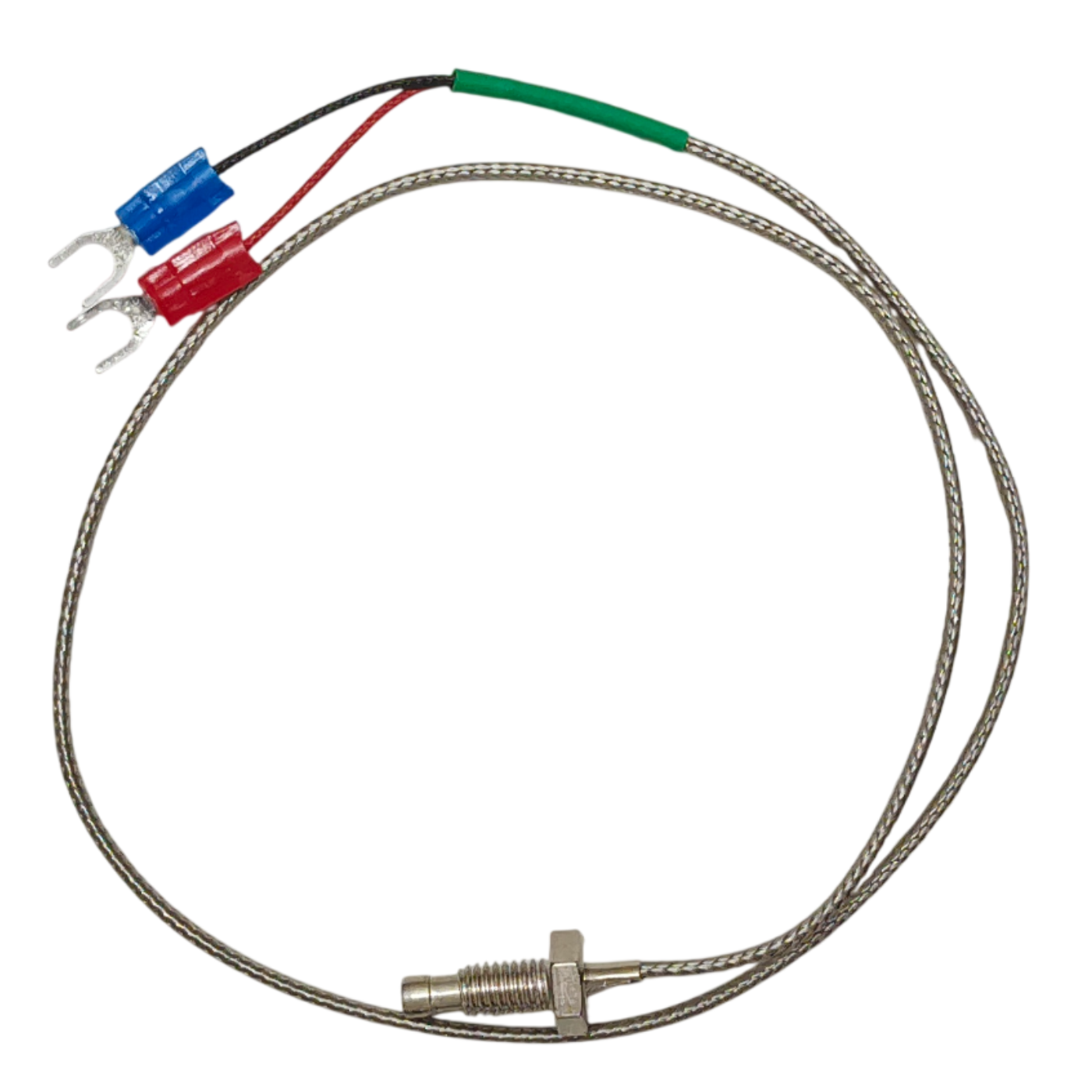

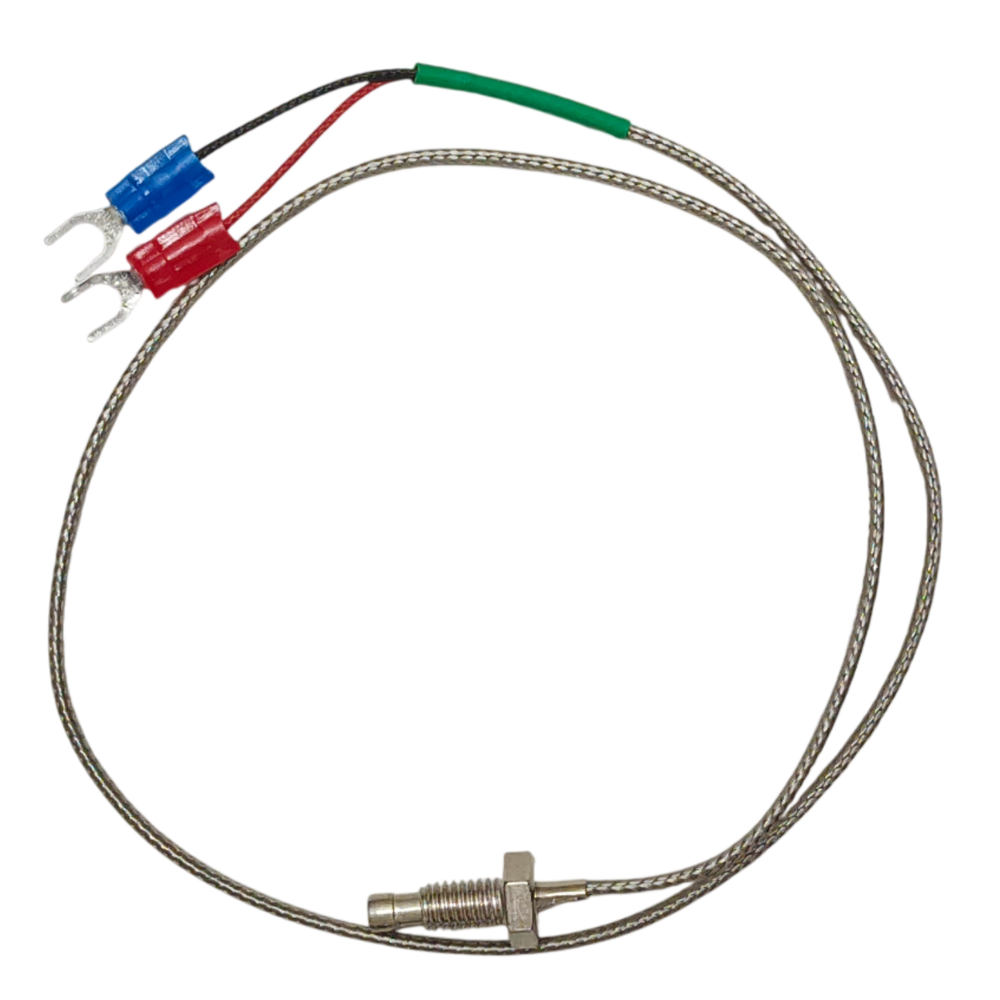

  • K-type temperature probe
  • Simple SPI serial output temperature.
  • High impedance differential inputs.
  • Thermocouple break detection.
  • 2000V of ESD signal.
Trust Badge 1 Trust Badge 2 Trust Badge 3

DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F

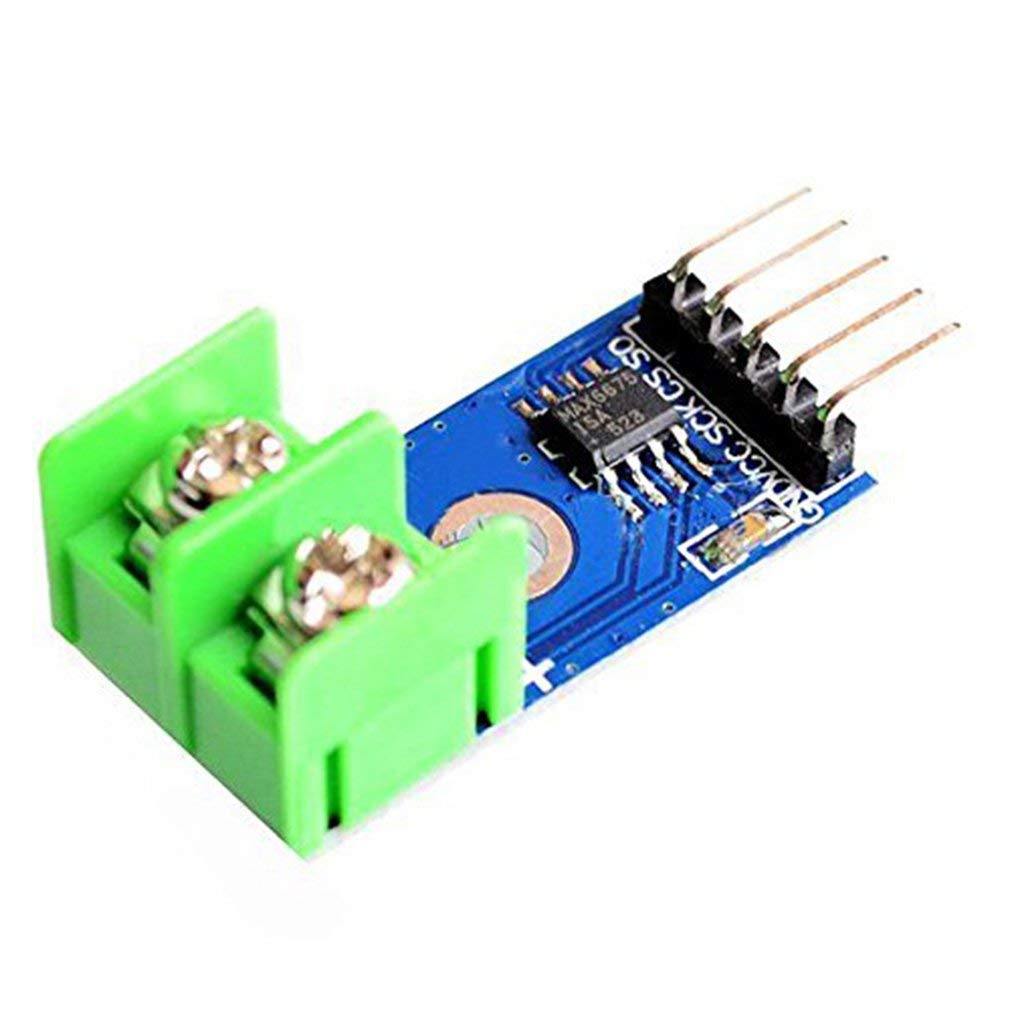

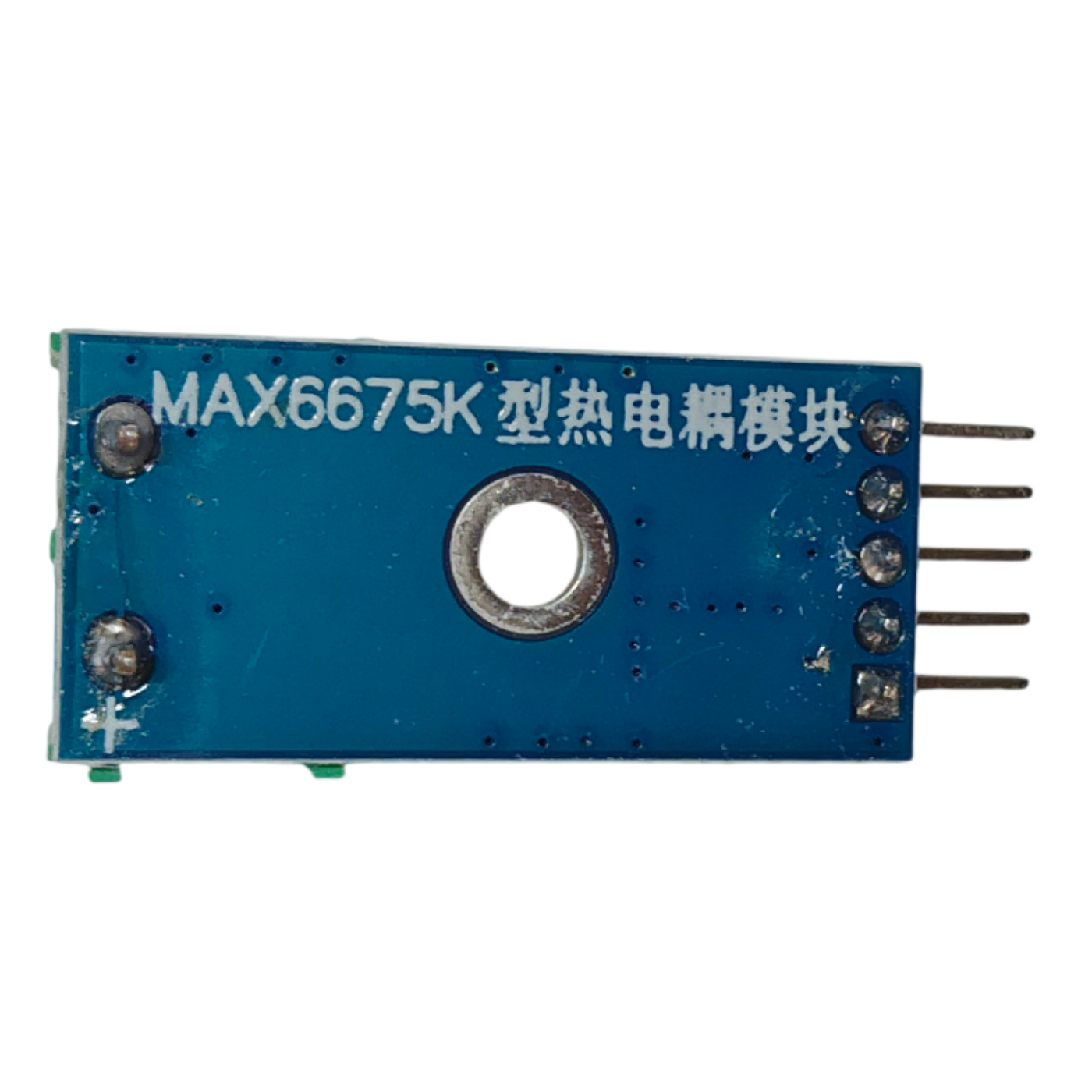

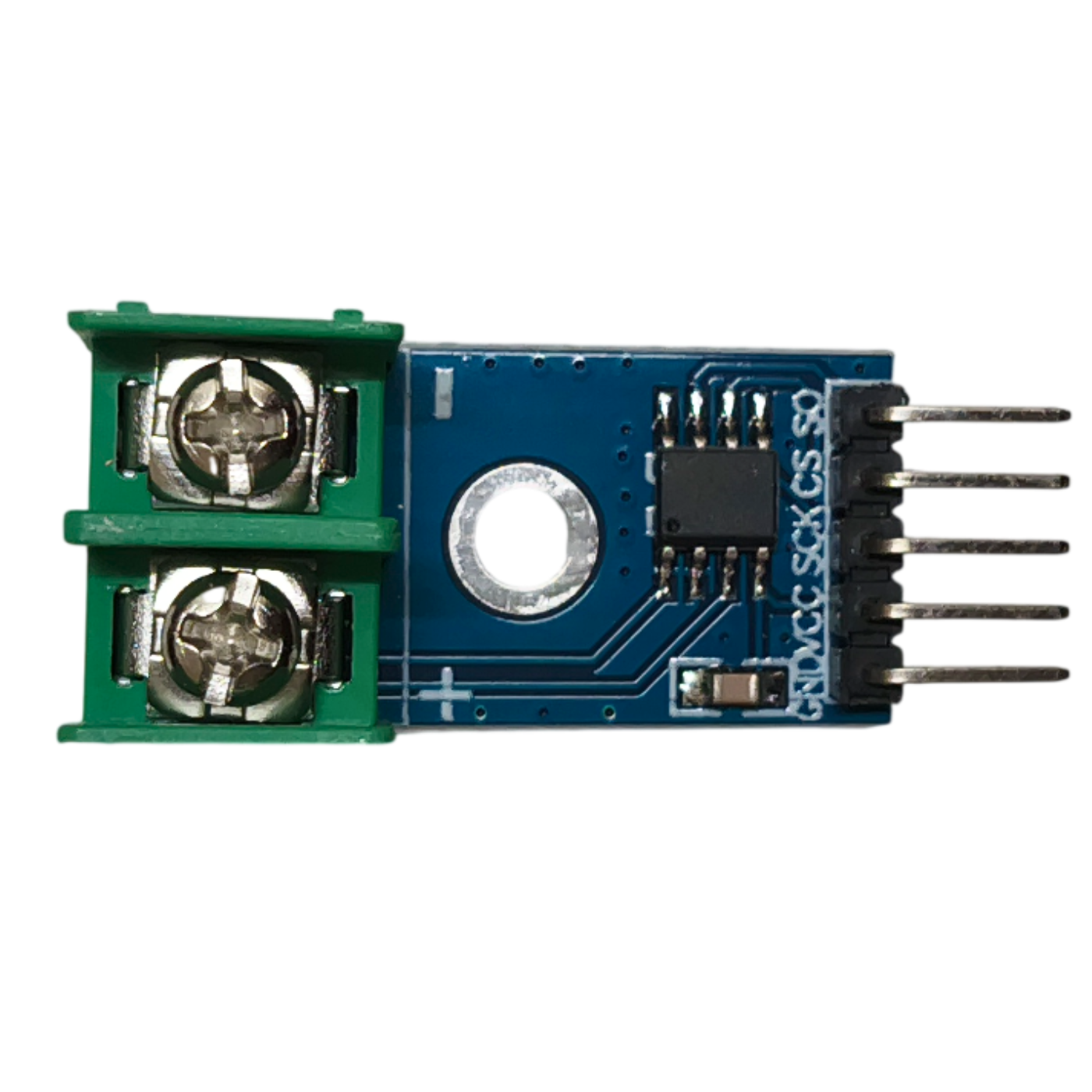

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

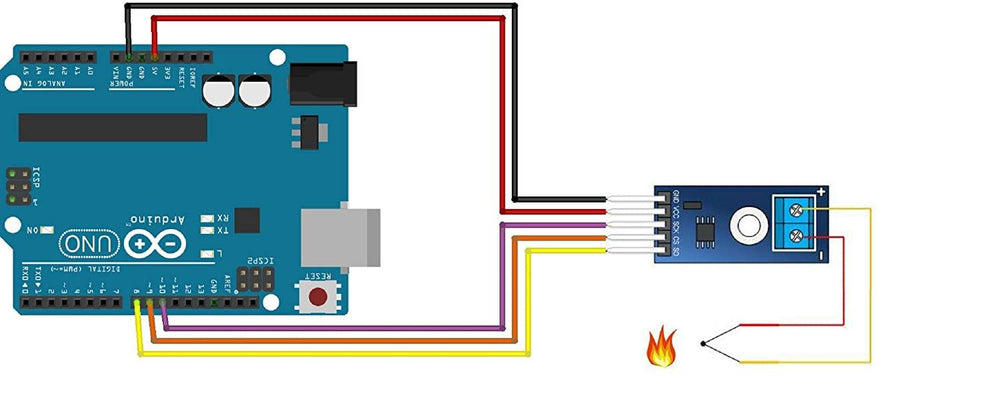

Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Ardunio development board.

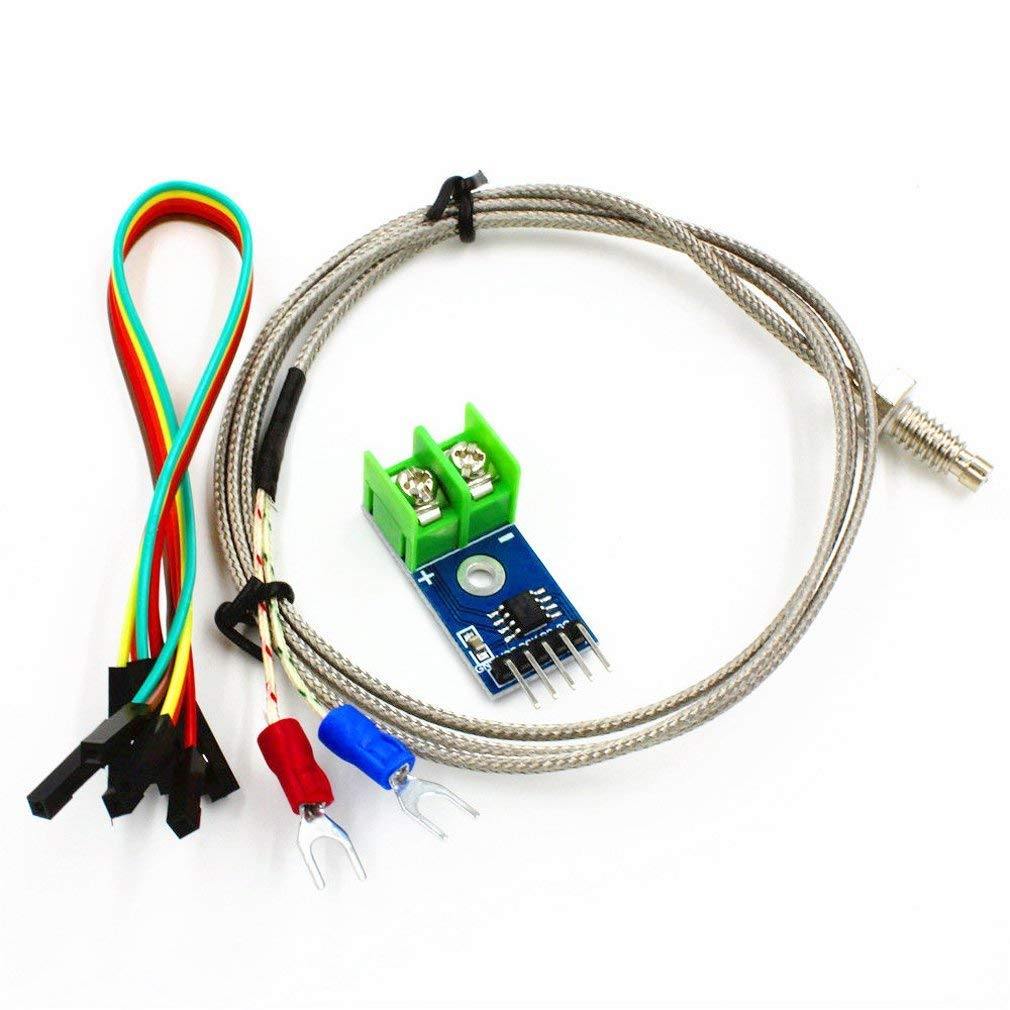

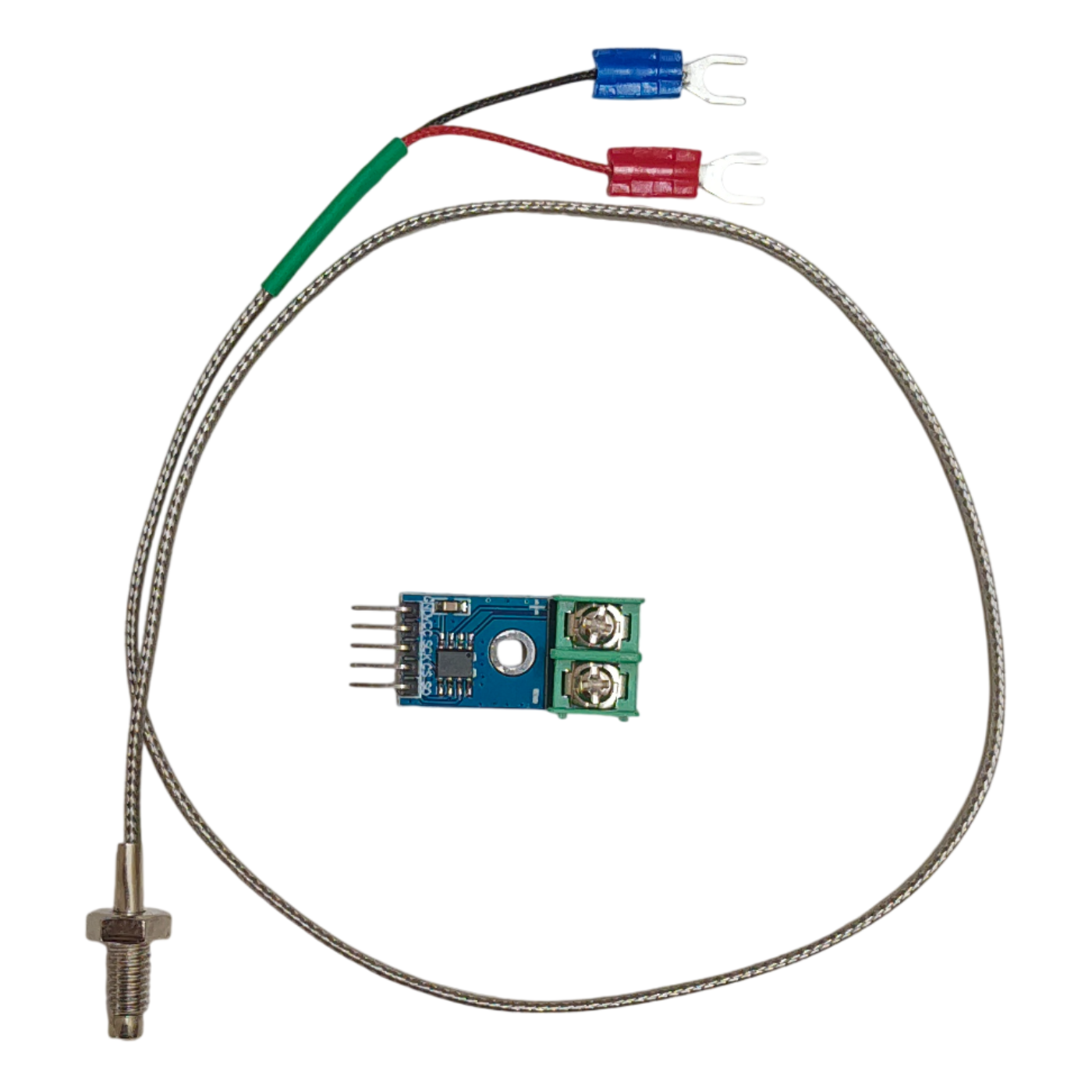

Package Includes:

  • 1 x MAX6675 Module
  • 1 x K Type Thermocouple Sensor
  • 1 x Set of Jumper Wires

Specifications:

Interface  3 Serial SPI Interface
Operating Voltage 3 to 5.5V
Temperature Range 0 to +1024 (°C)
Cold Junction Compensation Range -20 to +80(°C)
Package Dimensions  11 x 8 x 2 cms
Weight  50 grams
