D1 Mini V2 ESP8266 NodeMCU WiFi Development Board with USB-C Interface
Let us know!
We'll try to match the price for you
Weโll notify you once the product is back in stock.
Couldn't load pickup availability

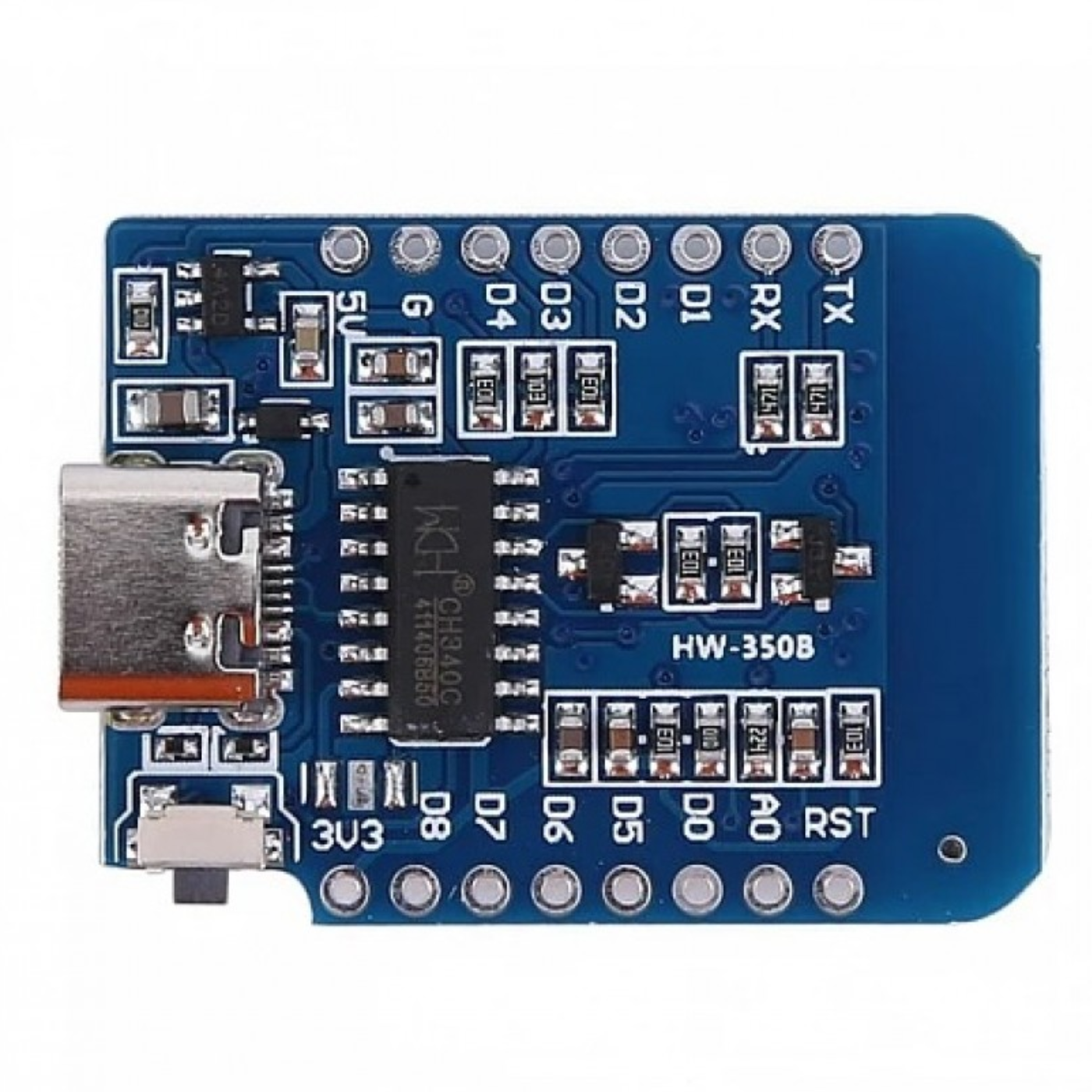

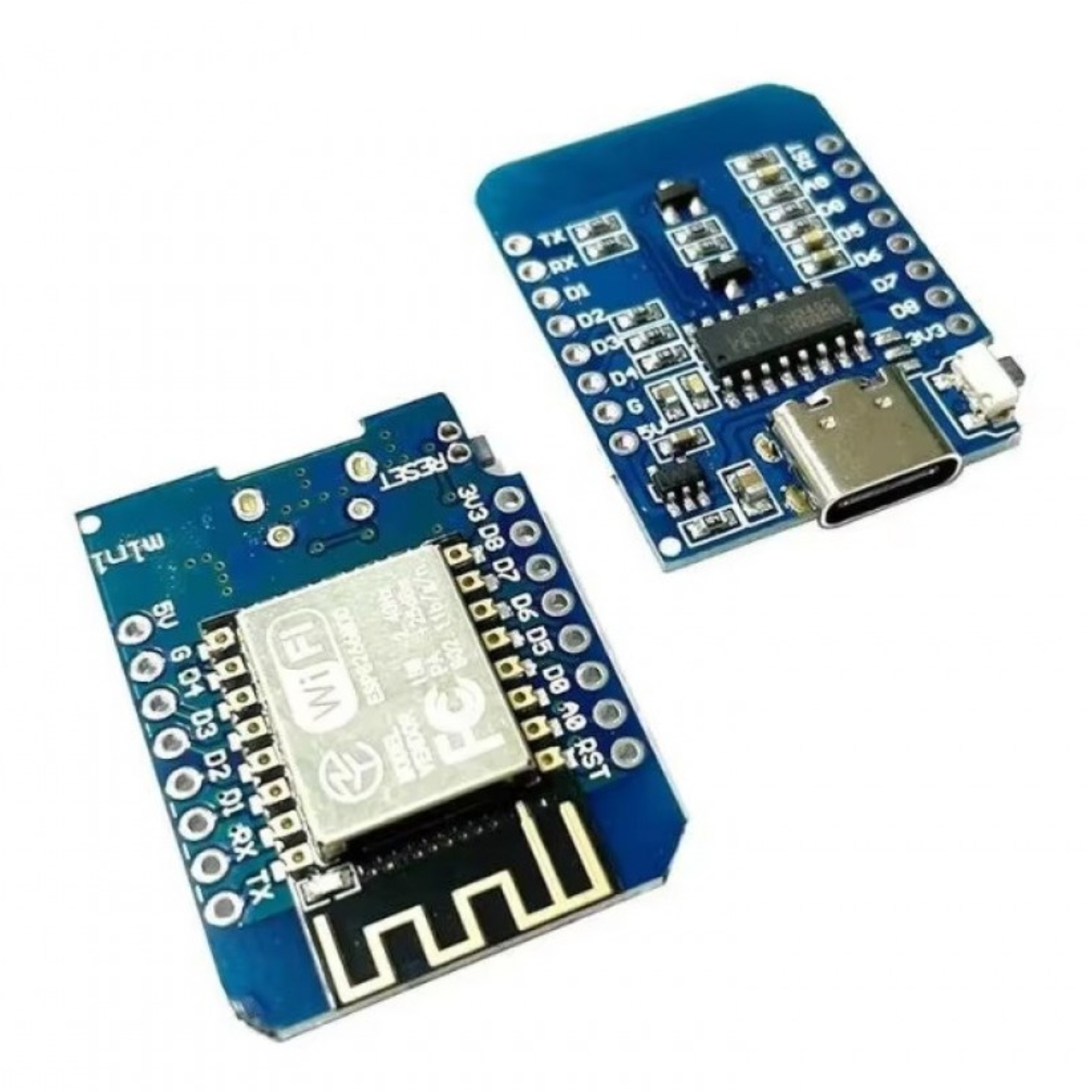

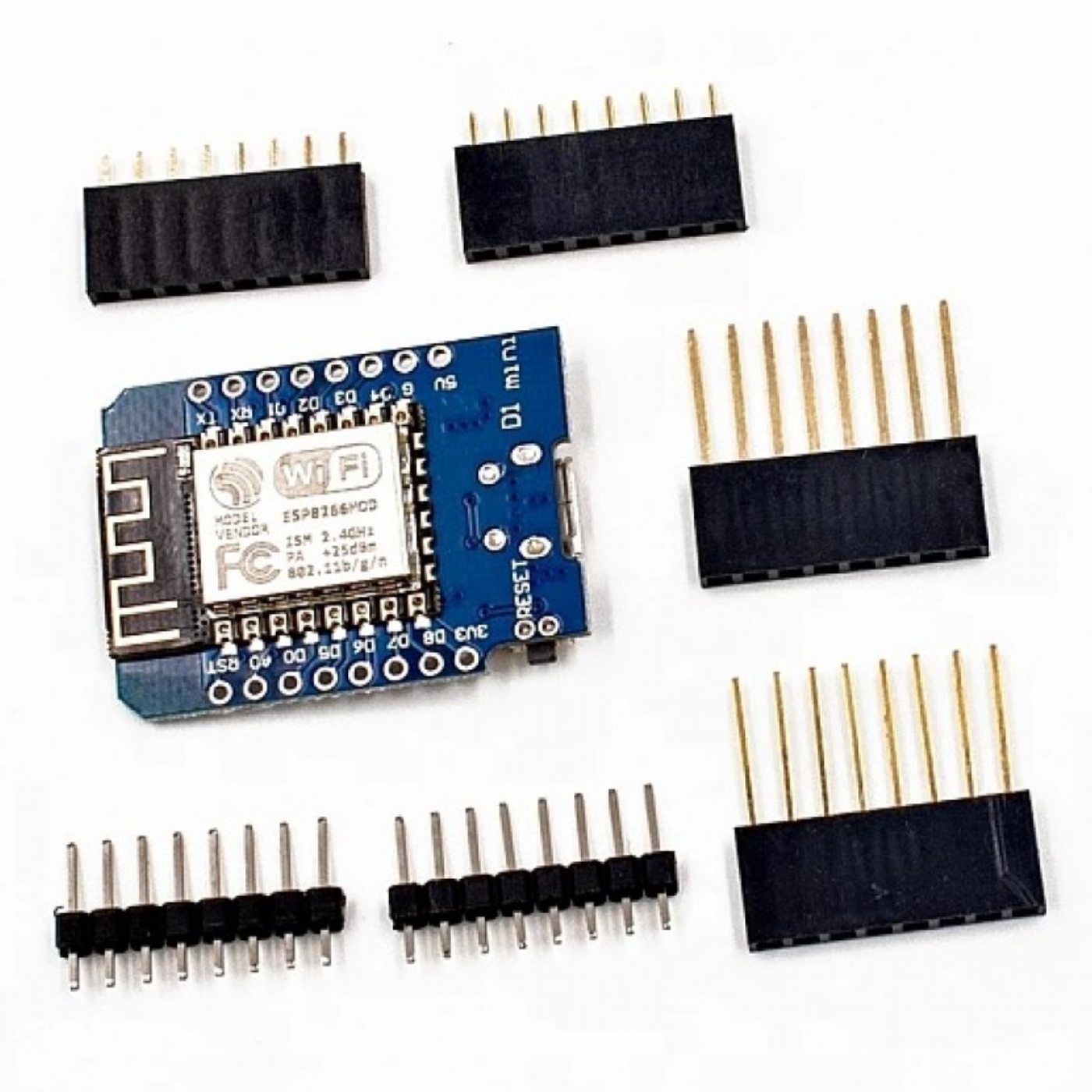

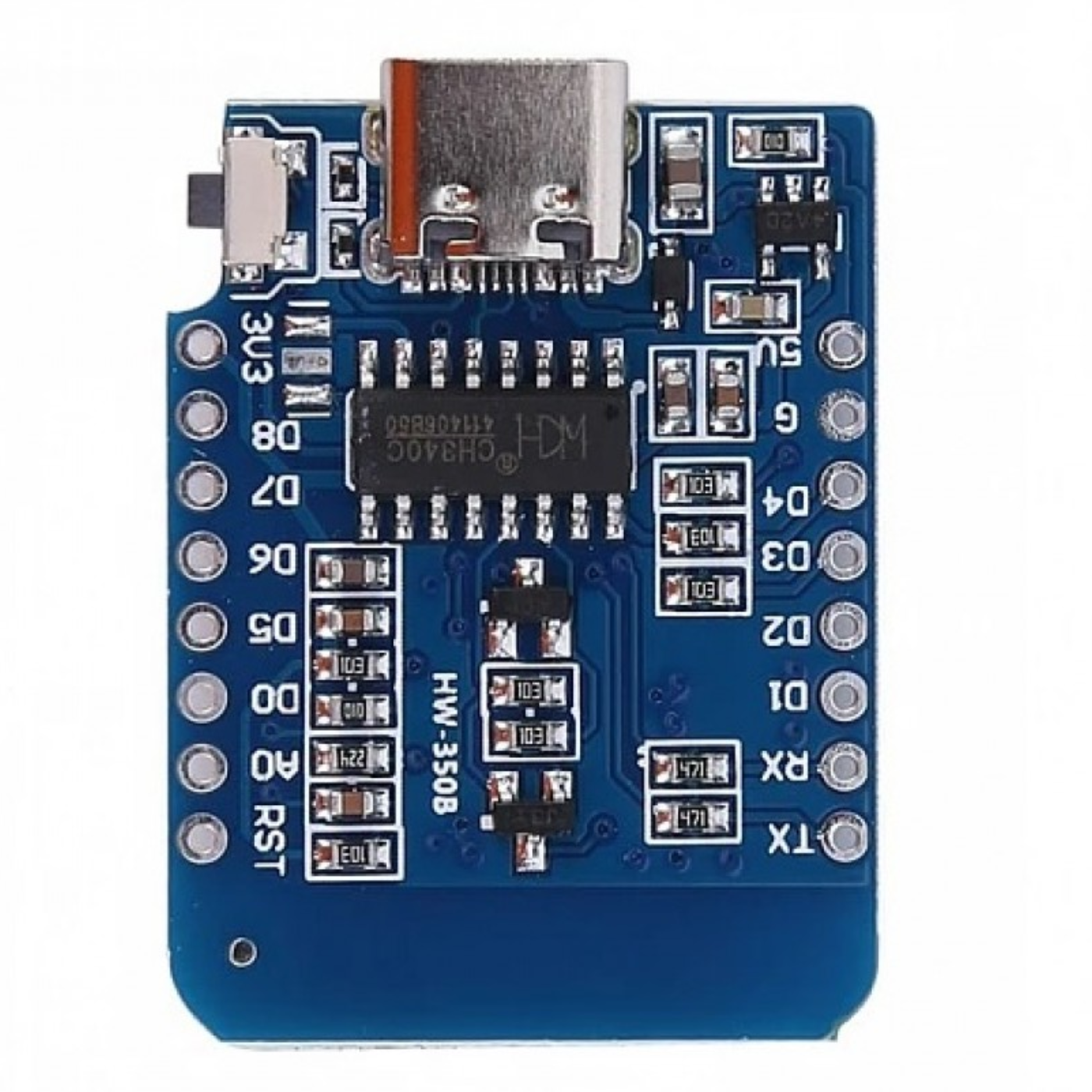

The D1 Mini V2 ESP8266 NodeMCU WiFi Development Board with USB-C Interface is a compact and versatile development board built around the ESP8266 chip. It provides 2.4GHz Wi-Fi connectivity along with multiple GPIO pins, making it suitable for connecting sensors, LEDs, displays, and other electronic components.
The board features a modern USB-C interface for convenient programming and power, and it can be programmed using NodeMCU Lua or the Arduino IDE. Its small form factor makes this ESP8266 NodeMCU board a practical choice for IoT projects, DIY electronics, smart devices, and home automation projects where reliable wireless connectivity and easy development are important.
| Specification | Details |
|---|---|
| Microcontroller | ESP-8266EX |
| USB Interface | USB Type-C |
| Programming Support | Arduino IDE |
| Arduino Compatibility | Yes |
| I/O Pins | 11 ร I/O pins |
| ADC Pin | 1 ร ADC pin |
| ADC Input Voltage | 0โ3.3V |
| OTA Support | Online OTA (Over-the-Air) programming |
| On-Board Power Supply | 5V, 1A switching power supply |
| Power Supply Input | Up to 24V |
| Dimensions | 34.1 ร 25.4 mm |
