Cytron Maker Pi Pico Base Development Board for Raspberry Pi (without Pico)
Couldn't load pickup availability

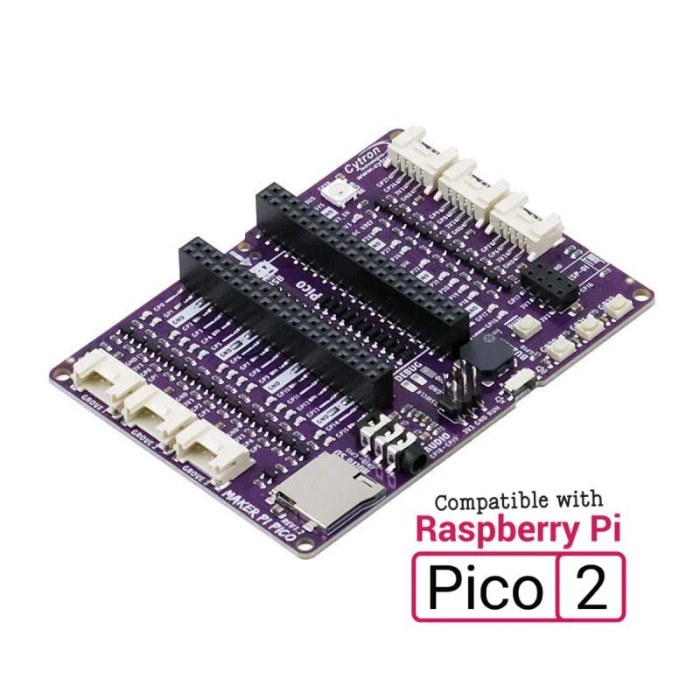

The Cytron Maker Pi Pico Base is a compact and powerful Raspberry Pi Pico development board designed to make prototyping and educational projects effortless.

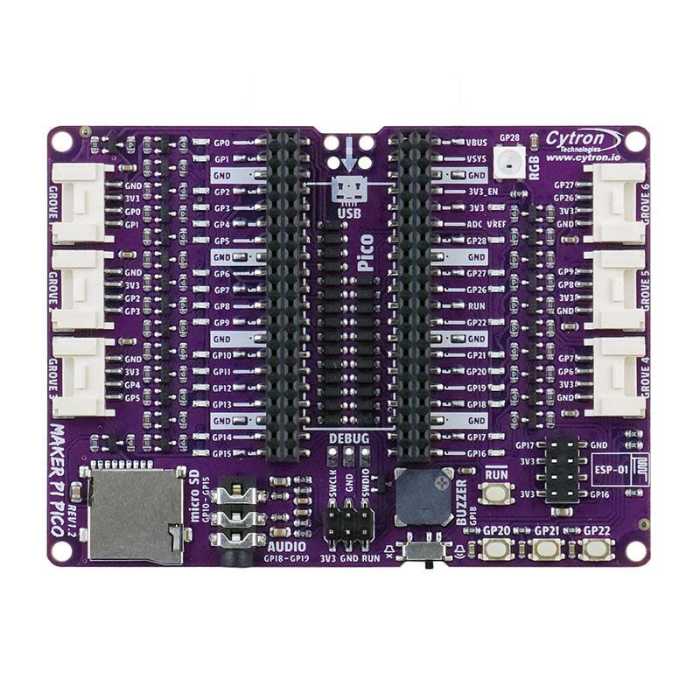

This Maker Pi Pico Base board brings in a highly requested Reset button for the Raspberry Pi Pico and provides access to all GPIO pins through two 20-pin headers with clear labeling, simplifying circuit design and testing.

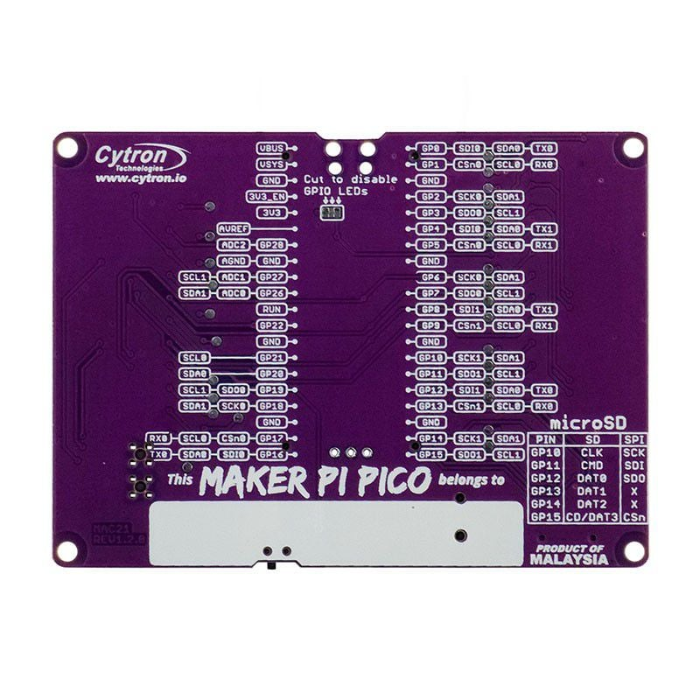

Each GPIO is paired with its own LED indicator, making code debugging intuitive and visual. On the bottom of the board, a detailed pinout diagram showcases each pin’s function for added convenience. The Cytron Pico Base board eliminates the need for soldering—just use jumper wires or Grove cables to connect sensors or output modules.
Whether you're using Circuit Python, Micro Python, or C/C++, uploading your program is as simple as dragging and dropping a file via USB, just like using a flash drive. The Maker Pi Pico Base is an ideal foundation for your next STEM or robotics project.
| Specification | Details |
|---|---|
| Item Type | Controller / Development Board |
| Model Series | Maker Series |
| Voltage Rating (V) | 4.5 to 5.5 |
| Input Voltage (VDC) | 4.5 to 5.5 |
| Digital Input Voltage (V) | Low level: -0.3 to 0.8 High level: 2.0 to 3.6 |
| Digital Output Voltage (V) | Low level: 0 to 0.5 High level: 2.62 to 3.3 |
| Operating Temperature (°C) | -20 to 85 |
