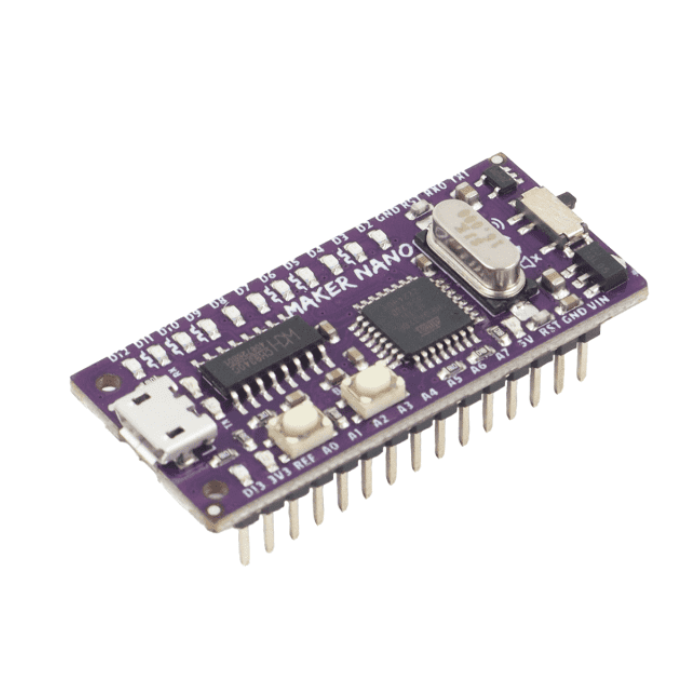

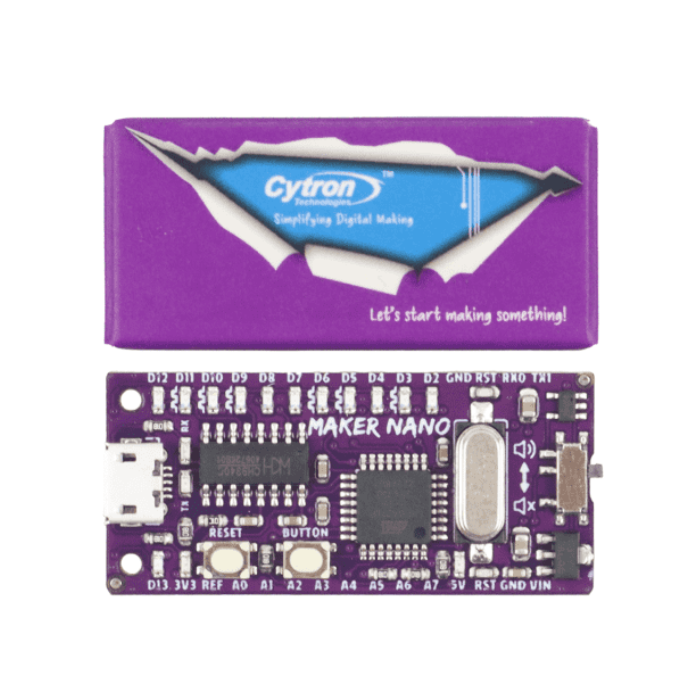

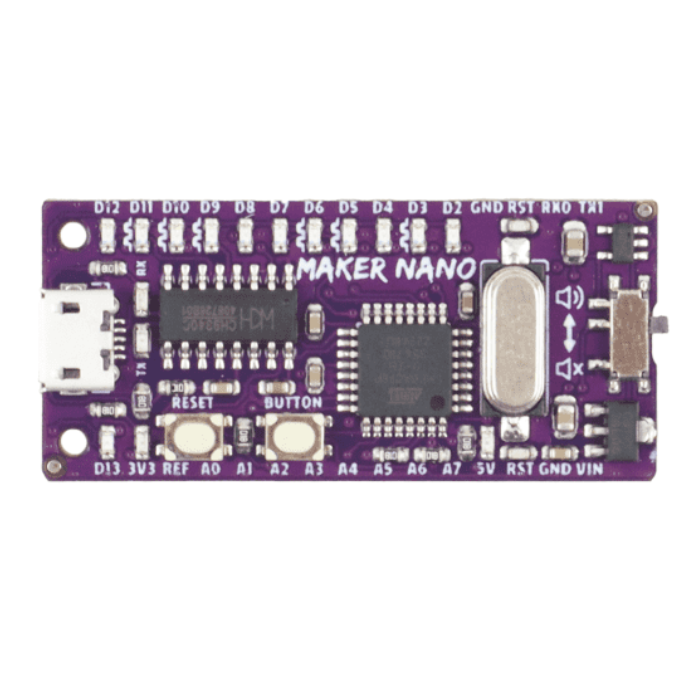

Cytron Maker Nano Development Board for Arduino Projects
Couldn't load pickup availability
If you love the Maker UNO but need something more compact, the Cytron Maker Nano Development Board is the perfect solution. This Arduino compatible board is designed specifically for makers who want to build small, efficient, and portable projects without sacrificing the features they rely on.

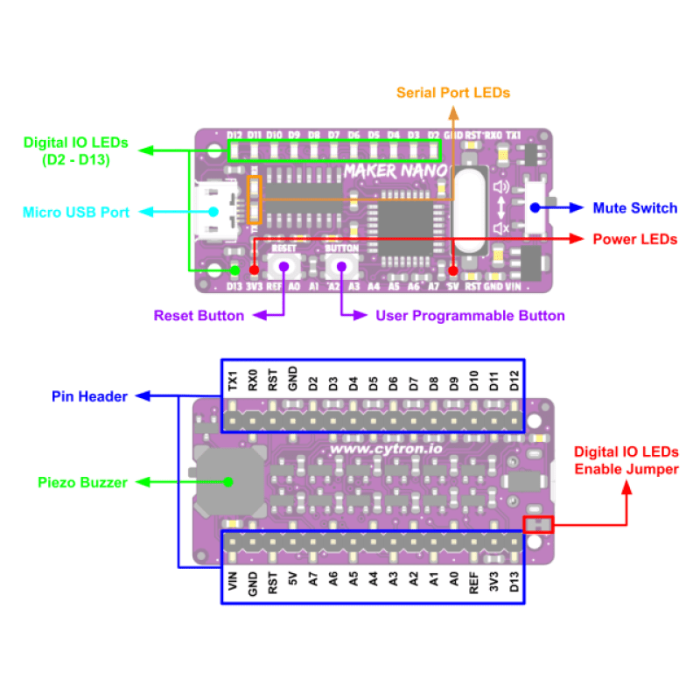

The Maker Nano retains the core functionality of the Maker UNO, including onboard USB connectivity, built-in LED indicators, and clear pin labels, making it easy and intuitive for beginners and experienced developers alike.

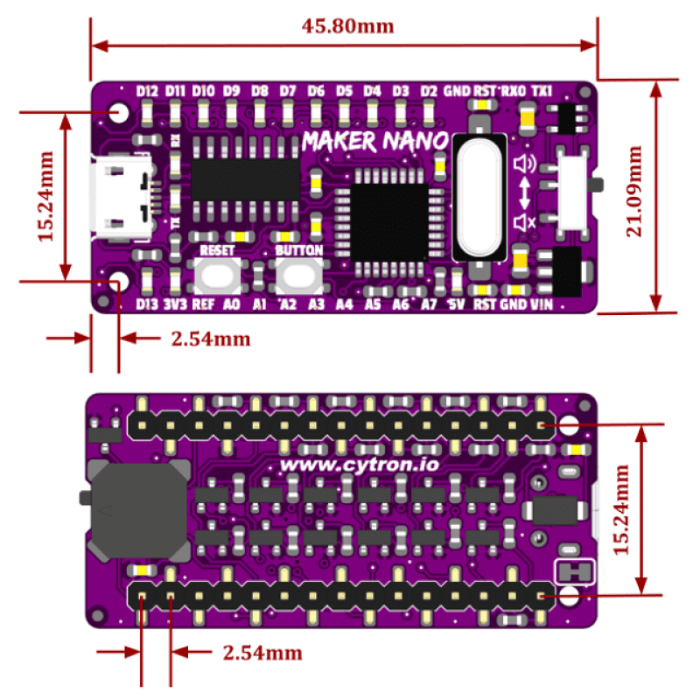

Its compact size makes it ideal for projects with limited space, such as wearables, portable gadgets, and embedded systems. Whether you're just starting out or building your next innovative device, the Cytron Maker Nano delivers the reliability and convenience you expect from a high-quality Arduino compatible board.
| Parameter | Details |
|---|---|
| Item Type | Controller / Development Board |
| Model Series | Maker Series |
| Microcontroller | ATmega328P |
| Programming | Arduino IDE |
| Operating Voltage | 5V DC |
| Input Voltage (Vin) | 7V to 30V |
| Power Supply | Vin or USB |
| USB to Serial Chip | CH340C |
| Digital I/O Pins | 20 |
| PWM Channels | 6 |
| Analog Inputs | 8 (10-bit resolution) |
| UART Interface | 1 |
| SPI Interface | 1 |
| I2C Interface | 1 |
| External Interrupts | 2 |
| Flash Memory | 32 KB |
| SRAM | 2 KB |
| EEPROM / Data Flash | 1 KB |
| Clock Speed | 16 MHz |
| Programmable LEDs | 12 (D2 to D13) |
| Programmable Push Button | 1 (connected to pin D2) |

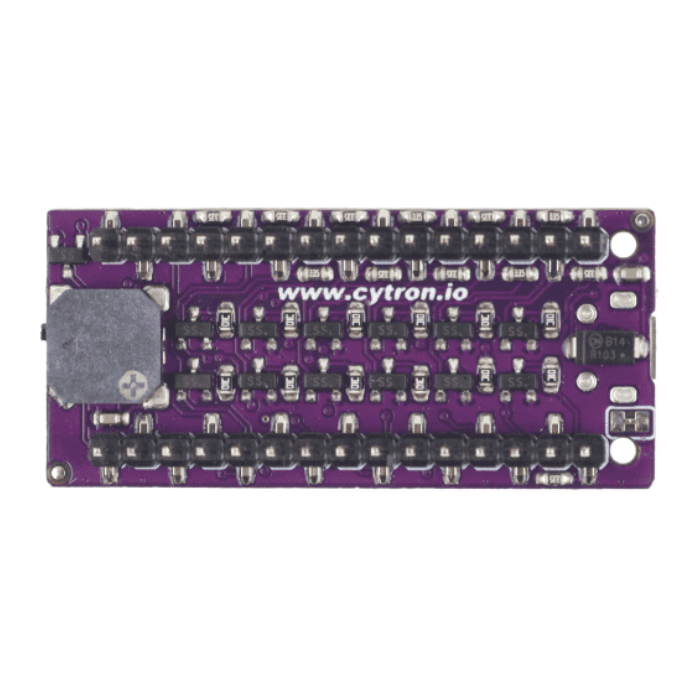

| Piezo Buzzer | 1 (connected to pin D8) |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
