- Cytron motor driver with dual channel 10A continuous output
- Compatible 10A motor driver Arduino shield (7V–30V)
- Controls two DC motors or one stepper motor (bipolar/unipolar)
- Built-in 5V buck regulator to power Arduino
- Onboard test buttons and motor output LEDs
- Configurable Arduino PWM/DIR pins via jumpers
- Overcurrent and temperature protection included

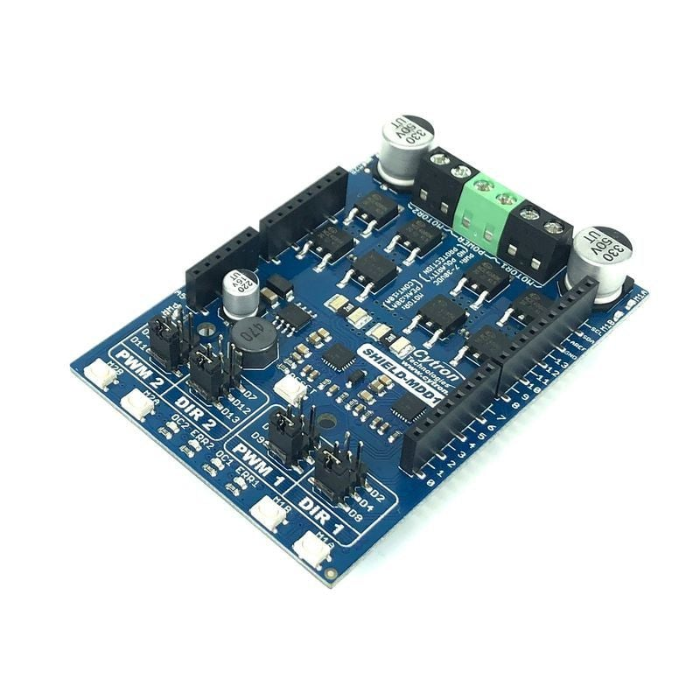

Cytron 10Amp 7V-30V Dual Channel DC Motor Driver Shield for Arduino
The Cytron 10Amp 7V-30V Dual Channel DC Motor Driver Shield for Arduino is a powerful and versatile Cytron motor driver designed to simplify motor control in robotics and automation projects.
As a 10A motor driver Arduino shield, it supports dual channel output for controlling two brushed DC motors or a single bipolar/unipolar stepper motor within a 7V to 30V range. The discrete NMOS H-Bridge design ensures reliable performance with up to 10A continuous current per channel without requiring additional heatsinks.

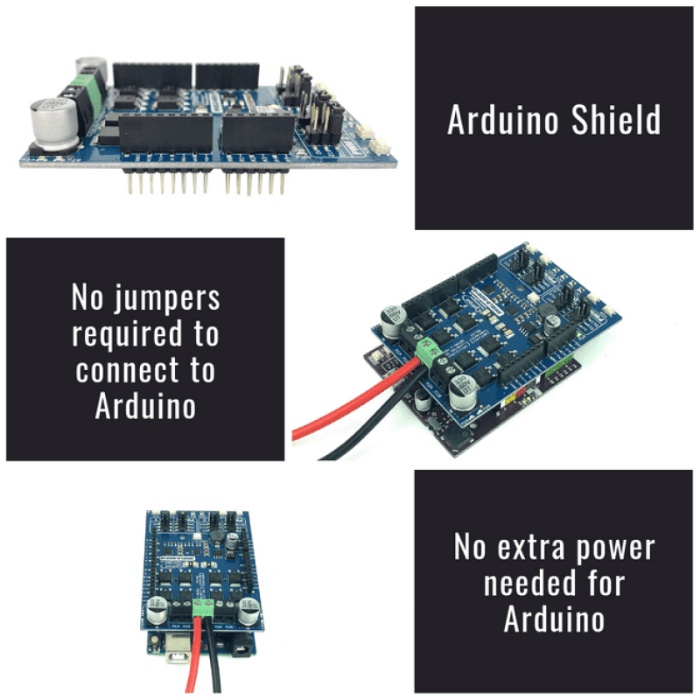

Ideal for building mobile robots, the dual channel motor driver features onboard test buttons and LEDs for quick diagnostics, and a built-in 5V buck regulator to power your Arduino board directly. With configurable PWM and DIR inputs via jumpers, it offers flexible pin assignments to suit various Arduino applications.

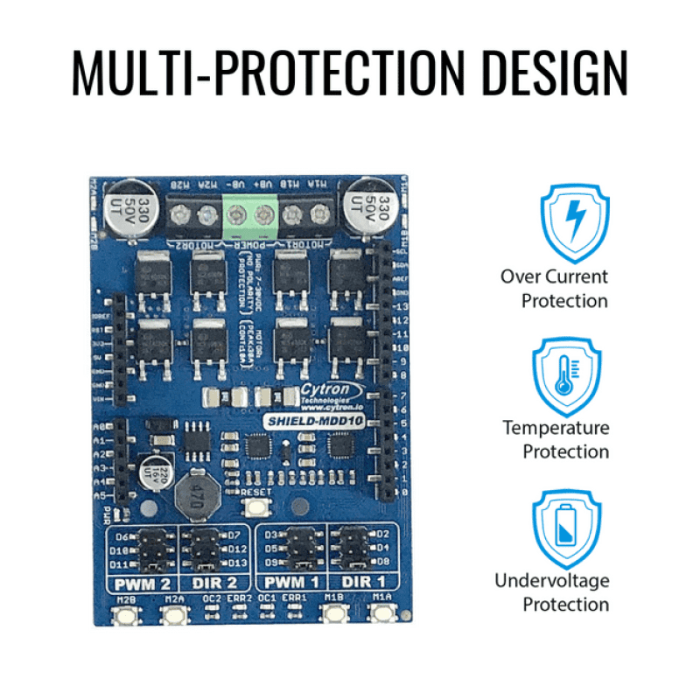

Advanced protection mechanisms like overcurrent and thermal protection safeguard the board, making the SHIELD-MDD10 an efficient and durable solution for high-power motor control.
Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously.

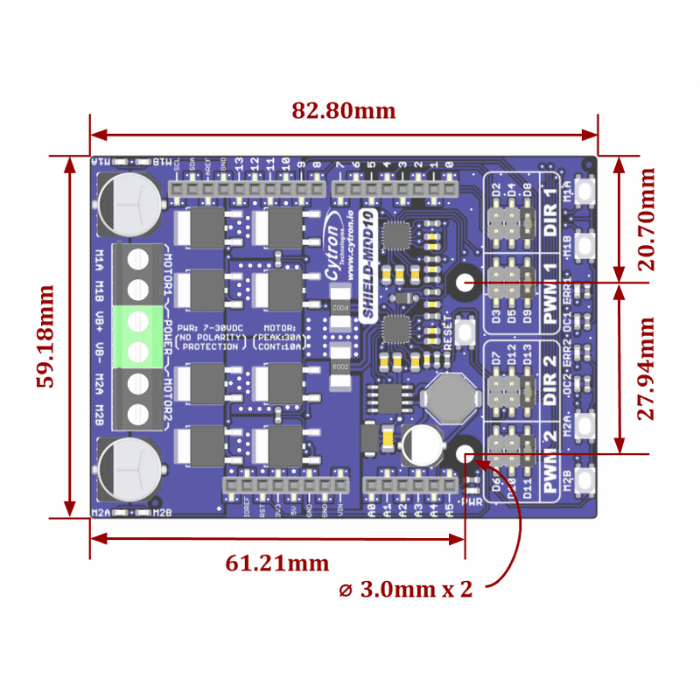

Motor Driver Shield Pinout Diagram:
Applications:
- Mobile Robot,
- Automated Guided Vehicle (AGV),
- Solar Tracker,
- Game Simulator,
- Automation Machine
Features:
- Shield for the Arduino form factor.
- Bidirectional control of two brushed DC motors.
- Control a single unipolar/bipolar stepper motor.
- Operating voltage: DC. 7V to 30V
- Maximum Motor Current: 10A constant; 30A peak.
- Buck regulator capable of producing a 5V output (maximum current 500mA).
- Buttons allow for quick testing.
- LEDs indicate the motor output state.
- Selectable Arduino pins for PWM/DIR inputs.
- PWM/DIR inputs are compatible with 1.8V, 3.3V, and 5V circuitry.
- PWM frequency up to 20 kHz (output frequency equals input frequency).
- Overcurrent protection includes active current limiting.
- Temperature protection.
- Undervoltage shutdown.
Package Includes:
- 1 x Cytron 10Amp 7V-30V Dual Channel DC Motor Driver Shield for Arduino
Specifications:
| Specification | Details |
|---|---|
| Item Type | Motor Driver |
| Current Rating (A) | 10 |
| Logic Input Voltage | High: 1.5–5.5 V Low: 0–0.8 V |
| PWM Frequency | 20 KHz |
