The PSoC® Analog Coprocessor combines flexible Analog Front Ends, programmable Analog Filters, and high-resolution Analog-to-Digital converters along with an efficient-yet-powerful ARM® Cortex®-M0+ signal processing engine - enabling host processors to easily fetch aggregated, pre-processed and formatted complex sensor data over serial communication interfaces.

Sense Anything

Includes five onboard sensors along with PSoC® Creator code examples - one analog sensor for each type of fundamental electrical quantity:

• Voltage-based PIR Motion Sensor (Zilog ZRE200GE)
• Current-based Ambient Light Sensor (Vishay TEMD6200FX01)
• Resistance-based Temperature Sensor (EPCOS/TDK B57164K103J)
• Inductance-based Proximity/Contact sensor
• Capacitance-based Humidity sensor (TE HPP801A031)

Flexible Prototyping

Form-factor compatible with Arduino Uno - Can interface with shields, or be used as a shield for any host processor board
Includes on-board KitProg2 programmer and debugger with ARM® CMSIS-DAP

Features:

• Onboard Sensors: Includes five sensors for various applications.

• RGB LED: Features an RGB LED for visual feedback.

• Push-Button Switches: Comes with two push-button switches for user input.

• Programmer/Debugger: Includes an onboard programmer/debugger (KitProg2) for easy programming and debugging.

• USB-UART/I2C Bridge: Provides USB-UART and I2C bridge functionality.

• Operating Voltages: Supports multiple operating voltages (1.8V, 3.0V, 3.3V, and 5V).

• F-RAM: Equipped with Cypress F-RAM for non-volatile memory storage.

• Arduino Compatibility: Offers footprint compatibility with Arduino shields and baseboards.

• Power Sources: Can be powered via USB, coin cell, or an external power supply.

• Status LEDs: Includes a power LED and three status LEDs for monitoring.

Applications:

• Sensor Interfacing: Ideal for interfacing with various sensors, such as humidity, temperature, and light.

• Analog Signal Processing: Used for processing analog signals in applications like signal conditioning and filtering.

• Prototyping Analog Systems: Great for prototyping and developing analog and mixed-signal systems.

• Educational Projects: Useful in educational settings for teaching and learning about analog and digital electronics.

• IoT Applications: Can be used in Internet of Things (IoT) projects for sensor data acquisition and processing.

• Home Automation: Suitable for home automation projects involving sensor-based control systems.

• Wearable Devices: Can be used in the development of wearable devices that require analog signal processing

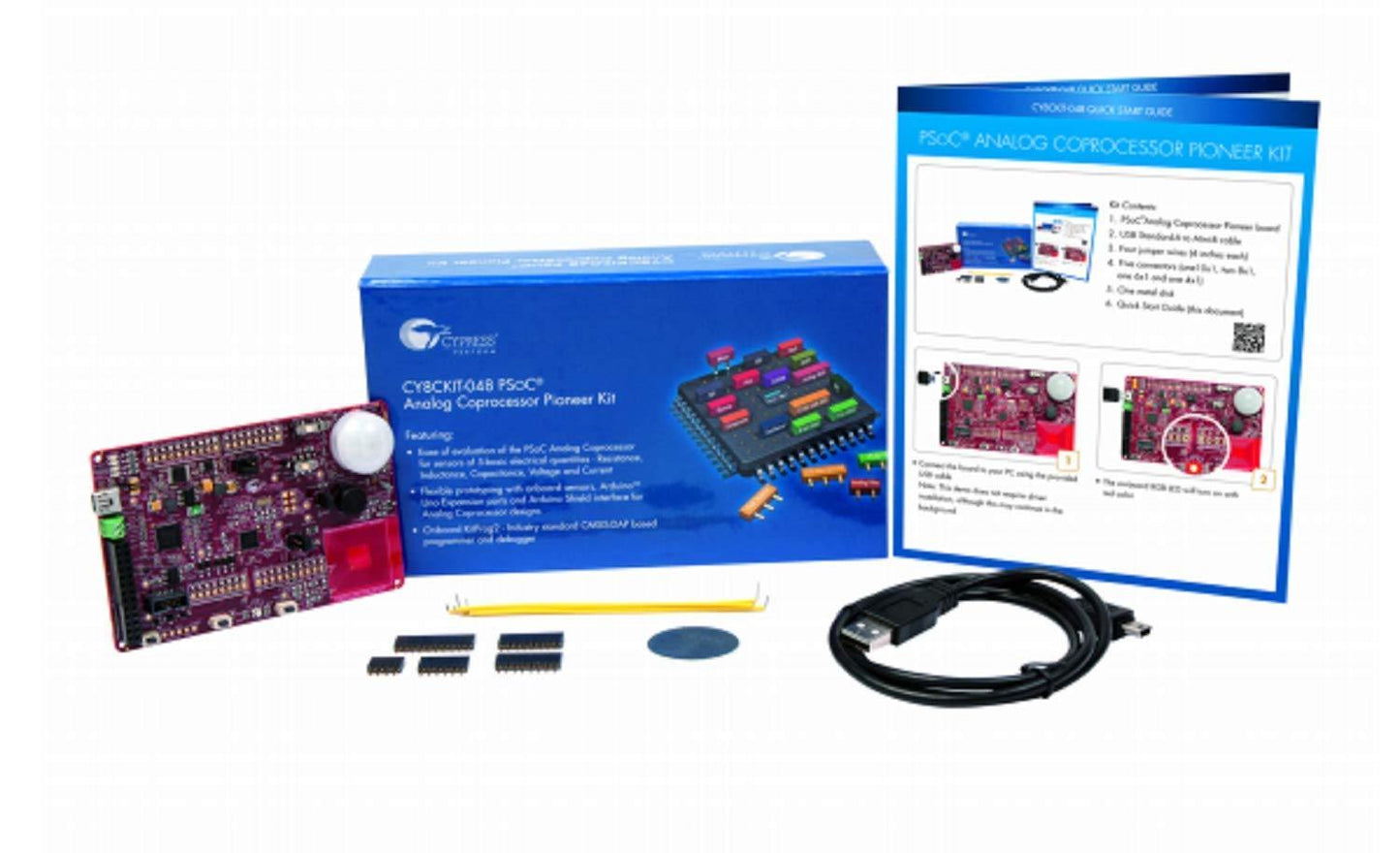

Package Includes:

• PSoC Analog Coprocessor Pioneer Board
• USB Standard-A to Mini-B Cable
• Four jumper wires (4 inches each)
• Five connectors (one 10x1, two 8x1, one 6x1, and one 4x1)
• One metal disk
• Quick Start Guide
