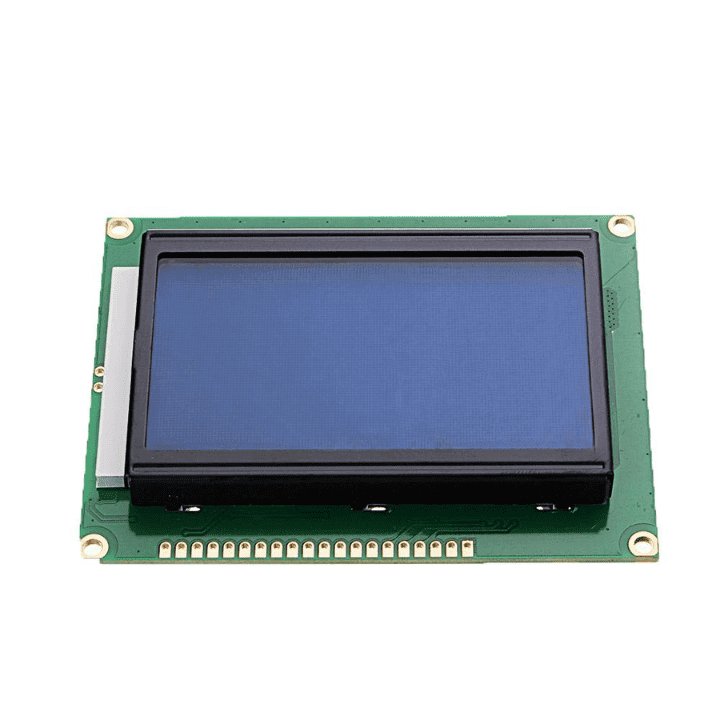

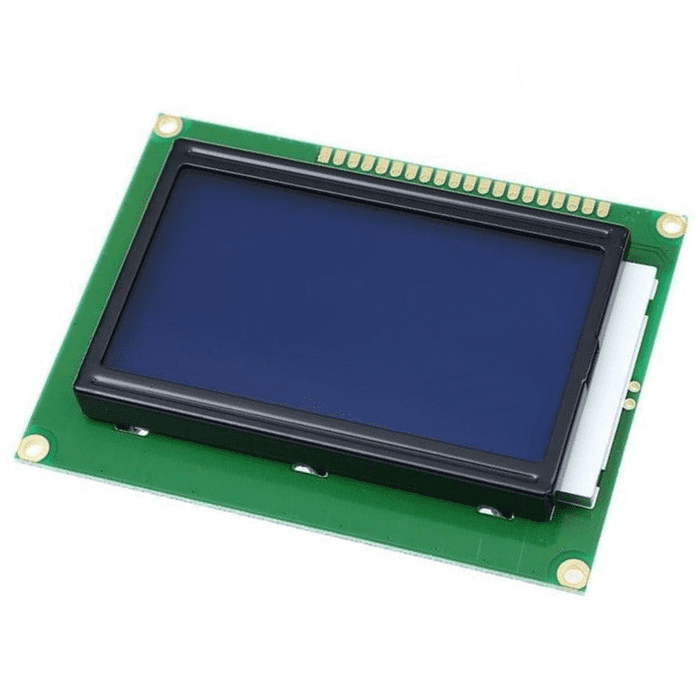

JHD 128x64 Graphic LCD -Blue Backlight
JHD 128x64 Graphic LCD -Blue Backlight
Low stock: 4 left
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is JHD 128x64 Pixel Blue Backlight Graphic LCD
- The graphic LCD display module has a 128x64 pixel resolution.
- The 128x64 pixel LCD display module uses JHD12864E controller has is equipped with Blue backlight.
- The graphic LCD display uses a 8 bit parallel interface or serial SPI modes.
- It needs a power supply voltage of 5V and operating temperature of :-20°C to +70°C.
- This 128x64 pixel graphic lcd display module is best suited for microcontrollers and development boards compatible with Arduino.
JHD 128x64 Graphic LCD -Blue Backlight
This is the original jHD128x64 LCD display, It is simple to use and works with the vast majority of microcontrollers on the market. With this Graphic LCD, you can do a lot of graphic things. You can make frames as well as small animations. The 128x64 Graphic LCD module has a 128 x 64 pixel LCD screen with a Blue backlight and a white foreground. The display is fully programmable and can show a mix of graphics and text. This 128x64 LCD display is a large, bright Blue LCD with white back-lit pixels. It is also well known for its widespread use in 3D printers as a RAMPS extension accessory.

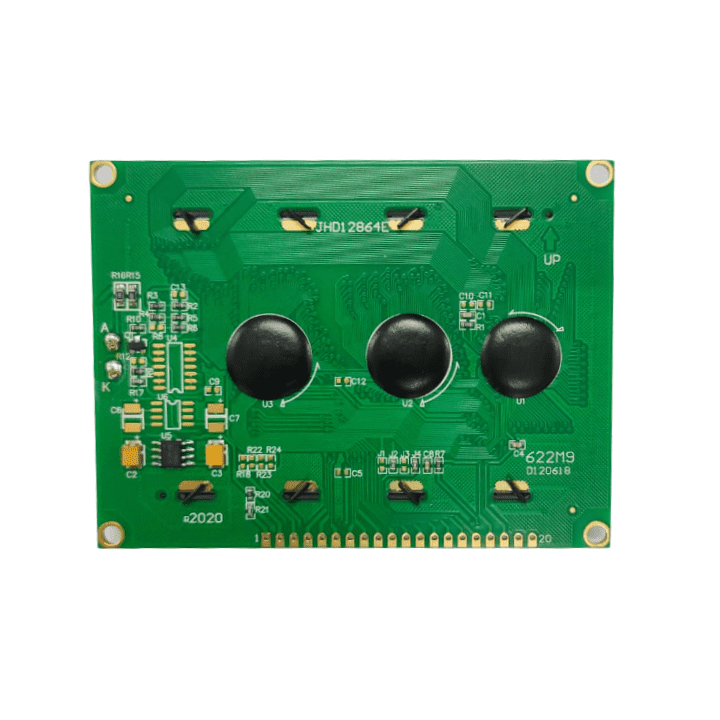

A display is required if you want to add visual output to your Arduino projects. This LCD display is best suited for graphical upgrades to popular 16x2 LCDs, but it also allows full graphical control. This 128x64 Graphic LCD series allows the user to draw lines, circles, and boxes, set or redefine individual pixels, clear specific blocks of the display, control the backlight, and adjust the baud rate in addition to writing text. The pins of the LCD 128x64 Graphic Blue Color Backlight LCD Display module are documented on the back of the LCD to aid in wiring it up. It is very simple to connect this LCD to the 3D printer's RAMPS controller.
Features:
- Display Resolution: 128x64 pixels, allowing for detailed graphics and text.
- Backlight: Yellow backlight for clear visibility in different lighting conditions.
- Controller: Typically uses the KS0108 controller, compatible with many microcontrollers.
- Interface: Supports multiple communication interfaces, including parallel and SPI.
- Voltage: Operates on 5V.
- Viewing Angle: Wide viewing angle for better visibility.
- Operating Temperature: Suitable for a range of temperatures, typically from -20°C to 70°C.
- Applications: Ideal for kiosks, metering applications, handheld devices, and more
Applications:
- Kiosks: Displaying interactive menus and information.
- Metering Applications: Showing detailed readings and data in devices like multimeters and power meters.
- Handheld Billing Devices: Providing a user interface for portable billing and transaction devices.
- HVAC Controllers: Displaying temperature, humidity, and other environmental data in heating, ventilation, and air conditioning systems.
- Uninterruptible Power Supplies (UPS): Showing status, battery levels, and other critical information.
- Video Games: Used in retro gaming consoles and custom game projects.
- Mobile Phones: Displaying graphics and text in older mobile phone models.
- Lifts/Elevators: Showing floor numbers, status messages, and other information.
Package Includes:
- 1 x JHD 128x64 Graphic LCD -Blue Backlight
Specifications:
| Brand | JHD12864E |
| Display Format | 128x64 dots |
| Controller | KS0108 |
| Interface | 8-bit parallel interface or serial SPI modes |
| Power Supply Voltage | 5V |
| Operation temperature | -20°C to +70°C |
| Package Dimensions | 6 x 4 x 2 cm |
| Package Weight | 150 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
3.5in Touch Screen LCD Display for Raspberry Pi
DSO138 DIY 2.4 inch Digital Oscilloscope Kit
7 inch LCD Capacitive Touch Panel with HDMI and USB Cable
Found a better price?
Let us know!
We'll try to match the price for you
1. What is 128x64 graphic LCD?
- The 128x64 graphic LCD can display simple graphics as well as simple text or numbers within a fixed size because there are 128x64 = 8192 dots in a 128x64 graphical LCD display, which is equivalent to 8242/8 = 1024 pixels. Ordinary LCDs can only display simple text or numbers within a limited range of sizes.
2. What is the resolution of the JHD 128x64 Graphic LCD?
- The display has a resolution of 128x64 pixels, allowing for detailed graphical displays.
3. Is this display compatible with most microcontrollers?
- Yes, the JHD 128x64 Graphic LCD is compatible with most microcontrollers, making it easy to integrate into different projects.
4. What kind of graphical capabilities does this LCD support?
- The display supports drawing lines, circles, and boxes, setting or redefining individual pixels, and clearing specific blocks of the display.
5. What are some common applications for this graphic LCD?
- This LCD is commonly used in embedded systems, industrial control panels, DIY projects, and medical equipment for displaying information clearly.
