Coin Type Micro Vibration Motor - Buy Online in India

Coin Type Micro Vibration Motor

Rs. 22
Rs. 30
Rs. 22
Save Rs. 8
(-27%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 4470 left in stock
SKU: TIFMC0100
  • This is the Coin Type Micro Vibration Motor for Mobile.
  • Can be driven with 3V coin cells like the CR2032.
  • Operating voltage of 3 to 4V DC and 9000 RPM.
  • Have offset weights that make them vibrate when they spin.
FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Coin Type Micro DC Vibration Motor, compact & efficient for haptic feedback & electronics – Robot Motors - Robocraze
Coin Type Micro Vibration Motor
Rs. 30 Rs. 22

Coin Type Micro Vibration Motor

Rs. 30 Rs. 22
Description

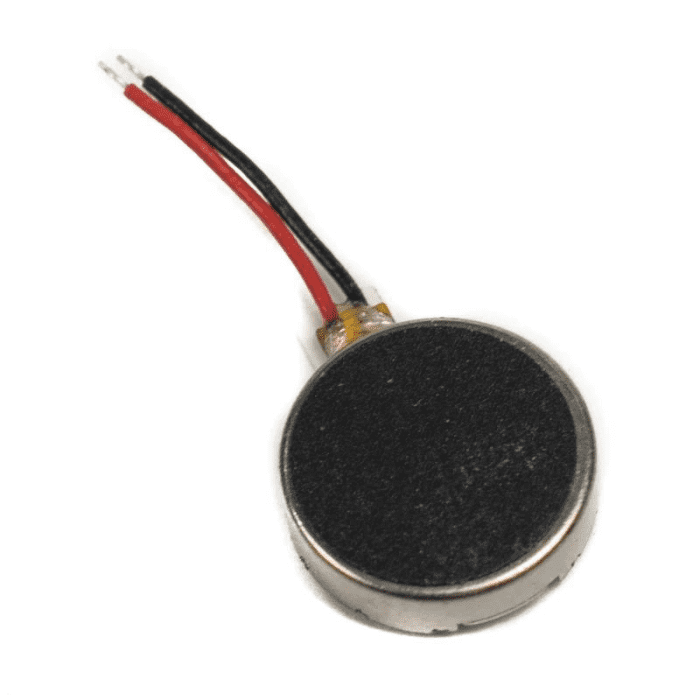

Coin Type Micro Vibration Motor

This Flat 1034 Mobile Phone Vibration Motor is a shaftless vibration motor which is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.

The motor has a 3M adhesive backing on it for easy mounting and 1.5? leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.

Features:

  • Size: Approximately 10mm in diameter and 2-3mm in thickness.
  • Voltage: Operates on 3V DC.
  • Speed: Can reach up to 12,000 RPM.
  • Type: Eccentric Rotating Mass (ERM) motor, which creates vibration by rotating an off-center mass.
  • Mounting: Compact and convenient to use, with options for self-adhesive mounting.
  • Noise Level: Low noise level when vibrating.
  • Applications: Suitable for mobile phones, pagers, handheld devices, wearables, and other electronics requiring vibration feedback123.

Applications:

  • Mobile phones
  • Toys, health products
  • Handicrafts
  • Electronic products
  • Medical equipment
  • Tablet computers
  • Wearable devices
  • Smartwatches

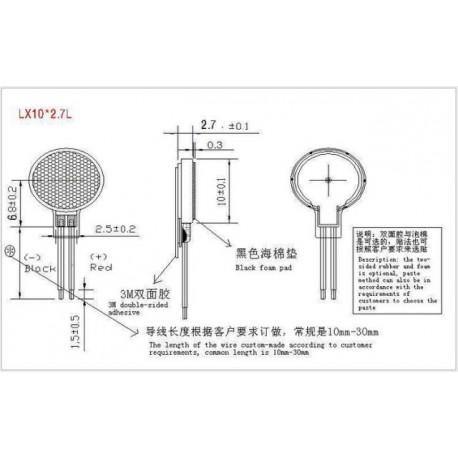

 Structure of Coin Type Micro Vibration Motor

flat-1027-mobile-phone-vibration-motor-diagram
Specifications

PACKAGE INCLUDES:

  • 1 x Coin Type Micro Vibration Motor

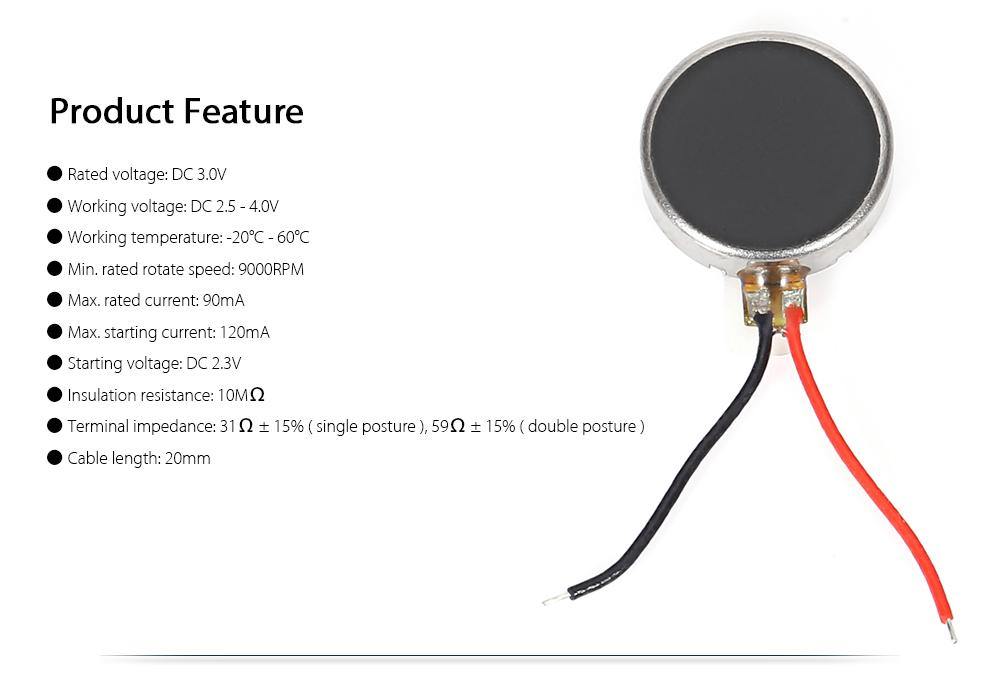

Specifications:

Rated Voltage

DC 3.0v

Working Voltage

DC 2.5 – 4.0V

Working Temperature

-20°C – 60°C

Min. rated rotate speed

9000RPM

Max. rated current

90mA

Max. starting current

120mA

Insulation Resistance

10M ?

Terminal Impedance

31 ? ±15% (single posture), 59 ?± 15% (double posture)

Cable length

20mm

Dimensions

10x2.5mm

Specifications:

Rated Voltage

Specifications:

DC 3.0v

Specifications:

Working Voltage

Specifications:

DC 2.5 – 4.0V

Specifications:

Working Temperature

Specifications:

-20°C – 60°C

Specifications:

Min. rated rotate speed

Specifications:

9000RPM

Specifications:

Max. rated current

Specifications:

90mA

Specifications:

Max. starting current

Specifications:

120mA

Specifications:

Insulation Resistance

Specifications:

10M ?

Specifications:

Terminal Impedance

Specifications:

31 ? ±15% (single posture), 59 ?± 15% (double posture)

Specifications:

Cable length

Specifications:

20mm

Specifications:

Dimensions

Specifications:

10x2.5mm

FAQ

1. What is coin vibration motor?

  • Coin vibration motors are the most popular and cost-effective haptic motors due to their small size and enclosed vibrating mechanism with no exposed eccentric. These eccentric motors are commonly found in mobile phones and wearable devices.

2. What is a coin vibration motor used for?

  • A coin vibration motor could be used in smart watches, fitness trackers (as shown in the right gif), and other wearable devices. They are commonly used to provide discrete alerts, precision alarms, or haptic feedback to the user.

3. What are the common applications for this motor?

  • This motor is commonly used in mobile phones, wearable devices, medical equipment, and toys for providing vibration feedback.

4. How is the motor typically mounted in devices?

  • The motor is often mounted using a strong adhesive backing, making it easy to integrate into compact designs.

5. What is the typical speed of this motor?

  • The motor can reach speeds of up to 12,000 RPM.
