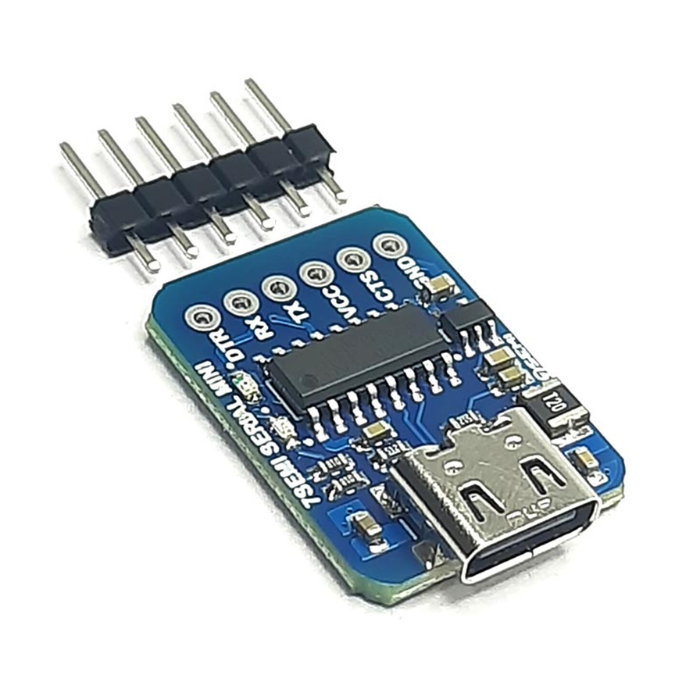

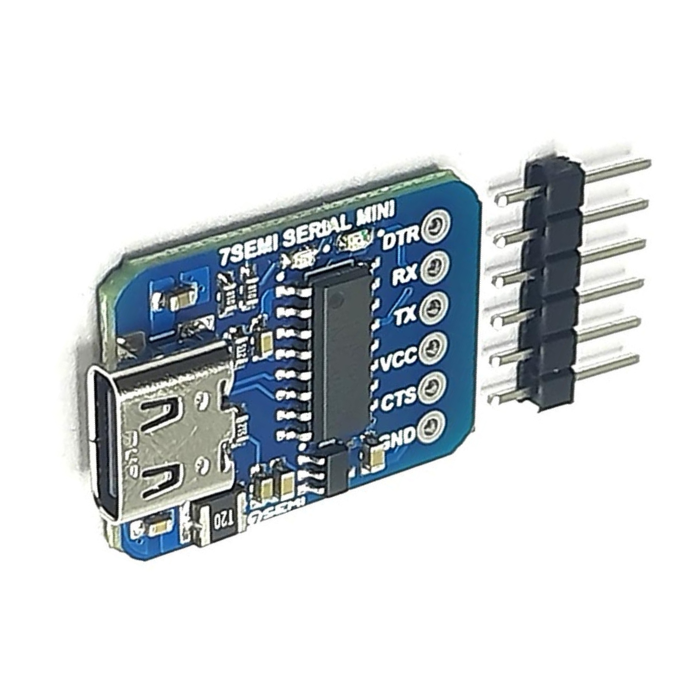

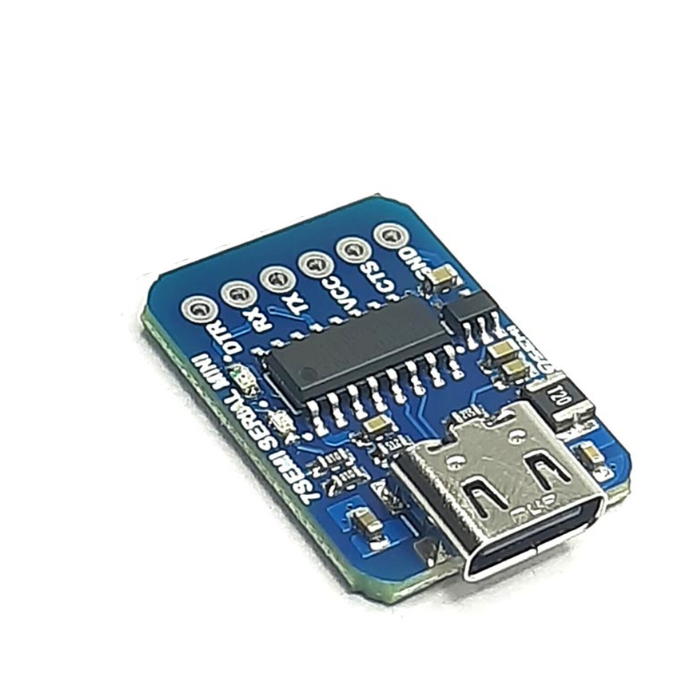

The 7Semi CH340C USB Type-C to TTL Serial Converter Breakout Board by 7semi is a cutting-edge interface tool engineered for seamless device communication.
Equipped with a USB-C connector and powered by the advanced CH340C chip, it offers exceptional reliability and compatibility with a wide range of systems.
Its comprehensive pinout, including DTR, RX, TX, VCC, CTS, and GND, allows for flexible interfacing with GPS modules, microcontrollers, and other TTL-level devices.
Whether you're developing new prototypes or enhancing existing projects, this breakout board ensures smooth integration, efficient data transfer, and maximum productivity—all in a compact and easy-to-use form factor.
LEDs: The board has two LEDs, TX (Blue) and RX (Red), which are properly aligned with their respective pins. This gives a quick and simple way to monitor serial traffic.

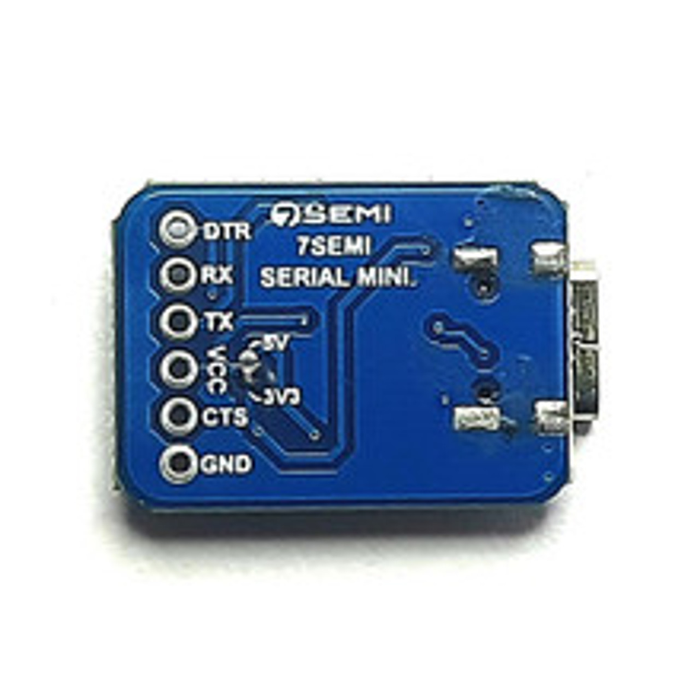

| Pin | Type | Description |
|---|---|---|
| DTR | Output | Data Terminal Ready, active low |
| RX | Input | Serial data receive line |
| TX | Output | Serial data transmit line |
| VCC | Supply Output | Power output: 3.3V (default) or 5V (selectable) |
| CTS | Input | Clear To Send, active low |
| GND | Supply Output | Ground (0V reference) |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
