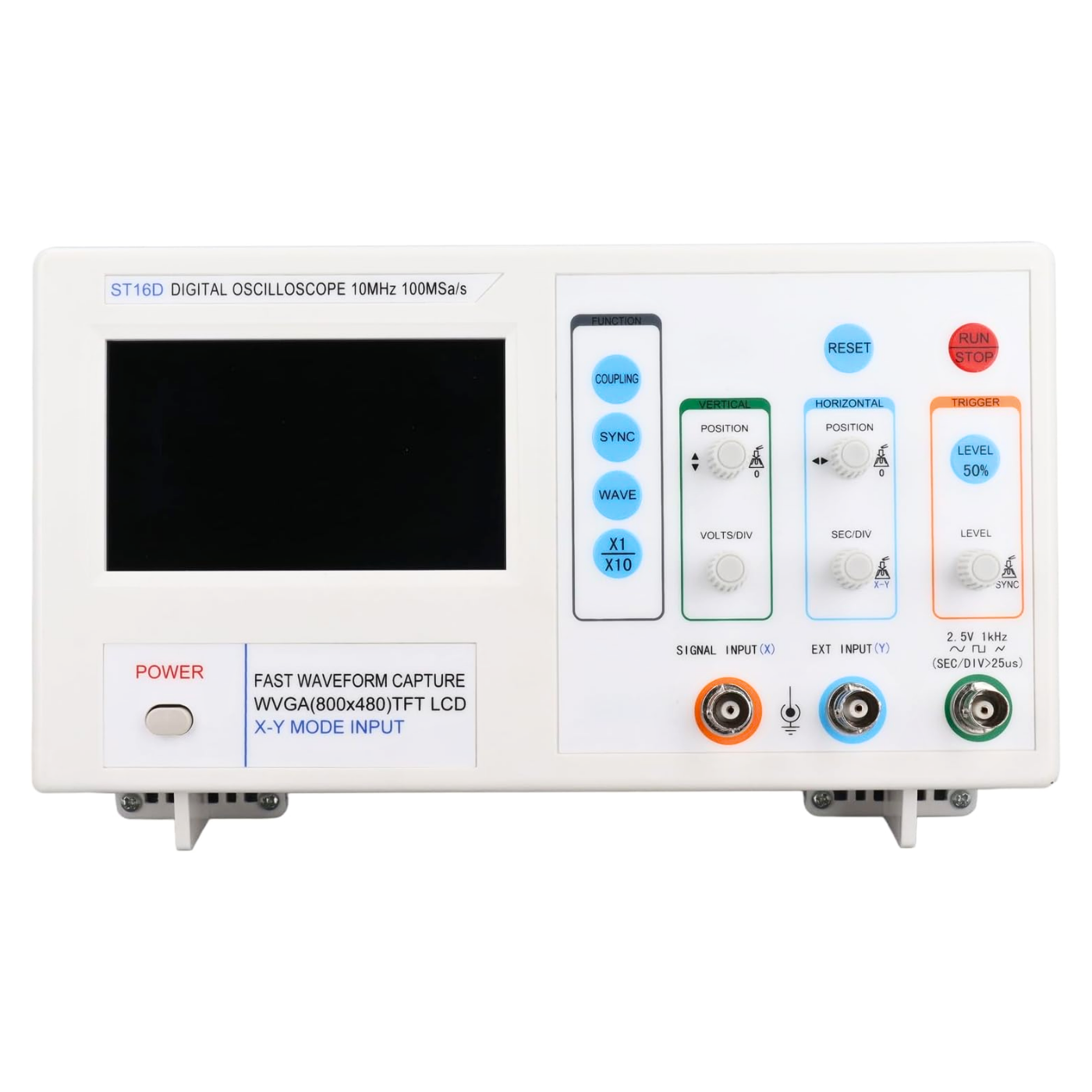

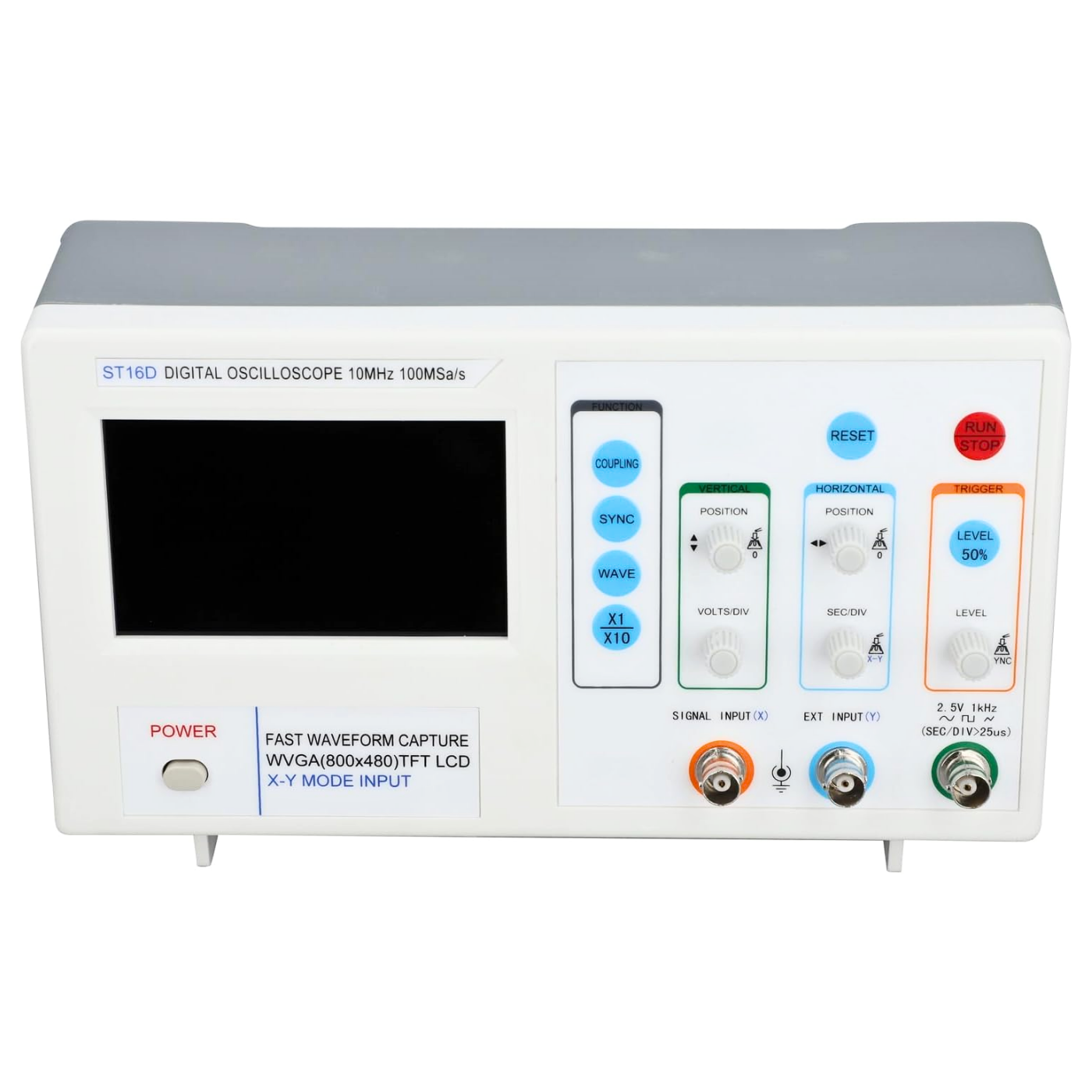

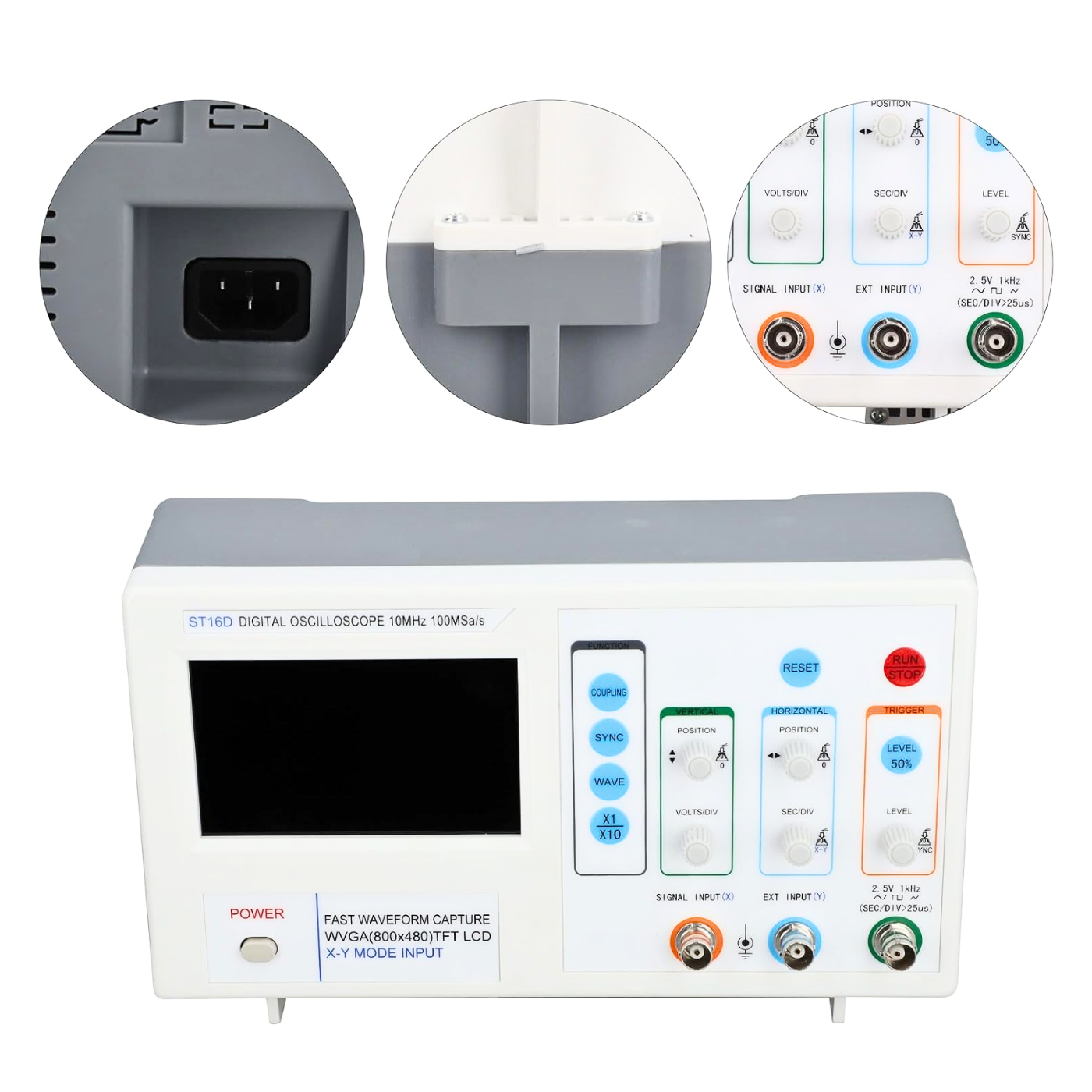

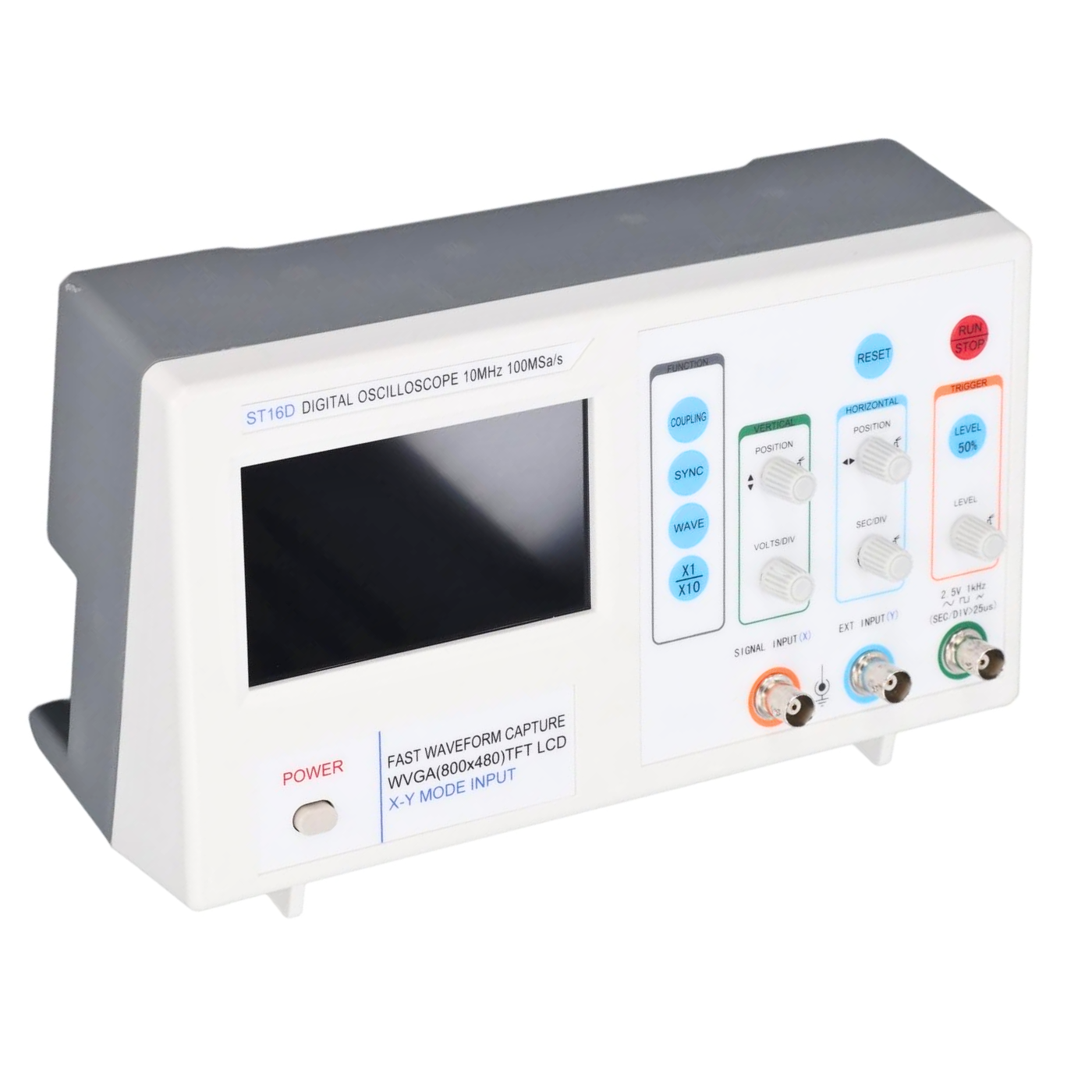

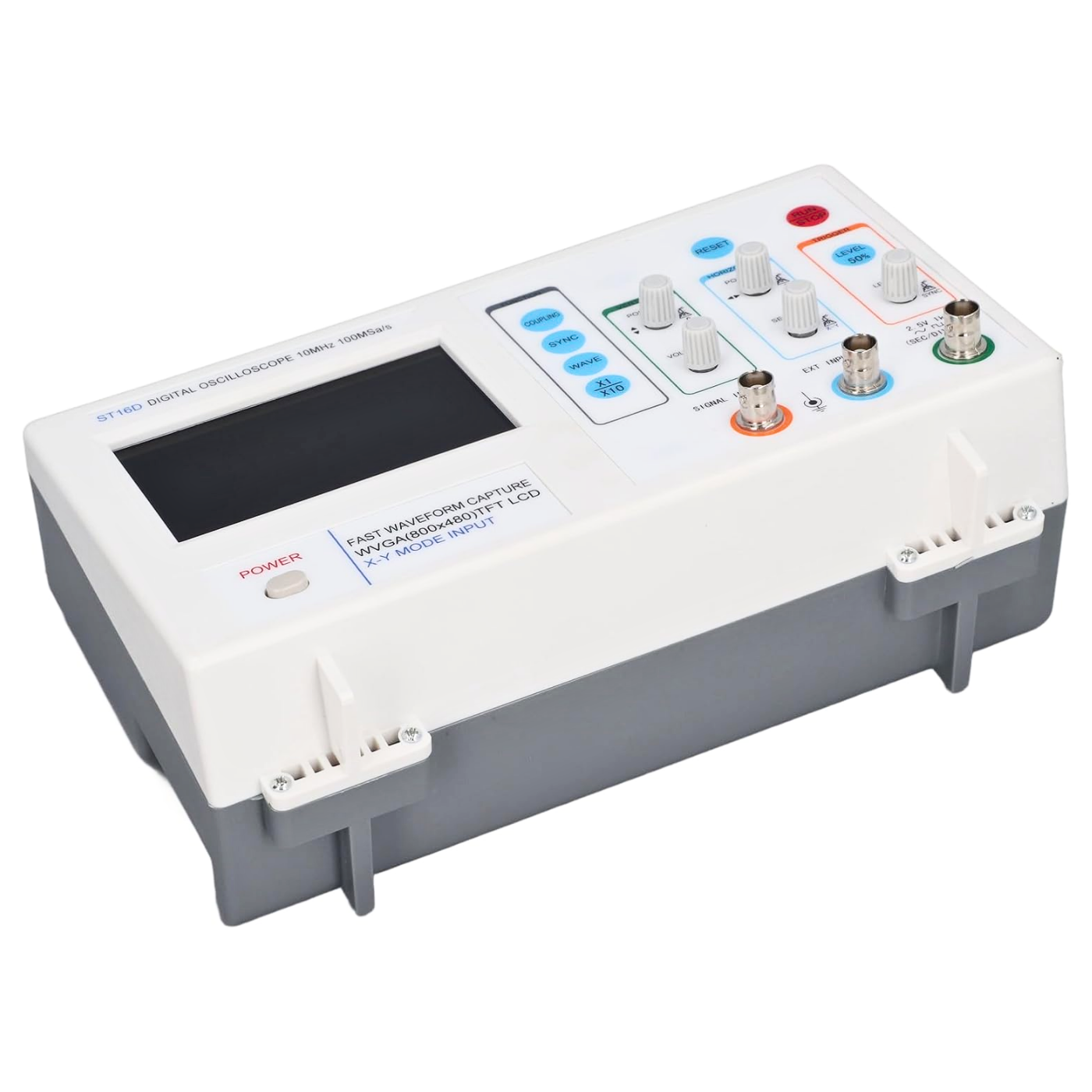

Banetek ST16D 10MHz Digital Oscilloscope with 4.3-Inch Display & Signal Generator
Banetek ST16D 10MHz Digital Oscilloscope with 4.3-Inch Display & Signal Generator
Banetek ST16D 10MHz Digital Oscilloscope with 4.3-Inch Display & Signal Generator
The Banetek ST16D 10MHz Digital Oscilloscope is a compact and practical testing instrument designed for electronics learning, circuit testing, troubleshooting, and DIY projects. Its 4.3-inch display provides a convenient way to observe waveforms and analyze electrical signals, while the built-in signal generator allows users to produce test signals for experiments and circuit verification.
The oscilloscope is well suited for students, hobbyists, makers, technicians, and electronics laboratories where an easy-to-use digital oscilloscope is useful for understanding and diagnosing circuits. With its combination of waveform observation and signal generation, the ST16D can be used for basic electronics experiments, signal testing, circuit debugging, and educational applications.
Features:
- 10 MHz bandwidth for measuring and observing a wide range of electronic signals.
- 4.3-inch display provides clear visibility of waveforms and measurement data.
- Built-in signal generator for producing test signals during circuit experiments.
- Compact design makes it convenient for electronics labs, workshops, and DIY projects.
- Useful for circuit testing, troubleshooting, waveform analysis, and signal measurement.
- Suitable for students, electronics enthusiasts, technicians, and makers.
- Combines oscilloscope and signal-generation functions in a practical, space-saving instrument.

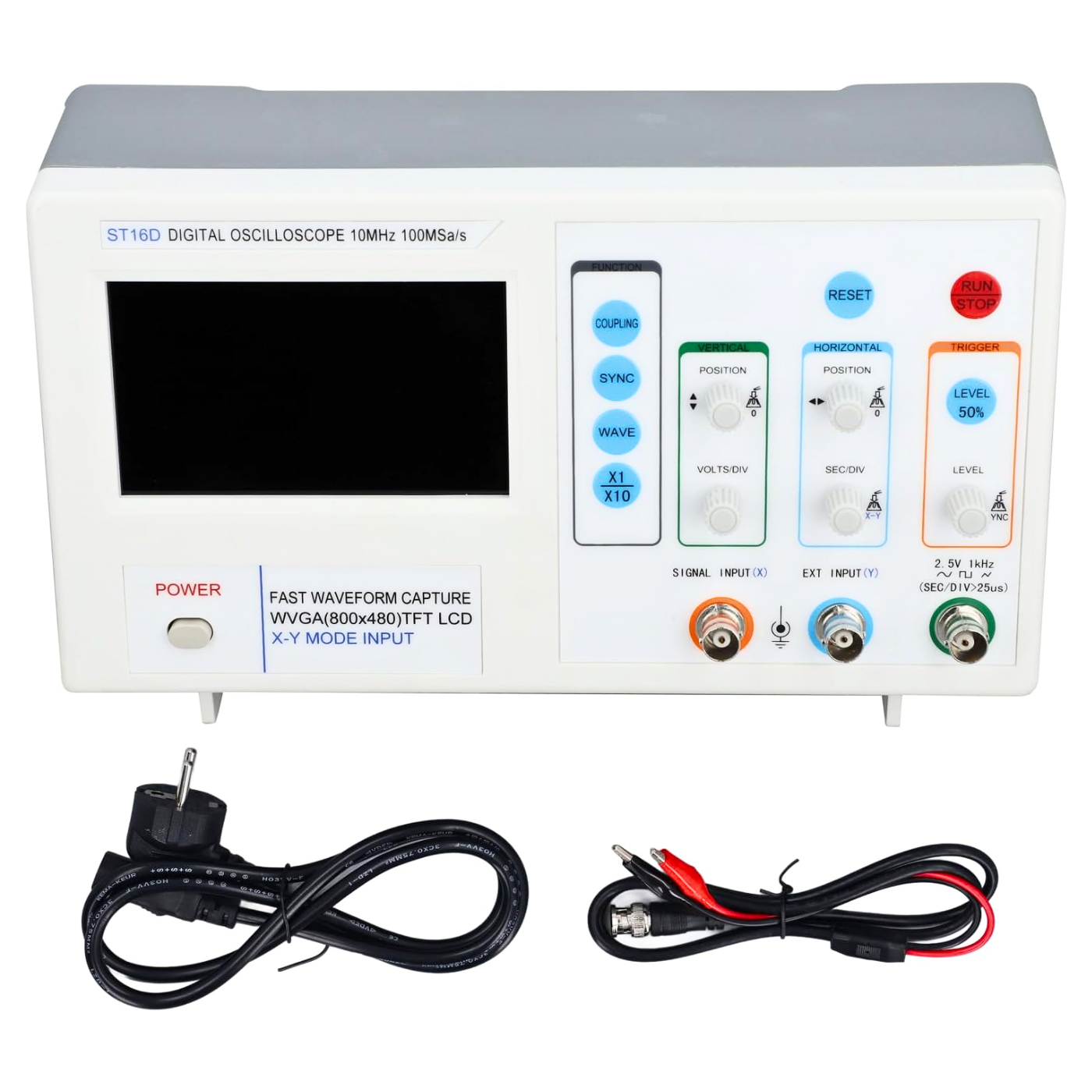

Package Includes:
- 1 x Digital Oscilloscope
- 1 x power cord
- 1 x test cable
- 1 x user manual
Specifications:
| Specification | Details |
|---|---|
| Item Type | Digital Oscilloscope |
| Material | ABS |
| Voltage | 100–240V |
| Bandwidth | DC–10 MHz |
| Rise Time | ≤7.5 ns |
| Time Base | 25 ns/div ~ 25 ms/div, 1–2–2.5 steps |
| Maximum Real-Time Sampling | 100 MS/s |
| Display | 4.3-inch True Color LCD, 65 colors, 800 × 480 pixels |
| Channel | 1 Channel |
| Maximum Storage Depth | 64 KB |
| Time Base Accuracy | ±100 ppm |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ±2%, 20 pF ±5 pF in parallel |
| Maximum Input Voltage | X10: 400V; X1: 40V (DC + AC peak) |
| DC Gain Accuracy | ±3% |
| Vertical Sensitivity | X1: 20 mV/div ~ 20 V/div; X10: 200 mV/div ~ 200 V/div |
| Trigger Type | Front-Firing |
| Trigger Mode | Auto, Normal |
| Automatic Measurement | Period, Frequency |
