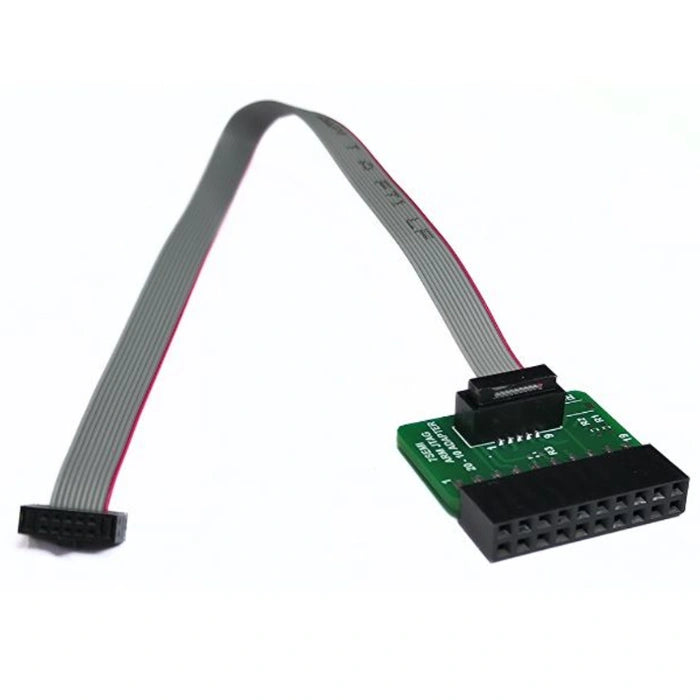

ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
The 7Semi ARM-JTAG-20-10 Plug-in Adapter simplifies ARM microcontroller programming and debugging by converting the standard 20-pin JTAG (0.1") interface to a compact 10-pin (0.05") layout. Ideal for development boards with smaller connectors, this adapter ensures compatibility with a wide range of JTAG and SWD programmers/debuggers including ARM-USB-OCD, ARM-USB-TINY, and Segger JLINK.
Following the official ARM JTAG standard pinout, this adapter guarantees reliable signal integrity and consistent operation across various platforms. With a compact size of 25x25 mm and a 20 cm ribbon cable, it offers flexibility for use in tight spaces or densely packed boards. Whether you're a developer working on embedded systems or a hobbyist working with constrained hardware, this adapter delivers convenience and compatibility in a robust form factor.
Features:
-
Interface Conversion: Enables smooth adaptation from larger 20-pin headers to smaller 10-pin headers.
-
Wide Compatibility: Works with a variety of ARM JTAG/SWD debuggers and programmers.
-
Official Standard Layout: Designed following the ARM standard JTAG pinout.
-
Compact and Durable: Small 25mm x 25mm footprint for ease of use in tight spaces.
- Flexible Connectivity: Comes with a 20 cm, 0.05" pitch ribbon cable for versatile installation.
