Arduino Nano Every without Headers

Arduino Nano Every without Headers

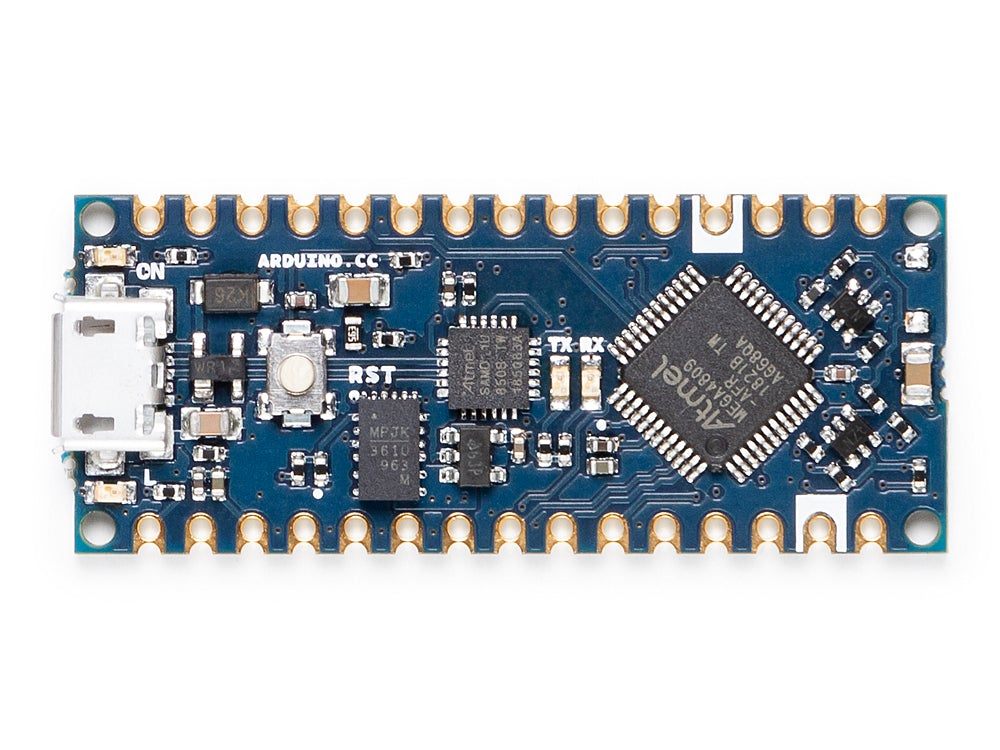

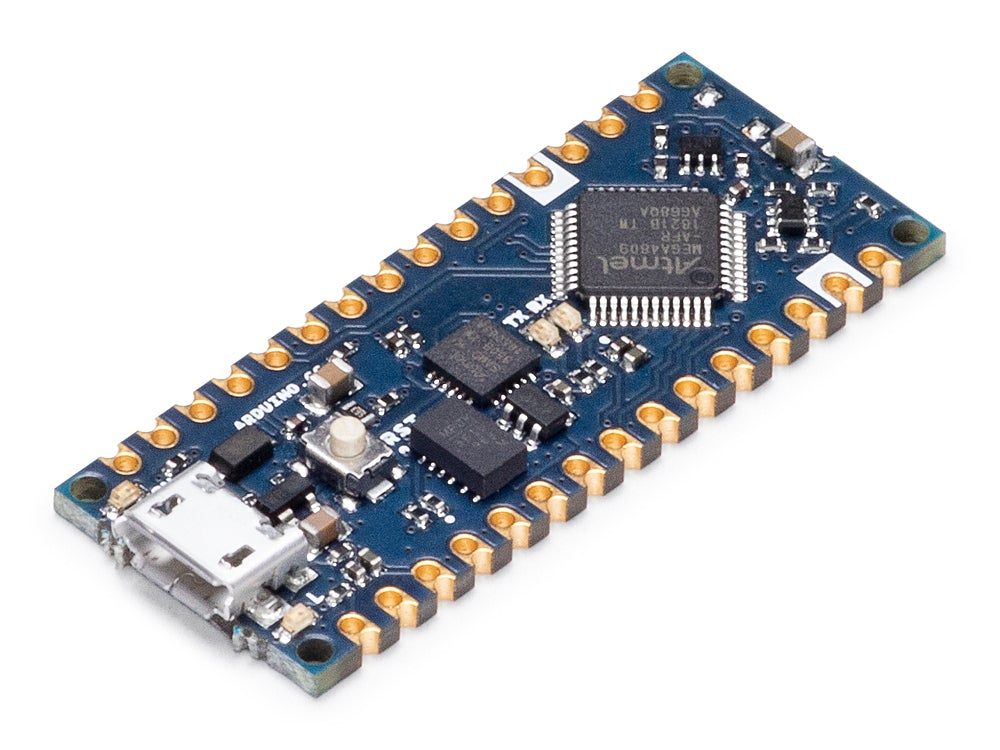

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm. The original arduino nano is the preferred arduino board for many projects requiring a small and easy-to-use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger project.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

Pin Diagram:

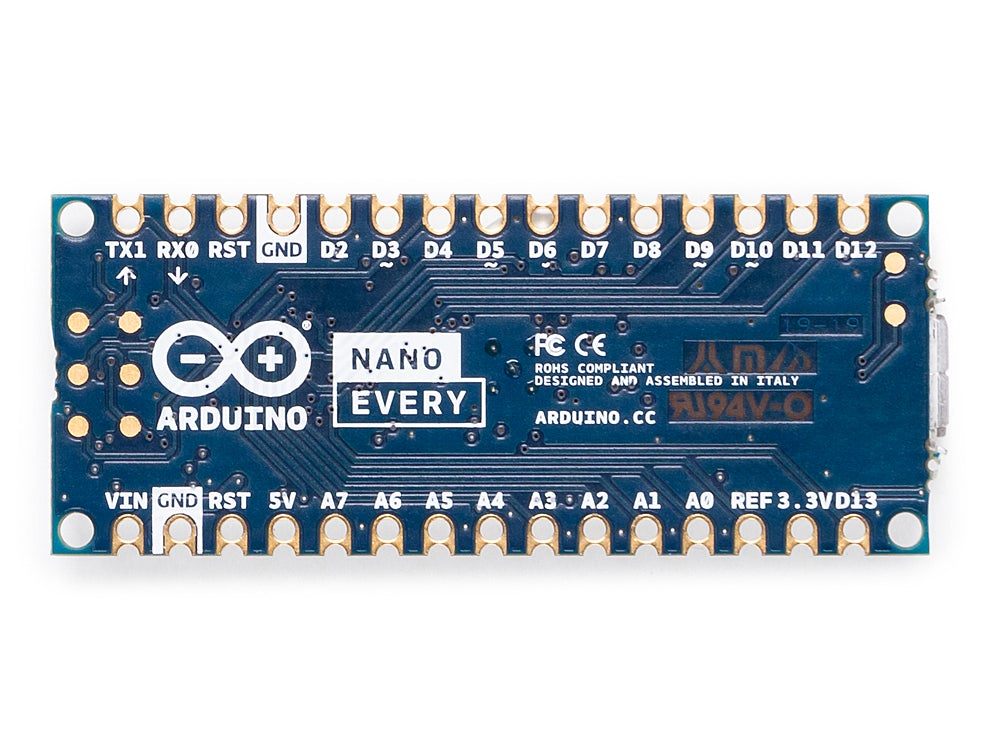

Pin Diagram of Arduino Nano Every without Headers

If you used Arduino Nano in your projects in the past, the Nano Every is a pin-equivalent substitute. Your code will still work, and you will NOT need to re-wire those motors you planned in your original design. The main differences are a better processor and a micro-USB connector.

The board comes in two options: Arduino Nano Every with Headers or Arduino Nano Every without Headers, allowing you to embed the Nano Every inside any kind of invention, including wearables. The board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design, minimizing the height of your whole prototype.

Application:

• Gamepad

• Robot arm

• Wave generator

• Telescope tracking

• Temperature sensor

• LCD custom shapes

Package Includes:

• 1 x Arduino Nano Every without Headers

Specifications:

ADDITIONAL RESOURCES

• Eagles Files
• Fritzing
• Arduino Nano Every - Schematics
• Arduino Nano Every - Datasheet
• Arduino Nano Every - Get Started
