Anycubic Photon P1 Max Resin 3D Printer | 12K Large-Format 3D Printer
Anycubic Photon P1 Max Resin 3D Printer | 12K Large-Format 3D Printer
Anycubic Photon P1 Max Resin 3D Printer | 12K Large-Format 3D Printer

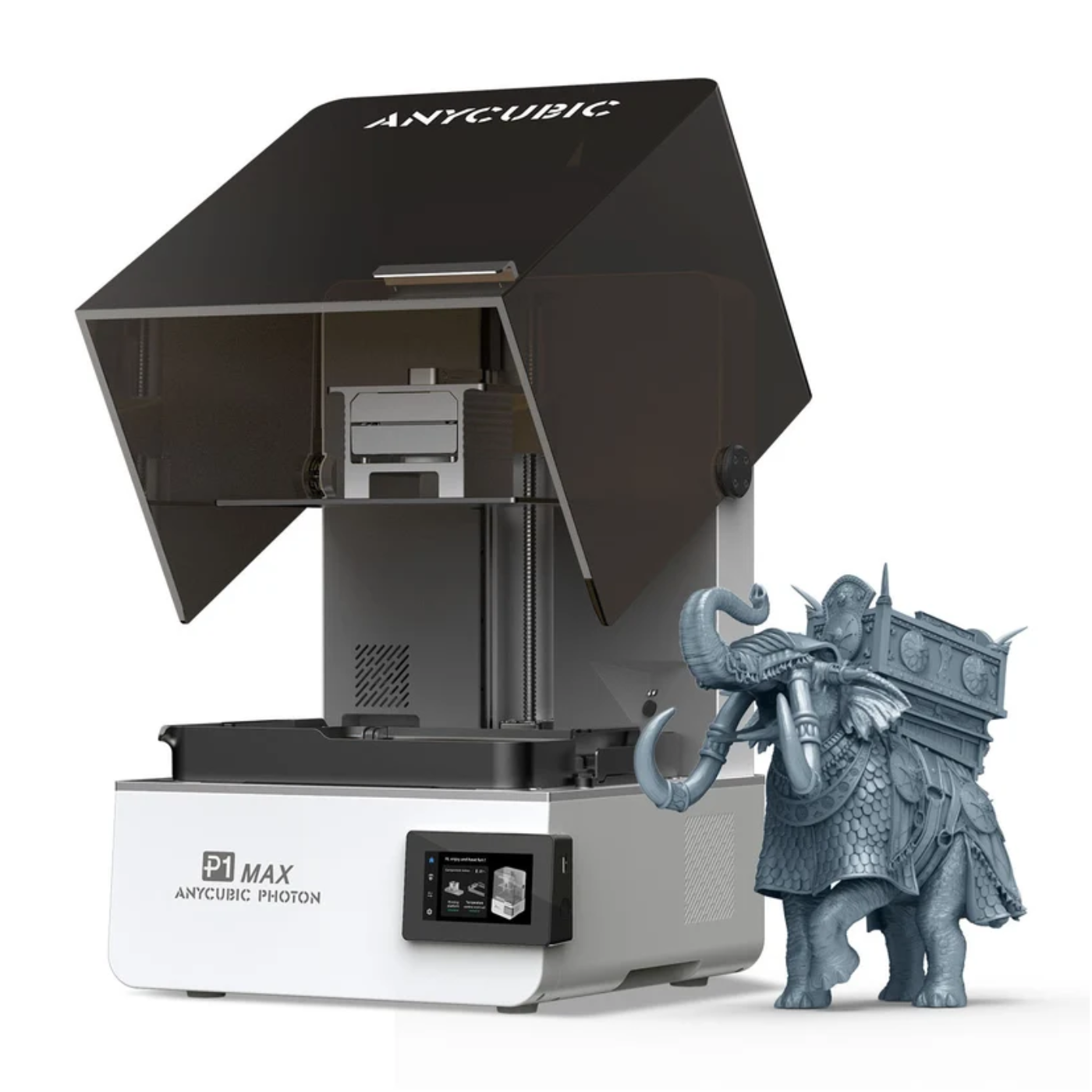

The Anycubic Photon P1 Max is a large-format resin 3D printer designed for high-detail printing, large models and batch production. It offers a 285.5 × 214 × 300mm build volume, providing 18.3L of printing space for producing large models or multiple parts in a single print.
Its 14-inch 12K monochrome LCD delivers 11,520 × 8,640 resolution with 24.8 × 24.8μm XY pixel size, helping produce smooth surfaces and fine model details. The COB + Fresnel + Mask light source provides light intensity of ≥4000μW/cm² and 92% light uniformity.
The printer features Wave Release Technology, a precision-ground steel build platform, dual linear guide rails with ball lead screws and Leveling-Free 3.0 with leveling feedback and self-check. Its 1.9L dynamic temperature-controlled resin vat can maintain resin temperature up to 35°C, supporting stable printing with high-viscosity resins up to 8000cps.
Intelligent Printing Assistant 3.0 provides AI-based inspections for build plate installation, bottom-layer separation, resin level and residue. Wi-Fi and Ethernet connectivity, a built-in camera and Anycubic App support enable remote printing and monitoring.
LightTurbo 4.0
LightTurbo 4.0 delivers more precise and uniform light exposure for consistent resin curing. It combines an aspherical Fresnel lens with ≤3° collimation accuracy, full-screen rolling calibration with >92% illumination uniformity, and an 8mm copper cooling system for stable light output and long-lasting
Features
- Large 18.3L Build Volume: Provides a 285.5 × 214 × 300mm printing volume for large models and batch production.
- 14-Inch 12K LCD: The 11,520 × 8,640 monochrome LCD delivers detailed resin prints with fine surface definition.
- 24.8μm XY Resolution: 24.8 × 24.8μm square pixels help produce smooth edges and detailed model features.
- 92% Light Uniformity: COB + Fresnel + Mask light technology provides consistent exposure across the printing area.

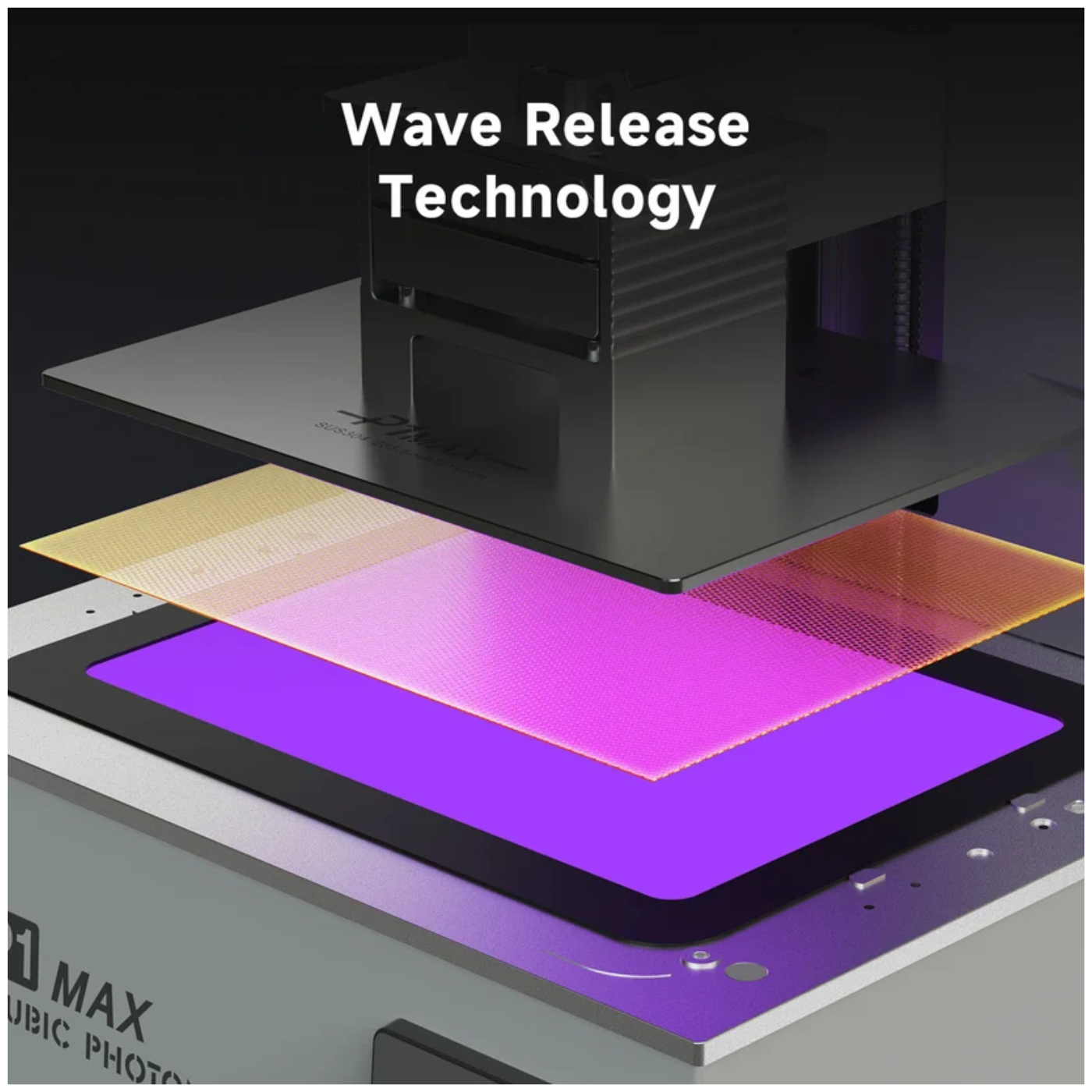

- Wave Release Technology: Wave Release Film is designed to support smoother model release during resin printing.

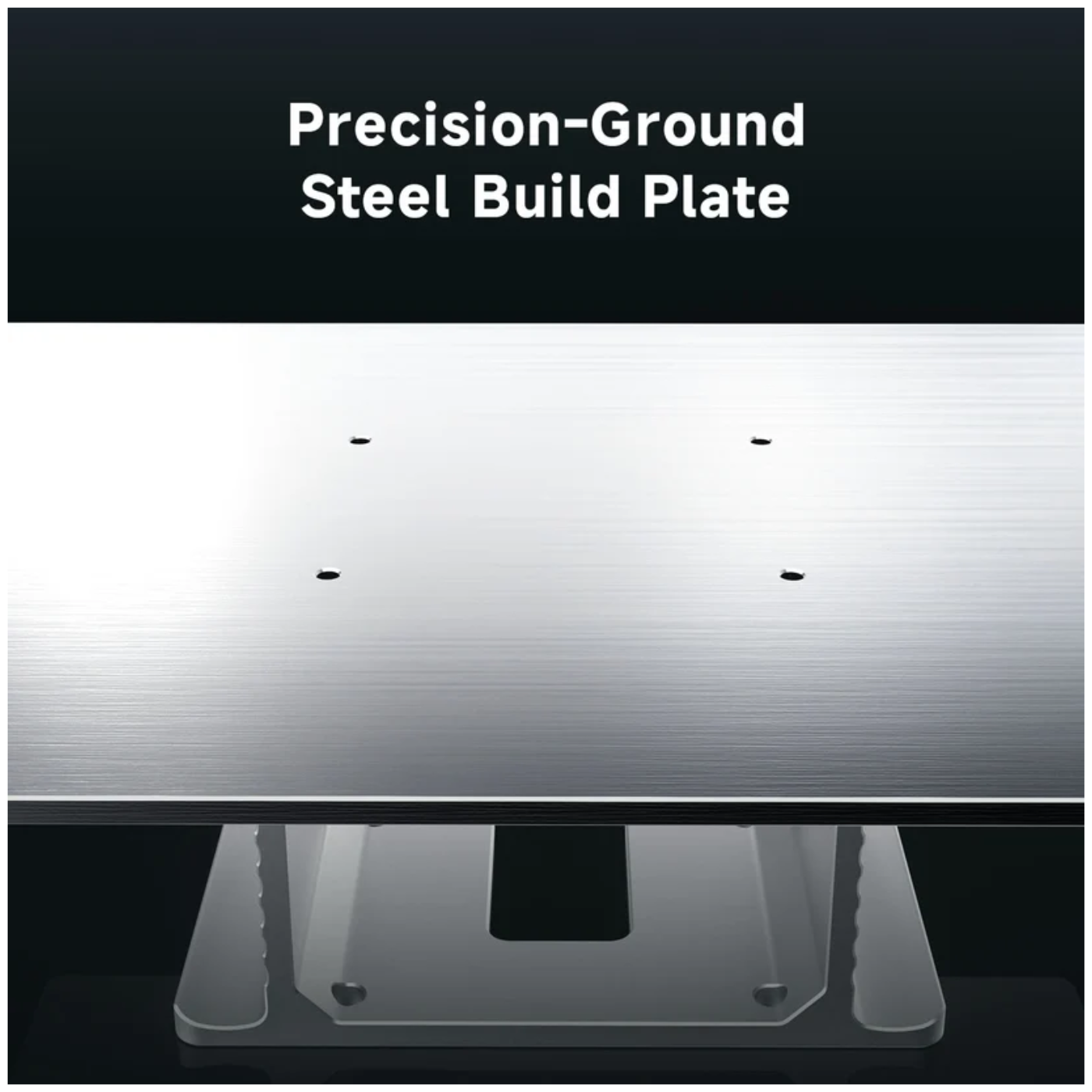

- Precision-Ground Steel Platform: Precision-ground steel build platform provides a stable surface for resin printing.
Package Includes:
- 1 x Anycubic Photon P1 Max Resin 3D Printer
Specifications
| Category | Specification | Details |
|---|---|---|
| Core Printing Performance | Printing Volume | 285.5 × 214 × 300 mm³ |
| Printing Speed | 15–25 mm/h (0.05 mm layer, Std Resin) | |
| Layer Height Range | 0.02–0.15 mm | |
| X/Y Axis Resolution | 24.8 × 24.8 μm | |
| Light Source | COB + Fresnel + Mask | |
| Light Intensity | ≥4000 μW/cm² | |
| Material Compatibility | All Anycubic Resins | |
| System & Mechanical Design | Build Platform | Precision-ground Steel Platform |
| Z-axis | Dual linear guide rails + Ball lead screws | |
| Release Film | NFEP | |
| Resin Vat | 1.9 L | |
| Machine Leveling | Leveling-Free 3.0 + Leveling Feedback + Leveling Self-Check | |
| Power Loss Resume | Supported | |
| Power Supply | 296 W | |
| Protection Film | Wave Release Film | |
| Resin Auto-fill Unit | Not Supported | |
| Dynamic Temperature Control Resin Vat | Supported | |
| Slicing Software | Photon Workshop (+ Chitubox/Lychee/Tango) | |
| Experience & Features | Hinged Cover | Smooth Hinge (>45° stepless) |
| Operating Screen | 4.5" Resistive Touchscreen | |
| Air Purifier | Optional AirPure 2.0 | |
| LCD Screen | 14" Monochrome LCD (12K) | |
| Anycubic App | Supported | |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / PT / KR | |
| Machine Weight | 23.1 kg | |
| Package Weight | 28.8 kg | |
| Product Dimensions | 430 × 414 × 625 mm³ | |
| Packaging Dimensions | 745 × 510 × 528 mm³ |
