Anycubic Photon P1 3D Printer
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

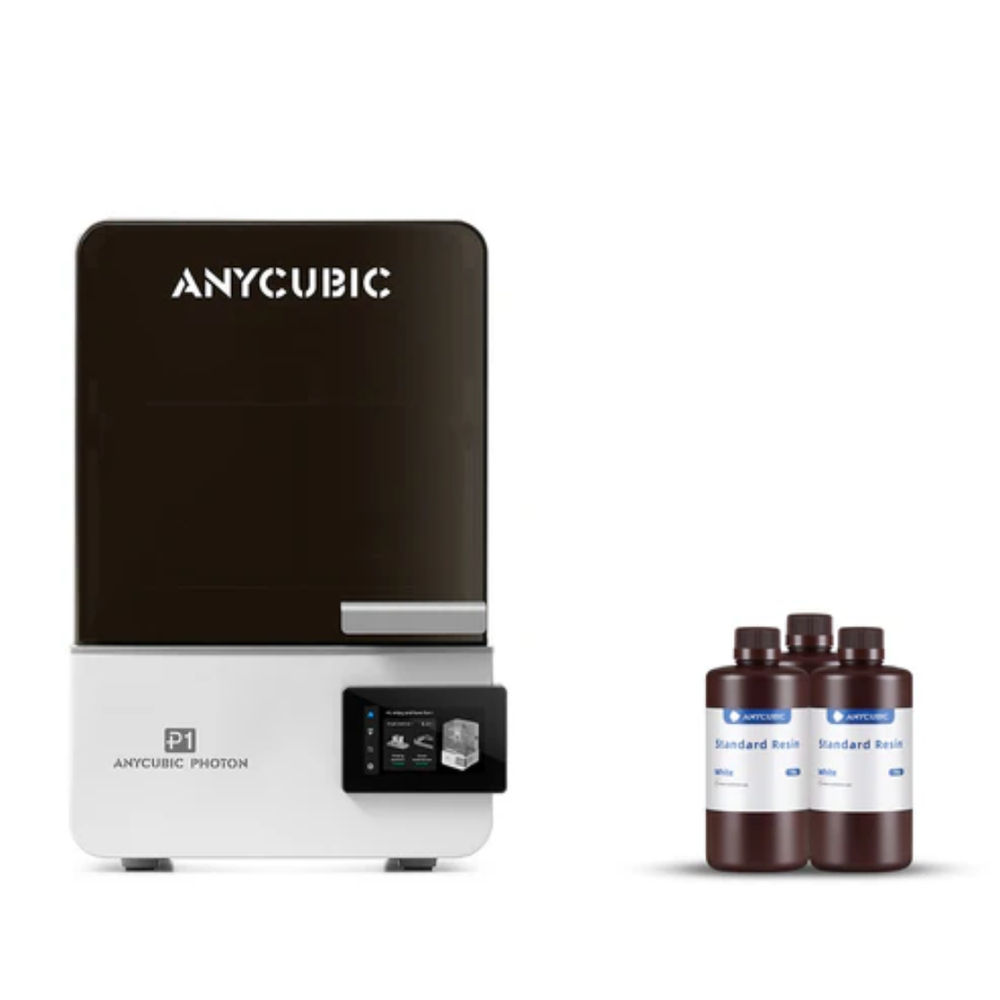

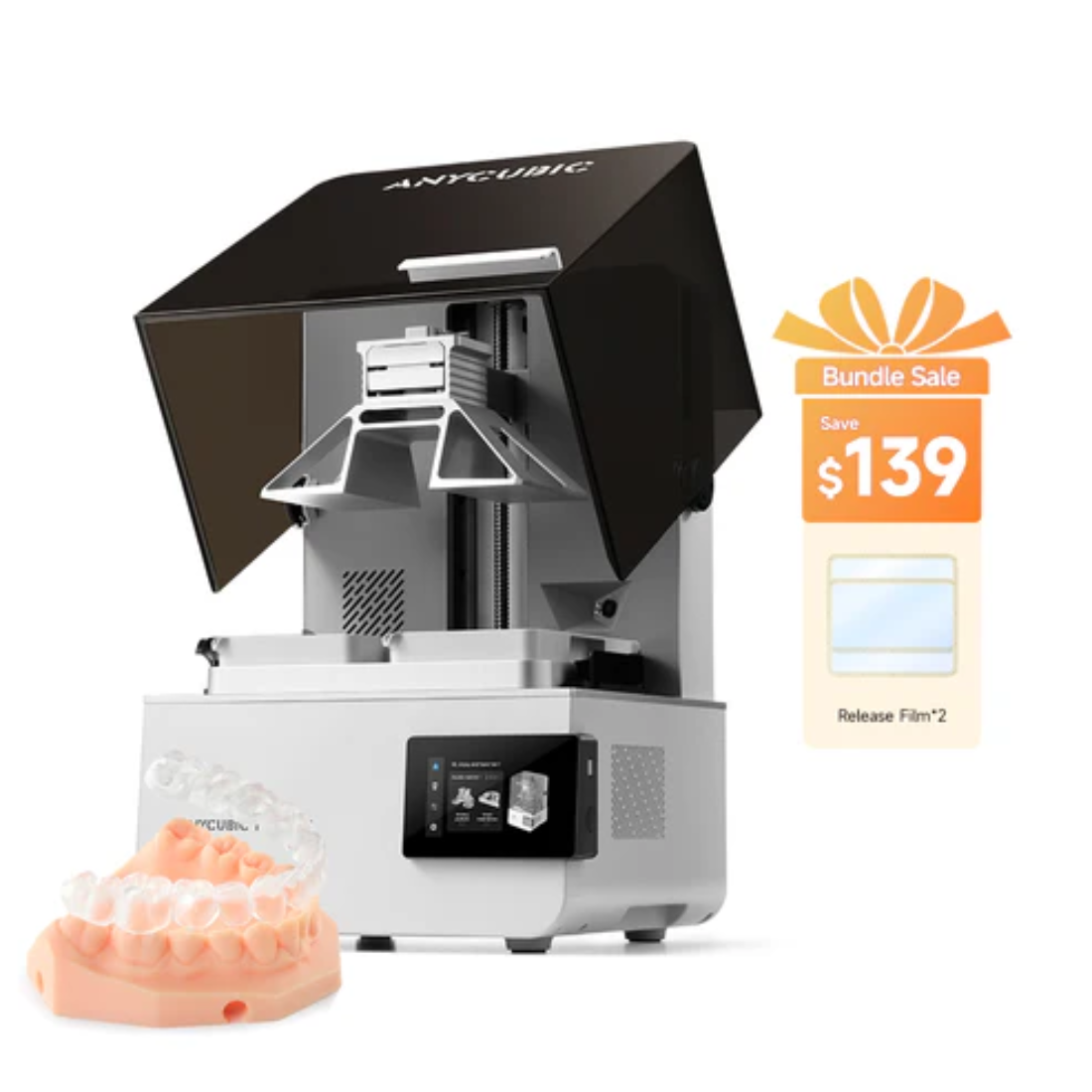

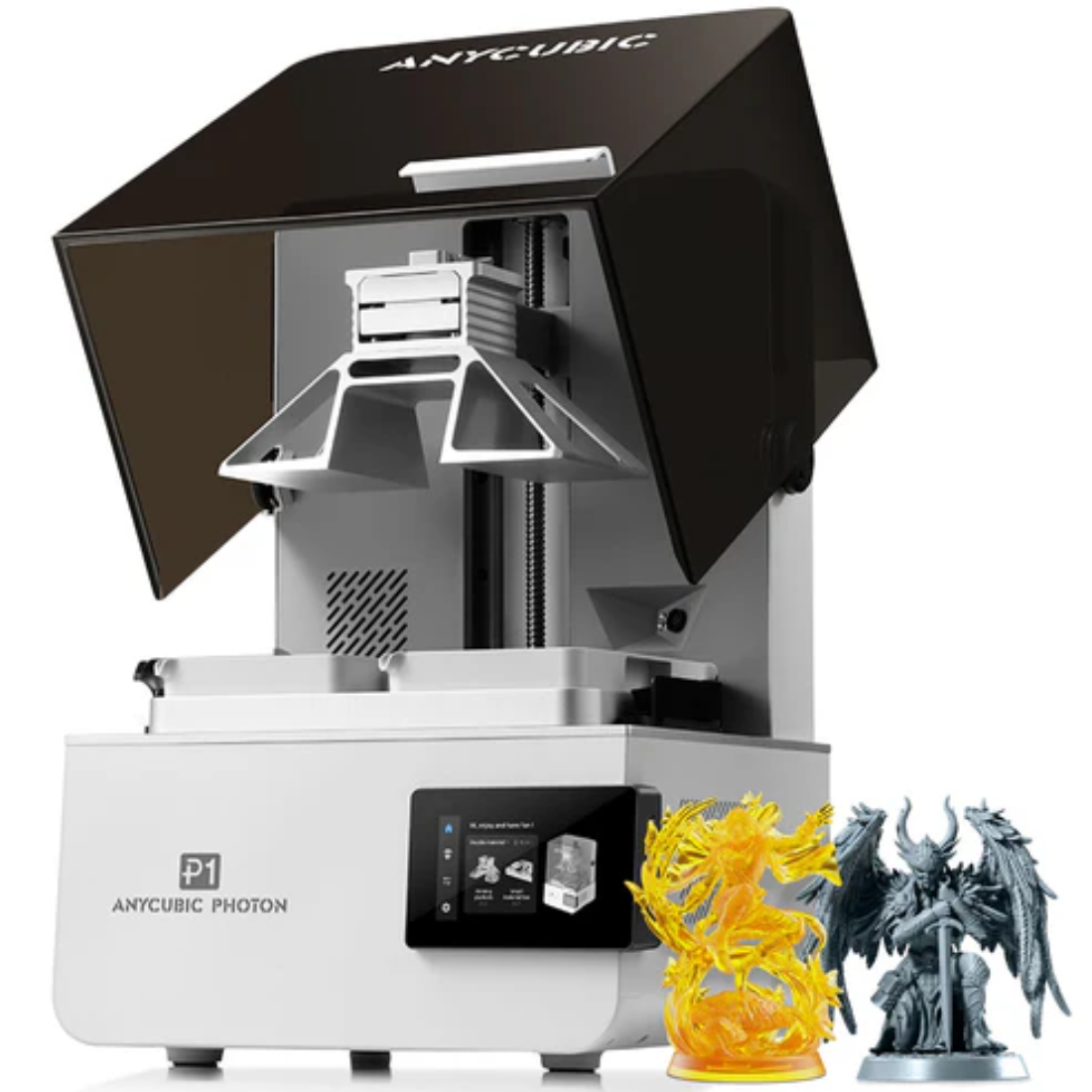

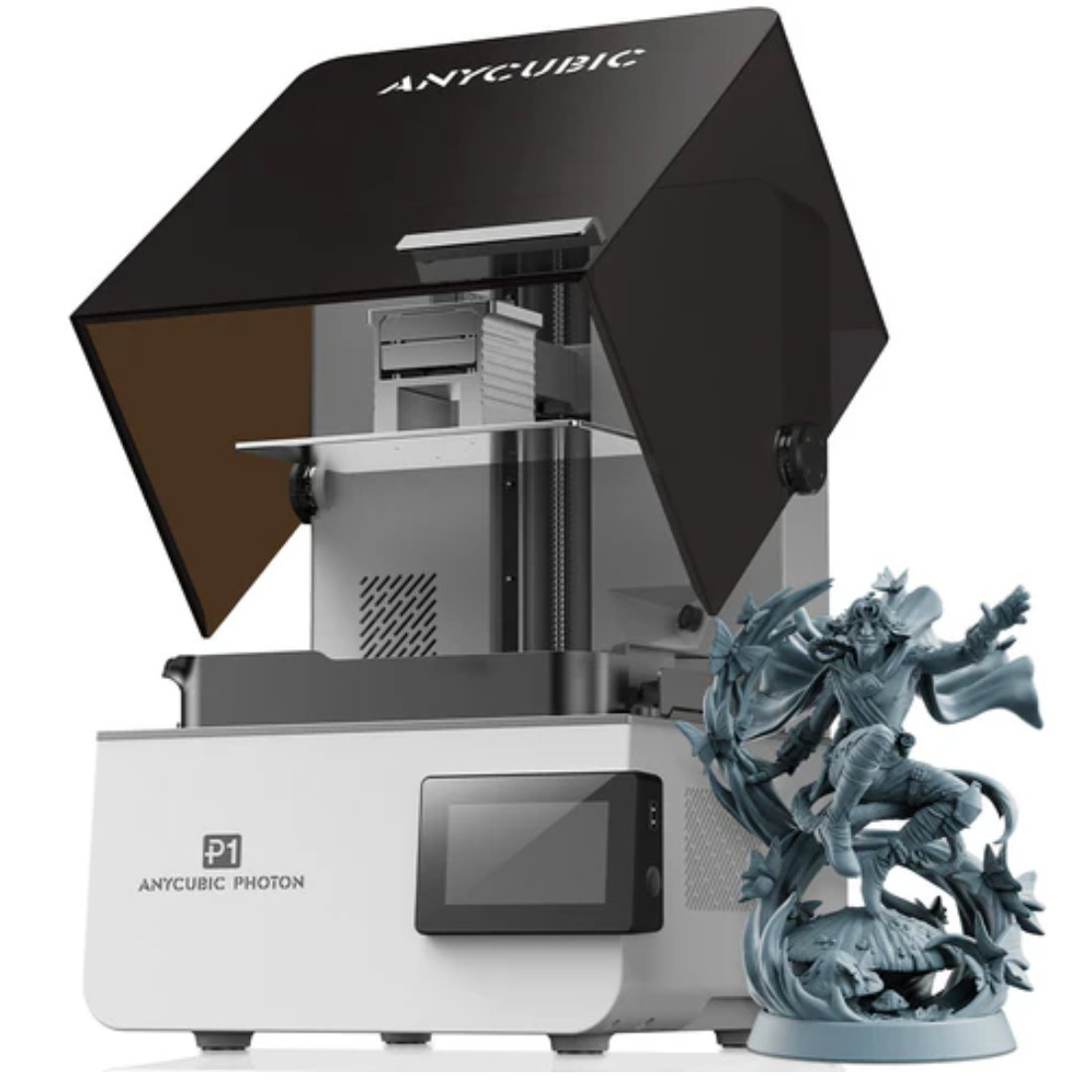

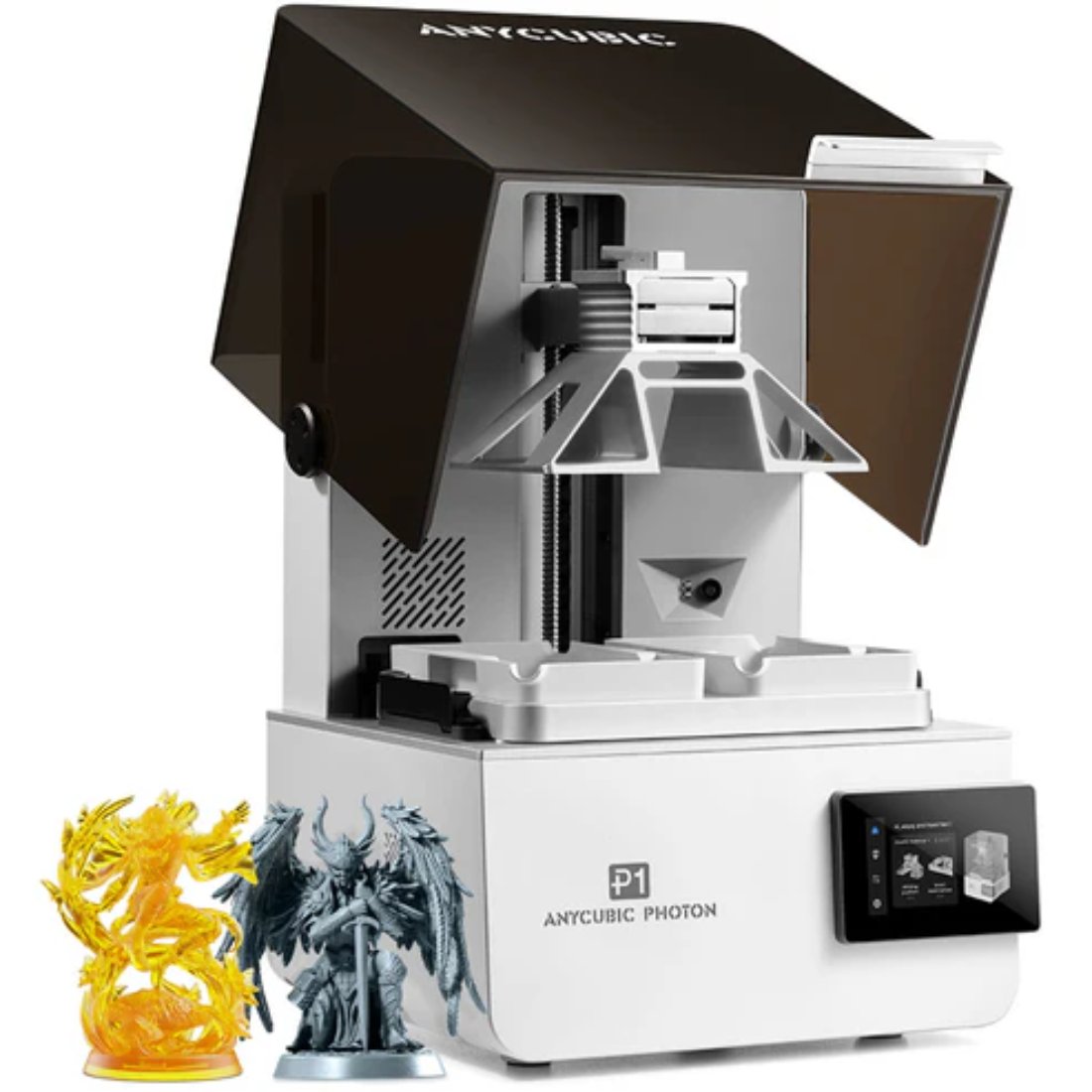

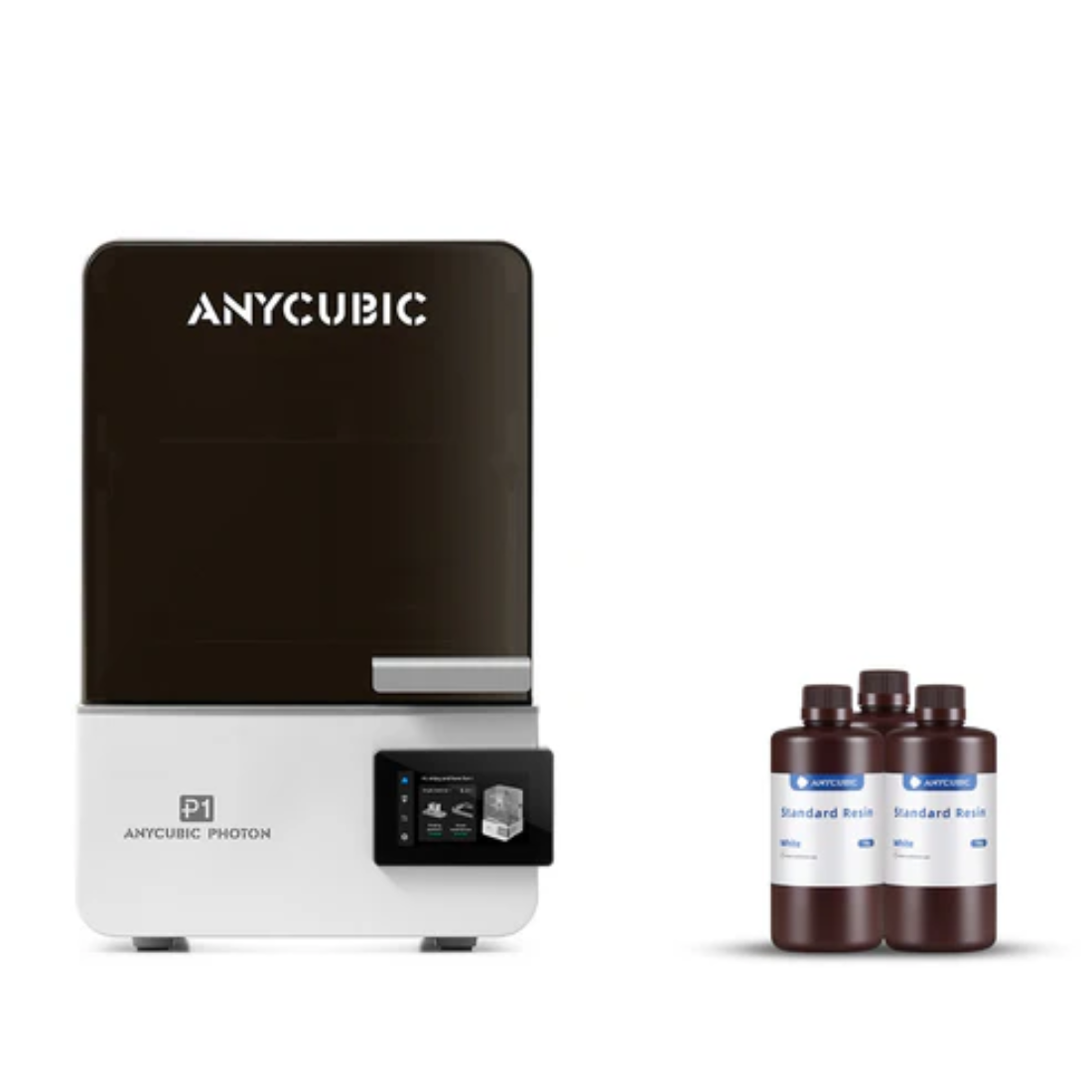

The Anycubic Photon P1 is an advanced resin 3D printer engineered to deliver near-industrial precision with user-friendly operation. Featuring a high-resolution optical system with over 92% light uniformity, it ensures sharp details, smooth surfaces, and consistent curing across every layer. Its robust mechanical design, including a precision-ground steel build plate and dual-rail Z-axis system, provides exceptional stability and accuracy, making it ideal for professional-grade applications such as prototyping, dental modeling, and intricate design work.

Designed for versatility and performance, the Photon P1 supports a wide range of resins, including high-viscosity industrial materials up to 8000 cps. It also introduces advanced technologies such as Wave Release for reduced peel force and a temperature-controlled resin vat for consistent printing even in challenging conditions. With optional dual-material and dual-color printing capability, it enables users to create complex models in a single print, significantly improving workflow efficiency and creative possibilities.



The precision-ground steel build plate is engineered to provide a perfectly flat and stable printing surface, ensuring excellent first-layer adhesion and consistent print quality. Its finely machined surface enhances grip for resin prints, reducing the chances of model detachment during the printing process. This high level of flatness and rigidity improves overall accuracy, especially for detailed and high-resolution prints. Built for durability, the steel construction withstands repeated use and maintains its precision over time, making it ideal for professional and industrial applications.

Engineered to handle ultra-viscous resins up to 8000 cps, this feature allows the printer to work efficiently with thicker, high-performance materials that are typically challenging for standard resin printers. It ensures smooth and consistent resin flow, preventing issues like uneven curing or print defects. This capability expands material compatibility, enabling the use of specialized industrial resins for stronger, more durable, and functional prints. As a result, users can achieve higher-quality outputs with improved mechanical properties, making it ideal for advanced engineering, prototyping, and professional applications.
| Parameter | Specification |
|---|---|
| Printing Technology | MSLA (Resin 3D Printing) |
| Build Volume | 223 × 126 × 230 mm (6.5L) |
| Layer Height | 0.02 – 0.15 mm |
| X/Y Resolution | 16.8 × 24.8 μm |
| Printing Speed | 25–35 mm/h |
| Light Source | COB + Fresnel Lens (LightTurbo 4.0) |
| Light Uniformity | >92% |
| Material Compatibility | All standard & industrial resins (up to 8000 cps) |
| Z-Axis | Dual Rail + Ball Screw |
| Leveling | Auto-Leveling with Feedback |
| Resin Vat | ≤ 1L Capacity, Temperature Controlled |
| Software | Photon Workshop, Chitubox, Lychee |
| Weight | 13.6kg |
| Power Consumption | 215W |
| Product Dimensions | 366*338*539 mm |
It is a resin (MSLA) 3D printer designed for high precision parts with an easier workflow.
Product designers, dental labs and makers who need fine detail beyond FDM printers.
Standard 405nm resins, plus engineering resins listed by Anycubic.
Yes, resin prints need washing in IPA and UV curing. The Anycubic Wash and Cure 3 pairs well.
| Printer Type | Parts | Warranty Period |
|---|---|---|
| FDM | 3D Printer | 12 Months |
| Main Board | 6 Months | |
| Display | 12 Months | |
| Power Supply | 12 Months | |
| Motor | 12 Months | |
| Extruder Kit | 3 Months | |
| Hot End | 3 Months | |
| Glass | No Warranty | |
| Any Other Except These | No Warranty | |
| LCD/Resin | 3D Printer | 12 Months |
| Power Supply | 12 Months | |
| Z-Axis Screw Motor | 12 Months | |
| Touch Screen | 3 Months | |
| UV Lamp | 6 Months | |
| Print Screen | 3 Months | |
| FEP Foil | No Warranty | |
| Any Other Except These | No Warranty |
This warranty does not cover:
To the fullest extent permitted by law, our liability is limited to the cost of repairing or replacing the defective product. We are not liable for incidental, indirect, or consequential damages, including but not limited to loss of data, downtime, or lost business opportunities.
Supplier Warranty: This item is covered by a supplier warranty of 1 year from the date of delivery against manufacturing defects only. In case of manufacturing defects or issues, the part will be replaced after confirmation by our technical team. Refunds or replacement of the entire product will not be provided.
