Anycubic Photon Mono 4 Resin 3D Printer
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

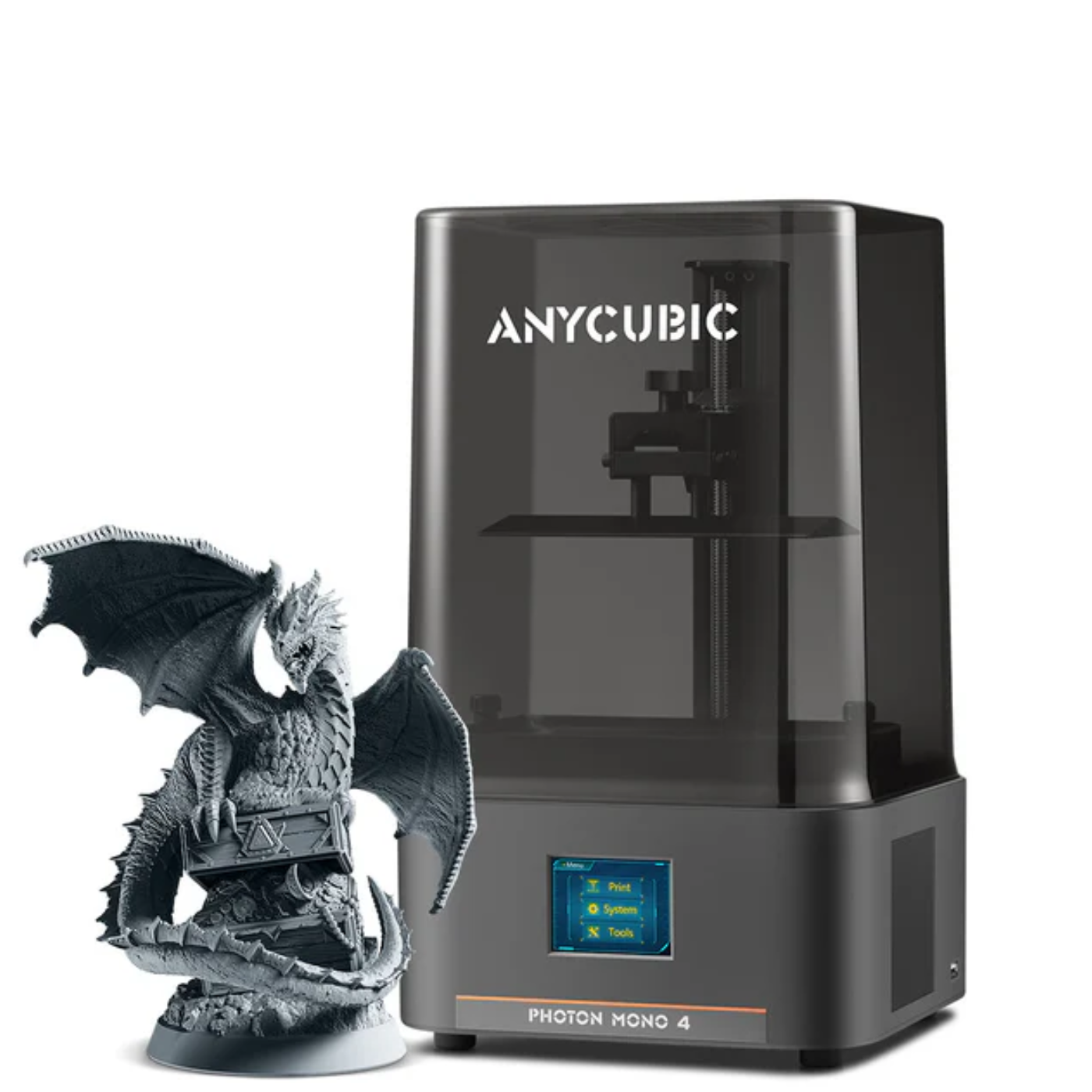

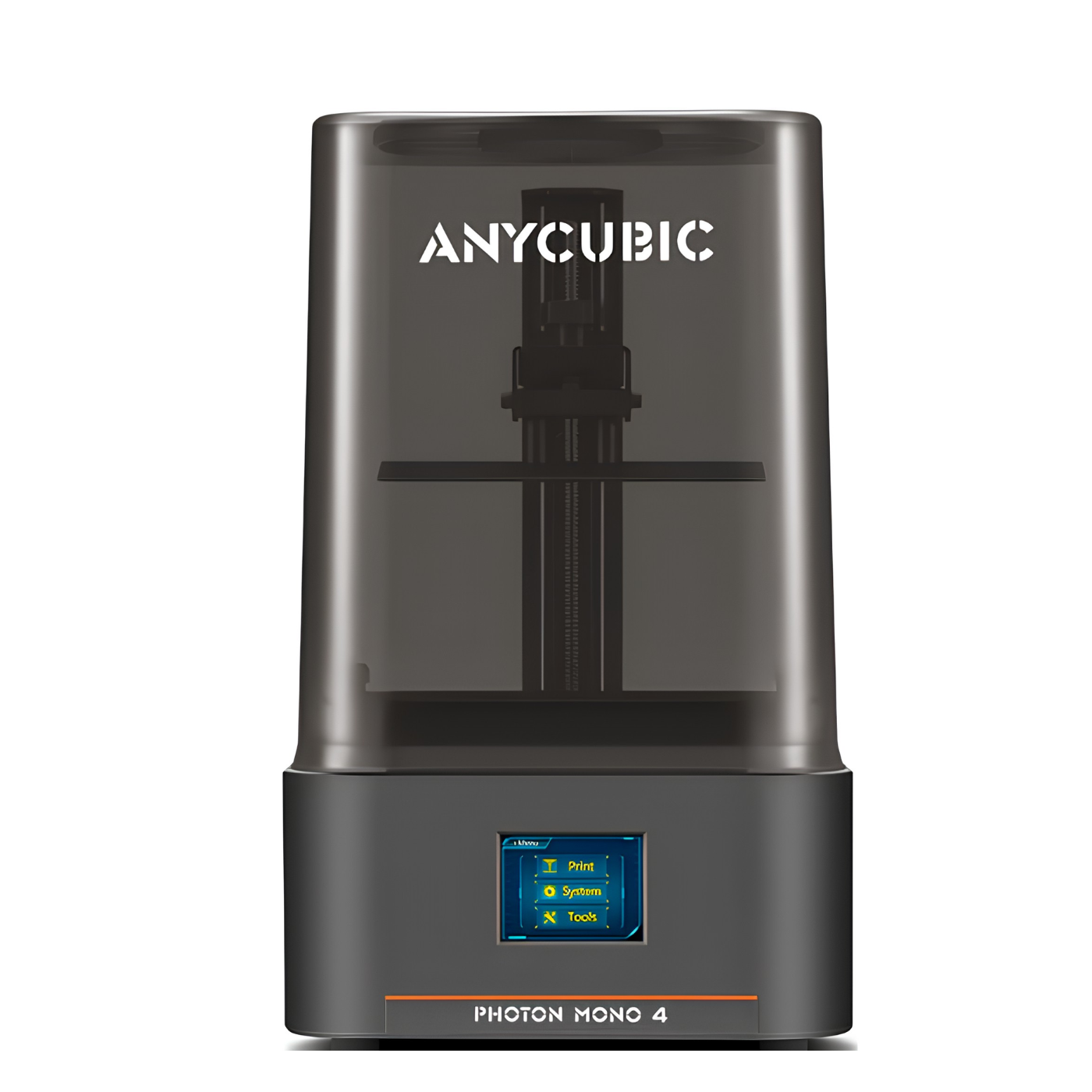

The Anycubic Photon Mono 4 is a resin 3D printer designed to deliver high-detail prints with an accessible and user-friendly workflow. Equipped with a 7-inch 10K monochrome LCD and an X/Y resolution of 17 × 17 μm, it produces fine features and sharp details suitable for miniatures, prototypes, jewelry, and precision models. The printer offers a build volume of 153.4 × 87 × 165 mm, providing ample space for a variety of creative and engineering applications.
Powered by Anycubic’s upgraded LightTurbo parallel matrix light source, the Photon Mono 4 supports fast and consistent curing across the build area. It can achieve printing speeds of up to 70 mm/h when used with compatible high-speed resins while maintaining reliable print quality. The laser-engraved build platform and four-point manual leveling system contribute to secure model adhesion and straightforward calibration.
The printer supports multiple resin types, including high-speed, water-washable, standard, ABS-like, and plant-based resins. Additional features such as power-loss recovery, a replaceable anti-scratch protective film, USB file transfer, and compatibility with an optional activated carbon air purifier make it a practical solution for hobbyists, makers, and professionals seeking dependable resin printing performance.

Details define the difference when creating high-quality resin prints, and this printer is engineered to capture fine textures, sharp edges, and intricate geometries with impressive precision. Its advanced imaging capabilities help reproduce even the smallest design elements accurately, making it ideal for miniatures, jewelry prototypes, dental models, collectibles, and other detail-oriented applications where precision is essential.



The enhanced Platform 2.0 design offers improved print adhesion and greater structural stability during the printing process. By providing a more reliable surface for resin models to build upon, it helps reduce the risk of print failures and supports easier model removal after completion. The upgraded platform contributes to a smoother workflow and more consistent printing performance across a variety of resin applications.

An integrated activated carbon air purifier helps reduce resin odors by filtering airborne compounds generated during printing. This contributes to a cleaner and more comfortable working environment, particularly in enclosed indoor spaces such as home workshops, studios, or offices. By improving air quality around the printer, it enhances the overall user experience while allowing longer printing sessions with greater convenience.
| Specification | Details |
|---|---|
| Product Name | Anycubic Photon Mono 4 |
| Display | 7-inch Monochrome LCD, 10K Resolution |
| Build Volume | 153.4 × 87 × 165 mm (2.2 L) |
| X/Y Resolution | 17 × 17 μm |
| Layer Height | 0.03–0.15 mm |
| Maximum Printing Speed | Up to 70 mm/h (with high-speed resin) |
| Light Source | Upgraded Parallel Matrix Light Source (LightTurbo) |
| Light Intensity | Approximately 3000 μW/cm² |
| Build Platform | Laser-Engraved Build Plate |
| Release Film | FEP Film |
| Z-Axis | Single Linear Rail (30 μm Precision) |
| Machine Leveling | 4-Point Manual Leveling |
| File Transfer | USB |
| Slicing Software | Photon Workshop |
| Touchscreen | 2.8-inch Touchscreen |
| Supported Materials | High-Speed, Water-Washable, Standard, ABS-like, Plant-Based Resins, and more |
| Power Loss Recovery | Supported |
| Power Consumption | 54 W |
| Product Dimensions | 23cm*23cm*39cm |
| Weight | 4kg |

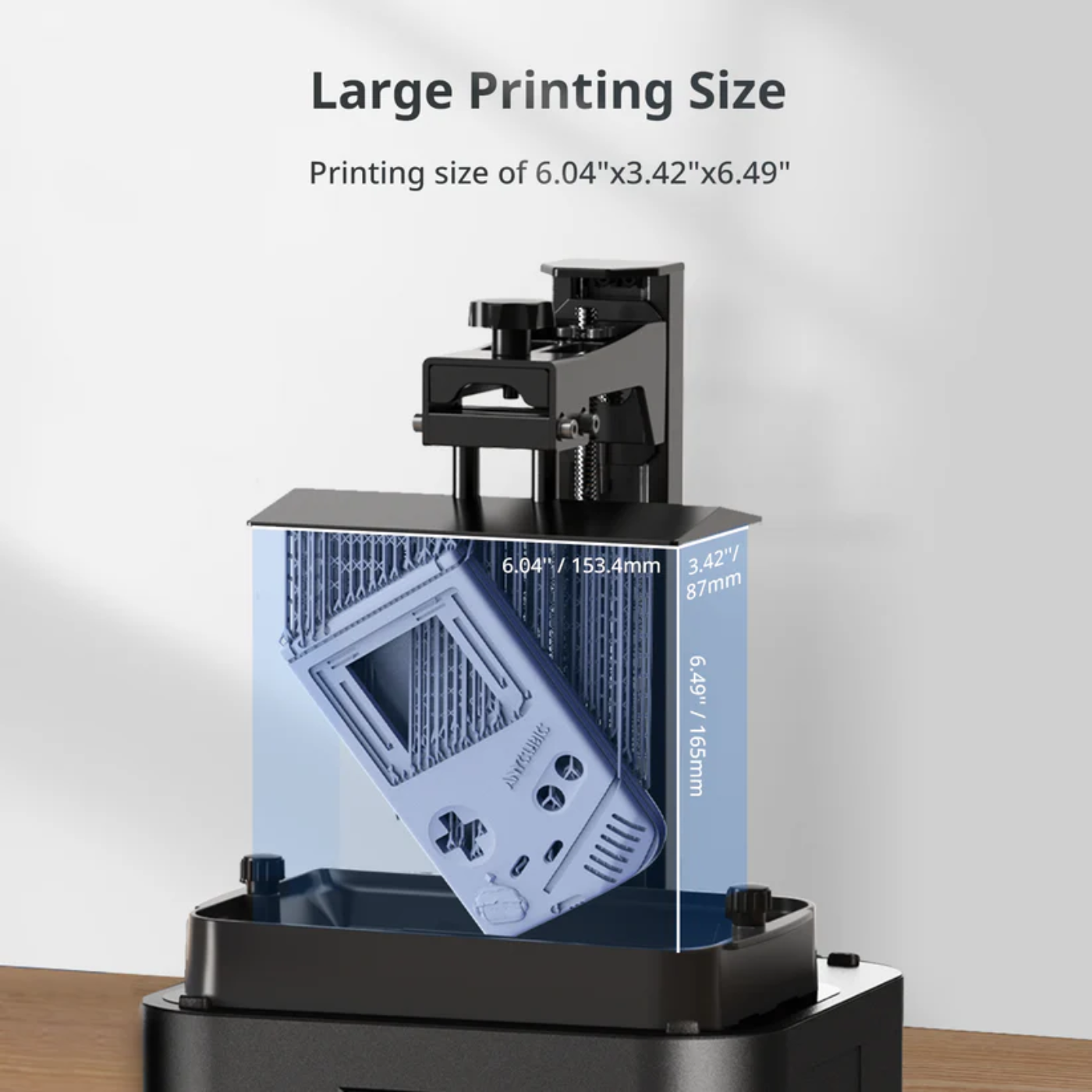

The Anycubic Photon Mono 4 has a 153.4 x 87 x 165mm build volume, suited to miniatures, jewellery and small detailed parts.
It has a 7 inch 10K mono LCD with 17 x 17 micron XY resolution, sharp enough for miniatures and jewellery.
Yes. It is one of the easiest resin printers to start with. Add a wash and cure station and gloves.
Use 405nm standard, water washable or ABS-like resins.
Up to about 70mm per hour depending on layer height and resin.
| Printer Type | Parts | Warranty Period |
|---|---|---|
| FDM | 3D Printer | 12 Months |
| Main Board | 6 Months | |
| Display | 12 Months | |
| Power Supply | 12 Months | |
| Motor | 12 Months | |
| Extruder Kit | 3 Months | |
| Hot End | 3 Months | |
| Glass | No Warranty | |
| Any Other Except These | No Warranty | |
| LCD/Resin | 3D Printer | 12 Months |
| Power Supply | 12 Months | |
| Z-Axis Screw Motor | 12 Months | |
| Touch Screen | 3 Months | |
| UV Lamp | 6 Months | |
| Print Screen | 3 Months | |
| FEP Foil | No Warranty | |
| Any Other Except These | No Warranty |
This warranty does not cover:
To the fullest extent permitted by law, our liability is limited to the cost of repairing or replacing the defective product. We are not liable for incidental, indirect, or consequential damages, including but not limited to loss of data, downtime, or lost business opportunities.
Supplier Warranty: This item is covered by a supplier warranty of 1 year from the date of delivery against manufacturing defects only. In case of manufacturing defects or issues, the part will be replaced after confirmation by our technical team. Refunds or replacement of the entire product will not be provided.
