- Quad-Band Connectivity: Operates on GSM/GPRS frequencies 850/900/1800/1900MHz for seamless communication.
- Configurable Baud Rate: Tailor the baud rate to your needs with easy AT command configuration.
- LM39302 Power Control: Utilizes LM39302 for efficient low-dropout linear voltage regulation and high-current output.
- Versatile Connectivity: Equipped with push-push Nano SIM card holder, UFL and SMA connector antennas, and more.
- Wide Voltage Input: Accepts an input range of 5-20V, providing flexibility in power supply.
- Multifunctional Applications: Ideal for industrial automation, data logging, home automation, health monitoring, and more.
- ESD Compliance and Robust Design: Ensures durability and reliable performance even in demanding conditions.

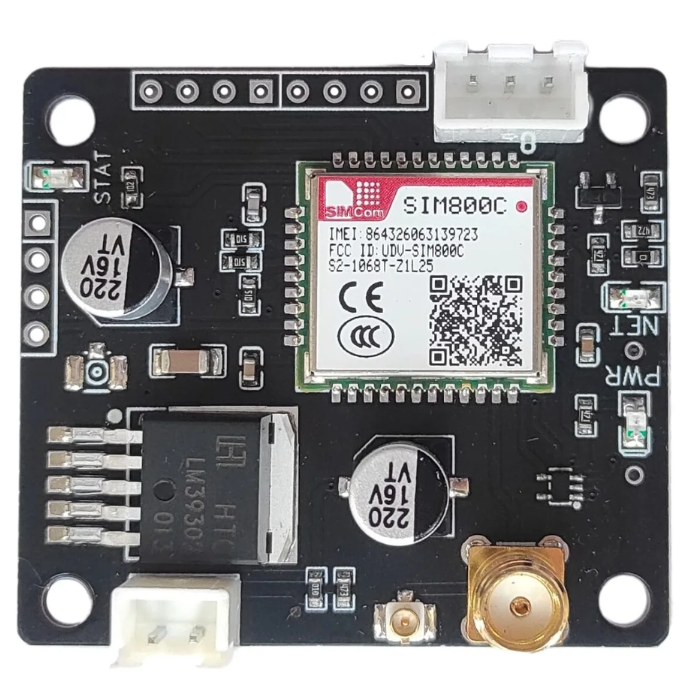

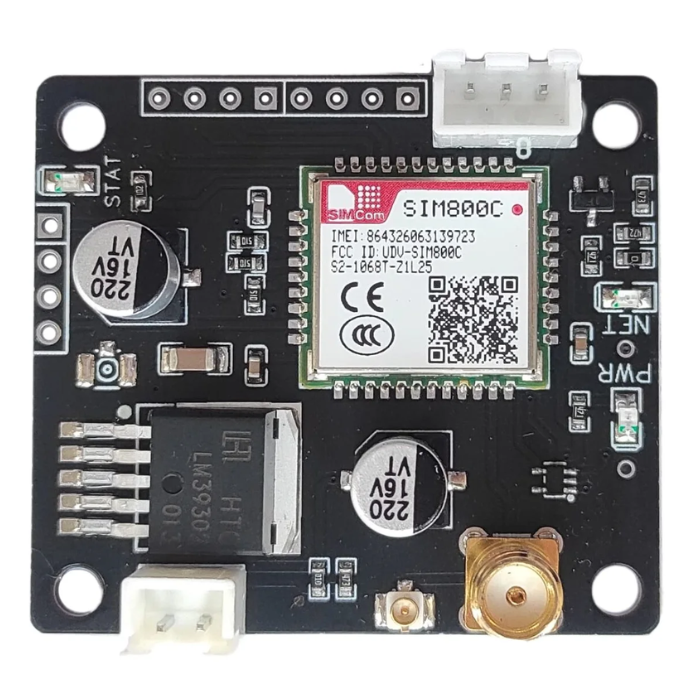

Adiy SIM800C LM39302 TTL Board
ADIY SIM800C LM39302 TTL BOARD is your go-to solution for enhanced communication needs. Built with the Quad-Band GSM/GPRS engine-SIM800C, this module guarantees reliable connectivity on frequencies 850/900/1800/1900MHz. The configurable baud rate empowers you to customize communication speed through simple AT commands.
Featuring LM39302R-ADJ 3.0A for low-dropout linear voltage regulation, this board provides a stable and high-current output with minimal external components. Its versatility is evident with applications ranging from industrial automation to health monitoring. The onboard regulated power supply accommodates a wide range of unregulated power inputs, ensuring adaptability to various setups.
The module's robust design, including ESD compliance, push-push Nano SIM card holder, and antennas with UFL and SMA connectors, makes it suitable for diverse scenarios. Whether you're in industrial automation, data logging, home automation, or health monitoring,
ADIY SIM800C is designed to meet your communication demands. Suitable for a wide voltage range and featuring advanced technology, it ensures reliable performance in diverse applications.
Pin Description:
- VCC : Input range is 5-20V
- GND: power supply ground
- TXD: send pin serial port module.
- RTS: Request to send
- CTS: Clear to send
- BT_A: BLE Antenna
- RF_S: RF_Sync
- ADC: Analog-to-digital Convertor
- STAT: Status
- RXD: receive pin serial port module.
- SPKP: Speaker pin (+)
- SPKN: Speaker pin(-)
- MICN: Mic pin (-)
- MICP: Mic pin (+)
- RI: Ring core pin tips
Features:
- Quad-Band GSM/GPRS 850/900/1800/1900MHz.
- Configurable Baud Rate.
- Power controlled using LM39302 IC.
- ESD Compliance.
- Enable MIC and Speaker socket.
- push-push Nano sim card holder.
- With UFL and SMA connector Antennas.
- Input Voltage: 5-20V.
Applications:
- Industrial automation.
- GPRS based data logging.
- GPRS and BLE application.
- Home automation.
- Health monitoring.
- Agriculture automation.
- Vehicle tracking.
- Remote monitoring and controlling.
- GPRS based Weather report logging.
- GSM GPRS based Security alert.
- GPRS based remote terminal for file transfer.
- Bulk SMS sending.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
SIM908 GSM-GPRS-GPS Modem
CP2102 USB to TTL Converter
SIM800A LM317 with Antenna(GSM Finger)- ADIY
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x Adiy SIM800C LM39302 TTL Board
Specifications:
| Quad-Band Connectivity | GSM/GPRS frequencies 850/900/1800/1900MHz |
| Configurable Baud Rate | Yes, adjustable through AT command |
| LM39302 Power Control | Yes, low-dropout linear voltage regulation |
| Versatile Connectivity | Nano SIM card holder, UFL and SMA connector antennas |
| Wide Voltage Input | 5-20V |
1. What is SIM800C used for?
A well-known GSM device with a serial modem that runs between 3.4 and 4.4 volts is the SIM800C Module. Through basic AT instructions, you may use this module to make audio calls, send and receive SMS, monitor incoming calls, access the internet, and more.
2. Does SIM800C support 4G?
No, 4G is not supported by the SIM800 module; it is primarily intended for 2G (GSM/GPRS) connectivity. If you put 4G SIM when the SIM card powers up, It will connect to the nearest 2G carriers, therefore it works perfectly with the SIM800L module.
3. What is the frequency range of SIM800C?
This module guarantees stable connectivity on frequencies 850/900/1800/1900MHz.
4. Does SIM800 have GPS?
Yes, the SIM800 shield includes GPS functionality, providing both cellular connectivity and satellite navigation for robotics projects. GSM/GPRS communication is managed through AT commands, while GPS data follows the NMEA protocol.
