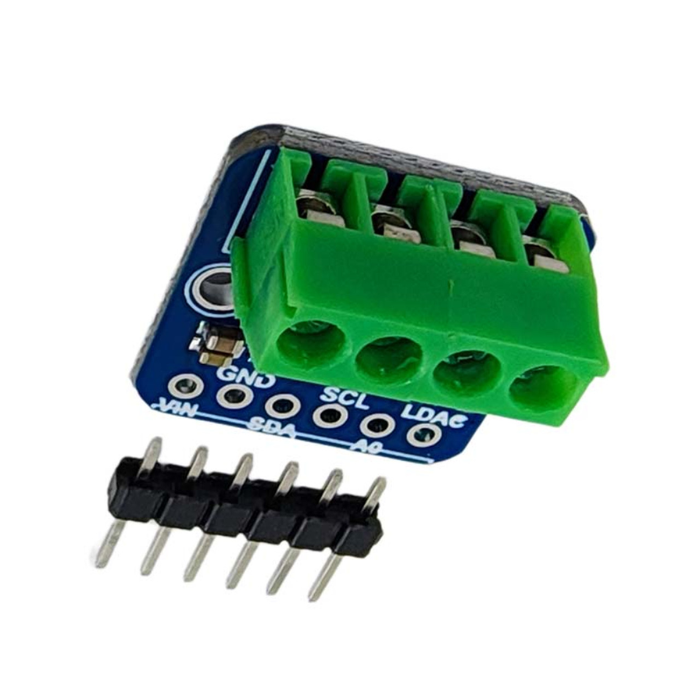

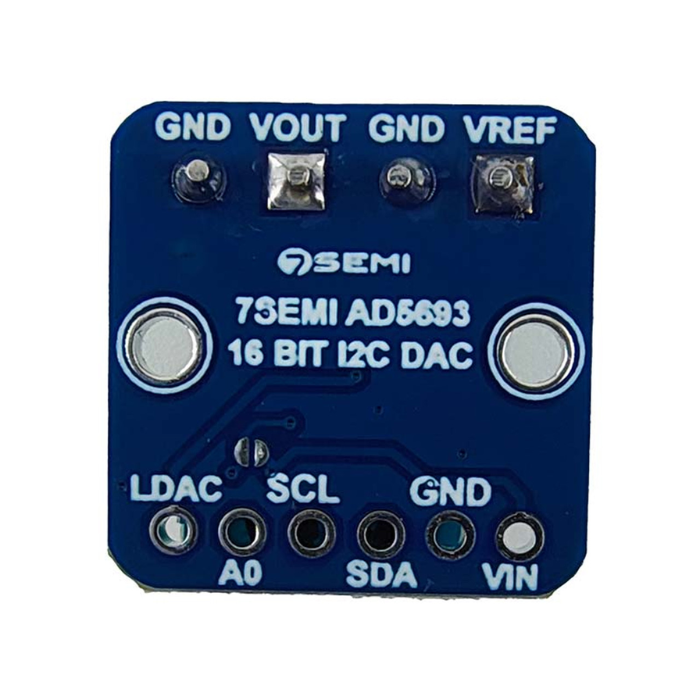

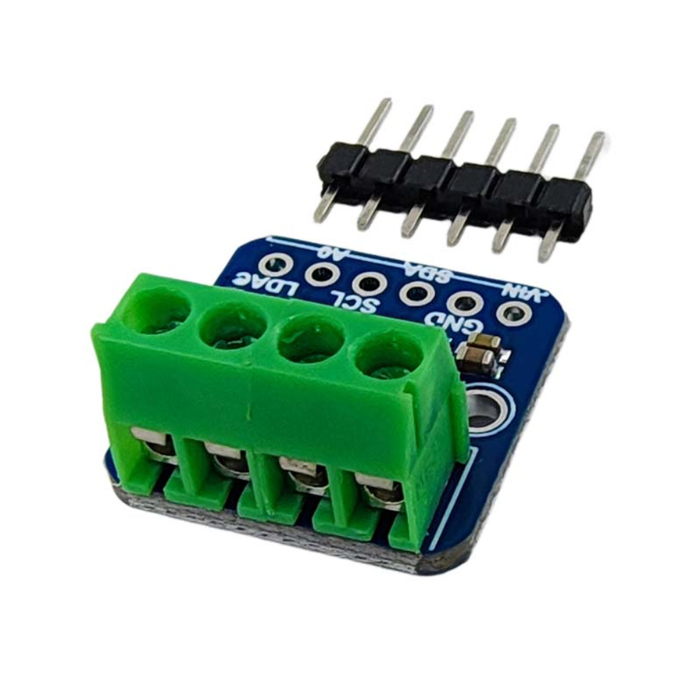

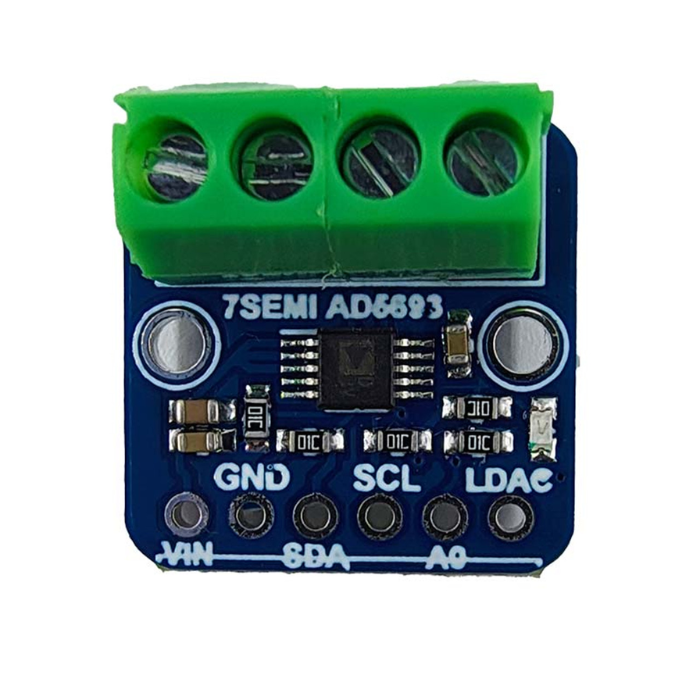

AD5693R 16Bit I2C DAC Breakout Board -7Semi
Couldn't load pickup availability
The 7Semi AD5693R 16-Bit I2C DAC Breakout Board is a high-precision digital-to-analog converter module designed for engineers and developers working on applications that demand accurate analog signal generation.
At its core is the renowned Analog Devices AD5693R DAC, delivering 16-bit resolution and integrating a 2.5V reference for consistent, stable output performance. Communicating over the I2C interface, the board supports standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) modes, making it highly compatible with a wide range of microcontrollers and embedded systems.
Its buffered voltage output ensures better load-driving capability with minimized output impedance, and its low power draw of just 0.7 mW at 3.6V makes it an excellent choice for battery-powered and space-constrained designs.
Whether you're working on precision instrumentation, industrial process control, or data acquisition systems, this compact breakout board delivers the accuracy and performance needed for critical analog output applications.
| Parameter | Specification |
|---|---|
| DAC IC | Analog Devices AD5693R |
| Resolution | 16-bit |
| Reference Voltage | Integrated 2.5V reference |
| Interface | I2C (Standard: 100 kHz, Fast: 400 kHz, High-Speed: 3.4 MHz) |
| Output Type | Buffered Voltage Output |
| Output Impedance | Low (enhanced load driving capability) |
| Operating Voltage | Up to 3.6V |
| Power Consumption | 0.7 mW at 3.6V |
