A733P PNP Bipolar Junction Transistor – Pack of 5
- Rs 10/-
- Rs 10/-
-
Rs 14/-
- 29%
Save Rs 4/-
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 72 left in stock
SKU:
TIFCB2969
Couldn't load pickup availability
A733P PNP Bipolar Junction Transistor – Pack of 5
A733P PNP Bipolar Junction Transistor – Pack of 5
A733P PNP Bipolar Junction Transistor – Pack of 5

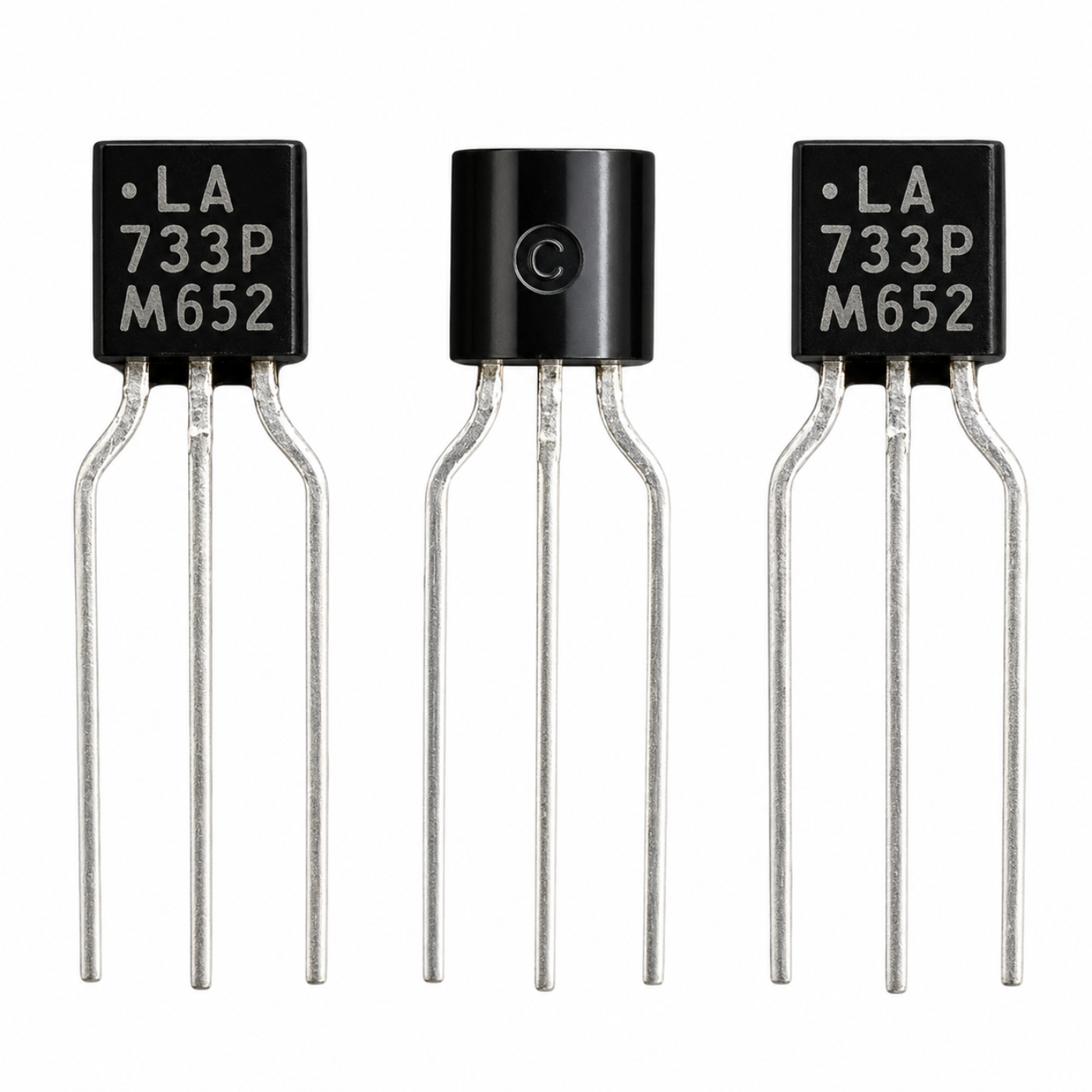

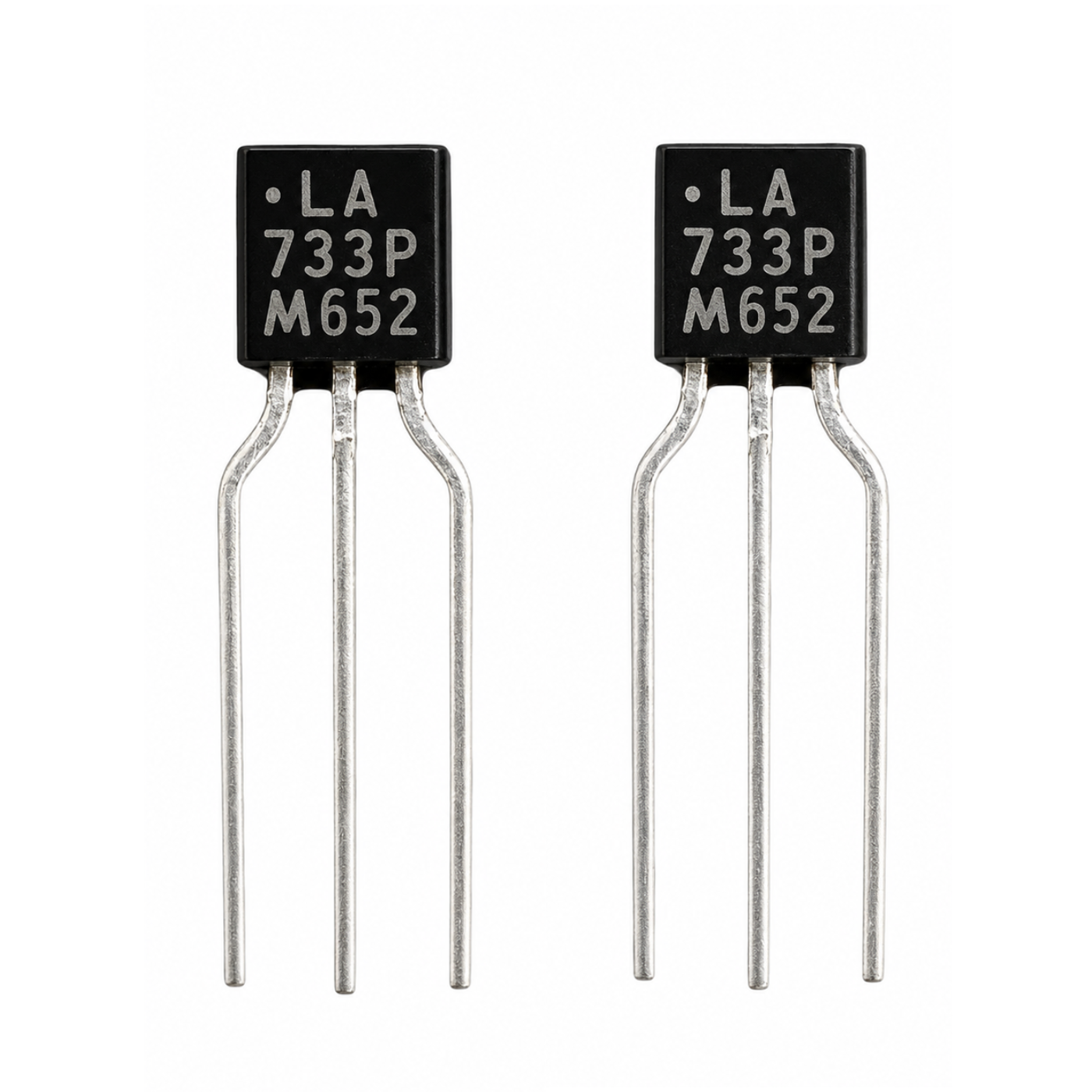

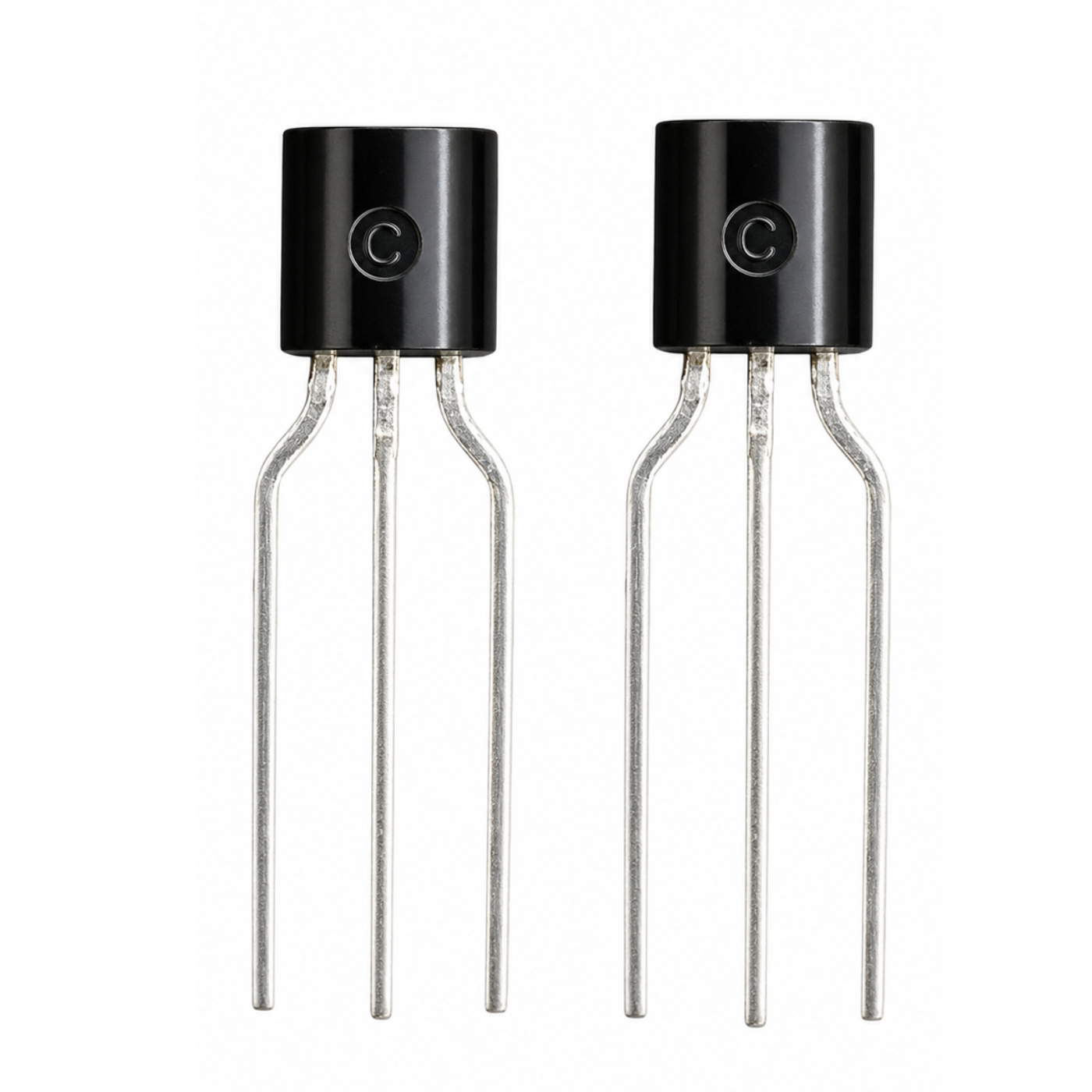

The A733P PNP Bipolar Junction Transistor (2SA733P) is a compact PNP silicon transistor designed for general-purpose switching and audio-frequency (AF) amplifier applications. It features a maximum collector-emitter voltage of 50V, maximum collector current of 150mA, and collector-base voltage of 60V, making it suitable for low-power electronic circuits, signal amplification, and transistor switching applications.
The P-grade version provides a DC current gain (hFE) of 200–400, while its maximum emitter-base voltage is 5V and total power dissipation is 250mW at 25°C. Housed in a TO-92 3-pin package, this A733P transistor is convenient for through-hole PCB assembly and prototyping. This 2SA733P PNP transistor comes in a pack of 5, making it useful for electronics projects, amplifier circuits, switching stages, and educational applications.
Features:
- PNP silicon transistor for general-purpose applications
- Suitable for AF signal amplification
- Can be used for low-power switching
- High DC current gain
- Compact TO-92 through-hole package
- Suitable for breadboard and PCB prototyping
Package Includes:
- 1 x A733P PNP Bipolar Junction Transistor – Pack of 5
Specifications:
| Specification | Value |
|---|---|
| Transistor Type | PNP Silicon BJT |
| Part Number | 2SA733P / A733P |
| Collector-Base Voltage (VCBO) | 60V |
| Collector-Emitter Voltage (VCEO) | 50V |
| Emitter-Base Voltage (VEBO) | 5V |
| Collector Current (IC) | 150mA |
| DC Current Gain (hFE) | 200–400 (P Rank) |
| Power Dissipation | 250mW |
| Collector-Emitter Saturation Voltage | 0.3V max. |
| Gain Bandwidth Product (fT) | 100MHz min., 190MHz typ. |
| Package | TO-92, 3-Pin |
| Applications | AF Amplifiers, Signal Amplification, Switching Circuits |
| Quantity | Pack of 5 |
