Package Includes:

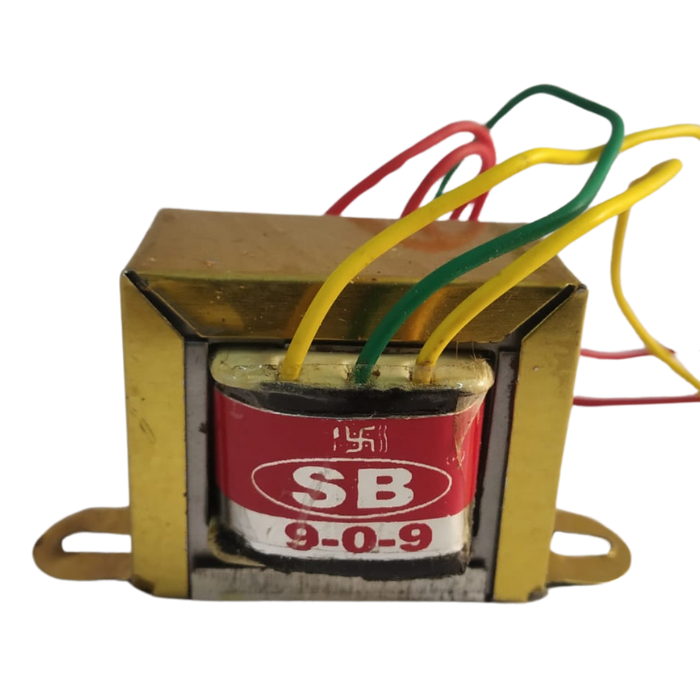

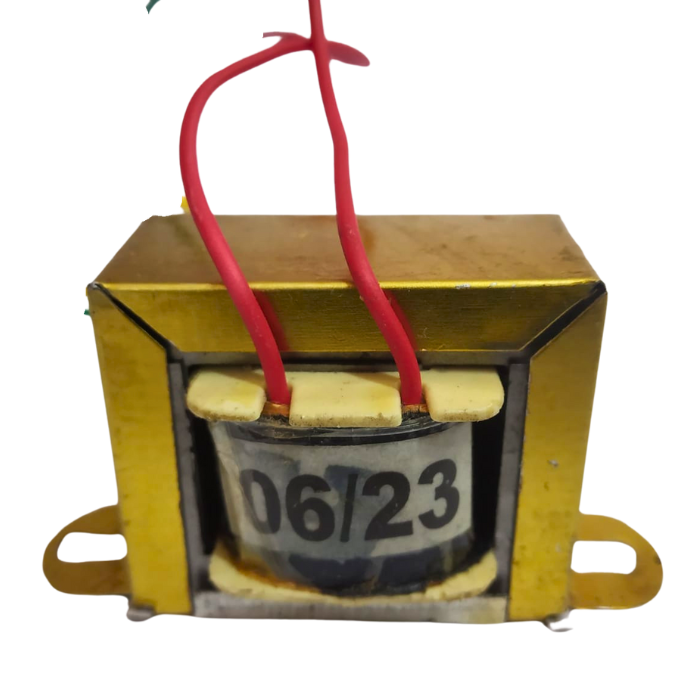

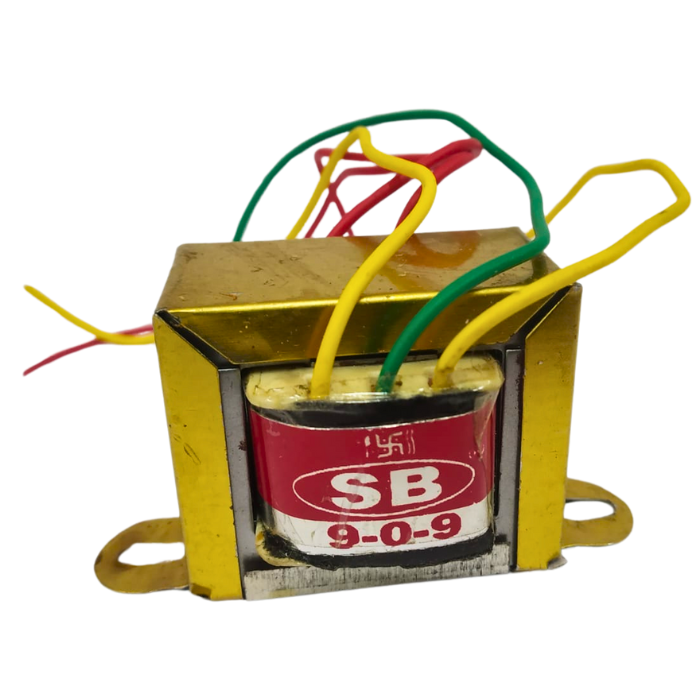

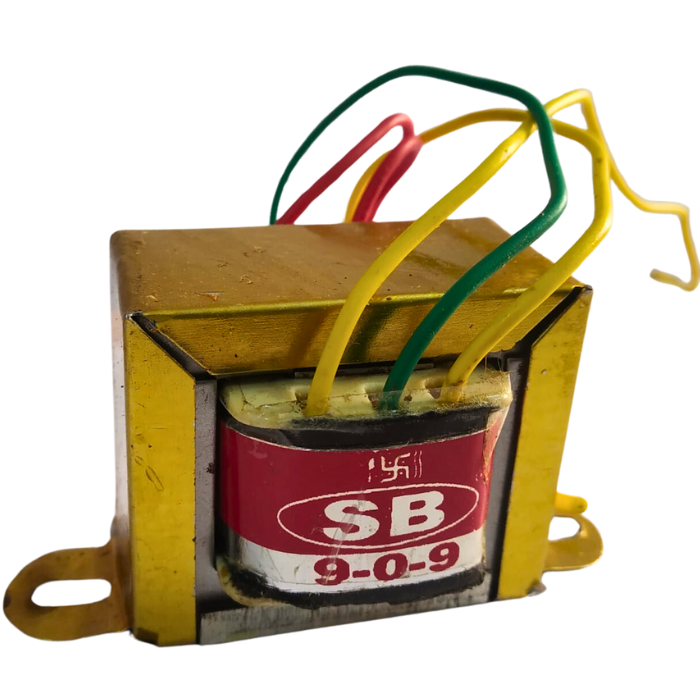

- 1 x 9-0-9 500mA Transformer
Specifications:
Output Voltage | 9V AC or 18V AC (combined) |
Maximum Output Current | 500mA |
Common Usage | Audio Circuits, low power Ac-DC converters |
Applications | Versatile; suitable for various electronic projects |
1. What is 500mA transformer?
The 500mA transformer is a 9-0-9 Center Tapped Transformer with a maximum output current of 500mA. It is a versatile and durable electronic component designed for various applications, including audio circuits and low-power AC-DC converters. The transformer delivers individual 9V AC or combined 18V AC output. It is suitable for hobbyists, DIY enthusiasts, and professionals, providing efficient power delivery for diverse electronic projects.
2. What is the meaning of 9-0-9 in transformer?
The notation "9-0-9" in a transformer refers to the winding configuration of the transformer's secondary coil. Specifically, it indicates that there are two separate windings with a center tap. The numbers represent the voltage outputs of these windings.
In this case:
- The first "9" signifies one winding that produces 9 volts AC.
- The "0" in the middle represents the center tap, which is a connection point between the two windings.
- The second "9" indicates the other winding that also produces 9 volts AC.
So, the 9-0-9 configuration essentially means you can get 9 volts AC from each side of the center tap or 18 volts AC across the entire winding. This setup is commonly used in electronics and power supplies.
3. Is the transformer suitable for audio circuits?
Yes, it is designed for audio circuits and low-power AC-DC converters, ensuring optimal performance in such applications.
4. Can I use it for DIY projects?
Absolutely! The 9-0-9 transformer is ideal for hobbyists and DIY enthusiasts, promoting skill development with its user-friendly design.
5. What is the maximum output current?
The transformer has a maximum output current of 500mA, providing ample power for a range of electronic applications.
