824 – 960 MHz & 1710 – 1980 MHz GSM Sticker Antenna
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
This GSM antenna operates in the 824 – 960 MHz and 1710 – 1980 MHz frequency ranges and delivers a high gain of 28dBi, ensuring reliable signal transmission and reception.

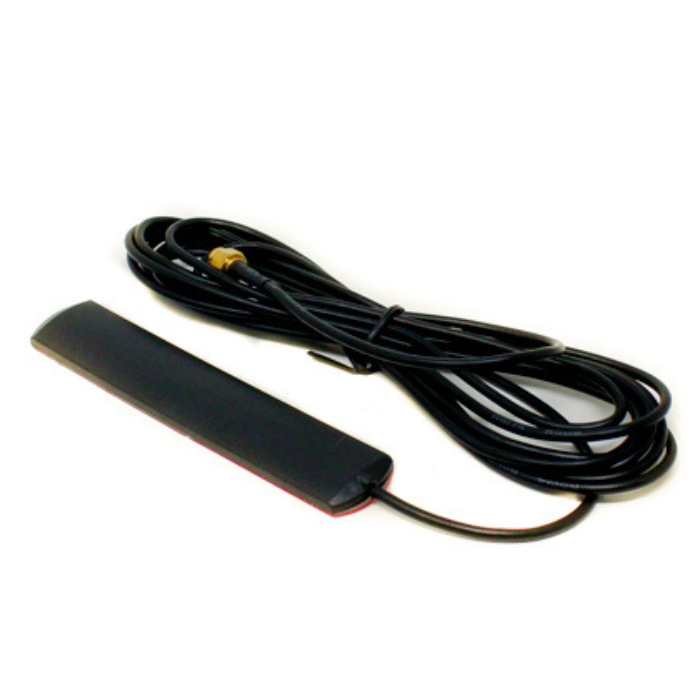

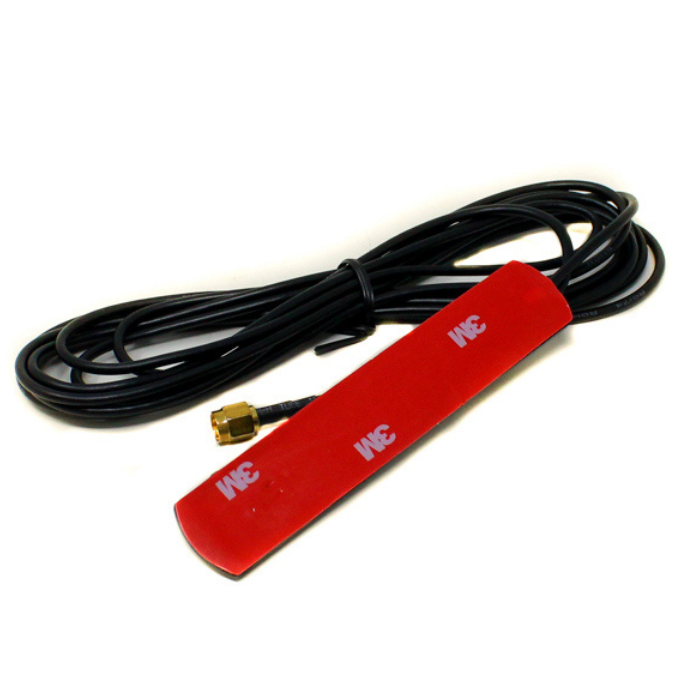

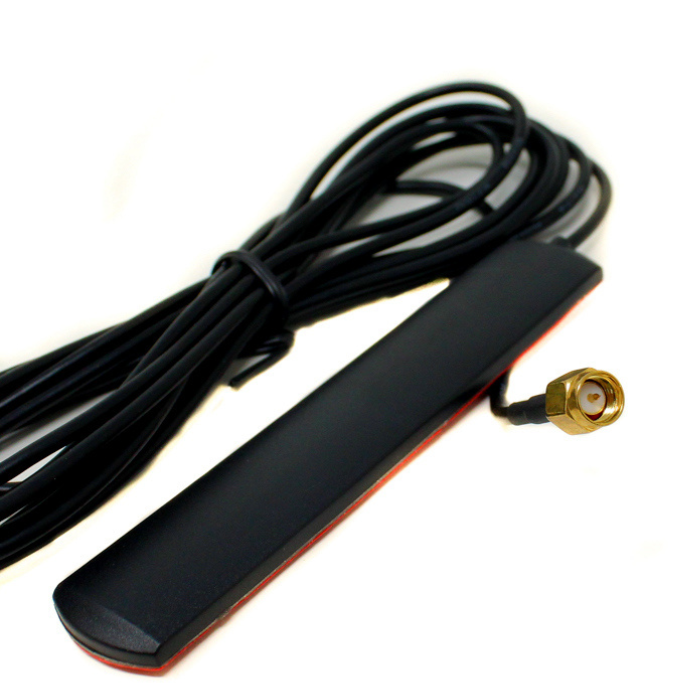

Designed as a sticker antenna, it offers a low-profile, space-saving solution, making it ideal for compact and embedded GSM-based systems.
Widely used in telecommunications, this antenna helps enhance the performance of wireless modules while also reducing the overall cost of radio integration.
Whether you're working on IoT, mobile communication, or industrial applications, this GSM antenna provides a dependable and cost-effective wireless connectivity option.
| Specification | Details |
|---|---|
| Item Type | Sticker Antenna |
| Model Type | Network Functionality |
| Frequency (MHz) | 1710 to 1980, 824 to 960 |
| Gain | 2/3 dBi |
| VSWR | <2.5 |
| Model No. | LWC-GSM-STICKER-03 |
| Polarization | Linear |
| Power Handling (W) | 10 |
| HPBW | H: 360°; V: 300° / 400° |
| Connector | SMA Plug |
| Cable Length (m) | 3 |
| Operating Temperature (°C) | -30 to 60 |
| Humidity Range | 5 – 75% |
| Length (mm) | 115 |
| Width (mm) | 22 |
| Height (mm) | 5 |
| Weight (g) | 50 |
