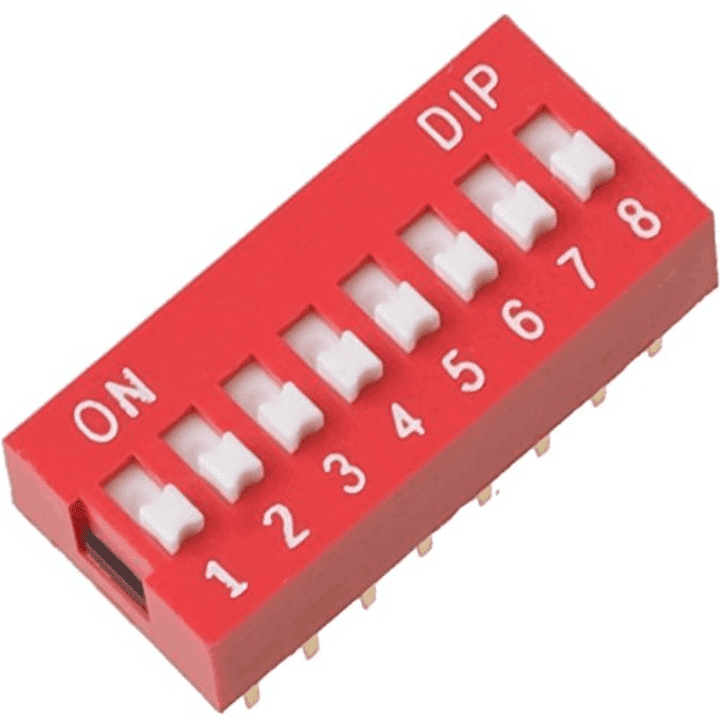

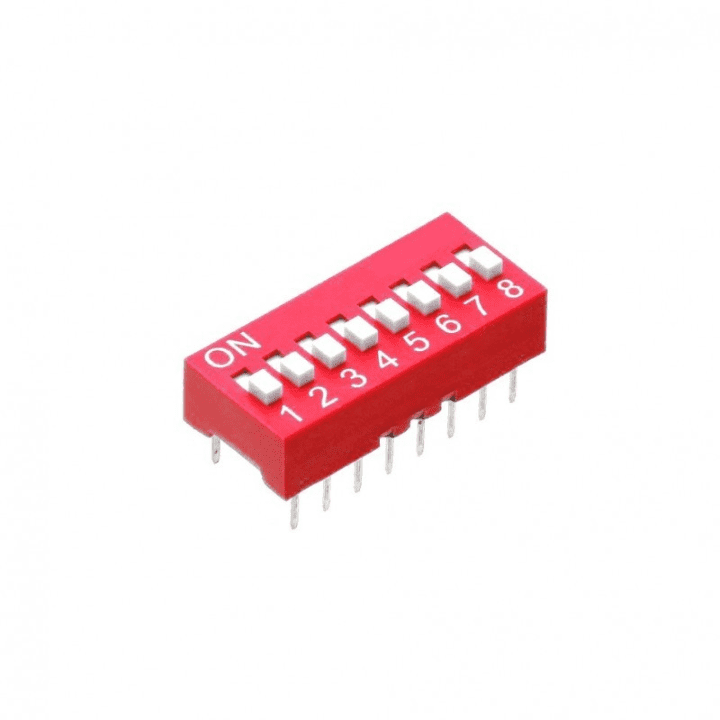

8 Way Slide Switch 2.54mm Pitch (Pack of 2)

8 Way Slide Switch 2.54mm Pitch (Pack of 2)

Regular price Rs. 28
Regular price Rs. 34 Sale price Rs. 28
Sale Sold out 18% off Best Price Guaranteed
You save Rs. 6 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is a 8 Way Through Hole DIP Switch SPST.
  • It has 25mA and 24Vdc switching rating.
  • It can be easily mounted on prototype hole PCB and breadboard.
  • Widely Used in Circuit Boards, Breadboards and All PCB Projects, Perfect As a Toggle Or on Off Switch for Your Projects.
Trust Badge 1 Trust Badge 2 Trust Badge 3

8 Way Slide Switch 2.54mm Pitch (Pack of 2)

8 Way DIP switches for reliable operation by secure snap-in.  DIP Switch Used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations. Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.

8 position or 8 in 1, Dual In-Line Package (DIP) SPDT slide switch, namely the more traditional toggle switch is a set of electrical switches which is packed in a small box or housing. This DIP single pole double throw (SPDT) switch forces the operator to choose between connecting to either one of two terminals as such the switch will remain connected to one or the other, and the two terminals will never be connected. This switch is designed to be easily mounted on printed circuit boards to provide various ranges of input to the electronic device. You can easily control the input by using the DIP switch.

Applications:

  • Widely used in circuit boards, breadboards and All PCB Projects,
  • Perfect as a toggle or on off switch for your projects.

Package Includes:

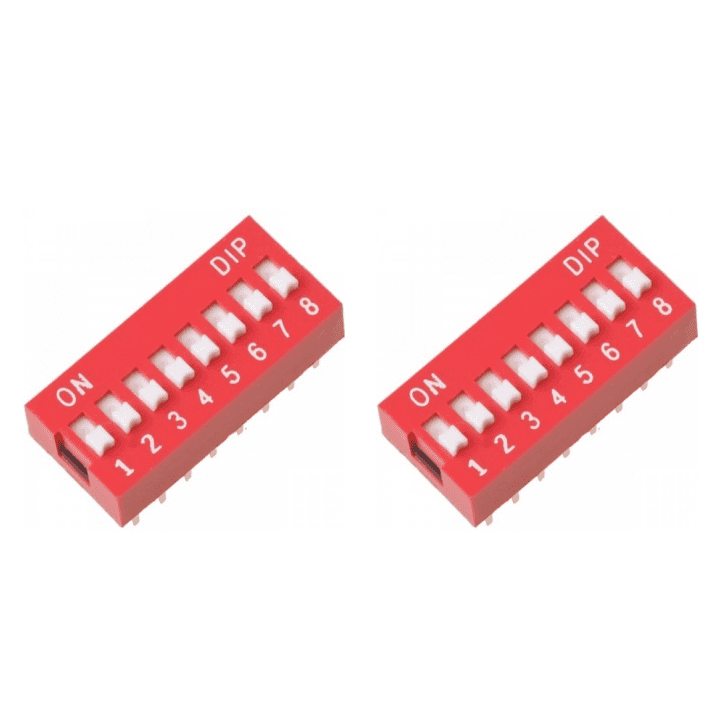

  • 2 x 2.54mm Pitch 8 Way DIP Slide Switch.

Specifications:

Voltage(V)

30V DC

Operating Current (A)

0.15

No. of Pins

8

Pin Spacing (mm)

2.54

Mounting Type

Through Hole

Operating Temperature Range (°C)

-40 to 85

Mech. & Electrical Lifecycle

≈ 2000

Length (mm)

6.6 x 9.8 x 6.5

Weight (gm)

2 (each)
