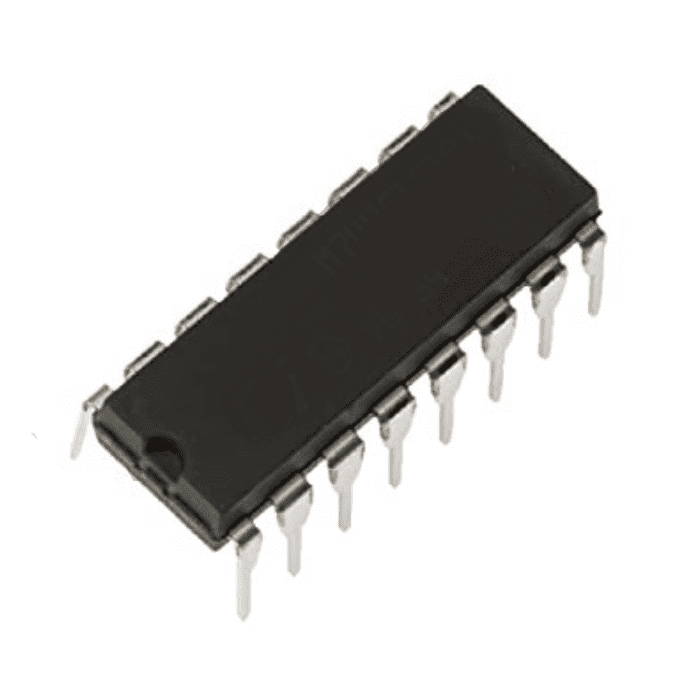

74HC151 - 8-Input Multiplexer IC

74HC151 - 8-Input Multiplexer IC

Regular price Rs. 22
Regular price Rs. 29 Sale price Rs. 22
Sale Sold out 24% off Best Price Guaranteed
You save Rs. 7
Incl. GST (No Hidden Charges)
Size
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Advanced oxide-isolated, ion-implanted Schottky TTL process
  • Switching performance is guaranteed over full temperature and VCC supply range
  • Pin and functional compatible with LS family counterpart
  • Improved output transient handling capability

74HC151 - 8-Input Multiplexer IC

The 74HC Series 74HC151 is 8 - Input Multiplexer 16 Pin IC. Data Selector/Multiplexer contains full on-chip decoding to select one of eight data sources as a result of a unique three binary code at select inputs. Two complementary outputs provide both inverting and non-inverting buffer operations.

A Strobe input is provided which, when at a high level, disables all data inputs and forces Y output to a low state and W output to a high state. Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. Used for Boolean Function Generator.

check out : CD4047 - Astable/Monostable Multivibrator IC

Pinout:

Pinout Of 74HC151 IC

Application:

  • Used for Boolean Function Generator

Package Includes:

  • Selected qty of IC - 74HC151

Specifications:

Type CMOS
Voltage Rating 5VDC
Temperature Rating -65 to 165 Deg C
Number of pins 16
Mounting Through Hole
