Designed to control a single brushed DC motor with up to 30A current handling.
Supports motor supply voltages from 7V to 32V, suitable for various DC motor applications.
Provides dedicated direction and PWM control for precise motor operation.
Suitable for robotics, automated guided vehicles (AGVs), industrial actuators, and other motion-control systems.
Ideal for applications requiring independent control of one high-current DC motor.
Enables adjustable motor speed along with forward and reverse direction control.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

7Semi Vikram 3230 7V-32V 30A Single-Channel Brushed DC Motor Driver

~~Rs 2,849/-~~ Rs 2,229/-

Quantity:

7Semi Vikram 3230 7V-32V 30A Single-Channel Brushed DC Motor Driver

~~Rs 2,849/-~~ Rs 2,229/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

7Semi Vikram 3230 7V-32V 30A Single-Channel Brushed DC Motor Driver

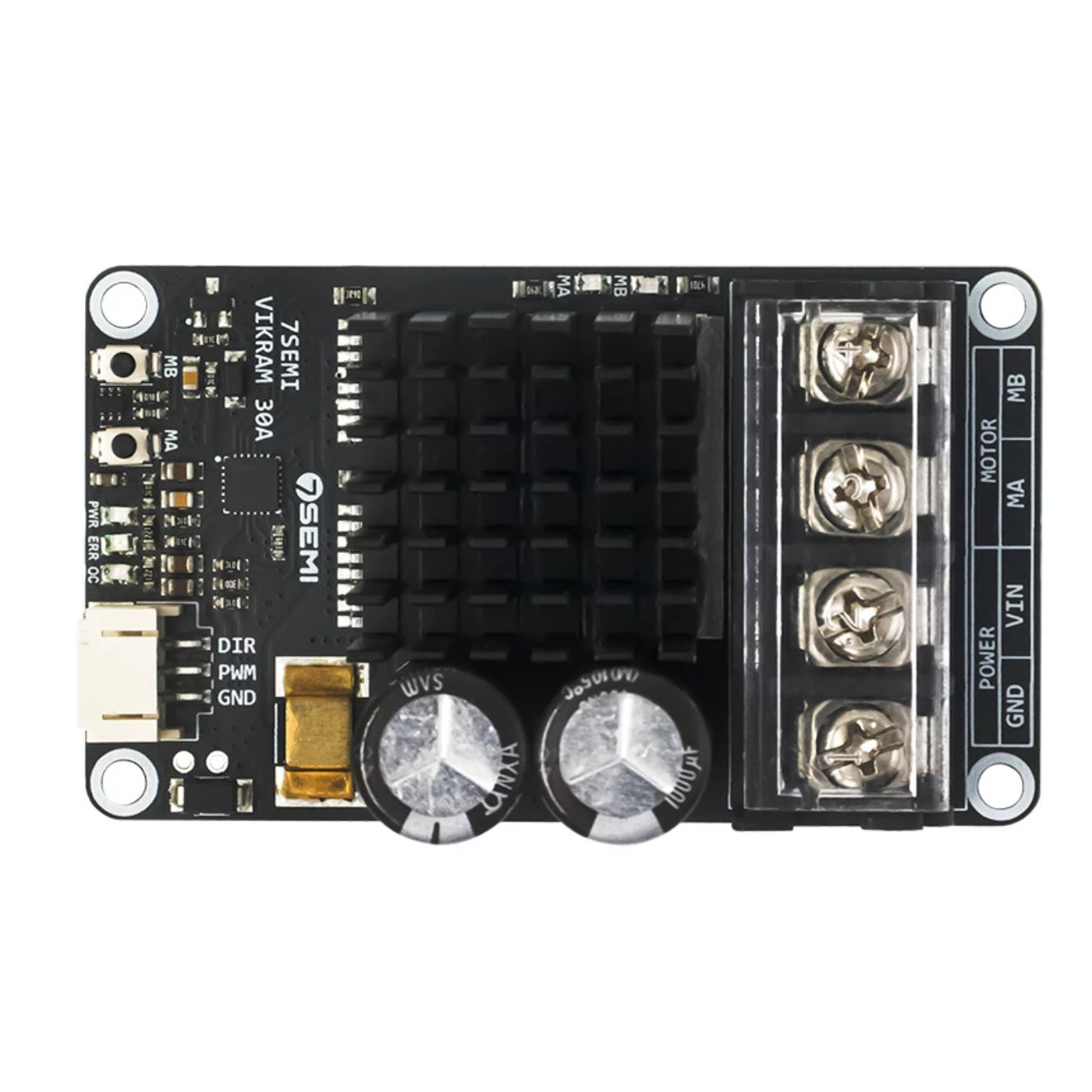

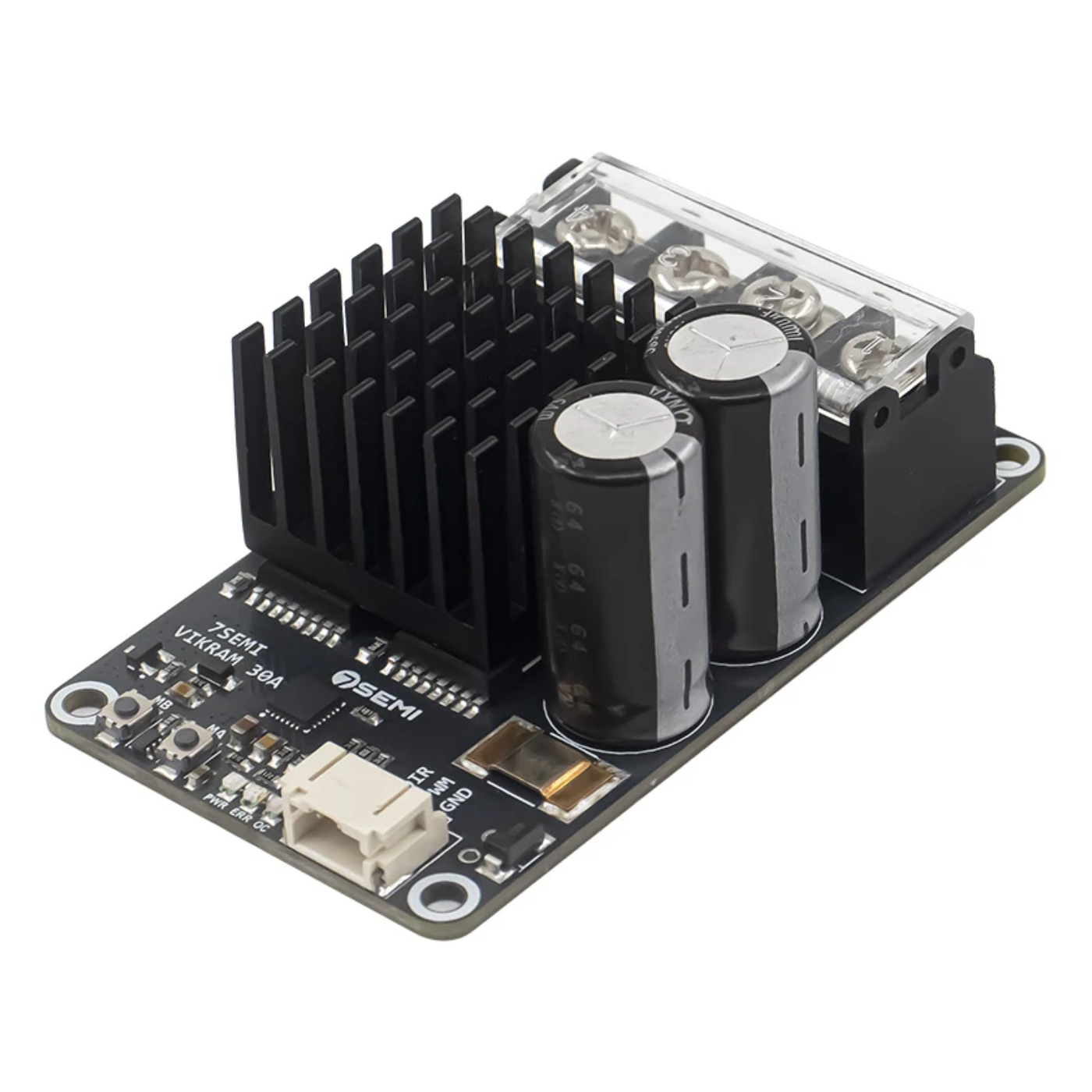

The 7Semi Vikram 3230 7V-32V 30A Single-Channel Brushed DC Motor Driver is a high-current motor control module designed to drive one brushed DC motor efficiently and reliably. With a wide 7V to 32V operating voltage range and support for motor currents up to 30A, it is well suited for demanding robotics and automation applications.

The single-channel design provides dedicated direction and PWM control, allowing users to adjust motor speed and easily switch between forward and reverse rotation. This brushed DC motor driver is a practical choice for differential-drive robots, automated guided vehicles (AGVs), industrial actuators, mobile robots, and other systems that require high-current DC motor control. Its flexible voltage and control options make it suitable for both prototyping and advanced motion-control projects.

Protection Features

Overcurrent Protection (OCP): Safeguards the power stage by detecting excessive motor current above 30A or an output fault and shutting down the output when necessary.
VM Undervoltage Lockout (UVLO): Automatically disables the motor output when the supply voltage drops below the safe 6V DC threshold and resumes operation once the voltage returns to the valid range.
Thermal Shutdown (TSD): Protects the module from overheating by disabling motor operation when the temperature reaches the 120°C thermal shutdown limit.

Features:

Single-Channel Brushed DC Motor Driver
Independently controls one brushed DC motor
Supports bidirectional forward and reverse operation
Provides up to 30A continuous output current
Supports a 7V–32V DC motor supply voltage
Supports a maximum 20kHz PWM control frequency
Features a discrete high-current H-bridge power stage

Specifications

Package Includes:

1 x 7Semi Vikram 3230 7V-32V 30A Single-Channel Brushed DC Motor Driver

Specifications:

Specification	Details
Product Category	Single-Channel Motor Driver
Continuous Current Rating	30A
Peak Current Rating	80A (must not exceed 1 second)
Maximum PWM Frequency	20 kHz
Thermal Shutdown Limit	120°C

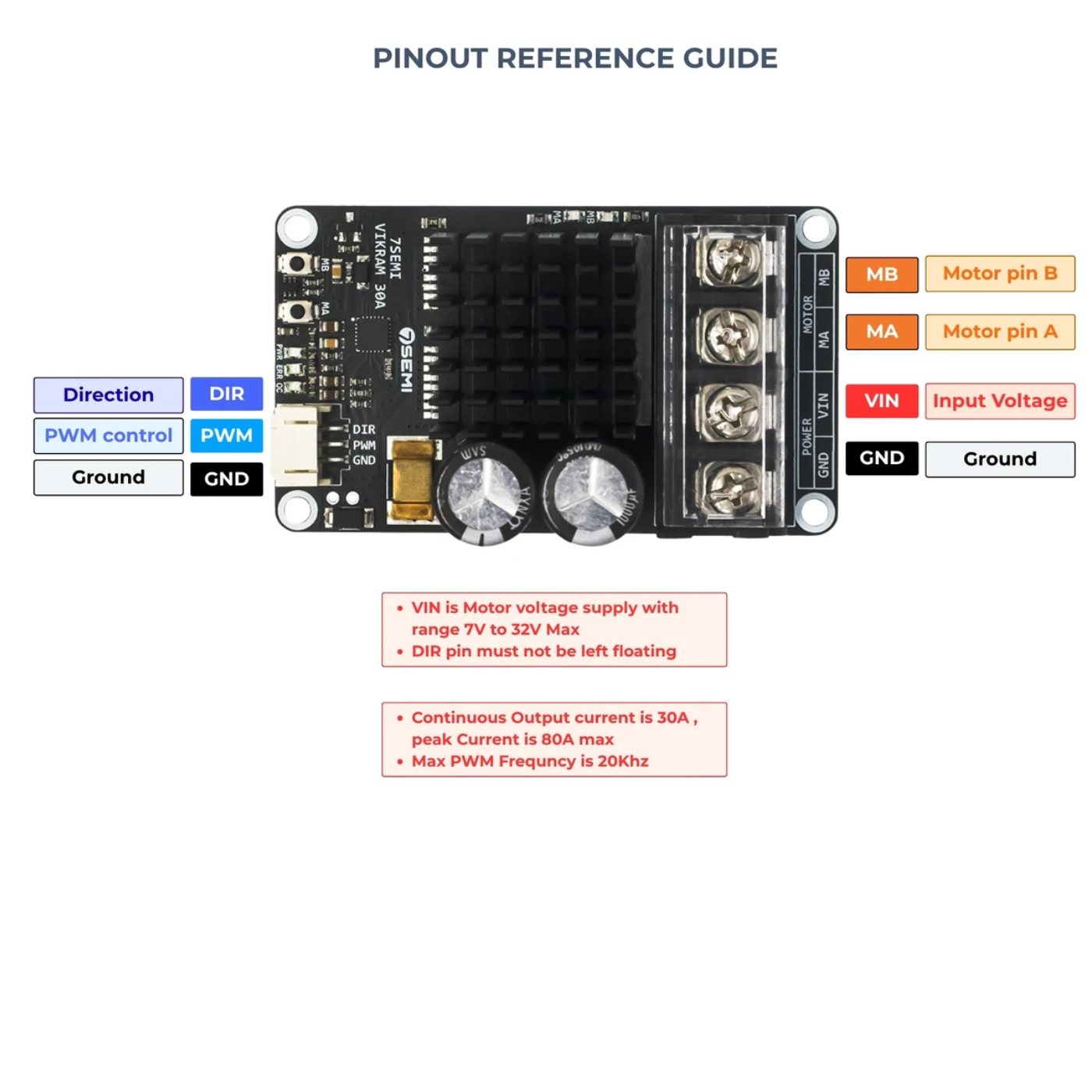

Control per Channel	Direction and PWM
Logic Input	3.3V & 5V DC
Operating Voltage	7V to 32V

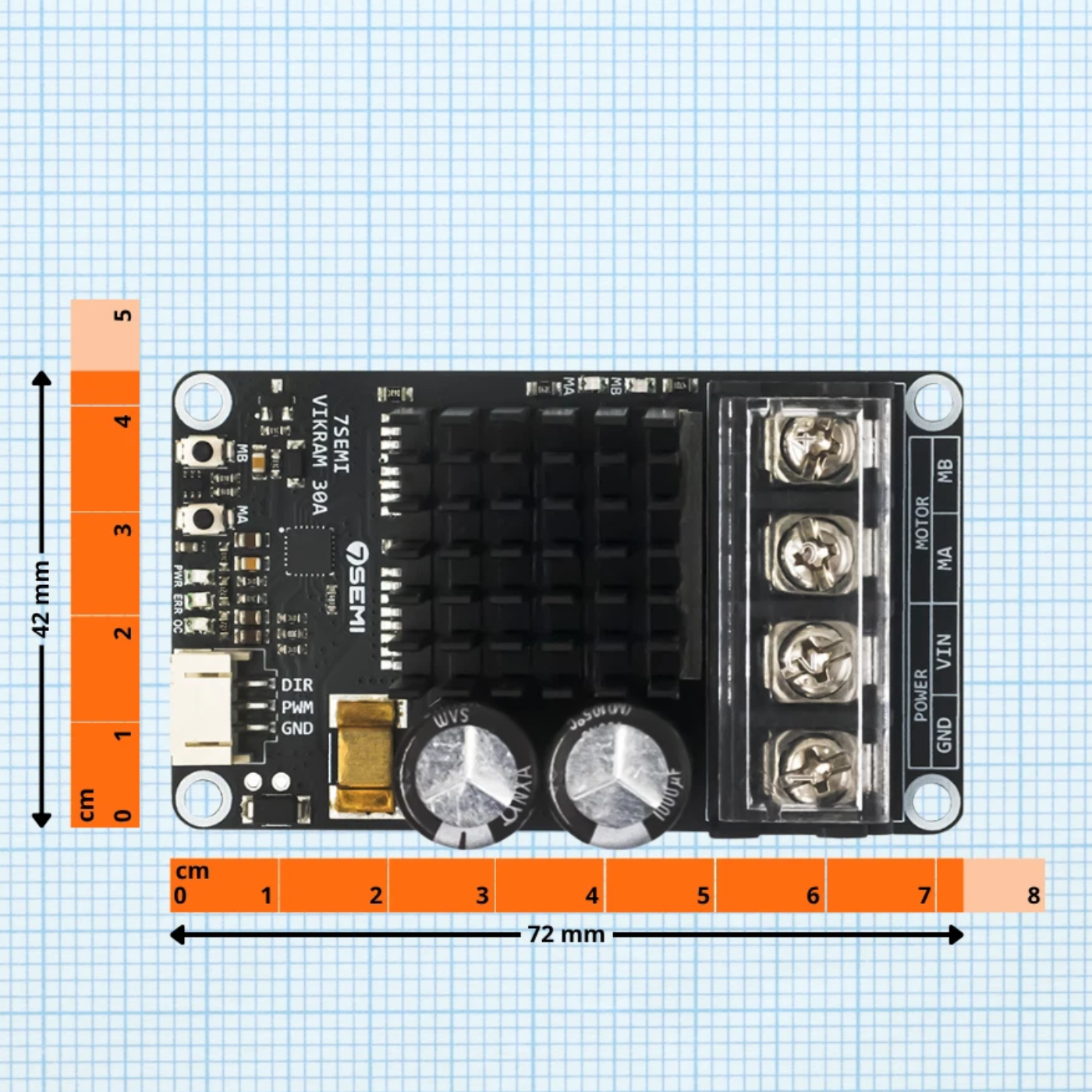

Dimensions	72mm × 42mm × 27.22mm
