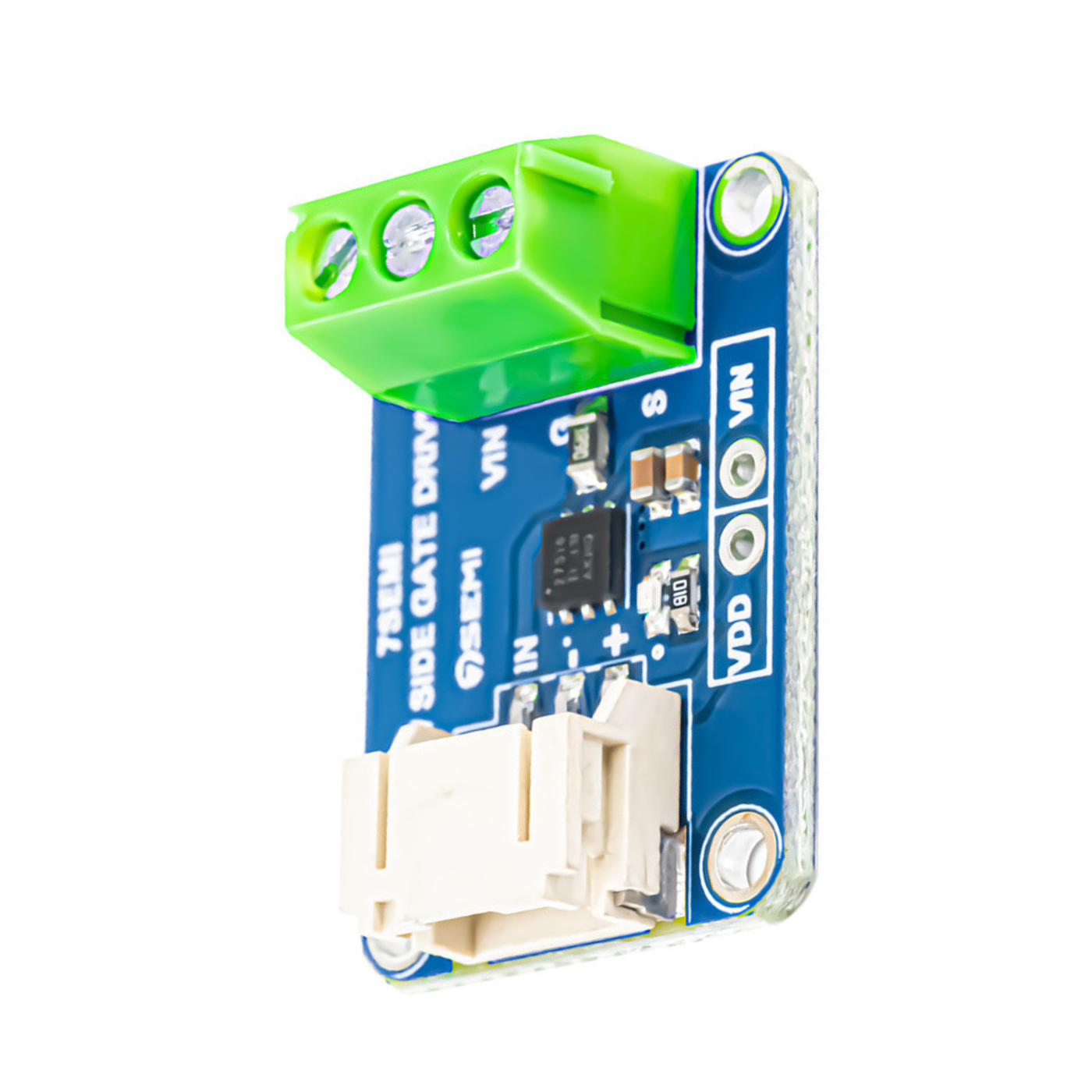

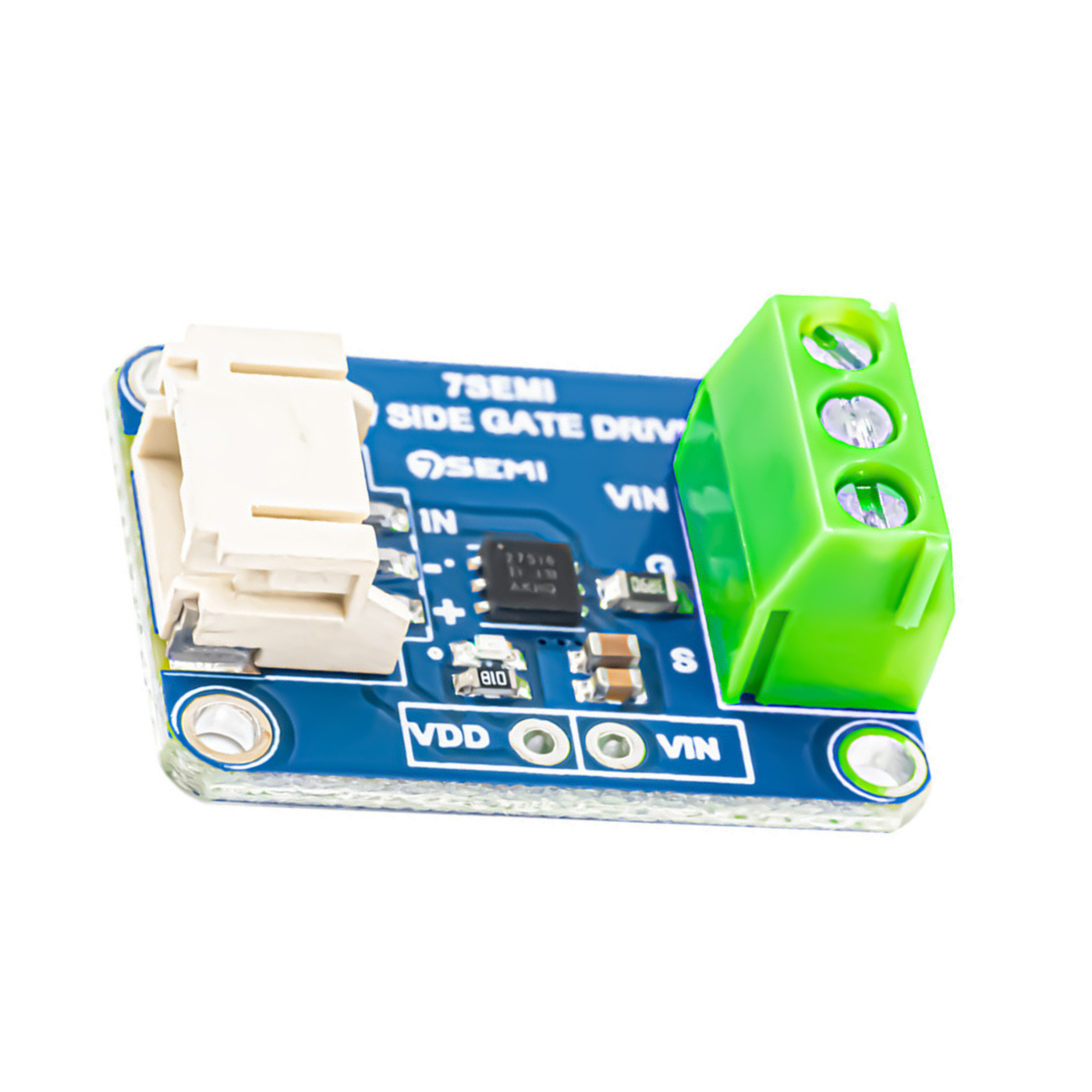

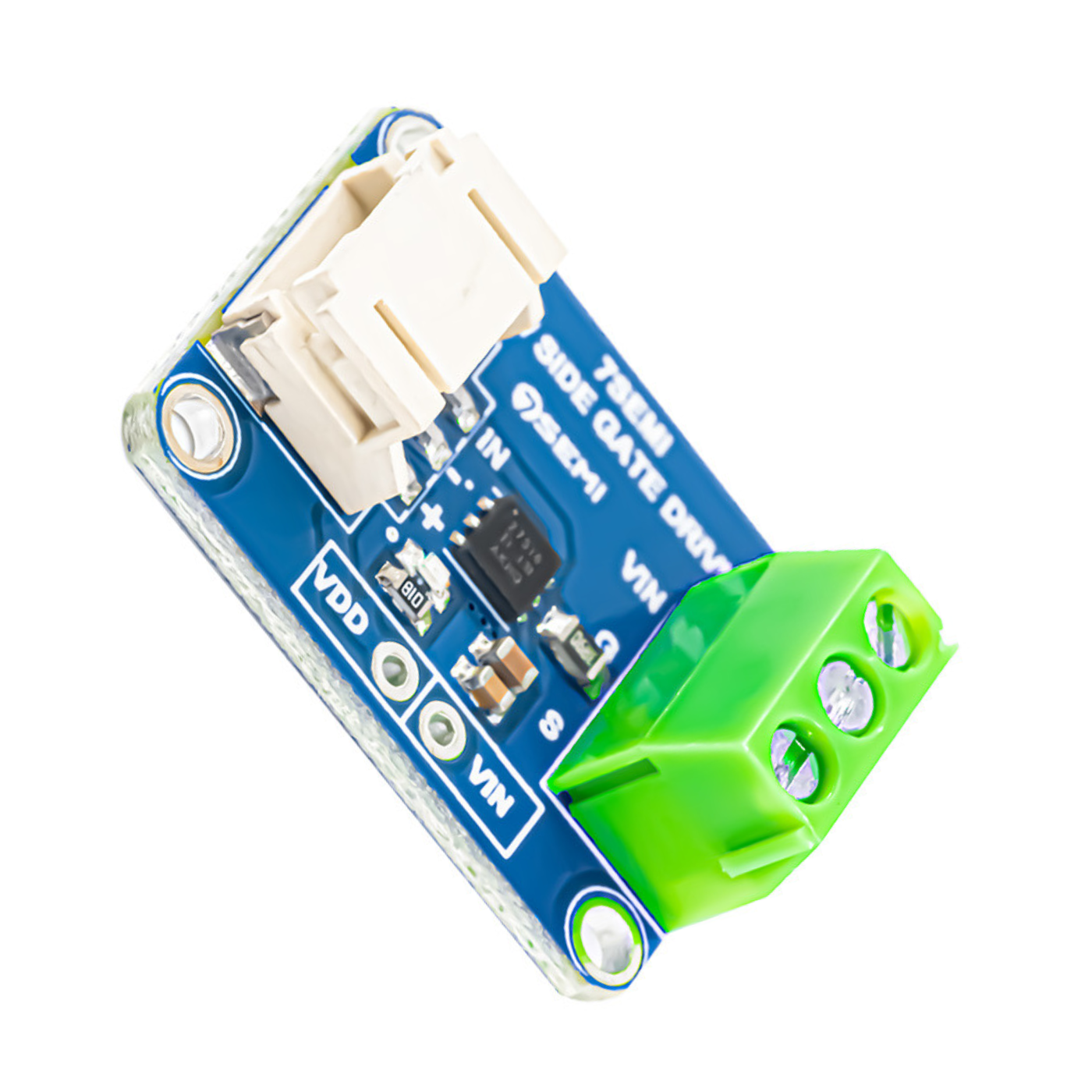

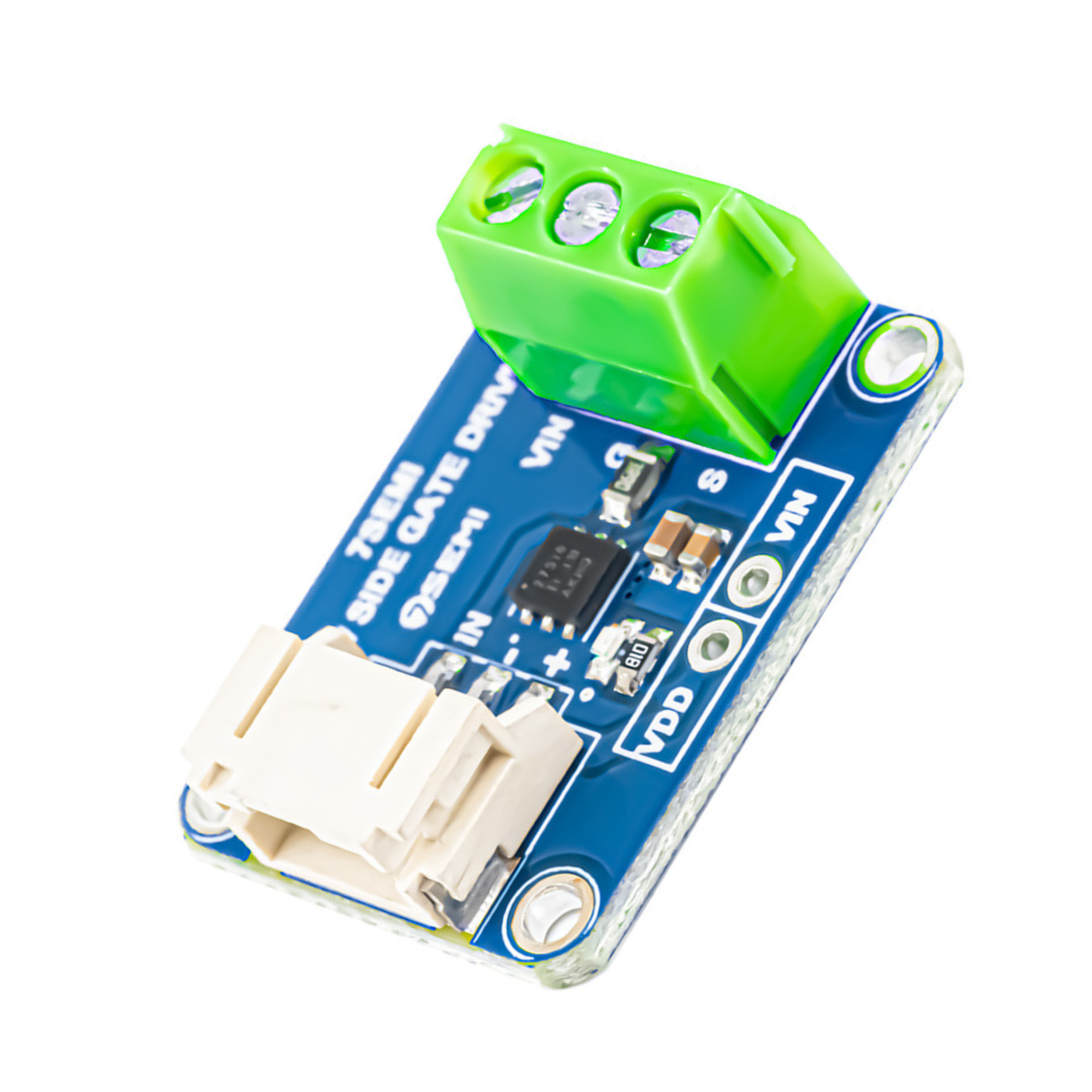

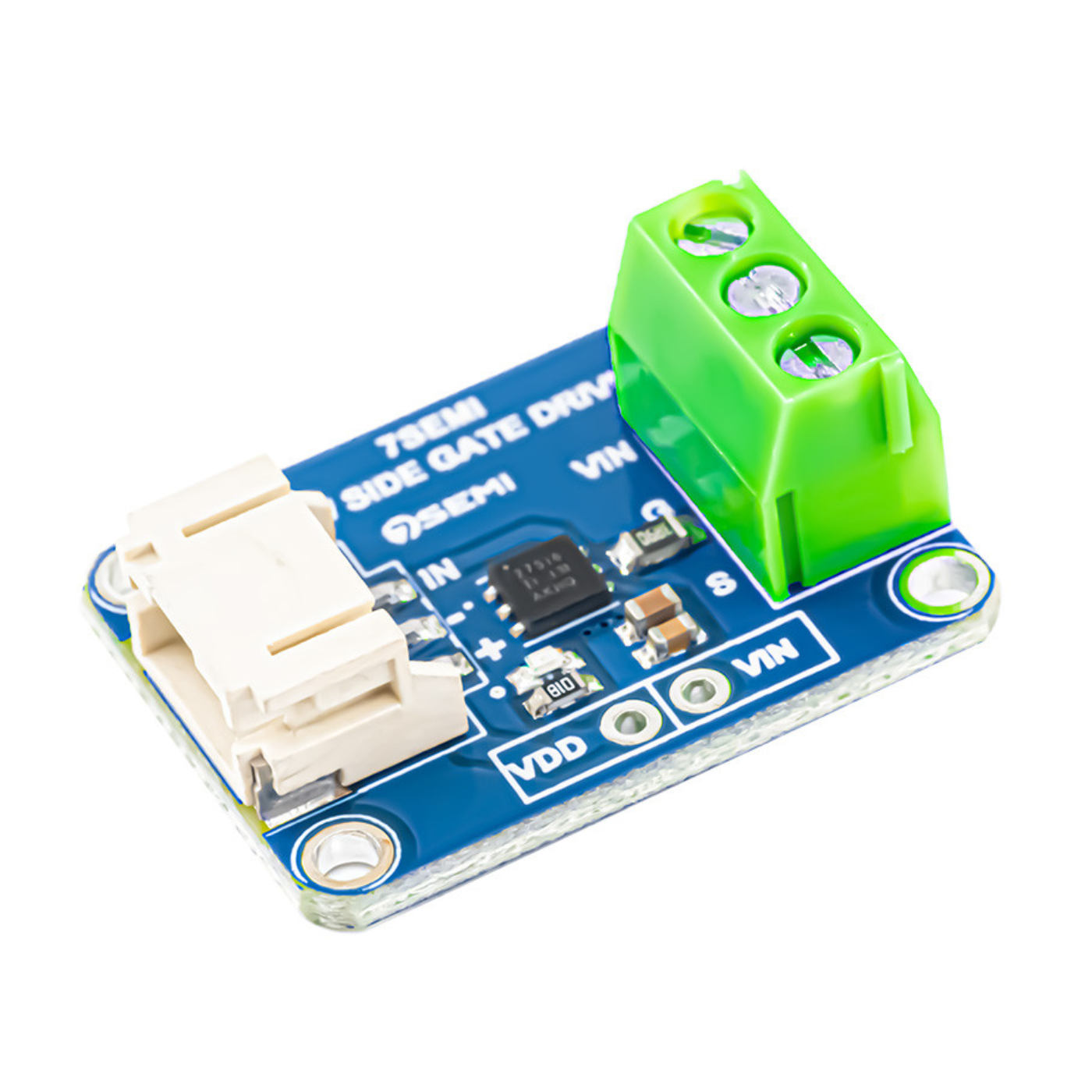

7Semi UCC27516 Gate Driver Breakout Board
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The 7Semi UCC27516 Gate Driver Breakout Board is a compact and high-performance driver module designed for efficiently driving MOSFETs and IGBTs in power electronics applications. Built around the reliable UCC27516 gate driver IC, the board provides up to 4A peak source and peak sink current capability, enabling fast switching performance and improved power conversion efficiency in switching circuits, motor control systems, inverters, and SMPS applications.
Engineered for high-speed switching and stable operation, the breakout board is suitable for engineers, students, and developers working on power management and embedded electronics projects. Its compact design allows easy integration into prototypes and custom hardware setups while ensuring dependable gate driving performance for low-side switching applications. The module supports a wide operating voltage range and is ideal for applications requiring efficient and reliable transistor driving.
| Parameter | Details |
|---|---|
| Product Name | 7Semi UCC27516 Gate Driver Breakout Board |
| Driver IC | UCC27516 |
| Driver Type | Low-Side Gate Driver |
| Peak Source Current | 4A |
| Peak Sink Current | 4A |
| Application Support | MOSFET and IGBT Driving |
| Switching Feature | High-Speed Switching |
| Board Type | Breakout Module |
| Applications | SMPS, Motor Control, Power Electronics |
