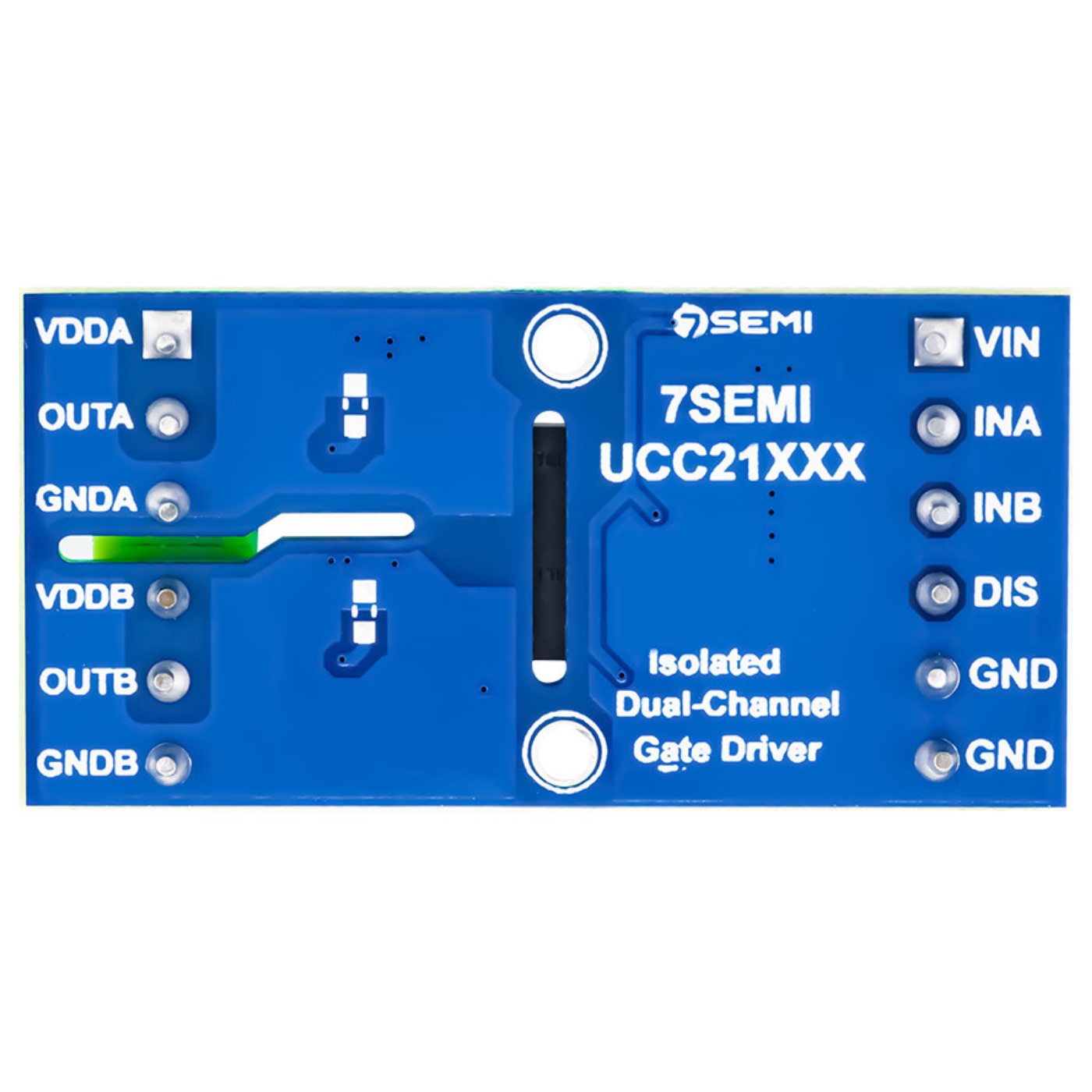

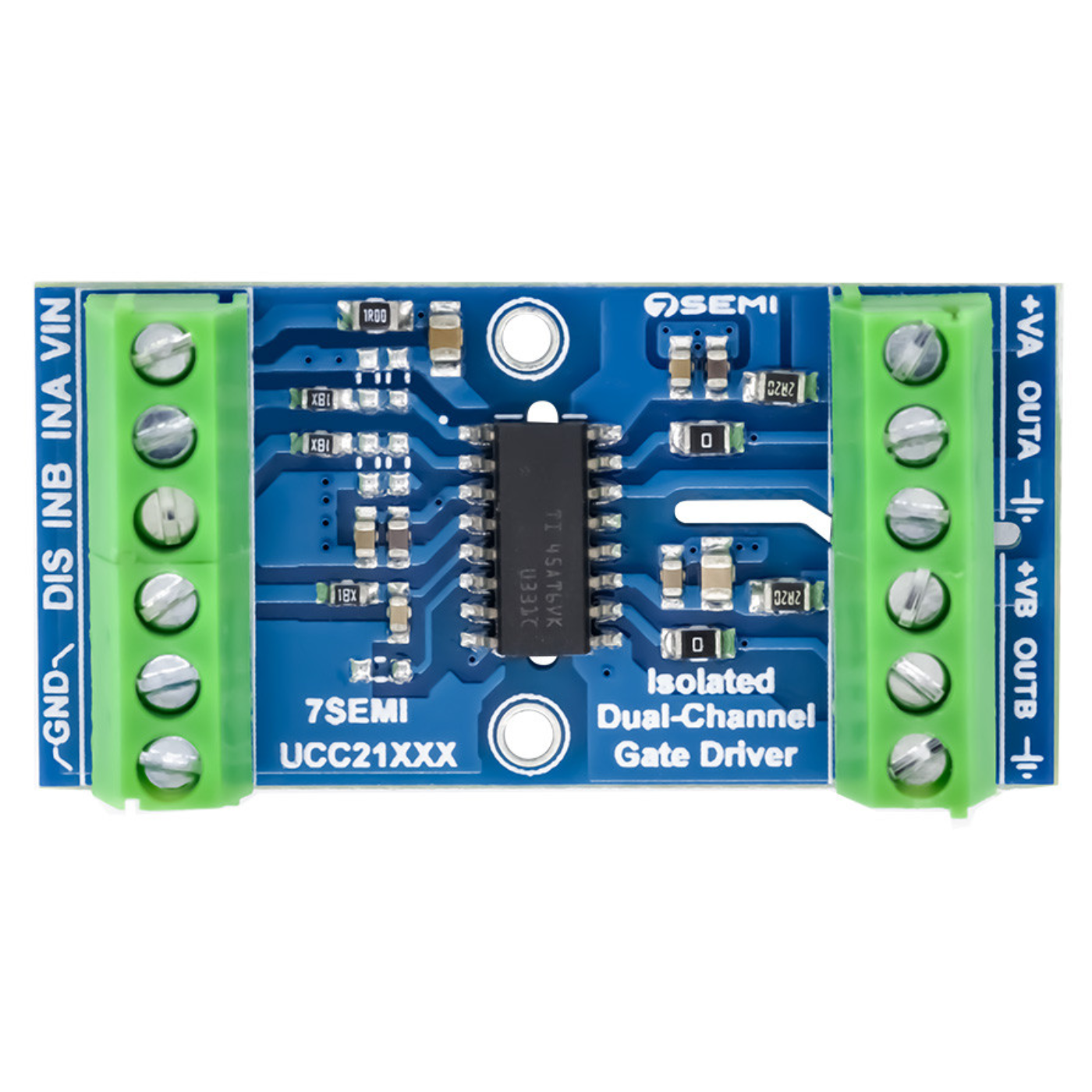

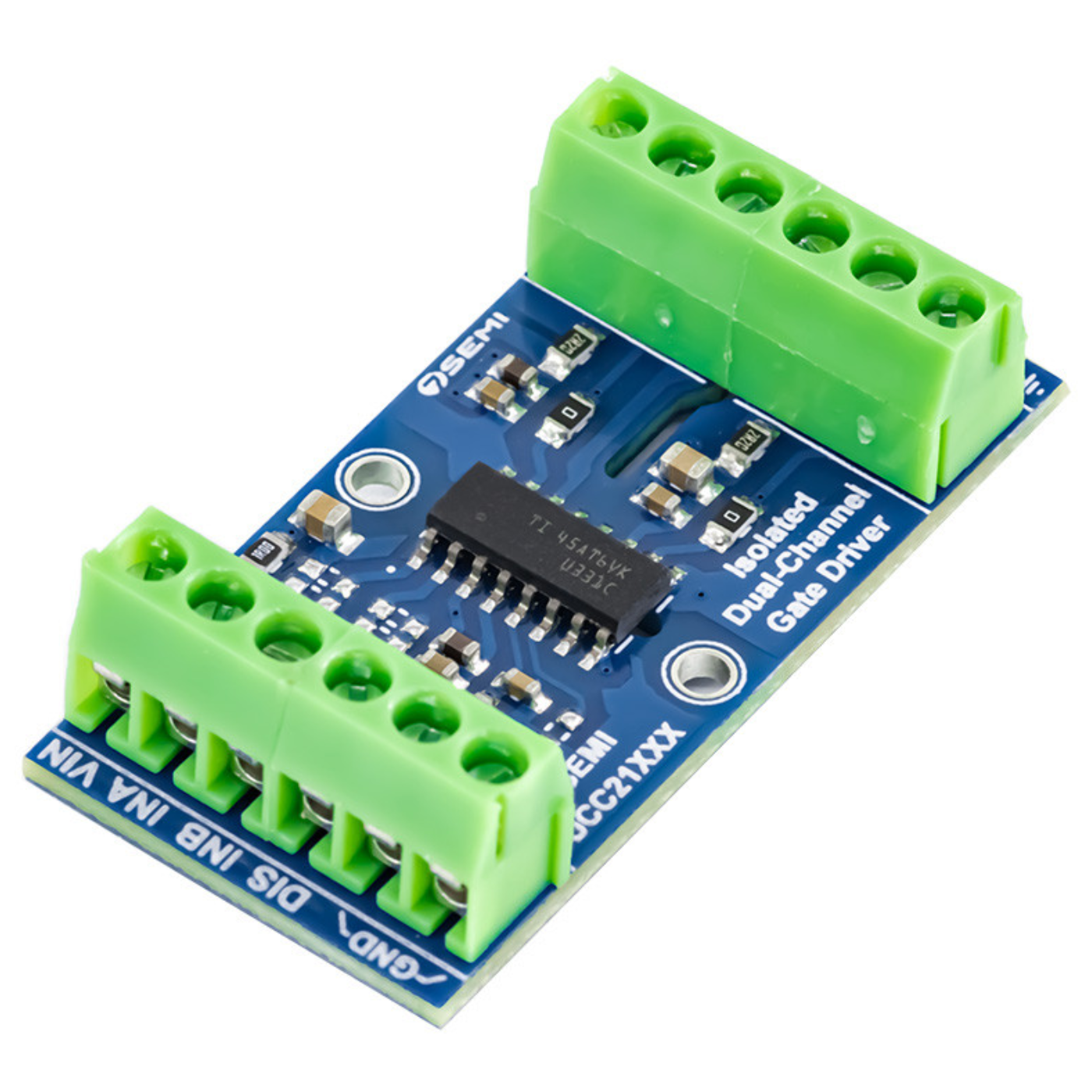

7Semi UCC21331 3kVRMS Isolated Dual-Channel Gate Driver Breakout Board
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The 7Semi UCC21331 3kVRMS Isolated Dual-Channel Gate Driver Breakout Board is a high-performance and reliable solution designed for precise control of power transistors such as MOSFETs, IGBTs, and SiC devices. Powered by the advanced UCC21331 gate driver IC, this board delivers strong and efficient gate driving with 3kVRMS isolation, ensuring safety in high-voltage environments.
Its flexible design allows it to operate in dual low-side, dual high-side, or half-bridge configurations, making it suitable for a wide range of power electronics applications. With fast switching performance, reduced power losses, and built-in protection mechanisms, it ensures stable operation even under demanding conditions.
Engineered to support industrial systems, automotive electronics, motor control applications, and renewable energy solutions, this breakout board is an excellent choice for developers and engineers seeking a dependable and efficient isolated gate driver solution.
| Operating Voltage | 3.3V / 5V |
| Undervoltage Lockout (UVLO) | 12V |
| Fall Time | 8ns |
| Isolation Voltage Withstand | 3000Vrms (3kVRMS) |
| Operating Temperature | -40°C to 70°C |

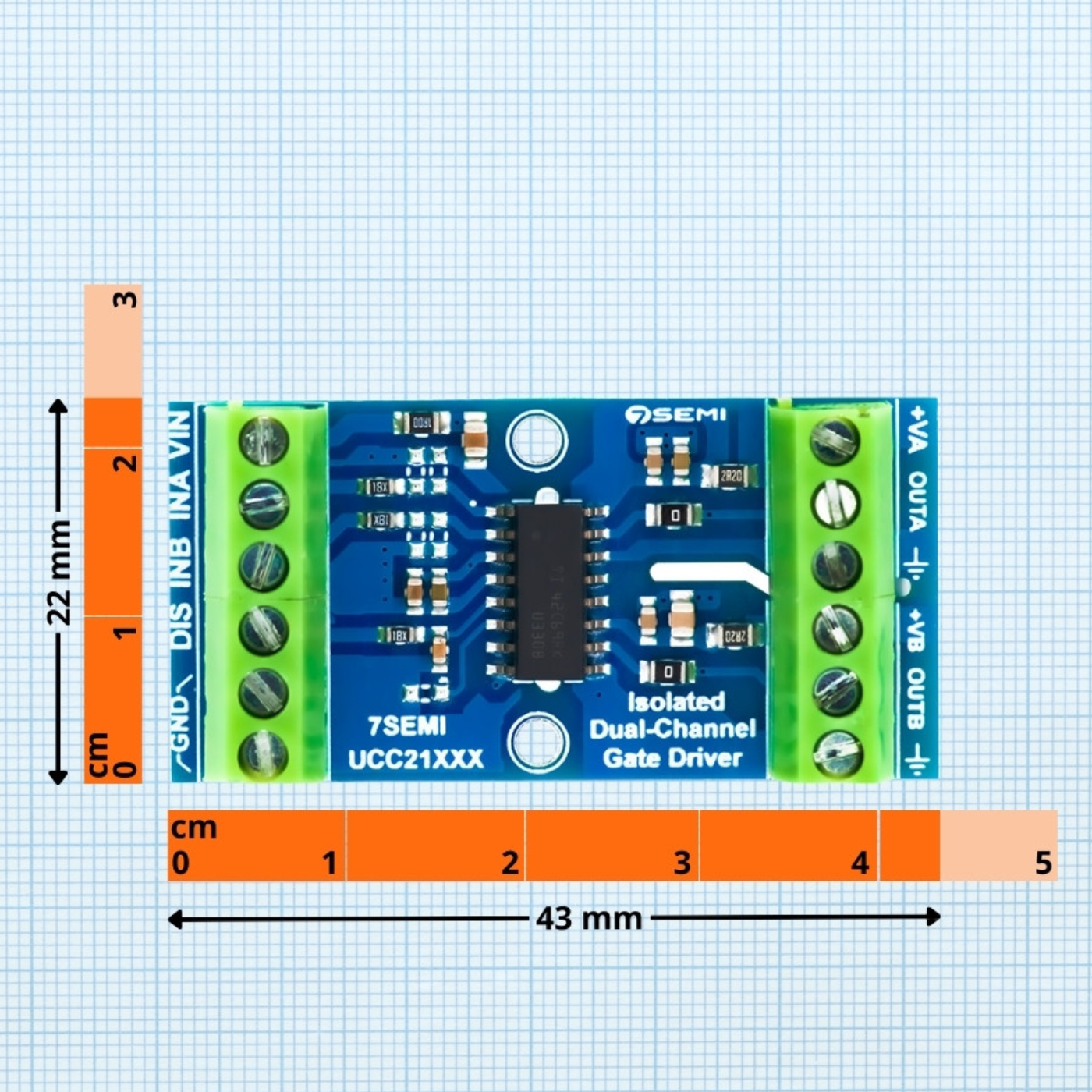

| Dimensions | 44 x 22 x 12 mm |
| Weight | 8 grams |
