High-performance isolated dual-channel gate driver using the UCC21220A IC for driving MOSFETs and GaNFETs efficiently
Peak output current: 4A source and 6A sink for fast and reliable switching of power transistors
3.0 kVRMS isolation barrier between input and output ensures safe operation in high-voltage applications
Ultra-fast switching performance with 40 ns propagation delay and 5 ns delay matching for precise control
Built-in undervoltage lockout (UVLO) protection prevents malfunction during low voltage conditions
Integrated disable function allows instant shutdown for improved system safety
Designed for high-efficiency power conversion, reducing switching losses in demanding circuits
Ideal isolated gate driver breakout board for motor drivers, SMPS, inverters, and industrial automation

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

7Semi UCC21220A Isolated Dual-channel Gate Driver Breakout Board

~~Rs 849/-~~ Rs 494/-

Quantity:

7Semi UCC21220A Isolated Dual-channel Gate Driver Breakout Board

~~Rs 849/-~~ Rs 494/-

Description
Specifications
Additional Resources
Shipping & Return

Description

7Semi UCC21220A Isolated Dual-channel Gate Driver Breakout Board

The 7Semi UCC21220A isolated dual-channel gate driver breakout board is a powerful and reliable solution for driving MOSFETs and GaNFETs in high-performance electronic systems. Built around the advanced UCC21220A IC, this isolated gate driver delivers a strong 4A source and 6A sink current, enabling fast switching and improved efficiency in power electronics applications.

With a robust 3.0 kVRMS isolation barrier, it ensures safe signal transmission between control and high-voltage domains, making it ideal for industrial and motor control systems. The board features a rapid 40 ns propagation delay with tight 5 ns delay matching, ensuring precise timing in switching operations.

Equipped with essential protections like undervoltage lockout (UVLO) and a disable function, this dual-channel gate driver breakout board enhances system reliability and safety. Whether you're designing motor drives, power converters, or automation systems, this module serves as a compact and efficient isolated MOSFET/IGBT gate driver solution for demanding applications.

Features:

High Current Drive Strength: 6A peak-sink and 4A peak-source for GaNFETs and MOSFETs.
Exceptional Propagation Delay: High-speed operation is guaranteed by a maximum propagation delay of 40 ns.
Precision Delay Matching: In half-bridge designs, 5ns maximum delay matching guarantees optimal performance.
Strong Ground Bounce Protection: Over 100V/ns CMTI for dependable performance in noisy settings.
Integrated Protection: Active pulldown, UVLO, and DIS pin offer improved control and safety.
Versatile Configuration: For enhanced drive strength, they can be employed as half-bridge, high-side, or low-side drivers with parallel output options.

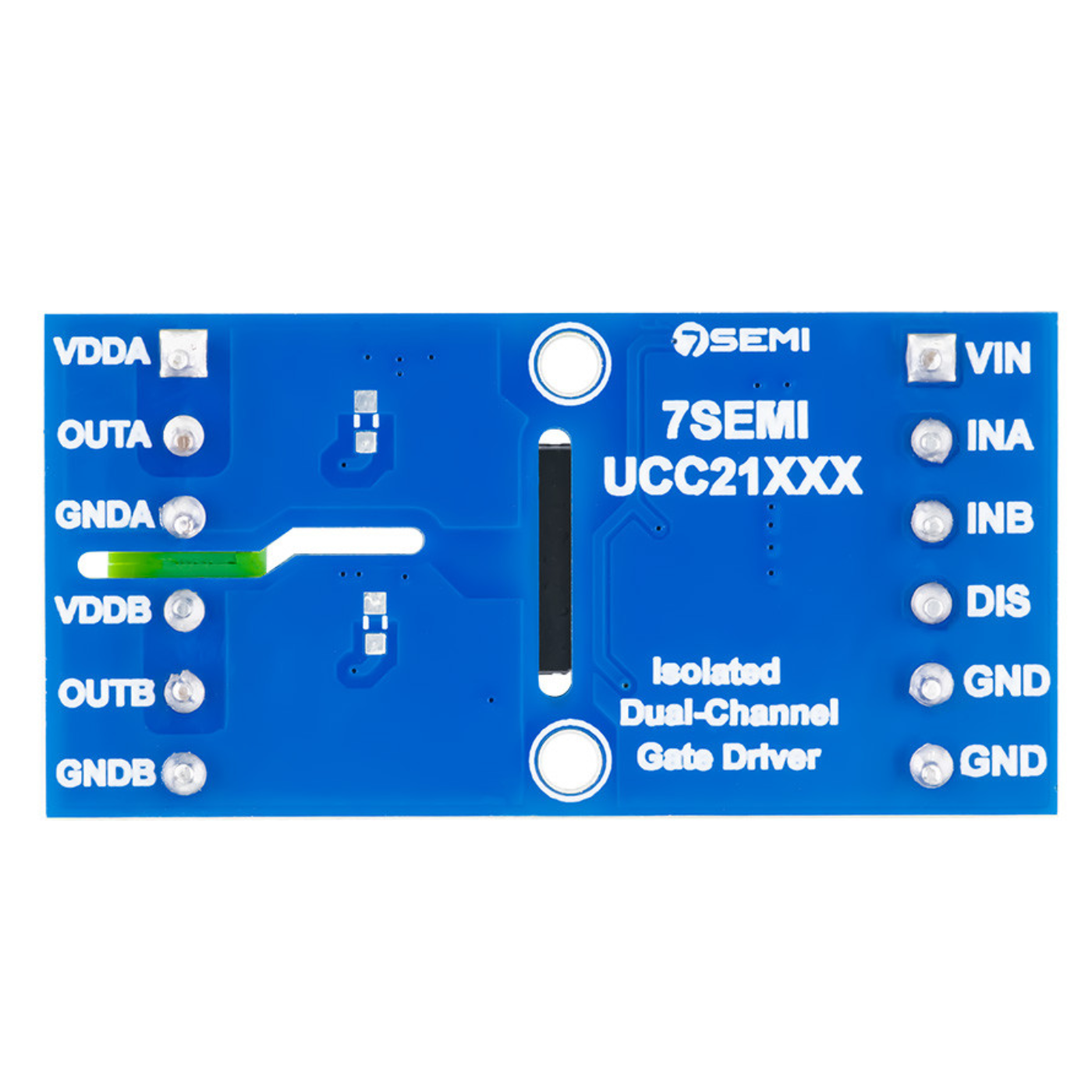

Pinout Diagram:

Specifications

Package Includes:

1 x 7Semi UCC21220A Isolated Dual-channel Gate Driver Breakout Board

Specifications:

Category	Gate Driver
Input Voltage	5V
Output Voltage	12V to 25V
Operating Temperature	-40°C to +85°C
Fall Time	8 ns
Propagation Delay	40 ns
Undervoltage Lockout (UVLO)	8V
Withstand Isolation Voltage	3000 Vrms

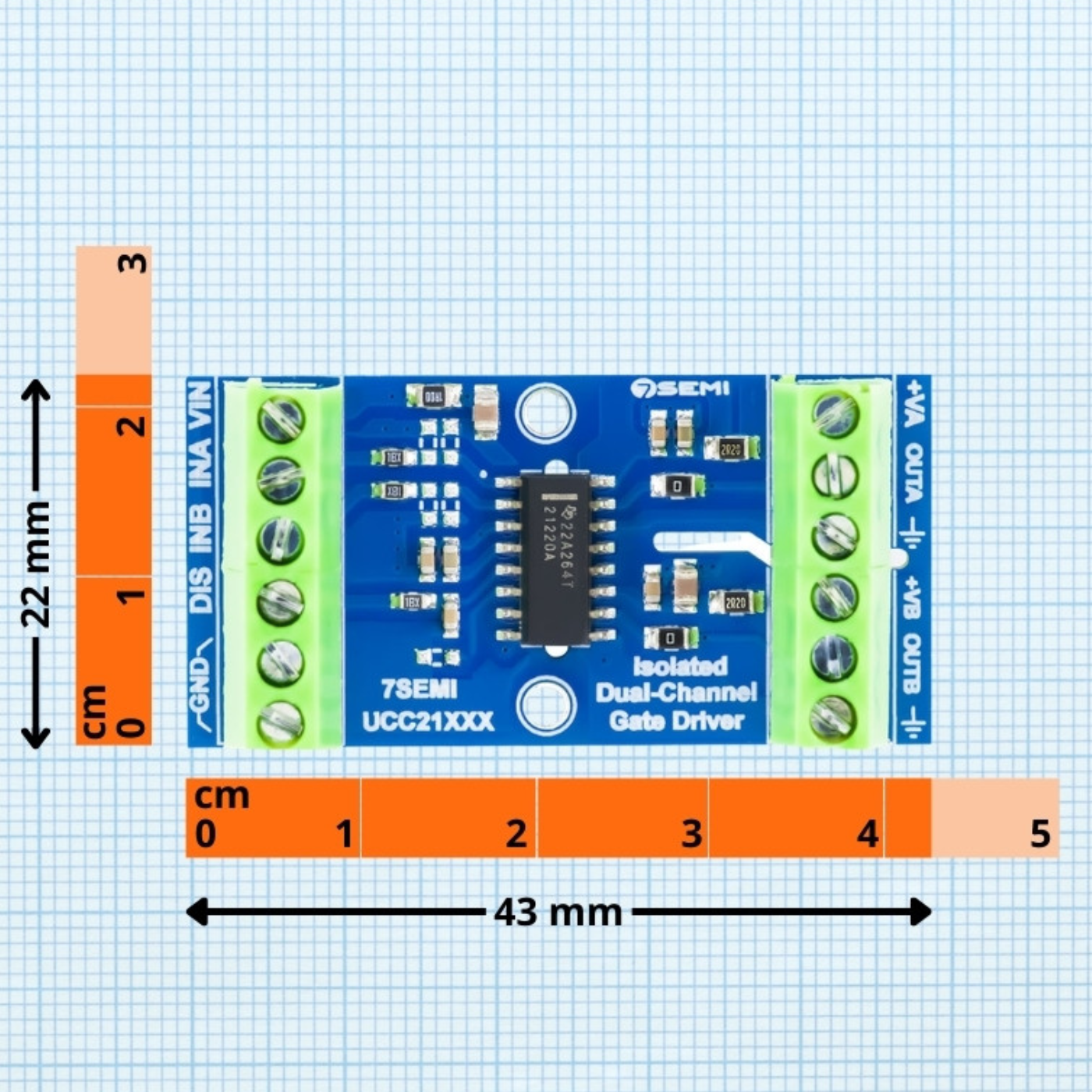

Product Dimensions	L = 43 mm × W = 22 mm × H = 12.29 mm
