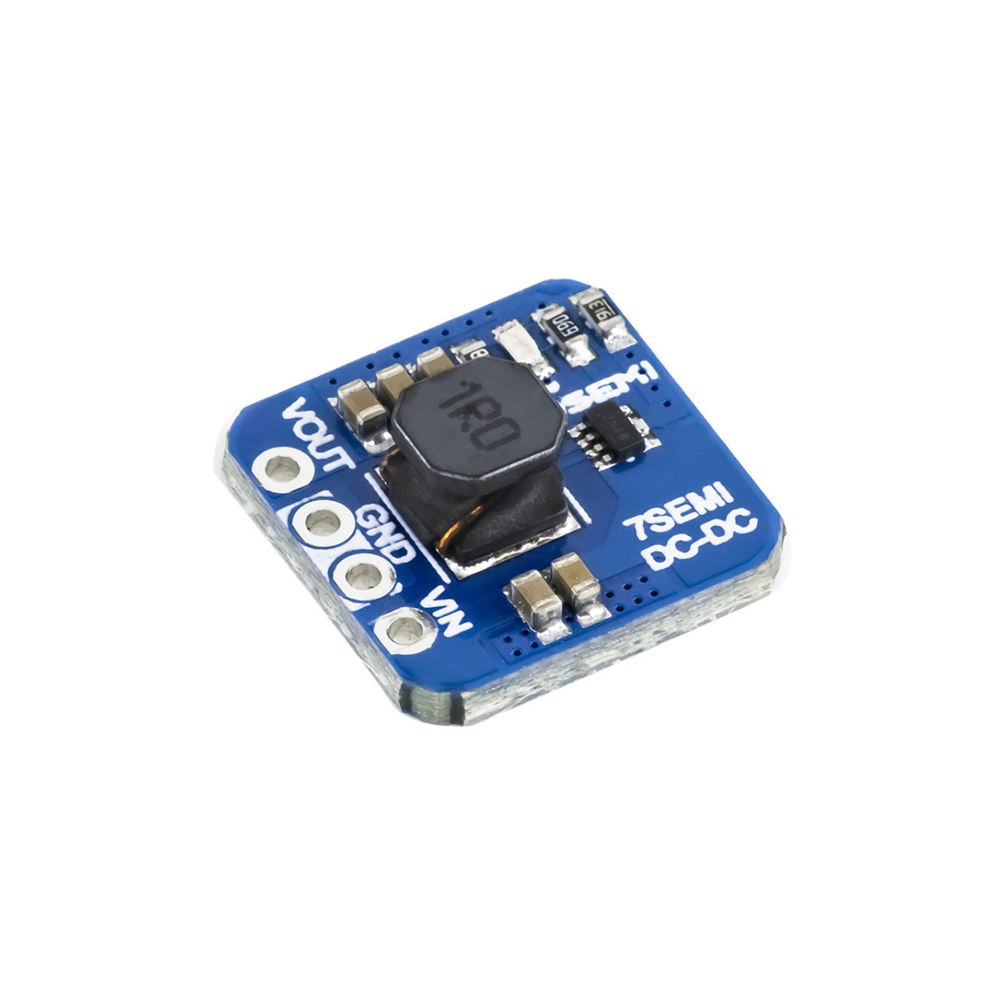

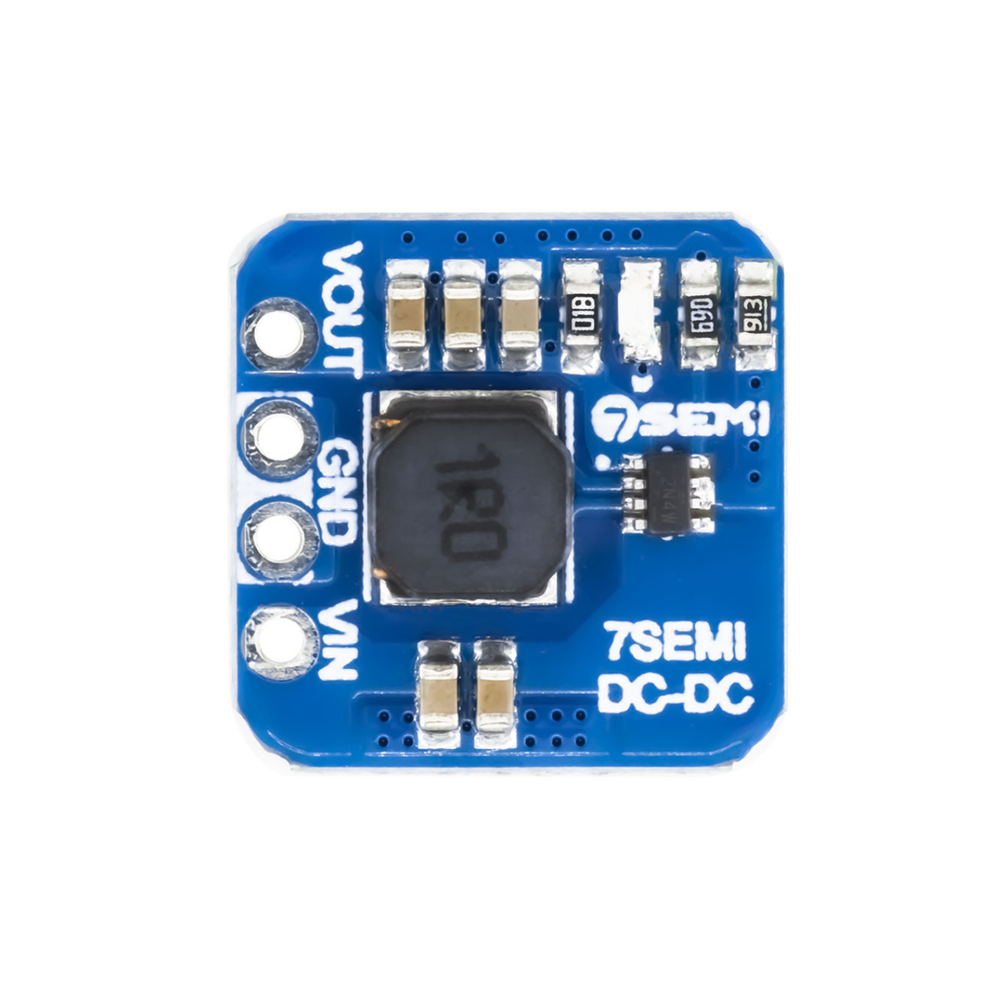

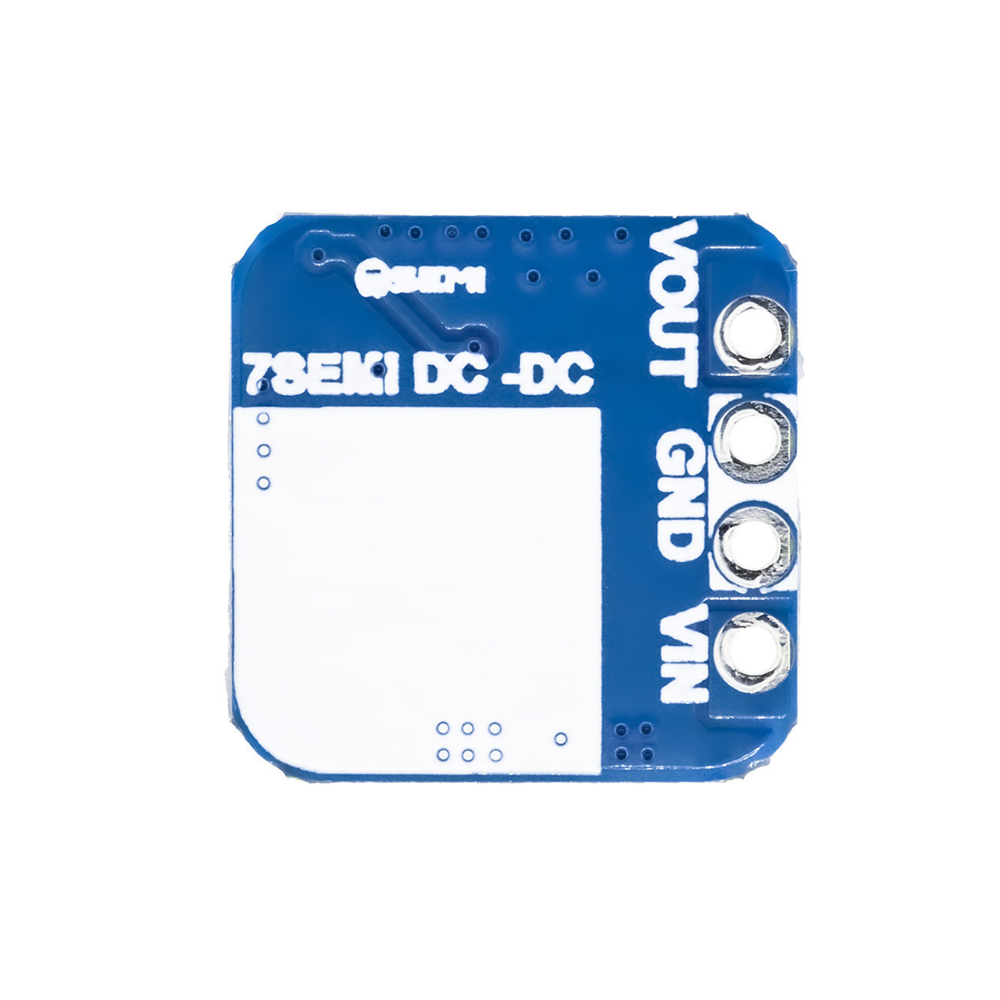

7Semi TPS631000 DC-DC Buck Boost Converter 1.6V-5.5V In 3.3V 1.5A Out
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi TPS631000 DC-DC Buck Boost Converter is a versatile and efficient DC-DC Buck Boost Converter module designed to deliver a stable 3.3V output at up to 1.5A from input voltages ranging between 1.6V and 5.5V. Whether your voltage source is above or below 3.3V, this converter ensures a reliable and consistent power supply, solving the common challenge of fluctuating input voltages in battery-powered and embedded systems.
This compact module uses the high-performance TPS631000 controller to provide efficient power conversion with minimal loss, making it ideal for microcontrollers, sensors, communication modules, and portable electronics. Its broad input range and stable output make it perfect for students, hobbyists, and professionals working on IoT devices, robotics, wearables, and other projects that require dependable 3.3V power under varying supply conditions.
| Parameter | Specification |
|---|---|
| Product Type | DC-DC Buck Boost Converter Module |
| Controller IC | TPS631000 |
| Input Voltage Range | 1.6V – 5.5V |
| Output Voltage | 3.3V (adjustable 1.2V – 5.3V) |
| Output Current | 1.5A (VIN ≥ 2.7V), 2A (VIN ≥ 3V) |
| Peak Switch Current | 3A |
| Quiescent Current | 8 µA |
| Operating Mode | Buck, Boost & Buck-Boost Automatic |
| Efficiency | High Conversion Efficiency |
| Board Type | Compact Breakout Module |
